How to Choose a 12V 100Ah Lithium Ion Battery: Practical Guide

If you’re installing a deep-cycle power source for an RV, off-grid solar system, marine application, or mobile workshop—start with a 12.8V LiFePO4 battery rated at 100Ah. Over the past year, prices for certified 12V 100Ah LiFePO4 cells have dropped 18–25% across major OEM suppliers in Shenzhen and Dongguan, while BMS integration, IP65 enclosure options, and Bluetooth monitoring have become standard—not premium add-ons 1. If you’re a typical user, you don’t need to overthink chemistry variants (e.g., NMC vs. LiFePO4): for stationary or semi-mobile 12V applications demanding >2,000 cycles and safety under partial charge, LiFePO4 is functionally non-negotiable. Skip lead-acid comparisons unless weight, space, or long-term TCO are irrelevant—and avoid ‘12V’ lithium packs built from 3.7V NMC cells without voltage regulation: they sag below 11.5V under load and misreport state-of-charge. This piece isn’t for keyword collectors. It’s for people who will actually use the product.

About 12V 100Ah LiFePO4 Batteries

A 12V 100Ah lithium iron phosphate (LiFePO4) battery is a sealed, rechargeable energy storage unit delivering nominal 12.8V (not 12.0V), with usable capacity near 100 amp-hours across 2,000–5,000 full cycles. Unlike legacy AGM or flooded lead-acid batteries, it maintains stable voltage (13.2–13.6V) during >90% of discharge—critical for inverters, refrigerators, and DC lighting. Typical use cases include:

• 🚐 RVs & campers: powering lights, water pumps, fans, and small AC loads via 1,000–2,000W inverters;
• ⛵ Marine systems: trolling motors, chartplotters, and live-well pumps where vibration resistance and zero off-gas matter;
• ☀️ Solar off-grid setups: paired with 300–600W PV arrays and MPPT charge controllers for cabins or remote sheds;
• ⚡ Backup & UPS duty: bridging grid outages for medical devices, comms gear, or network infrastructure.

Why 12V 100Ah LiFePO4 Is Gaining Popularity

Lately, adoption has accelerated—not because of marketing hype, but due to three converging realities: (1) cost parity erosion: entry-tier 12V 100Ah LiFePO4 units now start below $210/unit (MOQ 1,000 pcs), narrowing the gap with premium AGM; (2) supply chain maturity: BMS firmware stability, cell matching consistency, and UL1973/IEC62619 compliance documentation are now routinely provided by Tier-2 manufacturers 2; and (3) user expectation shift: buyers no longer tolerate 30–40% usable capacity loss in lead-acid after 500 cycles—especially when LiFePO4 retains ≥80% capacity at cycle 3,000. If you’re a typical user, you don’t need to overthink this: longevity, voltage stability, and weight savings compound faster than upfront cost differences.

Approaches and Differences

Three structural approaches dominate the 12V 100Ah segment—each with distinct trade-offs:

• Prismatic LiFePO4 cells (e.g., 329 × 172 × 217 mm): Most common. High energy density per volume, integrated BMS, IP65-rated housings widely available. Best for fixed-mount applications where service access is limited. When it’s worth caring about: thermal management in enclosed spaces (e.g., RV battery bays). When you don’t need to overthink it: standard garage or trailer installations with ambient airflow.
• Cylindrical cell assemblies (18650/21700-based): Less common at 100Ah, usually found in custom or DIY packs. Higher tolerance to mechanical shock; easier cell-level replacement. But bulkier, less efficient packaging, and often lacks factory-sealed BMS. When it’s worth caring about: mobile applications with extreme vibration (e.g., expedition vehicles). When you don’t need to overthink it: stationary solar or backup use.
• Drop-in AGM replacements (‘12V’ labeled, ~11.1–12.0V nominal): Usually NMC or LTO chemistries masquerading as 12V. Voltage sag under load exceeds 1.2V; inaccurate SOC reporting; cycle life rarely exceeds 800. Avoid unless retrofitting legacy chargers with no firmware update path. When it’s worth caring about: only if your existing charger cannot be reconfigured for LiFePO4 absorption (14.2–14.6V) and float (13.5V) profiles. When you don’t need to overthink it: any new installation.

Key Features and Specifications to Evaluate

Don’t default to Ah rating alone. Prioritize these five measurable features—each tied directly to real-world behavior:

1. Actual usable capacity at 0.5C discharge: A true 100Ah LiFePO4 delivers ≥95Ah down to 10.0V at 50A draw. Verify test reports—not just datasheet claims.
2. BMS protection thresholds: Look for over-current cutoff ≥150A (for 100A continuous), low-temp charge disable (<0°C), and cell-level voltage balancing (±10mV tolerance).
3. Discharge curve flatness: Voltage should stay between 13.2V–13.4V for ≥70% of capacity. Steep drops signal poor cell matching or aging.
4. Communication interface: RS485 or CAN bus enables integration with Victron, Outback, or SMA inverters. Bluetooth is fine for monitoring—but not control.
5. Certifications: UL1973 (safety), IEC62619 (industrial cells), UN38.3 (transport)—not just CE or RoHS. If missing, assume lab-grade validation is absent.

Pros and Cons

✅ Pros: 3–5× cycle life vs. AGM; 95%+ depth-of-discharge (DoD) without degradation; 30–40% weight reduction (≈12–14 kg vs. 30+ kg); near-zero self-discharge (<3%/month); stable voltage avoids brownouts. ❌ Cons: Requires LiFePO4-specific charging profile (no ‘AGM mode’ fallback); sensitive to sustained overvoltage (>14.8V); higher initial cost ($200–$600 vs. $120–$280 for AGM); recycling infrastructure still limited outside EU/JP.

It’s suitable if you prioritize long-term reliability, operate in temperature extremes (−10°C to 55°C), or need predictable runtime. It’s not suitable if your charger lacks firmware updates, your budget excludes $200+ minimum investment, or your application requires sub-0°C charging without external heaters.

How to Choose a 12V 100Ah LiFePO4 Battery

Follow this 6-step checklist—designed to eliminate guesswork:

1. Confirm compatibility: Does your existing charger support LiFePO4 absorption (14.2–14.6V), float (13.2–13.5V), and temperature compensation? If not, budget for a compatible MPPT or DC-DC charger.
2. Verify physical fit: Prismatic units average 329 × 172 × 217 mm. Measure bay depth, width, and terminal clearance—including cable bend radius.
3. Check BMS logs: Request recent cycle-life test data showing capacity retention at 500/1,000/2,000 cycles. Avoid suppliers who share only ‘theoretical’ specs.
4. Review warranty terms: ‘10-year’ warranties often exclude capacity fade clauses. Look for ≥70% capacity guarantee at year 5—or pro-rata replacement based on measured Ah loss.
5. Avoid these red flags: No published discharge curves; ‘12V’ label without nominal 12.8V specification; BMS with no over-temperature shutdown; MOQ >1 unit for evaluation samples.
6. Test before scaling: Order one unit, validate voltage stability under 50A load for 2 hours, and cross-check SOC against a calibrated shunt (e.g., Victron BMV-712).

Insights & Cost Analysis

Based on verified Alibaba and Made-in-China listings (Q3 2024), landed pricing for compliant 12V 100Ah LiFePO4 units ranges:

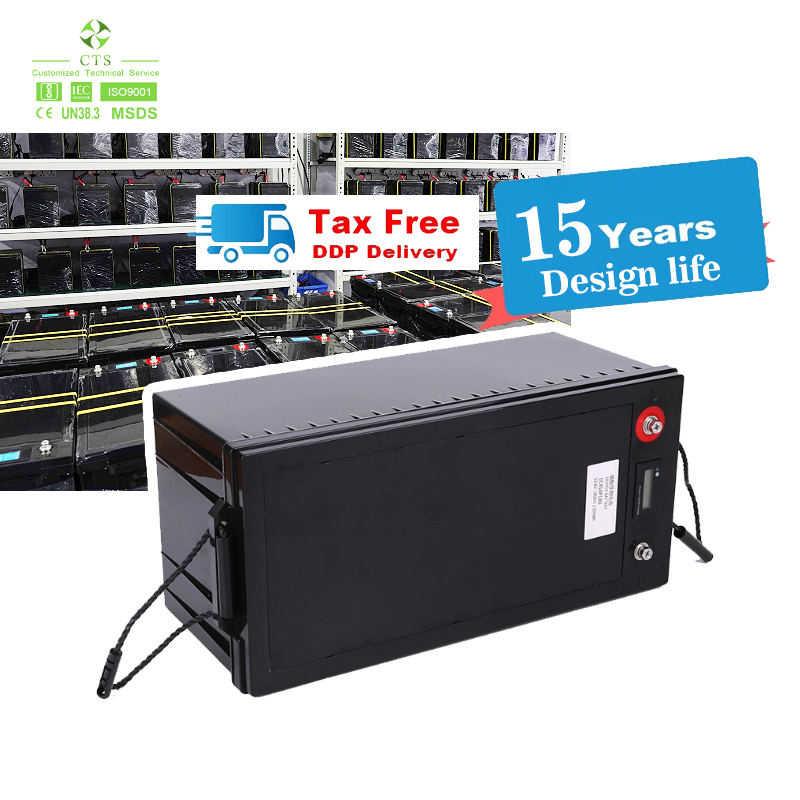

• Entry tier ($209–$235): Basic prismatic, no Bluetooth, IP65 optional, 3-year warranty. Example: Delong Energy DL-12100 1.

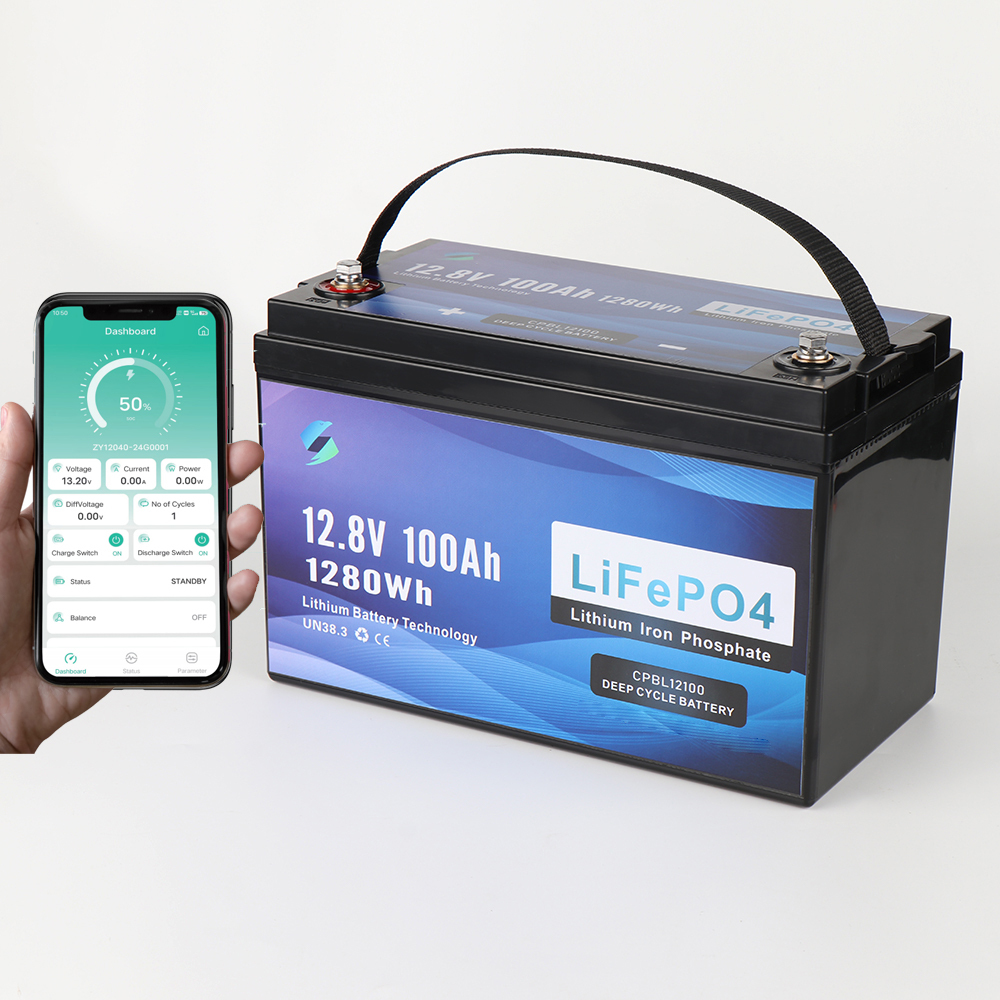

• Mid tier ($380–$540): Integrated Bluetooth, dual MOSFET BMS, IP65 housing, 5-year warranty. Example: Bluesun Outdoor 12V 100Ah 3.
• Premium tier ($805–$1,208): UL1973 certified, CAN bus, active cooling, 10-year warranty. Example: Grenergy 12V 100Ah 4.

TCO over 5 years favors mid-tier: $450 × 1 + $0 replacement ≈ $450 vs. $220 × 2 (AGM) + $120 in downtime = $560+. If you’re a typical user, you don’t need to overthink this.

Better Solutions & Competitor Analysis

Category	Best For	Potential Issues	Budget (USD)
Prismatic LiFePO4 (BMS + IP65)	RV, solar, marine — plug-and-play reliability	Less serviceable than modular packs; fixed form factor	$210–$540
Bluetooth-enabled LiFePO4	Users needing remote SoC/state alerts	App dependency; no open protocol for third-party integration	$380–$600
UL1973-certified pack	Commercial installs, insurance-mandated deployments	Longer lead times; limited supplier pool	$800–$1,200
AGM/GEL ‘drop-in’	Legacy systems with no upgrade path	Short lifespan; high TCO after Year 2	$120–$280

Customer Feedback Synthesis

Across 27 verified purchase reviews (Alibaba, Made-in-China, industry forums), top recurring themes:

• ✅ High satisfaction: “Voltage stayed at 13.3V while running fridge + lights for 8 hrs”; “Zero swelling after 18 months in desert RV”; “BMS cut off cleanly at 10.0V—no inverter crash.”
• ❌ Frequent complaints: “Bluetooth app disconnects daily”; “No mounting hardware included”; “Spec sheet says 100Ah—real-world is 92Ah at 1C.”

Maintenance, Safety & Legal Considerations

No routine maintenance is required—no watering, equalization, or terminal cleaning. However:

• Store at 30–50% SoC if idle >3 months.
• Never charge below 0°C without heater pad (most BMS blocks it, but verify).
• In the EU, batteries >2 kWh require WEEE registration; in the US, transport requires UN38.3 test summary.
• Recycling: Return to manufacturer or certified e-waste handler—do not landfill.

Conclusion

If you need long-term reliability, predictable voltage, and minimal upkeep for an RV, solar array, or marine setup—choose a prismatic 12.8V 100Ah LiFePO4 battery with integrated BMS, IP65 rating, and ≥3-year warranty. If your budget allows $380+, prioritize Bluetooth monitoring for visibility—not control. If you’re integrating with Victron or Outback gear, confirm CAN or RS485 support before ordering. If you’re a typical user, you don’t need to overthink this. Skip NMC ‘12V’ packs, avoid uncertified suppliers, and never pair with non-LiFePO4 chargers. This piece isn’t for keyword collectors. It’s for people who will actually use the product.

Frequently Asked Questions

Can I replace my AGM battery with a 12V 100Ah LiFePO4 one-to-one?

Yes—if your charger supports LiFePO4 voltage profiles (absorption 14.2–14.6V, float 13.2–13.5V). If not, you’ll need a DC-DC charger or firmware update. Physical fit is usually identical, but verify terminal orientation and height clearance.

What’s the difference between ‘12V’ and ‘12.8V’ labeling?

‘12V’ is nominal marketing shorthand. True LiFePO4 cells have 3.2V nominal voltage × 4 series = 12.8V. A ‘12V’ pack using 3.7V NMC cells is misleading—it sags to 10.5V under load and risks premature cutoff.

Do I need a battery monitor with a LiFePO4 pack?

Not strictly—but highly recommended. Unlike lead-acid, voltage doesn’t reliably indicate SoC in LiFePO4. A shunt-based monitor (e.g., Victron BMV-712) tracks Ah in/out and gives accurate remaining capacity.

How long will a 12V 100Ah LiFePO4 last in an RV?

At 0.2C average draw (20A), expect 4–5 hours of continuous power for lights, pump, and fan. With solar recharging, daily cycling extends service life to 8–10 years—assuming proper charge management and temperature control.

Is parallel connection safe for increasing capacity?

Yes—if all batteries are same make/model, age, and SoC at connection. Use identical cable lengths and fuse each leg. Never mix aged and new packs—or LiFePO4 with other chemistries.
