If you’re a typical user—a controls engineer, system integrator, or industrial IoT developer—you don’t need to overthink this. Over the past year, demand for 16-channel analog input modules has sharpened around two realities: tighter panel space in Micro800 and CompactLogix cabinets, and rising expectations for signal integrity across mixed-voltage (0–10 V, ±10 V, 4–20 mA) field deployments. The top-performing units—like the Acromag XT1240 (isolated Ethernet), Allen-Bradley 1769-IF16C (CompactLogix current-input), and MCC USB-1616HS-4 (PC-based DAQ)—share three traits: 16-bit resolution minimum, channel-to-channel isolation or high CMRR (>100 dB), and vendor-supported configuration tools—not raw speed alone. Skip modules lacking per-channel scaling or diagnostics. If your application involves temperature/pressure monitoring in HVAC or process skids, prioritize modules with built-in linearization and cold-junction compensation. For audio or lab-grade measurement, look beyond ‘16 channels’ to simultaneous sampling and THD < -90 dB. This piece isn’t for keyword collectors. It’s for people who will actually use the product.
About 16-Channel Analog Input Modules
A 16-channel analog input module is a hardware interface that digitizes up to sixteen continuous physical signals—typically voltage (±10 V, 0–10 V), current (4–20 mA, 0–20 mA), or thermocouple/mV inputs—and delivers them to a controller (PLC, PAC, or PC). Unlike discrete I/O, analog modules handle variable-range measurements: tank level, motor temperature, flow rate, or audio line-level feeds. They sit between field sensors and control logic, converting millivolt or milliamp signals into usable digital values (e.g., 0–65535 for 16-bit). Their core function isn’t just acquisition—it’s conditioning: filtering noise, rejecting common-mode interference, and compensating for lead resistance or ambient drift.
Why 16-Channel Analog Input Modules Are Gaining Popularity
Lately, adoption has accelerated—not because 16 is a magic number, but because it hits a practical inflection point. Smaller PLCs like Rockwell’s Micro800 now support high-density 16-channel slots (e.g., 2085sc-IF16V), cutting module count by 50% versus eight-channel alternatives. That saves panel space, reduces wiring labor, and lowers long-term maintenance overhead. Simultaneously, distributed systems—especially in water treatment, packaging lines, and renewable energy monitoring—require more sensor points without adding racks. Users aren’t choosing 16 channels for theoretical scalability; they’re choosing it to avoid mid-project hardware swaps when sensor counts creep from 12 to 14 to 17. Also, modern modules bundle diagnostics (open-wire detection, overrange alerts) previously reserved for high-end systems—making predictive maintenance feasible at entry-tier budgets.
Approaches and Differences
Three architectures dominate today’s market:

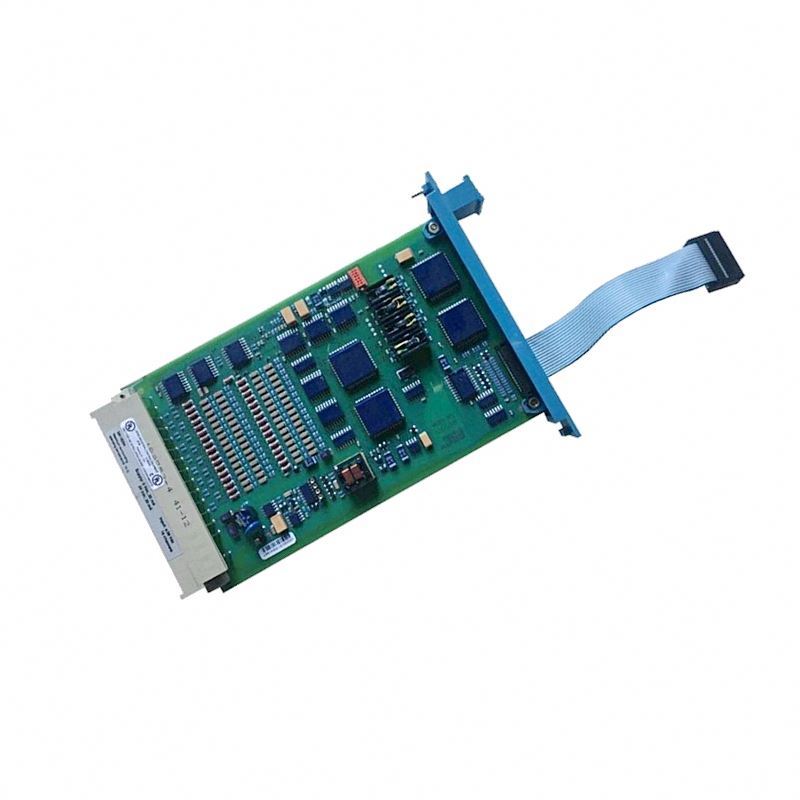

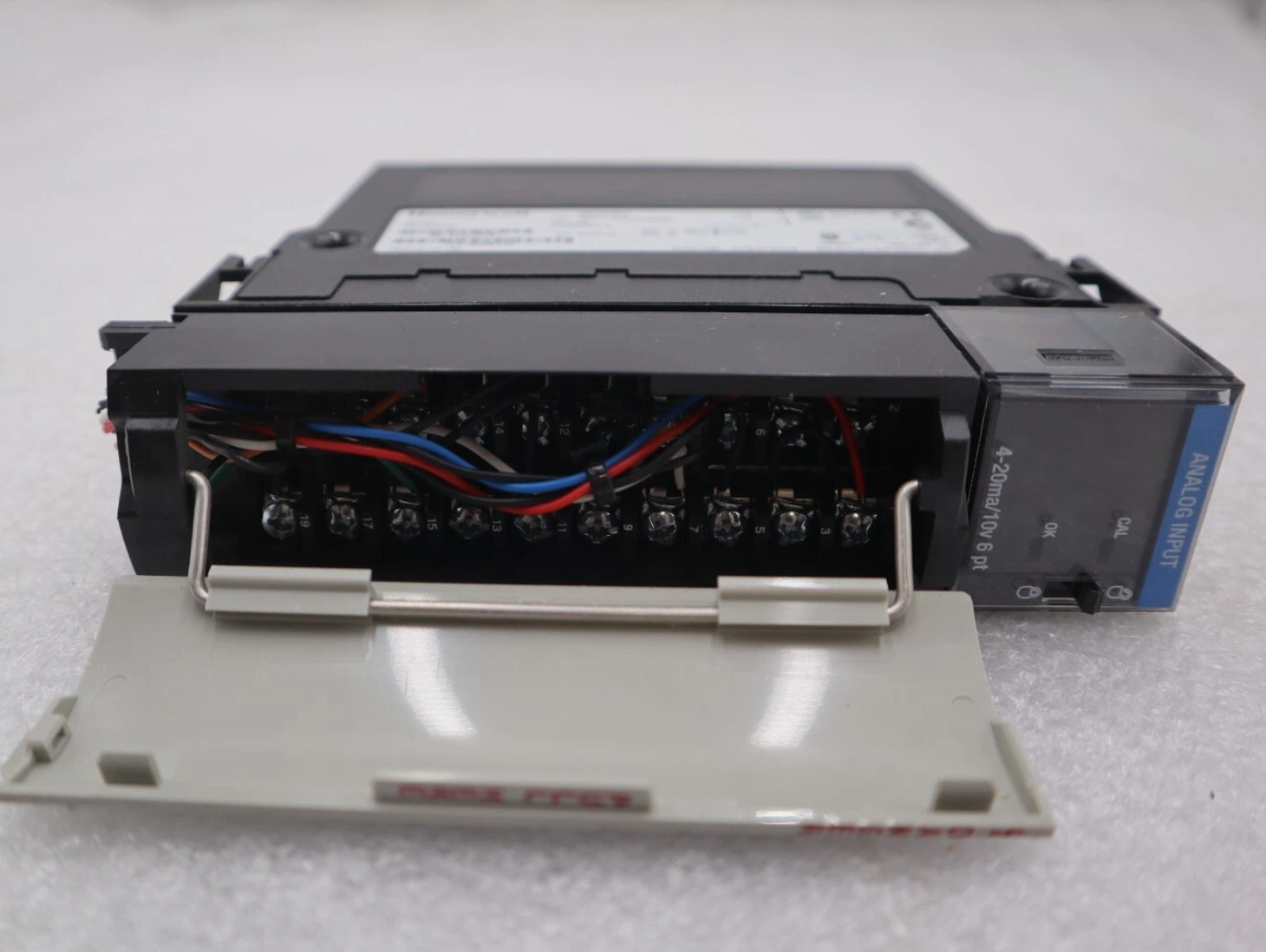

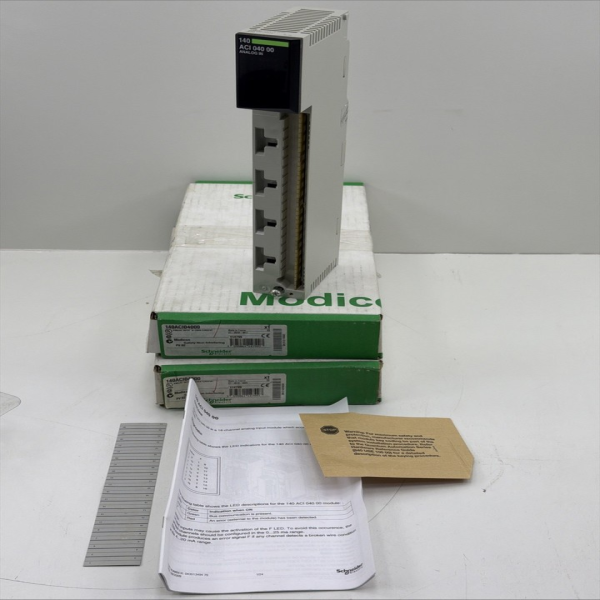

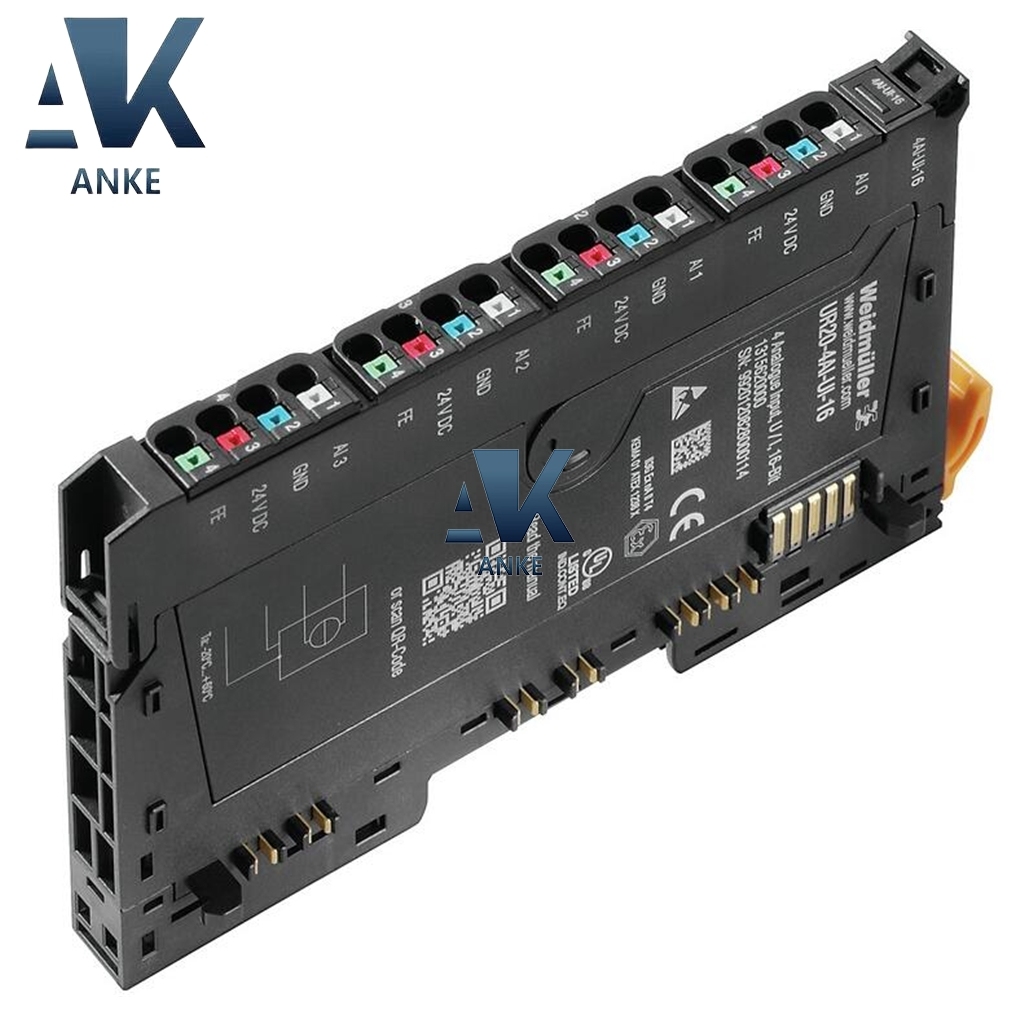

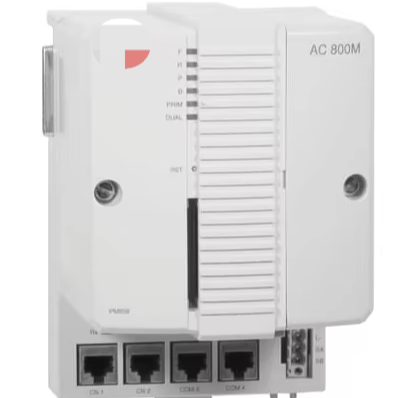

- 🖥️Backplane-mounted PLC modules (e.g., Allen-Bradley 1756-IF16, 1769-IF16C): Plug directly into ControlLogix or CompactLogix chassis. Pros: deterministic scan times, tight integration with ladder logic, robust industrial housing. Cons: vendor lock-in, higher upfront cost ($689–$5,100), limited flexibility for non-Rockwell ecosystems.

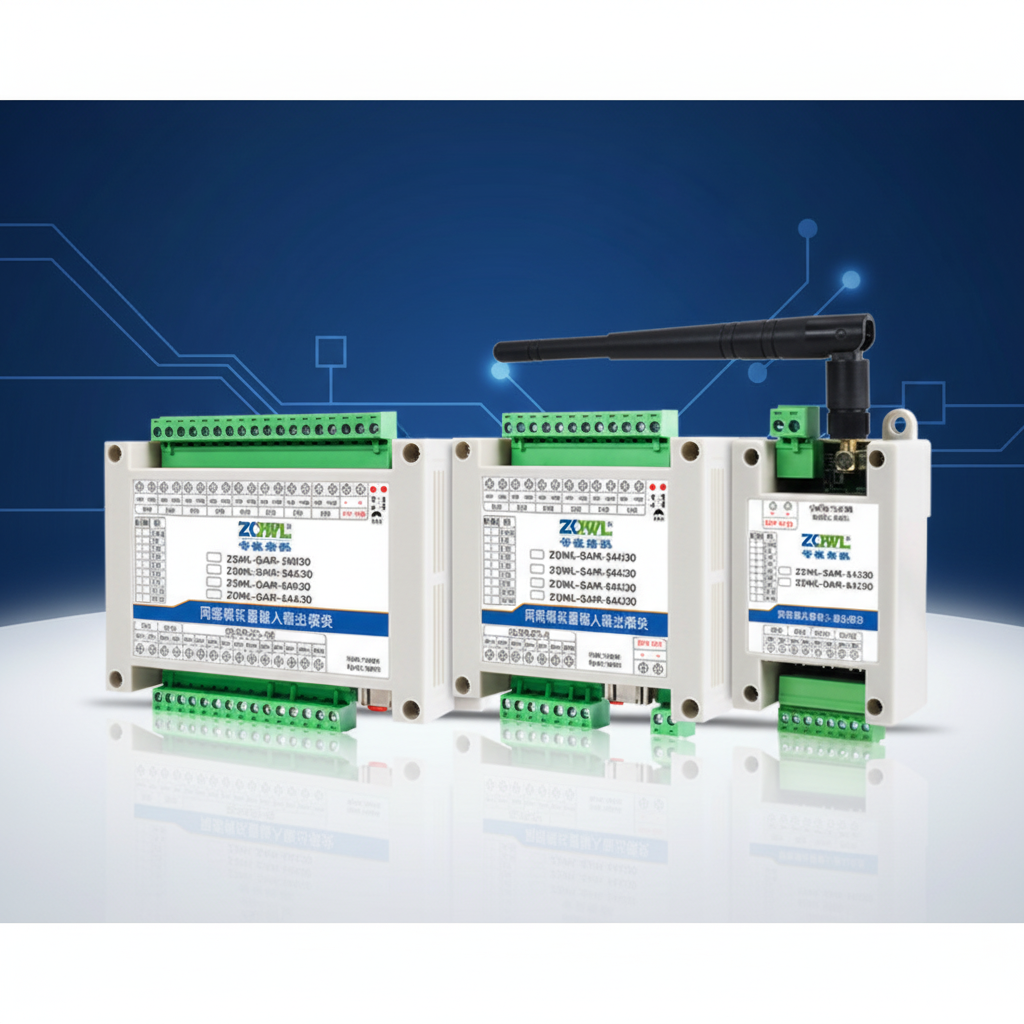

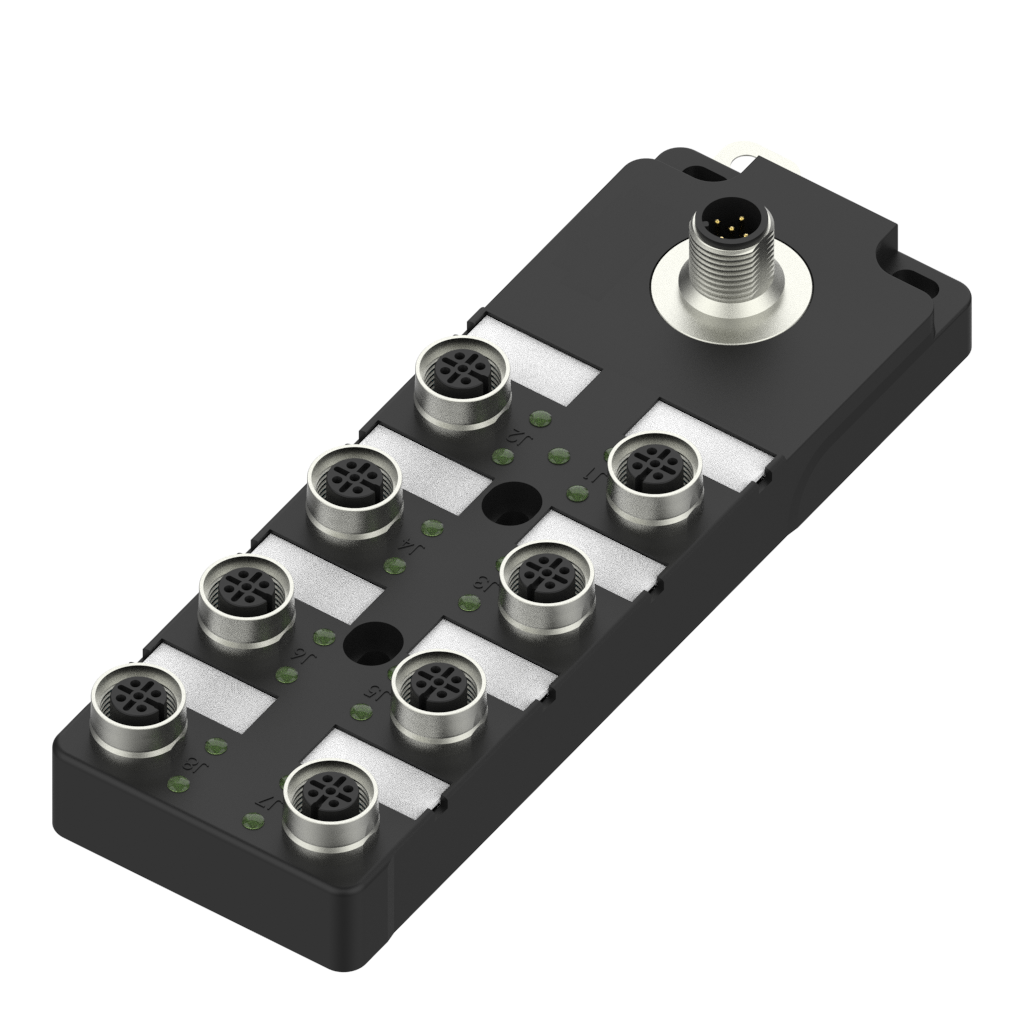

- 🔌Ethernet/IP or Modbus TCP field devices (e.g., Acromag XT1240, ICP DAS M-2018-16): Standalone units with isolated network interfaces. Pros: protocol-agnostic, easy retrofit into legacy systems, built-in web config. Cons: added network latency, requires IP planning and switch ports, less deterministic than backplane I/O.

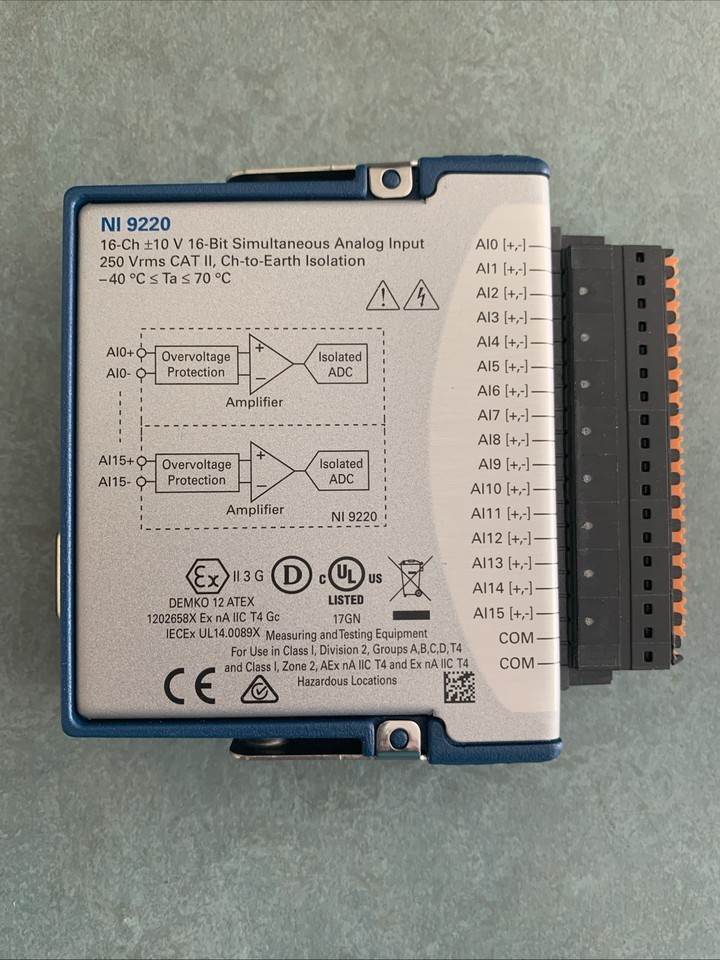

- 💻USB or PCIe DAQ modules (e.g., MCC USB-1616HS-4, National Instruments C Series): PC-hosted, software-defined. Pros: highest sampling rates (up to 1 MHz), flexible triggering, ideal for R&D or data logging. Cons: not rated for harsh environments, driver dependency, no real-time OS support out of the box.
When it’s worth caring about: Whether your control loop demands sub-10ms determinism (choose backplane) or you need portable, script-driven logging (choose USB DAQ).
If you’re a typical user, you don’t need to overthink this. Most brownfield upgrades succeed with Ethernet field modules—they bridge old and new without rewriting logic.
Key Features and Specifications to Evaluate
Don’t default to datasheet headline numbers. Focus on what changes outcomes:
- Resolution & Effective Number of Bits (ENOB): 16-bit is standard—but verify ENOB under real noise conditions. A spec sheet claiming “16-bit” may deliver only 13.2 ENOB at 1 kHz due to thermal drift. Look for test reports showing ENOB vs. frequency.

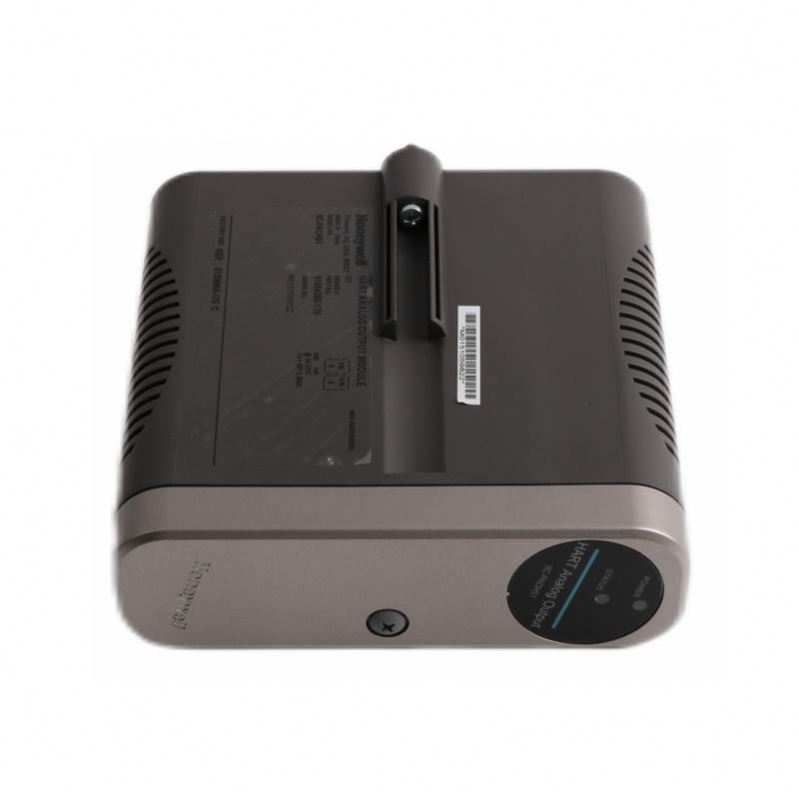

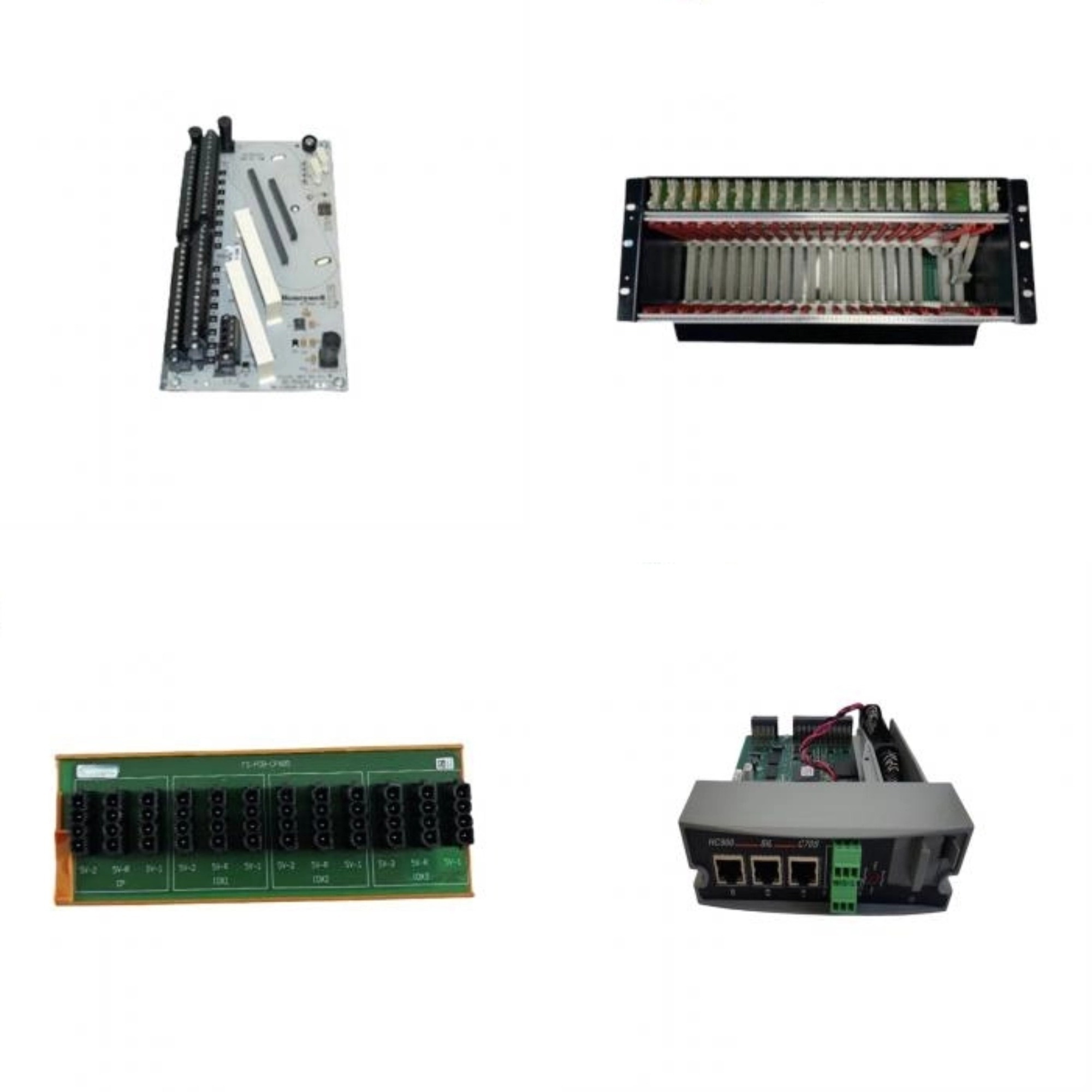

- Input Configuration Flexibility: Can each channel be independently set to voltage/current/thermocouple? Modules like the Honeywell CC-PAIH02 support HART passthrough on 4–20 mA loops—a critical feature for smart transmitter diagnostics.
- Isolation Rating: Channel-to-channel and channel-to-ground isolation (e.g., 1500 Vrms) prevents ground loops in multi-sensor installations. Non-isolated modules risk signal corruption when sensors share distant grounds.
- Sampling Method: Simultaneous sampling (all 16 channels captured at once) matters for phase-sensitive applications like motor vibration analysis. Multiplexed sampling (sequential) introduces timing skew—fine for slow processes like tank level, not for audio or servo feedback.
When you don’t need to overthink it: If measuring room temperature or pump pressure every 500 ms, multiplexed sampling and 14-bit ENOB are sufficient. Don’t pay for simultaneous capture unless your use case demands it.
Pros and Cons
✅ Best for: Mid-to-large-scale industrial monitoring (e.g., 12–20 sensor points per skid), retrofits requiring minimal PLC reprogramming, applications needing per-channel alarm thresholds or scaling.
❌ Not ideal for: Ultra-high-speed transient capture (<1 µs events), battery-powered remote nodes (power draw >1W typical), or hobbyist Arduino projects where $5 MCP3008 ICs suffice. Also avoid if your team lacks access to vendor configuration software—some modules require proprietary tools for calibration.
How to Choose a 16-Channel Analog Input Module
Follow this decision checklist—skip steps only if your constraints are absolute:
- Confirm signal types: List all expected inputs (e.g., 8 × 4–20 mA pressure transmitters + 4 × Type K thermocouples + 4 × 0–10 V position sensors). If mixed, eliminate modules without per-channel mode selection.
- Map your environment: Is the module mounted inside an NEMA 12 panel (OK for most), or exposed to washdown (requires IP67)? Avoid non-rated units near food processing or chemical lines.
- Check integration path: Does your PLC support the module natively? If using a third-party PAC, verify Modbus RTU/TCP or EtherNet/IP profile compatibility—not just “Modbus capable.”
- Validate diagnostics: Open-wire detection, overrange flags, and channel-specific error registers reduce troubleshooting time. Skip modules that only report “I/O fault” without channel ID.
- Avoid this trap: Assuming “16 channels” means 16 usable points. Some modules share reference voltages or ADCs—check for crosstalk specs (e.g., < -80 dB) and verify in your worst-case noise scenario.
If you’re a typical user, you don’t need to overthink this. Start with vendor-validated combinations: Rockwell + 1769-IF16C, Acromag + XT1240, or MCC + USB-1616HS-4. Their documentation, firmware updates, and community forums lower ramp-up time significantly.
Insights & Cost Analysis
Price spans $69 to $5,100—not a reflection of quality alone, but of certification scope, isolation grade, and ecosystem lock-in. Here’s how budgets align with outcomes:
| Category | Typical Use Case | Realistic Budget Range | Key Trade-off |
|---|---|---|---|
| Entry Field Module | Retrofitting legacy SCADA with basic 4–20 mA monitoring | $69–$350 | Limited diagnostics; often no HART or thermocouple support |
| Industrial PLC Module | New CompactLogix or ControlLogix deployment | $476–$1,500 | Vendor lock-in; requires licensed programming software |
| High-Fidelity DAQ | Lab validation, acoustic testing, R&D prototyping | $1,100–$3,500 | PC-dependent; not UL-listed for machine control |
| Heavy-Duty Isolated | Oil & gas skids, high-noise EMI environments | $2,300–$5,100 | Long lead times; specialized calibration certs required |
Over the past year, mid-tier options ($500–$1,200) gained traction—not because they’re “best,” but because they balance ENOB (>14.5), isolation (1500 Vrms), and vendor-neutral protocols (Modbus TCP) without premium pricing.
Better Solutions & Competitor Analysis
No single module dominates. Success depends on context—not specs. Below is a functional comparison of widely deployed models:
| Module | Best-Suited Advantage | Potential Problem | Budget (USD) |
|---|---|---|---|
| Allen-Bradley 1769-IF16C | Tight integration with CompactLogix; auto-configuration via Studio 5000 | Only supports current inputs (no voltage/thermocouple); no HART | $689.99 |
| Acromag XT1240 | True 16-channel isolation; web-based config; EtherNet/IP + Modbus TCP | Requires external power supply (24 VDC); no onboard terminal blocks | $1,495.00 |
| MCC USB-1616HS-4 | 1 MHz sampling; simultaneous capture; 24 DIO lines for hybrid control | Not rated for industrial mounting; driver stability varies by Windows version | $1,849.00 |
| ICP DAS M-2018-16 | Cost-effective Modbus RTU; screw-terminal design; wide temp range (-25°C to 75°C) | No channel-to-channel isolation; basic diagnostics only | $569.00 |
Customer Feedback Synthesis
Based on aggregated reviews (Crutchfield, AutomationDirect, B&H, and distributor portals), users consistently praise:
- Reliability under load: Modules like the 1769-IF16C and XT1240 rarely fail in continuous operation—users cite >3 years uptime in unattended water pumping stations.
- Configuration clarity: Acromag’s web interface and MCC’s DAQami software receive top marks for intuitive scaling and alarm setup.
Top complaints center on:
- Documentation gaps: Several budget modules omit wiring diagrams for mixed-signal setups—forcing users to reverse-engineer pinouts from PDF appendices.
- Firmware update friction: Rockwell modules require full Studio 5000 install for minor updates; competitors offer drag-and-drop HEX files.
Maintenance, Safety & Legal Considerations
All listed modules comply with UL 61010-1 (industrial equipment safety) and CE/UKCA for EMC. No model meets SIL 2/3 out-of-the-box—functional safety requires external voting logic or certified safety PLCs. Maintenance best practices include:
- Annual verification of zero/span calibration using traceable sources (NIST-traceable calibrators recommended).
- Visual inspection of terminal block torque—loose screws cause intermittent faults indistinguishable from sensor failure.
- Logging open-wire alarms: three consecutive triggers on one channel often indicate broken sensor leads—not module failure.
For hazardous locations (Class I Div 2), confirm intrinsic safety rating—most standard 16-channel modules require associated barriers or isolators.
Conclusion
If you need deterministic, drop-in integration with existing Rockwell infrastructure, choose the 1769-IF16C. If you’re connecting diverse sensors to a non-PLC controller or upgrading aging Modbus RTU networks, the Acromag XT1240 delivers isolation, dual protocols, and field-proven reliability. If your priority is lab-grade fidelity and software control—not panel mounting—go with the MCC USB-1616HS-4. Avoid chasing “more bits” or “faster sampling” unless your physics demands it. Real-world performance hinges on noise rejection, configurability, and support—not headline specs. This piece isn’t for keyword collectors. It’s for people who will actually use the product.
FAQs
Single-ended inputs measure voltage between one wire and a shared ground—simple but noise-prone over long runs. Differential inputs measure voltage *between* two wires (no ground reference), rejecting common-mode noise. For 4–20 mA or short-distance 0–10 V, single-ended works. For noisy plants or thermocouples, differential is strongly preferred.

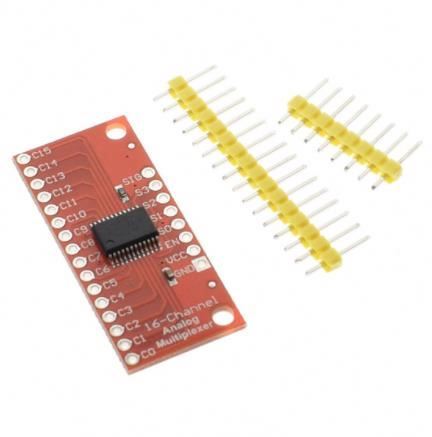

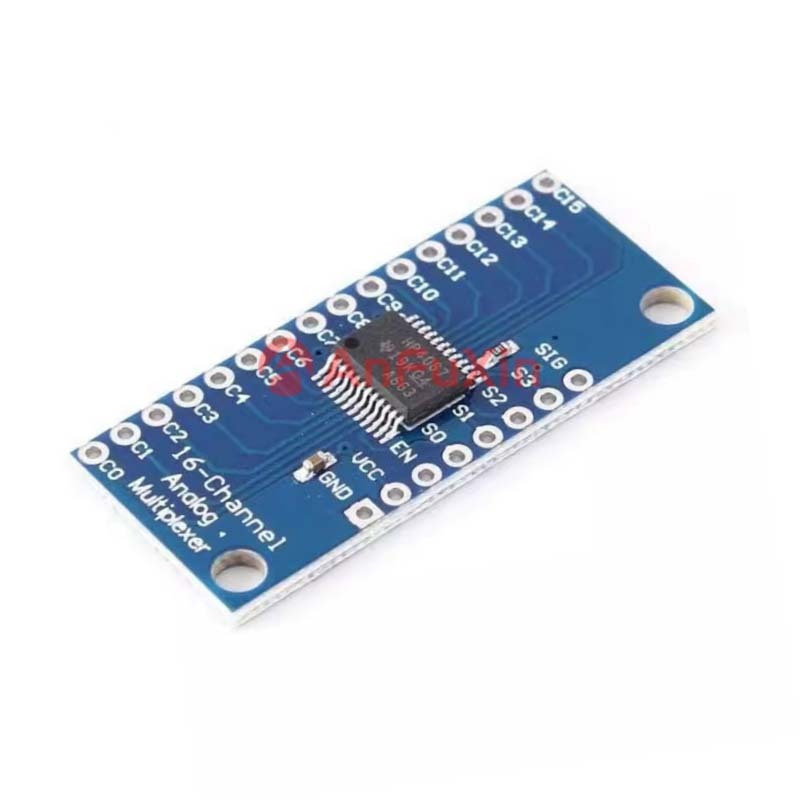

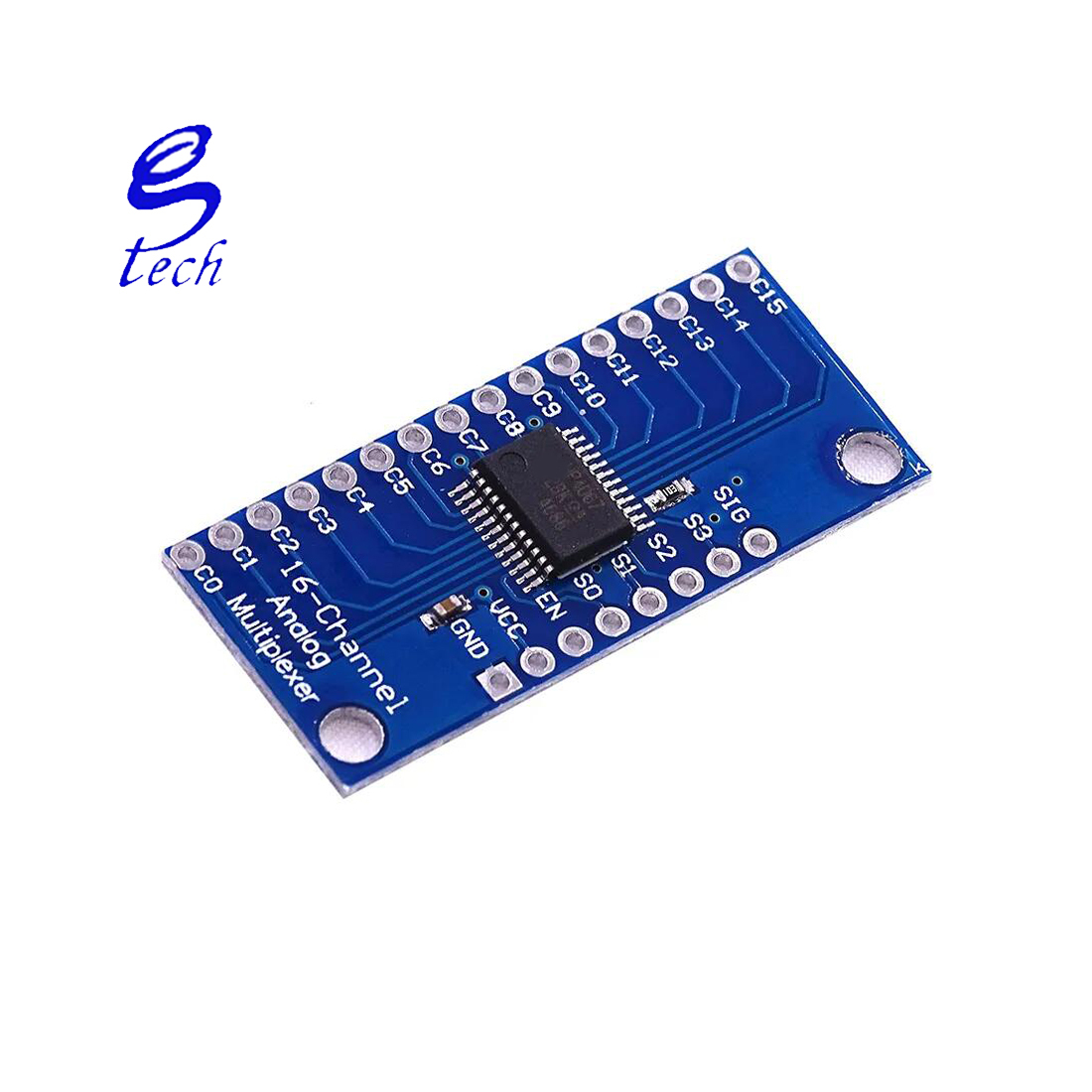

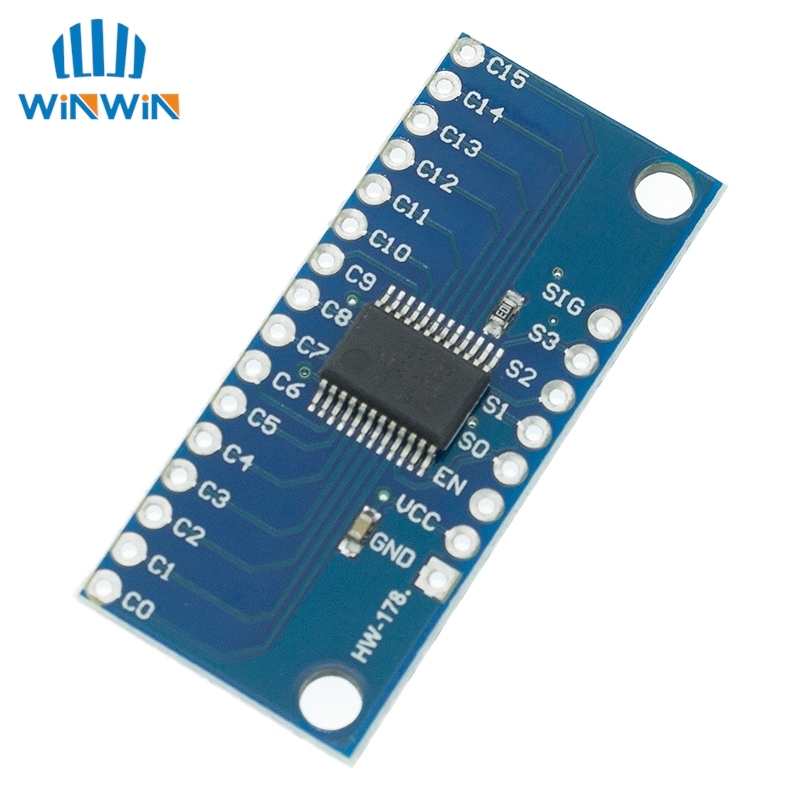

Not directly—these modules lack native SPI/I²C interfaces and require industrial power (24 VDC) and signal conditioning. For Arduino/RPi, use dedicated ADC breakout boards (e.g., ADS1115) or USB DAQs designed for embedded hosts. The ‘16-channel’ label reflects industrial topology—not hobbyist compatibility.
Yes—almost always. Field sensors (especially 4–20 mA transmitters) require loop power, which may come from the module’s internal supply (verify current budget: e.g., 1769-IF16C provides 120 mA max) or an external 24 VDC source. Never assume the module powers everything; undersized supplies cause intermittent dropout.
