1TB M.2 2242 PCIe Gen4 TLC SSD Guide – How to Choose

If you’re upgrading a Lenovo Legion Go, ThinkPad X1 Nano, or any device with an M.2 2242 slot — buy a PCIe Gen4 TLC SSD, not Gen5, and skip QLC entirely. Over the past year, Gen4 2242 drives have matured to deliver up to 7,450 MB/s sequential read — matching many 2280 models — while staying thermally stable in tight chassis 1. If you’re a typical user, you don’t need to overthink this. The real decision isn’t speed — it’s compatibility verification, TLC endurance, and controller efficiency. Avoid buying based on ‘Gen5’ labels or assuming all 2242 slots accept 2280 extenders — both are common missteps that cause boot failure or throttling. This piece isn’t for keyword collectors. It’s for people who will actually use the product.

About 1TB M.2 2242 PCIe Gen4 TLC SSDs

A 1TB M.2 2242 PCIe Gen4 TLC SSD is a compact, high-performance storage module measuring just 22mm wide and 42mm long. Unlike standard 2280 drives (80mm), the 2242 form factor fits only in devices designed for ultra-thin or handheld use — such as the Lenovo Legion Go, Dell XPS 13 9315, HP Elite Dragonfly G4, and select ThinkPad X1 series models. It uses PCIe Gen4 x4 lanes for bandwidth up to 8 GB/s and 3D TLC NAND, which stores three bits per cell — offering better write endurance (typically 600–800 TBW) and sustained speeds than QLC alternatives 2. These aren’t generic upgrades: they’re purpose-built components where physical fit, thermal headroom, and controller firmware tightly constrain real-world behavior.

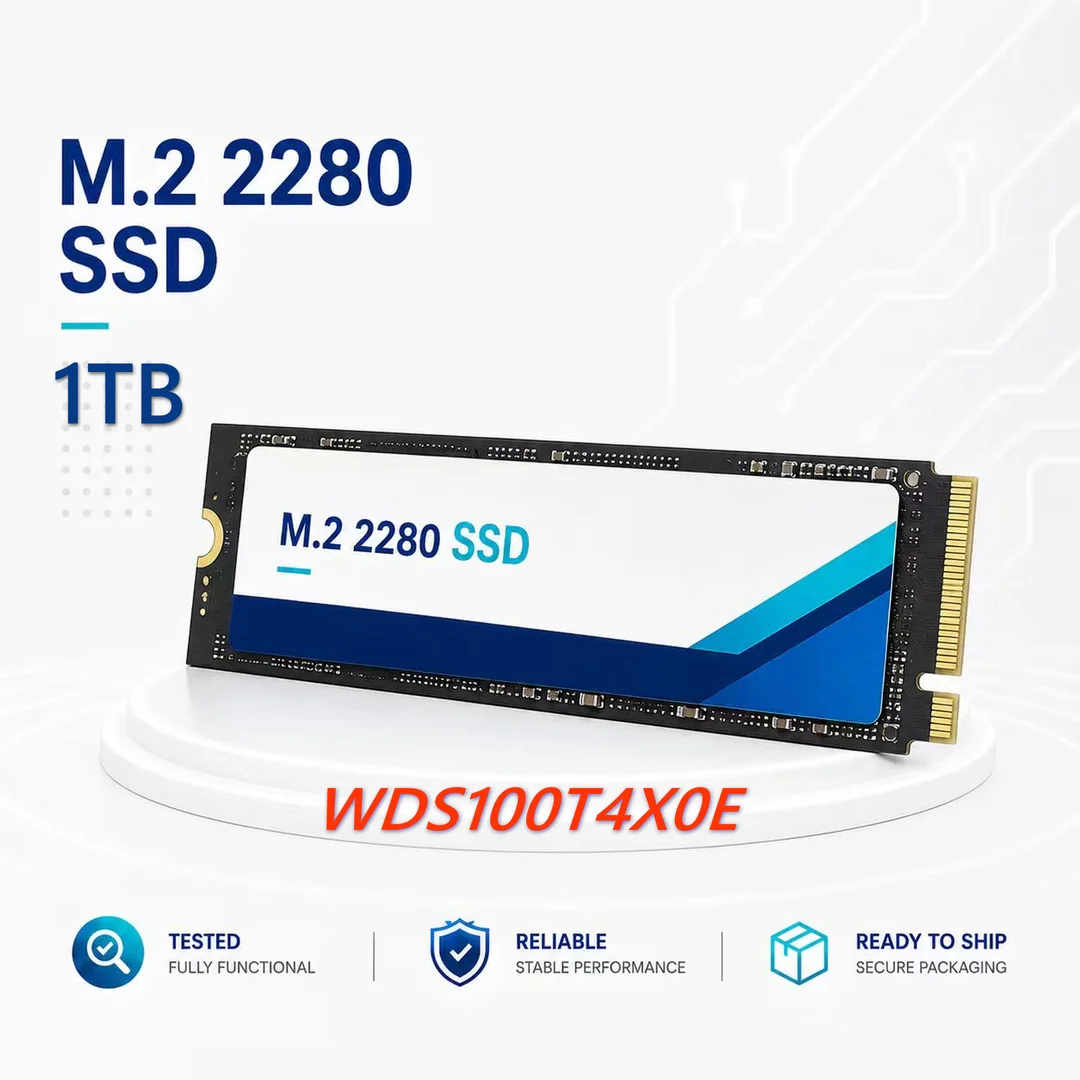

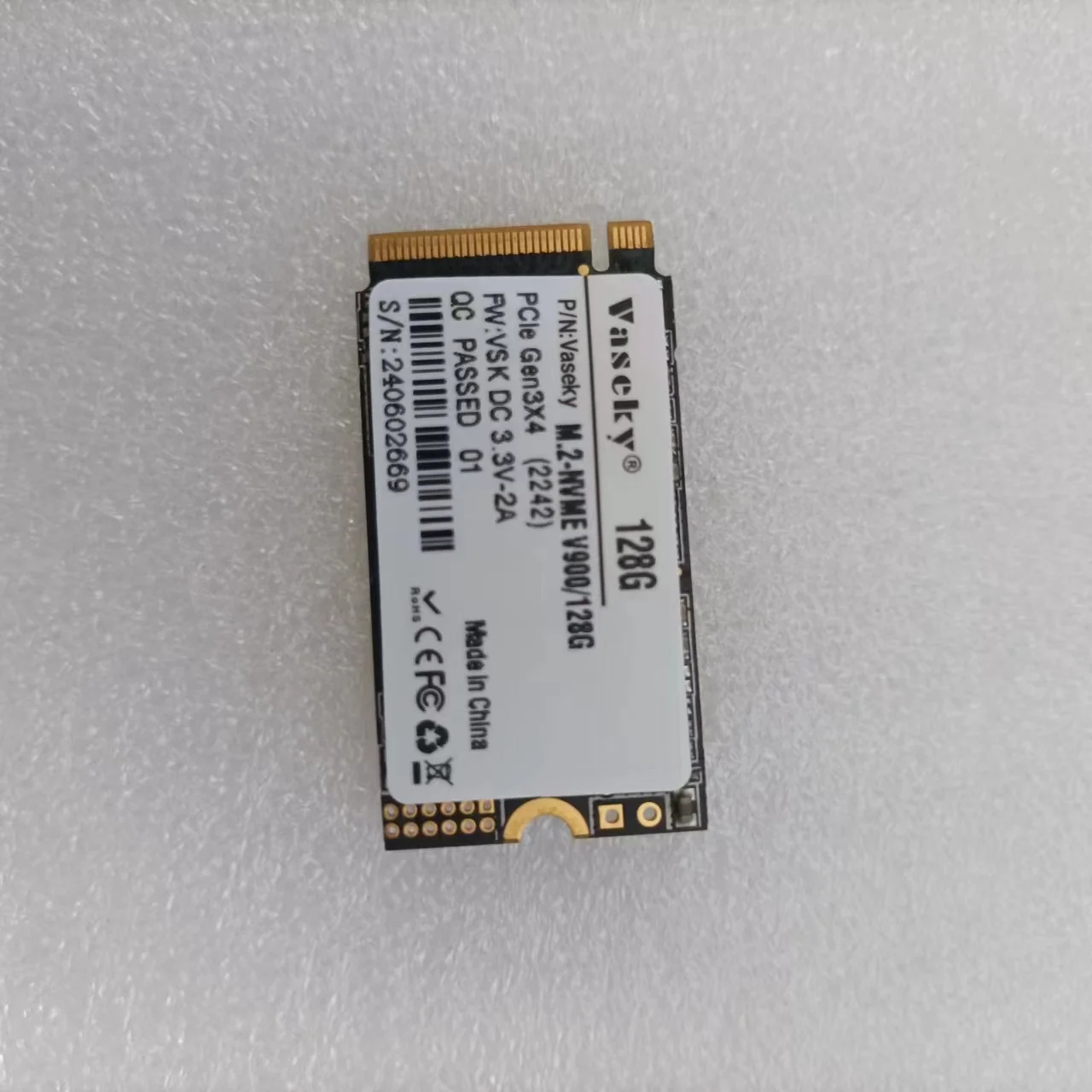

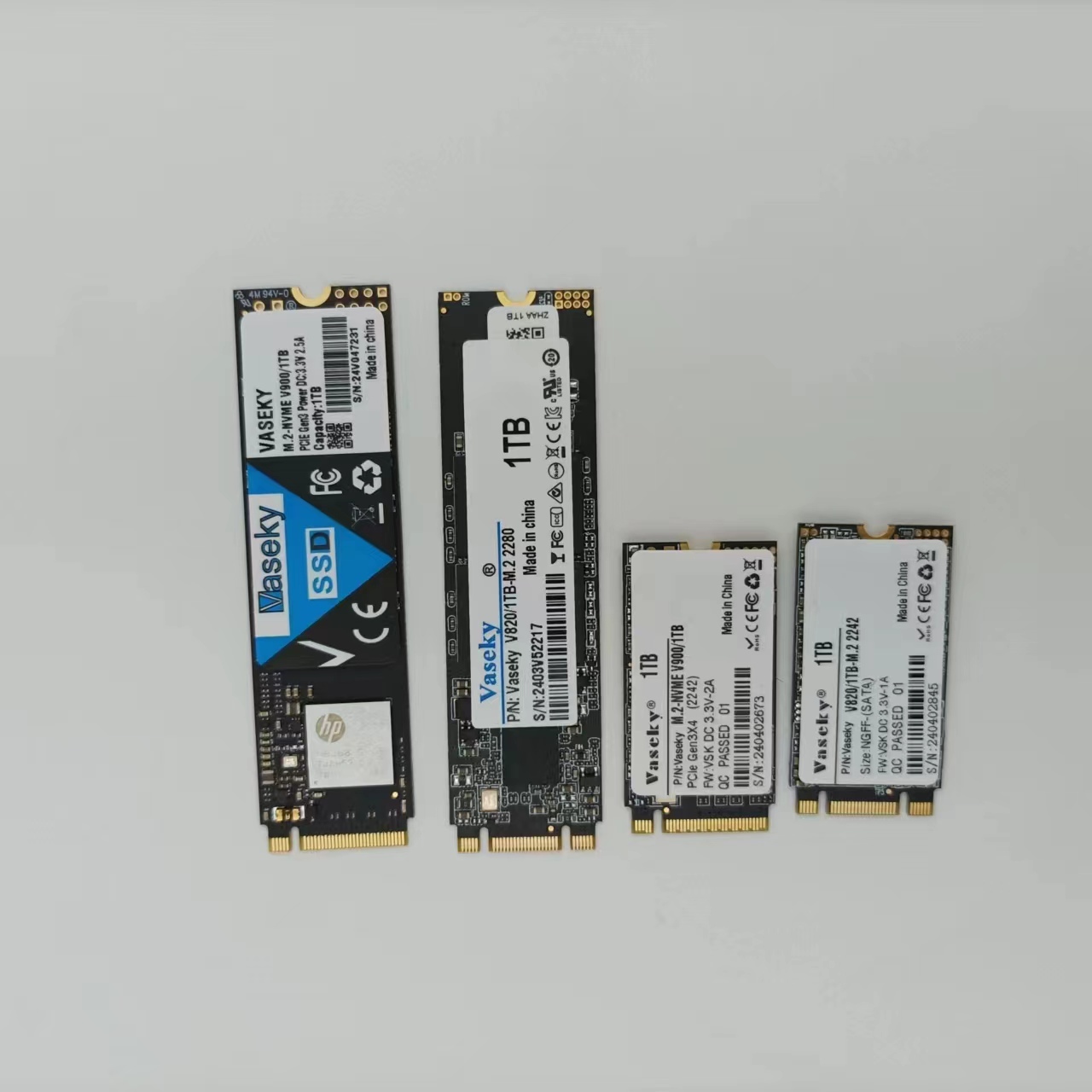

Physical scale matters: A 2242 SSD is less than half the length of a standard 2280 drive — and won’t fit in devices without explicit 2242 support.

Why 1TB M.2 2242 Gen4 SSDs Are Gaining Popularity

Lately, demand has surged—not because consumers want smaller drives, but because OEMs increasingly ship flagship portable devices with fixed 2242 slots and no 2280 option. The Legion Go’s 2025 refresh, for example, ships with soldered eMMC by default and relies entirely on the single 2242 slot for user-upgradable storage 3. At the same time, NAND supply has tightened: infrastructure buyers are absorbing high-layer 3D TLC wafers, pushing contract prices for 1TB modules up to $153.90 — a 12% increase YoY 2. That price stickiness makes informed selection more critical than ever. Users aren’t choosing ‘just another SSD’ — they’re committing to a single, non-replaceable storage path for their $800–$1,500 device.

Approaches and Differences

There are two dominant approaches to sourcing a 1TB 2242 Gen4 SSD:

• OEM-certified modules (e.g., Samsung PM9B1, WD Black SN7100): Pre-validated for specific devices; include custom firmware, thermal throttling profiles, and full vendor support.
• Third-party retail models (e.g., Shenghuacan, Sabrent Rocket Nano): Often lower-cost, customizable, and available in bulk — but require manual BIOS/UEFI validation and may lack device-specific power management.

When it’s worth caring about: If your device boots from the SSD or runs mission-critical workloads (e.g., video editing on-the-go), OEM certification reduces risk of sleep/resume failures or inconsistent thermal behavior. When you don’t need to overthink it: For secondary storage in a Linux-based handheld or developer test unit, third-party drives with verified 2242 pinout and Gen4 negotiation work reliably — especially those using Phison E25 or Maxio MAP1602 controllers.

Key Features and Specifications to Evaluate

Don’t prioritize peak numbers. Prioritize what survives real use:

• Form factor compliance: Confirm your device supports exactly 2242 — not just “M.2”. Some 2230-only slots (e.g., Steam Deck OLED) physically reject 2242 drives 1.
• TLC NAND generation: Look for ≥176-layer or 232-layer 3D TLC. Older 64/96-layer TLC often lacks sufficient density for stable 1TB operation in 2242 footprint.
• Controller process node: 7nm or 12nm controllers (e.g., Phison E25, Maxio MAP1602) run cooler and sustain higher bandwidth longer than legacy 28nm chips.
• DRAM cache vs. HMB: DRAM-equipped models handle random workloads (OS boot, app launch) more consistently. HMB-dependent drives can stutter under memory pressure — especially in ARM-based Windows devices.

If you’re a typical user, you don’t need to overthink this. Focus first on device compatibility, then TLC confirmation, then controller generation. Everything else is optimization — not necessity.

Pros and Cons

Pros:

• ✅ Fits where nothing else does — enables upgrades in otherwise sealed devices
• ✅ Gen4 delivers real-world gains: 7,000+ MB/s reads cut game load times by ~22% vs Gen3 in handhelds 4
• ✅ Lower power draw and heat than Gen5 — critical for fanless designs

Cons:

• ❌ No universal compatibility: A 2242 drive that works in a Legion Go may fail to initialize in a Dell XPS due to PCIe ASPM or NVMe power state differences
• ❌ Limited thermal headroom: Sustained writes >250GB can trigger aggressive throttling without copper heatsink integration
• ❌ Fewer reviews and benchmarks: Most testing focuses on 2280, so real-world 2242 data remains sparse

How to Choose a 1TB M.2 2242 PCIe Gen4 TLC SSD

Follow this 5-step checklist before ordering:

1. Verify slot type: Check your device’s service manual — not marketing specs — for “M.2 2242” or “2242 key M” support. Don’t assume 2280 extenders work; many 2242-only motherboards omit the extra PCIe lane routing.
2. Confirm NAND type: Reject any listing that says “QLC”, “3D QLC”, or omits NAND type. Insist on “3D TLC” — confirmed via spec sheet or teardown report.
3. Check controller model: Search for “Phison E25”, “Maxio MAP1602”, or “Silicon Motion SM2267”. Avoid unknown or rebranded controllers lacking public datasheets.
4. Review thermal design: Prefer units with integrated copper foil or nickel-plated PCBs. Passive cooling is non-negotiable in confined spaces.
5. Avoid ‘Gen5-labeled’ 2242 drives: True Gen5 2242 parts remain rare and thermally unviable in 2026. Many are Gen4 chips mislabeled for SEO — verify specs against published benchmarks 5.

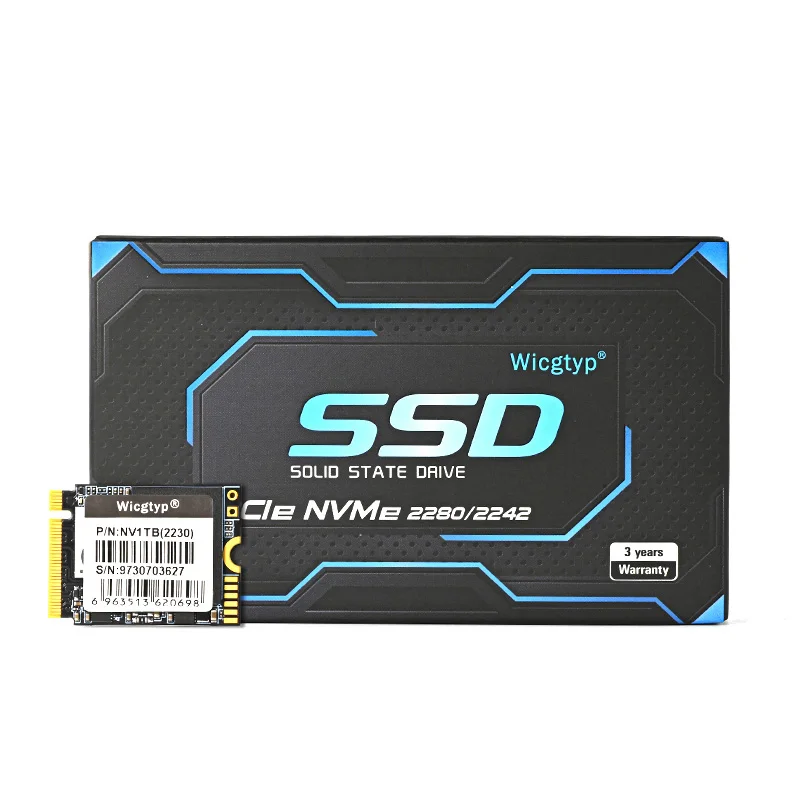

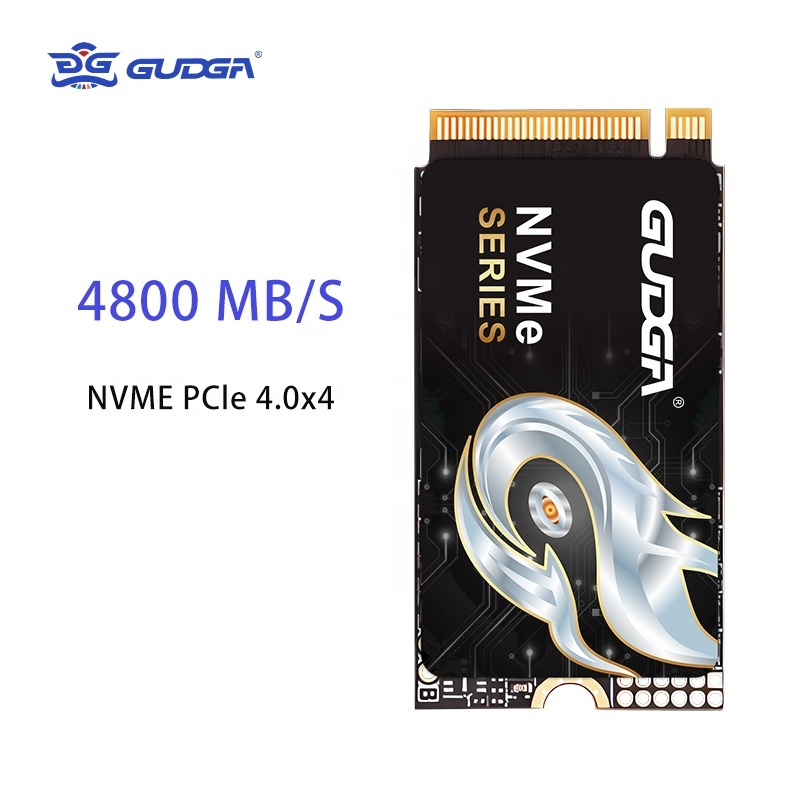

Thermal integrity starts at the PCB: Copper layers dissipate heat more effectively than bare silicon in space-constrained devices.

Insights & Cost Analysis

Retail pricing for validated 1TB 2242 Gen4 TLC SSDs ranges from $149 to $179, reflecting the premium for engineering compact thermal solutions. B2B volume orders (≥100 units) drop to $59–$87/unit for factory-customized builds — but require minimum order quantities and firmware validation cycles 2. The $153.90 average contract price reflects upward pressure from enterprise NAND demand — meaning discounts below $145 are often value-tier QLC or older Gen3 stock. If you’re a typical user, you don’t need to overthink this. Pay the $155–$165 range for verified TLC Gen4; avoid chasing sub-$140 deals unless you’ve validated the NAND and controller yourself.

Category	Suitable For	Potential Problem	Budget Range (Retail)
WD Black SN7100 (2242)	Performance-focused users needing stability in Legion Go or X1 Nano	Limited availability outside OEM channels; no B2B customization	$169
Samsung PM9B1 (MZAL81T0)	Dell/Lenovo OEM replacement; best-in-class firmware maturity	Often sold without retail packaging; harder to source standalone	$174
Shenghuacan Gen4.0 (Custom)	B2B integrators needing branding, specific NAND binning, or firmware tweaks	Requires technical validation; no consumer warranty	$59–$87 (bulk)

Better Solutions & Competitor Analysis

For most users, there is no “better” solution than a well-vetted Gen4 2242 TLC SSD — because alternatives either don’t exist (no 2242 Gen5 viable in 2026) or compromise core functionality (e.g., microSD expansion lacks NVMe bandwidth). That said, if your device supports dual storage (e.g., Legion Go with microSD + 2242), pairing a 1TB Gen4 SSD with a UHS-II microSD card for media offload improves longevity and cost efficiency. Gen5 remains impractical: its 12W+ TDP exceeds thermal budgets in handhelds, and real-world gains over Gen4 top out at ~8% for sequential loads — negligible in gaming or OS responsiveness 4.

Physical constraints define capability: The 2242’s 42mm length forces tighter NAND stacking and advanced thermal routing — not just smaller size.

Customer Feedback Synthesis

Based on aggregated forum reports (r/LegionGo, r/ThinkPad, NotebookReview), top recurring themes:

• ✅ High praise: “Boots Windows 11 in 6.2 seconds”, “No throttle during 4K scrubbing in DaVinci Resolve”, “Fits perfectly — no adapter needed.”
• ❌ Frequent complaints: “Failed POST on first boot — required BIOS update”, “Write speeds dropped to 800 MB/s after 15 minutes of sustained transfer”, “No TRIM support in early firmware — caused gradual slowdown.”

The pattern is clear: success hinges on firmware alignment, not raw specs. Always check for device-specific BIOS updates before installation.

Maintenance, Safety & Legal Considerations

No special maintenance is required beyond standard SSD practices: enable TRIM, avoid filling >90% capacity, and ensure adequate airflow around the slot. From a safety standpoint, these are Class 1 laser products (IEC 60825-1) — meaning no radiation hazard. Legally, all compliant units meet RoHS 3 and CE EMC directives — verified via supplier documentation, not marketing claims. If you’re a typical user, you don’t need to overthink this. Just confirm your supplier provides RoHS/CE certificates upon request.

Conclusion

If you need reliable, high-speed, upgradeable storage in a handheld or ultraportable with a 2242 slot, choose a PCIe Gen4, 3D TLC, 1TB M.2 2242 SSD with a modern controller (Phison E25 or equivalent) and verified thermal design. Skip Gen5 hype — it’s premature and thermally unsound for this form factor. Avoid QLC — its endurance and sustained write behavior are inadequate for OS or game storage. And never assume compatibility: cross-check your device’s service manual, not Amazon listings. This isn’t about finding the fastest drive — it’s about finding the one that works, stays cool, and lasts.

Frequently Asked Questions

Can I use a 2280 SSD with an extender in a 2242 slot?

Only if your motherboard explicitly routes PCIe lanes to the extended position — most 2242-only designs do not. Extenders often cause boot failure or unstable NVMe enumeration. Verify with your OEM’s hardware maintenance guide first.

Is 1TB enough for gaming on a Legion Go?

Yes — for 3–5 AAA titles plus OS and tools. Modern games average 80–120GB each; 1TB leaves ~150GB free for updates and caching, which is sufficient for sustained use.

Do I need DRAM cache on a 2242 SSD?

Not strictly — but DRAM improves random read/write consistency during multitasking and OS operations. HMB-based drives work, but may stutter under memory pressure in Windows ARM or Linux VM environments.

Why are 2242 SSDs more expensive than 2280 models of the same capacity?

Higher engineering costs: denser NAND stacking, custom thermal routing, and lower production volumes drive up unit cost — not just marketing markup.

Are there 4TB 2242 SSD options available in 2026?

Yes — niche 4TB 2242 TLC models exist (e.g., recent Reddit-confirmed units), but they’re priced 3× higher, run hotter, and lack broad OEM validation. Stick with 1TB unless you have verified thermal headroom and budget flexibility.
