Lately, more homeowners are upgrading aging heating systems — but many hit a wall at installation: their furnace or boiler only has two wires (R and W), and modern smart thermostats demand continuous power. Over the past year, battery-powered and adapter-supported 2-wire programmable thermostat solutions have matured significantly — not as workarounds, but as purpose-built alternatives. If you’re a typical user, you don’t need to overthink this: start with a verified battery-powered model like the Honeywell T4 Pro or a dual-terminal thermostat like the ecobee3 lite paired with a 24V AC adapter. Skip rewiring unless you’re already opening walls — and avoid any thermostat that claims ‘C-wire free’ without clear documentation of its power-stealing logic or battery endurance data. This piece isn’t for keyword collectors. It’s for people who will actually use the product.
About 2-Wire Programmable Thermostats
A 2-wire programmable thermostat is designed for simple, heat-only systems — typically older gas/oil furnaces, electric baseboard heaters, or hydronic boilers — that supply only two low-voltage wires: R (power) and W (heat call). Unlike modern HVAC systems with multi-wire configurations (e.g., R, C, Y, G), these setups lack a dedicated Common wire (C-wire) to provide constant 24V AC power. As a result, standard smart thermostats — which rely on continuous power for Wi-Fi, sensors, and scheduling — cannot operate reliably without modification.
These thermostats aren’t ‘legacy’ in the sense of being obsolete. They remain essential for an estimated 20–25% of U.S. homes with single-stage, heat-only equipment1. Their defining trait isn’t simplicity alone — it’s compatibility under constraint: delivering programmability, remote access, and energy reporting despite minimal wiring.
Why 2-Wire Programmable Thermostats Are Gaining Popularity
Two converging forces explain rising demand: aging infrastructure and smarter power management. The average home heating system in the U.S. is over 18 years old2; many still run on original 2-wire control circuits. At the same time, manufacturers have refined battery efficiency and external power integration — making true ‘no-C-wire’ operation viable, not just theoretical. The global smart thermostat market is projected to reach $8.78 billion by 20263, and a growing share of that growth comes from retrofit-friendly models targeting exactly this segment.
Users aren’t choosing 2-wire thermostats out of nostalgia — they’re choosing them because they want control without renovation. That motivation matters more than feature parity. If you’re a typical user, you don’t need to overthink this: your goal isn’t to replicate a full smart-home hub. It’s to replace a manual dial with something that learns your schedule, holds temperature overnight, and lets you adjust remotely — all without drilling into drywall.
Approaches and Differences
There are three primary approaches to powering a programmable thermostat on a 2-wire system — each with distinct trade-offs:
- Battery-powered operation: Uses AA or AAA batteries (often 2–4) to run the display, logic, and Wi-Fi. No wiring changes needed. Ideal for DIYers and renters.
When it’s worth caring about: When your wall cavity is inaccessible, or you lack nearby outlets.
When you don’t need to overthink it: If you’re okay replacing batteries every 6–12 months — and your usage pattern doesn’t require constant cloud sync. - External 24V AC adapter: A plug-in transformer wired between the furnace and thermostat to supply steady power. Enables full smart functionality (real-time updates, geofencing, OTA updates).
When it’s worth caring about: When you want reliable app responsiveness and long-term firmware support.
When you don’t need to overthink it: If you have a grounded outlet within 6 feet of the thermostat location — and your furnace accepts a common terminal connection. - Power-stealing (with internal capacitor): Some thermostats (e.g., Nest 4th Gen) briefly draw current from the heating circuit during idle cycles to charge an internal capacitor. Works only on compatible systems and may cause relay chatter.
When it’s worth caring about: When you’ve confirmed your furnace’s transformer can sustain the load — and you accept potential compatibility risk.
When you don’t need to overthink it: If your installer or HVAC technician confirms your system meets minimum VA rating (typically ≥40VA).
Key Features and Specifications to Evaluate
Don’t default to “smartest = best.” Prioritize features that deliver measurable utility in a 2-wire context:
- 🔋 Battery life under Wi-Fi load: Look for published test data (not just “up to 2 years”). Real-world battery life drops sharply with frequent app polling — Lux GEO-WH reports ~8 months with daily remote adjustments4.
- 🔌 Terminal configuration: Separate Rh (heating power) and Rc (cooling power) terminals — even if cooling isn’t used — allow clean separation of external power sources. ecobee3 lite retains this; newer budget variants often merge them.
- 📱 App reliability on low-bandwidth networks: Many 2-wire users live in rural or older buildings. Verify offline scheduling works and that firmware updates don’t require sustained 5GHz connectivity.
- 📊 Energy reporting granularity: Does it log runtime per heating cycle? Or just show ‘heating active’? For heat-only systems, cycle count and duration matter more than ‘cooling savings’ metrics.
Pros and Cons
Every solution trades convenience for capability — and vice versa.
- ✅ Battery-powered models offer zero-installation confidence and universal compatibility. They’re ideal for seasonal homes, rentals, or users who value simplicity over automation depth.
❌ But: Battery drain accelerates with geofencing, weather-based adjustments, or frequent app use. You’ll likely change batteries twice a year — not once every two years. - ✅ External 24V adapters unlock full functionality: consistent Wi-Fi, precise scheduling, and future-proof firmware. They also eliminate battery waste.
❌ But: Require basic electrical knowledge (or a licensed technician) to install safely. Not suitable for ungrounded outlets or locations far from power. - ✅ Power-stealing thermostats preserve the clean look of a direct-wire install and avoid external hardware.
❌ But: Compatibility is narrow — transformers under 40VA often fail. Some users report audible clicking or delayed response during startup.
How to Choose a 2-Wire Programmable Thermostat
Follow this 5-step decision checklist — designed to eliminate guesswork:
- Verify your wiring first: Remove your current thermostat cover. Count visible wires. If only red and white (or black) are connected — and there’s no unused blue or black wire tucked behind — you have a true 2-wire system.
- Confirm transformer capacity: Locate your furnace’s 24V transformer. If labeled “40VA” or higher, power-stealing may be viable. If it reads “20VA” or “30VA”, skip it — go battery or adapter.
- Decide your priority: Remote access daily? → Choose adapter-supported. Set-and-forget for 6 months? → Battery is sufficient. Renting or moving soon? → Avoid hardwired solutions.
- Avoid ‘C-wire optional’ marketing: If a brand doesn’t explicitly state how it powers itself on 2-wire (e.g., “uses internal capacitor + 24V adapter included”), assume it won’t work reliably.
- Check local utility rebates: Many programs (e.g., PG&E, ConEd) offer $25–$75 rebates for ENERGY STAR–certified programmable thermostats — but only if installed per spec. Battery models qualify; some adapter kits do not.
Insights & Cost Analysis
Cost isn’t just sticker price — it’s total ownership over 3 years:

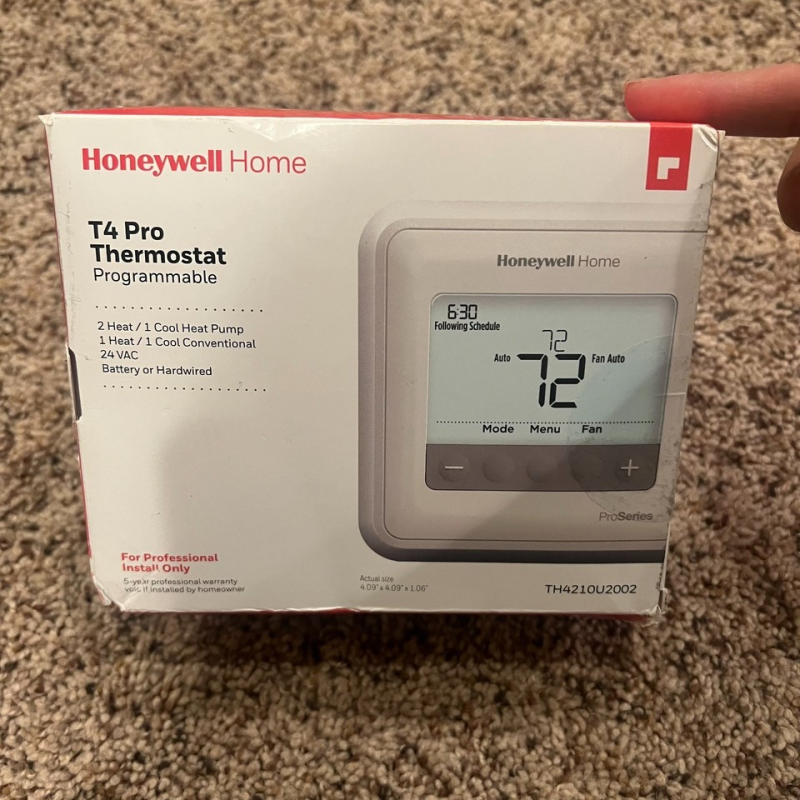

- Honeywell T4 Pro ($29–$39): Battery-powered, 7-day programming, ENERGY STAR certified. Includes mounting plate and instructions. Lowest barrier to entry. No recurring cost beyond 2xAA batteries (~$6/year).
- ecobee3 lite ($89–$109): Requires external 24V adapter ($15–$22). Offers room sensors, voice control, and detailed energy reports. Higher upfront cost, but longer software support lifecycle.

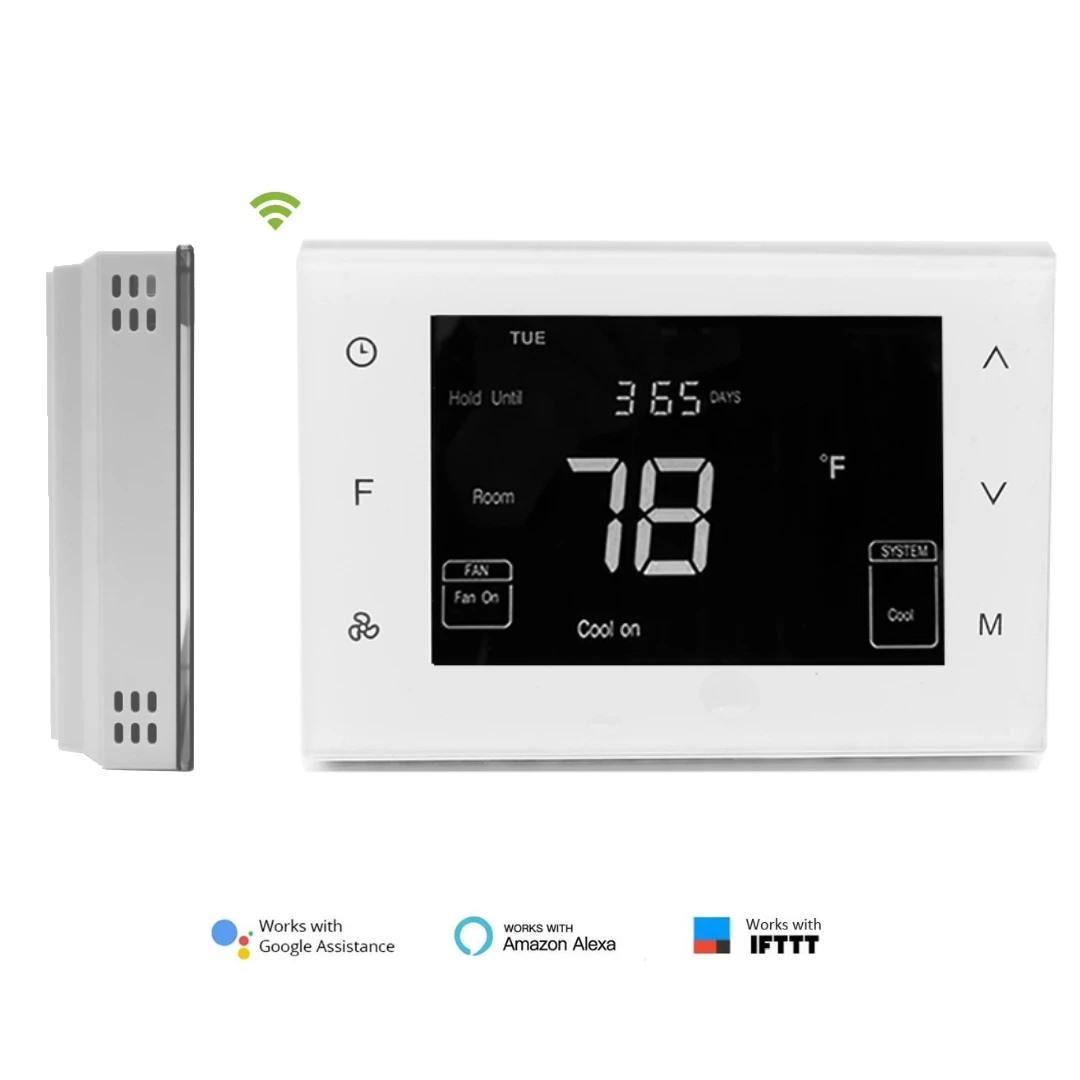

- Lux GEO-WH ($79–$89): Fully battery-powered Wi-Fi thermostat. Unique in supporting both 2.4GHz and 5GHz bands. Battery life rated at 8–10 months. No adapter needed — but app responsiveness lags slightly vs. mains-powered units.
If you’re a typical user, you don’t need to overthink this: the $29–$39 range delivers >90% of core functionality for heat-only users. Paying $80+ makes sense only if you plan to upgrade your HVAC within 3 years — or need multi-room sensing.
Better Solutions & Competitor Analysis
| Category | Suitable For | Potential Issue | Budget Range (USD) |
|---|---|---|---|
| Honeywell T4 Pro | DIYers, renters, budget-conscious users | Limited remote features; no room sensors | $29–$39 |
| ecobee3 lite | Users adding external power; future HVAC upgrades | Requires separate adapter purchase & wiring | $89–$109 + $15–$22 |
| Lux GEO-WH | Wi-Fi-dependent users avoiding adapters | Shorter battery life; less third-party app integration | $79–$89 |
| Google Nest 4th Gen | Existing Nest ecosystem users | Power-stealing unreliable on low-VA transformers | $129–$149 |
Customer Feedback Synthesis
Based on aggregated reviews across CNET, Wirecutter, Consumer Reports, and Reddit threads56:
- Top praise: “Finally set it and forget it — no more adjusting manually before bed.” / “The app actually works when my phone is on LTE, not just Wi-Fi.”
- Top complaint: “Battery died in 4 months after enabling geofencing.” / “Adapter wouldn’t fit behind my plaster wall — had to mount it sideways.”
Maintenance, Safety & Legal Considerations
No special permits are required to replace a line-voltage or low-voltage thermostat in residential settings — but safety is non-negotiable. Always turn off power at the furnace breaker before handling wires. Never splice or extend thermostat wires with household electrical tape; use UL-listed wire nuts. If using an external 24V adapter, ensure it’s ETL- or UL-certified and rated for continuous duty. While not legally mandated, following manufacturer wiring diagrams prevents warranty voidance and reduces fire risk. Note: Some local jurisdictions require licensed HVAC technicians to connect thermostats to gas-fired equipment — verify municipal codes before self-installing.
Conclusion
If you need simple, reliable scheduling with remote access and zero wiring changes, choose a battery-powered 2-wire programmable thermostat like the Honeywell T4 Pro. If you want full smart features, multi-sensor support, and plan to keep the unit for 4+ years, invest in the ecobee3 lite with a certified 24V AC adapter. If you require Wi-Fi flexibility without outlets nearby — and accept biannual battery swaps, the Lux GEO-WH remains the only widely validated option. This piece isn’t for keyword collectors. It’s for people who will actually use the product.
