If you’re installing or replacing a 3-phase emergency stop button for industrial machinery—especially motors, starters, or control panels—start here. Over the past year, demand for modular, IP65+ rated, 3-pole emergency stop devices has risen sharply among small-to-mid-sized automation integrators and maintenance technicians 1. This isn’t just about compliance—it’s about reducing wiring errors, avoiding nuisance trips, and ensuring immediate, reliable circuit interruption across all three phases. For most users, a standard 3-pole, NC-contact, red mushroom-head pushbutton with 400–440 V AC rating and IP65 enclosure is sufficient. If you’re a typical user, you don’t need to overthink this. Skip custom stainless steel housings unless you’re in food processing, marine, or corrosive environments—and avoid retrofitting single-phase E-stops into 3-phase motor circuits without verifying contact rating and breaking capacity. Wiring complexity—not component cost—is the top source of field failure.
About 3-Phase Emergency Stop Buttons
A 3-phase emergency stop button is a manually operated safety device designed to break power across all three live conductors (L1, L2, L3) simultaneously in response to an emergency. Unlike single-phase variants, it uses three independent normally closed (NC) contacts—one per phase—so that pressing the button interrupts current flow in all legs at once. This prevents partial energization, which could leave rotating equipment partially powered and hazardous.
Typical use cases include:
- Three-phase induction motor control circuits using DOL (Direct-On-Line) or star-delta starters 2;
- Industrial control stations with start/stop/jog functionality and integrated indicators;
- Machinery requiring Category 0 or Category 1 stop per ISO 13850 (immediate power removal);
- Conveyor systems, CNC machines, and packaging lines where full de-energization is mandatory.
Why 3-Phase Emergency Stop Buttons Are Gaining Popularity
Lately, more small workshops and contract electricians are specifying 3-pole E-stop buttons—not because regulations changed, but because machine rebuilds and retrofits increasingly involve modern 3-phase drives and inverters. Older installations often used single-pole E-stops wired only into the control circuit (e.g., coil supply), leaving main power intact. That approach fails under updated risk assessments: if the contactor fails closed or the control transformer remains energized, residual voltage can persist. Newer designs prioritize full-conductor interruption. Also, modular 3-pole units simplify panel layout—no need to parallel multiple single-pole devices or add external contactors just to achieve 3-phase break. This reduces footprint, wiring time, and points of failure.
Approaches and Differences
There are three dominant implementation approaches:

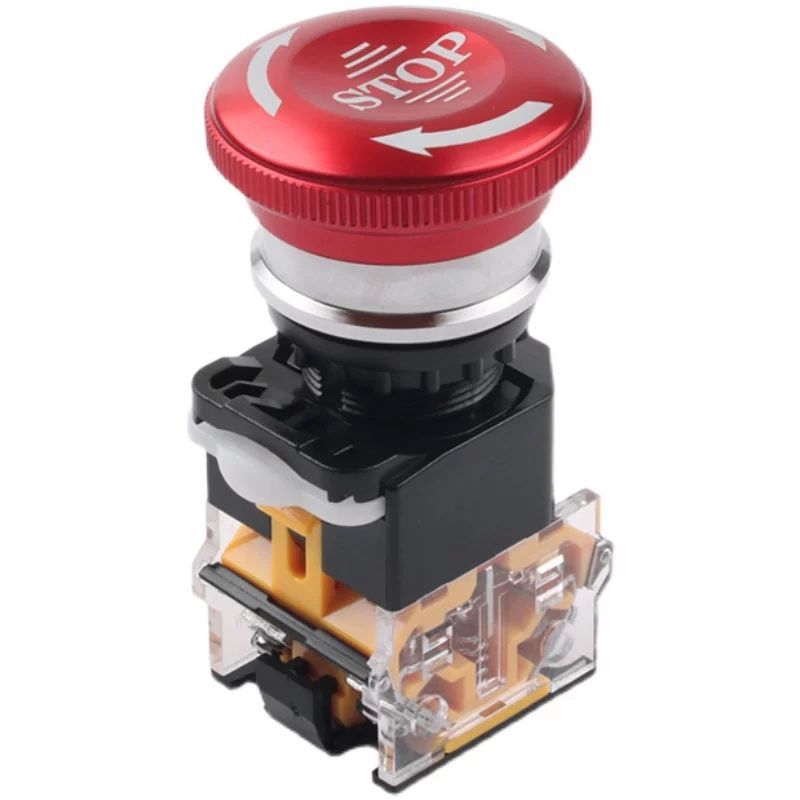

✅ Integrated 3-Pole Pushbutton Units
Self-contained devices like IDEM ES-P or RS PRO 3-pole E-stops house all three NC contacts in one housing, often with mechanical latching, LED indicators, and IP65–IP67 ratings.
- Pros: Compact, pre-wired, certified (EN/IEC 60947-5-5), minimal commissioning time.
- Features: Higher unit cost (~$45–$120); limited flexibility if only one pole fails (whole unit replaced).

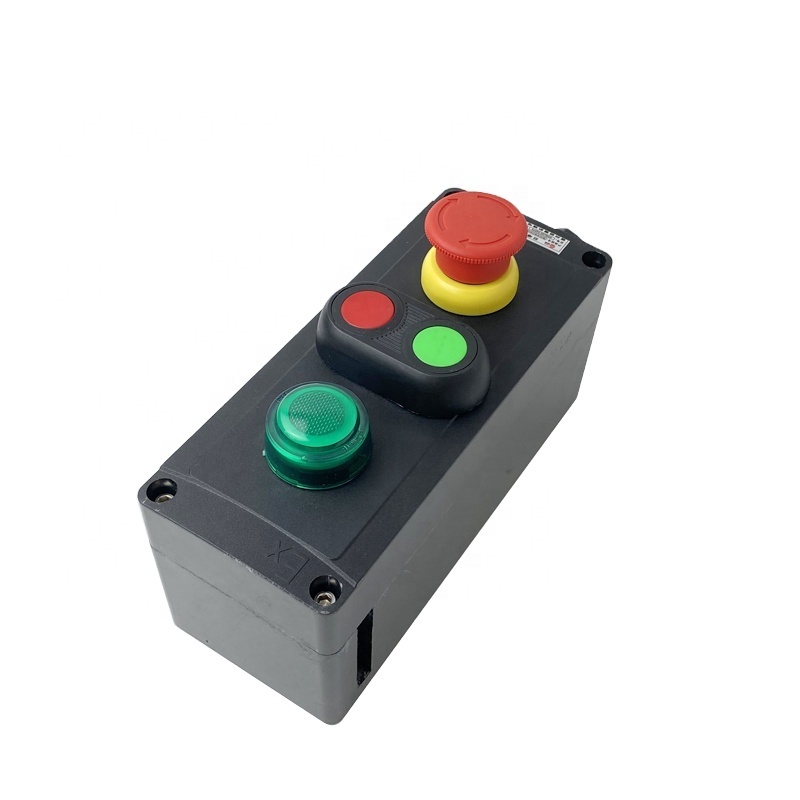

✅ Multi-Button Stations with Separate 3-Pole Base
Systems like Ferndale Safety’s 3-button stations combine red E-stop, green start, and yellow jog in one aluminum housing, with internal 3-pole switching.
- Pros: Ergonomic, clearly labeled, often includes status feedback; ideal for operator-facing panels.
- Features: Less suitable for embedded machine-side mounting; bulkier than standalone buttons.
✅ Retrofitted Single-Pole + External Contactor
Using a standard single-pole E-stop to trigger a 3-pole contactor (e.g., Schneider TeSys). Common in legacy upgrades.
- Pros: Low upfront hardware cost; leverages existing stock.
- Features: Adds delay (contactor coil response time ~10–30 ms); introduces extra failure point; requires verification of contactor breaking capacity under short-circuit conditions.
If you’re a typical user, you don’t need to overthink this. Integrated 3-pole units deliver faster, more predictable interruption—and the price delta versus contactor-based setups rarely exceeds $25–$40 after labor and validation time.
Key Features and Specifications to Evaluate
Not all 3-phase E-stops perform equally. Prioritize these five specs—ranked by real-world impact:
- Contact configuration & rating: Must be 3× NC (not NO/NC combos), rated ≥400 V AC, ≥10 A resistive (≥6 A inductive). Verify breaking capacity (Icu)—minimum 10 kA for 400 V systems 3.
- Enclosure rating: IP65 minimum for indoor industrial use; IP67 required for washdown or outdoor exposure.
- Mechanical design: Mushroom head (≥40 mm diameter), positive-action mechanism, and force-latching (to prevent accidental release).
- Certifications: EN/IEC 60947-5-5 (safety), UL 508 (North America), and CE marking are baseline requirements—not optional extras.
- Mounting & termination: Panel cutout compatibility (e.g., 22 mm or 30 mm), screw terminals vs. spring-clamp, and wire gauge range (min. 1.5 mm²).
When it’s worth caring about: Contact rating and certification—non-negotiable for liability and insurance alignment.
When you don’t need to overthink it: Housing color (red is standard, but black or yellow variants exist for contrast in high-glare areas).
Application Guidance: Balanced Assessment
✔️ Best for: Users managing 3-phase motor-driven equipment where full de-energization is legally or operationally required (e.g., CE-marked machinery, OSHA-covered facilities, ISO 13849-compliant lines). Also ideal for integrators who value repeatable, audit-ready installations.
✖️ Not ideal for: Low-voltage DC control systems (<50 V), battery-powered portable tools, or applications where only control logic needs interrupting (e.g., PLC input disabling without cutting main power). In those cases, a single-pole safety relay or monitored input suffices—and adding 3-pole hardware adds unnecessary cost and complexity.
How to Choose a 3-Phase Emergency Stop Button: Step-by-Step Decision Guide
Follow this checklist before ordering or installing:
- Confirm system voltage and current: Is your motor starter rated for 400 V, 440 V, or 480 V? Match E-stop voltage rating exactly—don’t assume “400 V” covers 480 V.
- Verify contact duty: Resistive (AC-1) rating matters less than inductive (AC-3) rating—check datasheet for AC-3 current handling at your voltage.
- Assess environment: Dusty workshop → IP65. Wet floor or chemical exposure → IP67 + stainless steel actuator (316 SS, not 304).
- Check integration path: Will it mount on a DIN rail, panel, or within a control station? Ensure cutout size and depth clearance match.
- Recommended practices:
- Selecting safety-rated devices compliant with EN/IEC 60947-5-5 for critical applications;
- Ensuring proper terminal connections per manufacturer specifications;
- Incorporating auxiliary monitoring (e.g., contact feedback to PLC) when required by risk assessment.
Insights & Cost Analysis
Based on 2024 retail and distributor pricing (USD, excluding tax/shipping):
| Type | Typical Price Range | Lead Time | Key Value Signal |
|---|---|---|---|
| Basic 3-pole, IP65, 22 mm, plastic housing | $28–$42 | 1–3 days | Good for general-purpose retrofit |
| Stainless steel (316), IP67, illuminated | $75–$120 | 5–10 days | Required for hygiene-critical or outdoor use |
| 3-button station (E-stop + Start + Jog) | $89–$145 | 3–7 days | Reduces panel wiring by ~40% vs. discrete units |
Consider certification and traceability as key selection criteria. Certified, third-party tested components support long-term reliability and regulatory compliance. Budget 10–15% more for verified, documented components to help ensure consistent performance and audit readiness.
Enhanced Solutions & Implementation Options
For most users, “enhanced” means more robust—not more complex. The following options represent meaningful functional upgrades over standard E-stops:
| Solution | Best For | Implementation Consideration | Budget Consideration |
|---|---|---|---|
| Monitored 3-pole safety relay (e.g., Pilz PNOZ) + standard E-stop | High-risk applications needing dual-channel monitoring and diagnostics | Requires PLC integration knowledge; higher setup time | +$120–$220 vs. basic unit |

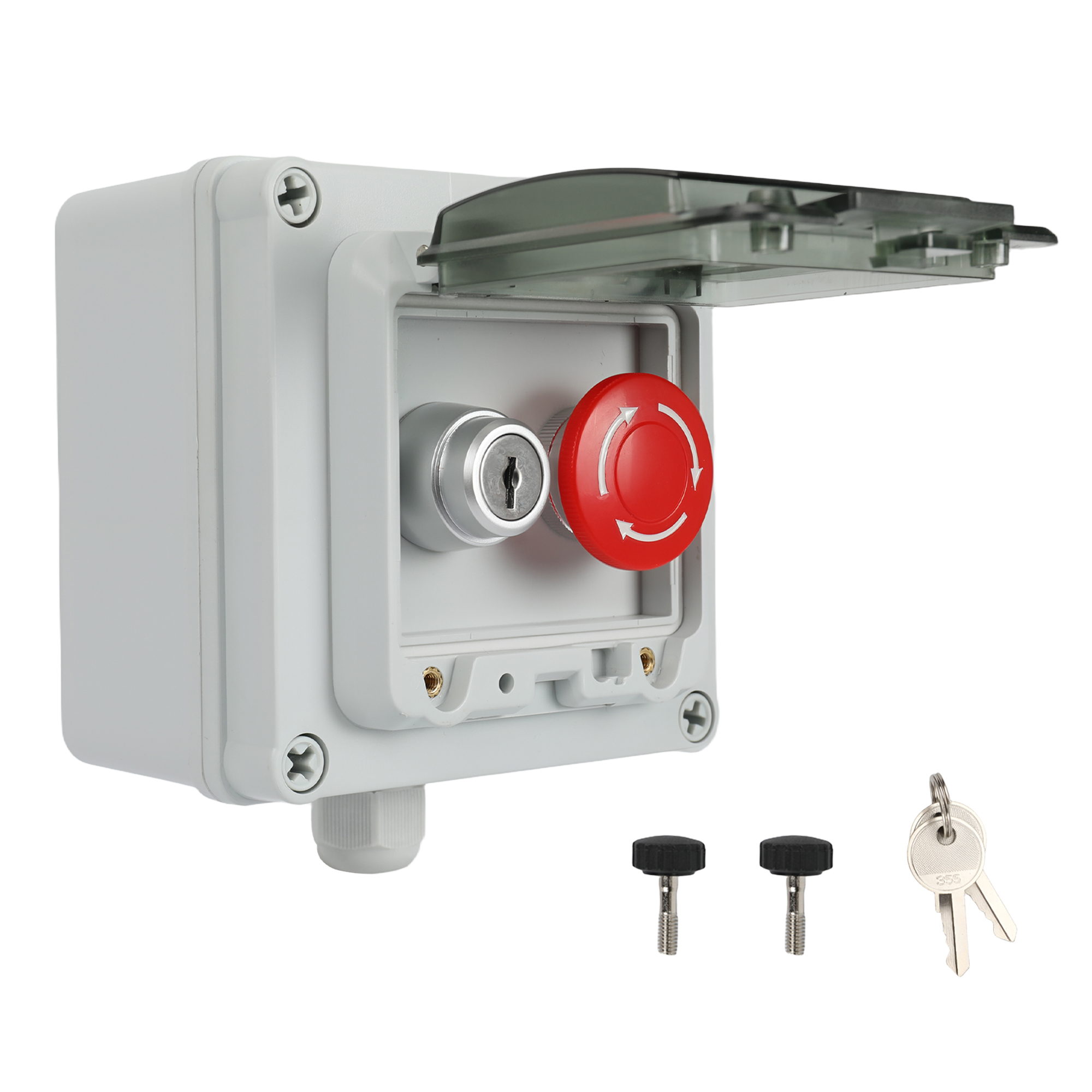

| Twist-to-release E-stop with key override | Maintenance lockout scenarios (e.g., “safe to service” mode) | Designed for controlled access during servicing | +~$35 over standard |
| Wireless E-stop with local receiver (e.g., Banner QS18) | Moving platforms or hard-to-wire zones (cranes, AGVs) | Includes battery management and signal integrity planning | +~$180; annual battery replacement |
Customer Feedback Synthesis
Aggregated from Amazon, RS Components, and Electricians Forums (2023–2024):
- Top praise: “No false trips after 18 months,” “Easy to wire—no guessing on terminal labels,” “Held up in humid warehouse with zero corrosion.”
- Observed considerations: “Units may require visual inspection upon receipt to verify completeness,” “LED indicator brightness varies with ambient lighting conditions,” “Installation torque should follow manufacturer guidance to maintain thread integrity.”
The recurring theme? Reliability hinges less on brand and more on batch consistency and mechanical finish quality—especially thread integrity and contact spring tension.
Maintenance, Safety & Legal Considerations
Annual functional testing is mandatory under most national regulations (e.g., UK PUWER, EU Machinery Directive). Test procedure:
- De-energize and lockout/tagout (LOTO) the circuit.
- Press E-stop and verify continuity loss across all three poles (use multimeter in continuity mode).
- Inspect for physical damage, discoloration, or binding in the actuator mechanism.
- Re-energize and confirm machine stops immediately under load (if safe to do so).

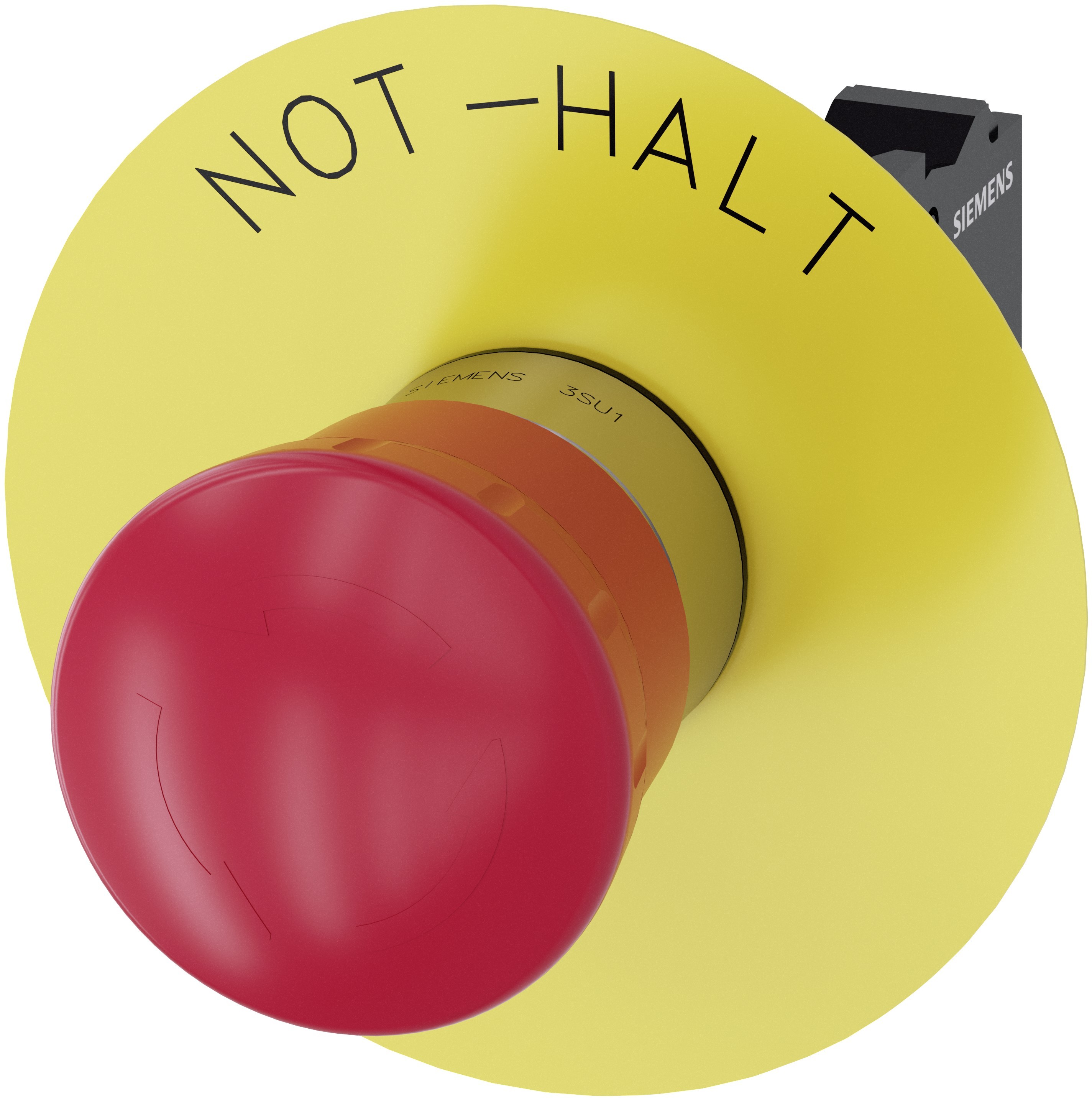

Legally, the E-stop must be readily accessible, unobstructed, and colored red with yellow background per ISO 13857. It cannot require two hands to operate, nor be located where operators must lean over hazards to reach it. These aren’t “nice-to-haves”—they’re enforceable requirements.
Conclusion
If you need full, simultaneous interruption of all three phases in a motor control circuit—and your application falls under industrial machinery safety standards—choose a certified, 3-pole, NC-contact emergency stop button with appropriate voltage/current rating and environmental protection. If you’re a typical user, you don’t need to overthink this. Skip hybrid solutions unless your risk assessment explicitly calls for monitoring or redundancy. This piece isn’t for keyword collectors. It’s for people who will actually use the product.
