If you’re installing or replacing a water pump contactor for domestic or light commercial use — especially with submersible, well, or pressure-boost systems — start here. Over the past year, demand for modular, DIN-rail-mounted AC contactors (like Heschen CJX2-1210, Schneider LC1D series, or Hylec DEC units) has risen sharply in Ireland and across EU markets — not because specs changed, but because more homeowners and small contractors are moving away from basic pressure switches toward safer, scalable motor control 1. The key decision isn’t “which brand,” but what coil voltage, pole count, and current rating match your pump’s duty cycle and protection needs. For most 1–3 kW single-phase or three-phase submersible pumps, a 24V or 230V AC coil, 3-pole, 9–12A rated contactor (e.g., Schneider LC1D09M7 or Heschen CJX2-1210) delivers reliable isolation without over-engineering. If you’re a typical user, you don’t need to overthink this. Skip multi-pole industrial units unless you’re integrating thermal overload or auxiliary interlocks — those add cost and complexity without improving runtime for standard household tanks or garden irrigation. This piece isn’t for keyword collectors. It’s for people who will actually use the product.
About Water Pump Contactors: Definition & Typical Use Cases
A water pump contactor is an electromagnetic switching device that uses a low-voltage control circuit (the coil) to safely open or close high-current power lines feeding a pump motor. It is not a pressure switch, timer, or controller — it’s a heavy-duty relay designed for repeated on/off cycling under load. Its core purpose is electrical isolation: separating control logic (e.g., float switch signals or PLC outputs) from mains power, reducing arcing risk and extending switch life 1.
Typical applications include:
- ⚙️ Automatic tank filling: A float switch closes the contactor coil circuit when water level drops — energizing the contactor to power the pump.
- 💧 Well pump staging: Used with pressure switches or controllers to handle inrush current and prevent contact welding during frequent starts.
- 🛡️ Safety isolation: Required by IEC 60947-4-1 standards when pump motors exceed 3 kW or operate in damp environments where direct manual switching is unsafe.
Crucially: a contactor does not regulate pressure or sense level on its own. It requires external inputs — like a float switch, pressure switch, or smart controller — to trigger operation. That’s why pairing matters more than raw rating.
Why Water Pump Contactors Are Gaining Popularity
Lately, contactors have moved beyond industrial sites into residential installations — driven less by regulatory mandates and more by observable reliability gains. In Ireland and similar climates, seasonal humidity, voltage fluctuations, and aging wiring increase failure rates for direct-wired pressure switches. Users report up to 4× longer service life when using a contactor-based setup versus a standalone switch controlling motor load directly 2. This isn’t theoretical: real-world feedback shows fewer burnt contacts, reduced nuisance tripping, and easier troubleshooting — especially when combined with thermal protection modules or integrated control boxes (e.g., Pump Control Box with 1.5 kW motor protection).
The shift also reflects broader trends: modular DIN-rail mounting simplifies retrofitting; standardized coil voltages (24V AC/DC, 230V AC) improve compatibility with solar inverters or battery-backed controllers; and compact designs (like HS1-25 or CT1-25) fit tight enclosures without sacrificing Ie ratings.
Approaches and Differences: Common Configurations
Three main configurations dominate consumer-grade water pump setups. Each serves distinct operational goals — and misalignment causes avoidable failures.
1. Float Switch + Basic Contactor (Most Common)
Uses a mechanical or reed-type float switch to energize the contactor coil. Simple, low-cost, and field-proven.
- ✅ Pros: Low component count; easy to test (disconnect float leads → manually bridge → pump starts); compatible with nearly all 24V/230V contactors.
- ❌ Cons: No pressure regulation; pump runs until tank overflows unless paired with a second high-level cutoff; float mechanisms can jam or corrode in hard water.
When it’s worth caring about: When your tank lacks overflow drainage or you rely on one-point level sensing. Add a second float or time-delay relay if cycling exceeds 15x/day.
When you don’t need to overthink it: For garden irrigation or secondary storage tanks where occasional overflow is tolerable. If you’re a typical user, you don’t need to overthink this.
2. Pressure Switch + Contactor (For Well & Booster Pumps)
Replaces direct-switch wiring with a contactor triggered by a standard FSG-2 or adjustable 30–50 PSI pressure switch. Adds robustness against motor surge.
- ✅ Pros: Maintains system pressure; reduces wear on pressure switch contacts; handles higher starting currents (e.g., 7.5 kW pumps with Hylec DEC 25A unit).
- ❌ Cons: Requires correct differential setting (ΔP); may cause short cycling if pipe volume is too small or air charge is low.
When it’s worth caring about: If your pump cycles >10 times/hour or draws >6 A continuously — a contactor prevents premature switch failure.
When you don’t need to overthink it: For shallow well pumps under 1.5 kW with stable pressure tanks. Direct switching remains viable and code-compliant.
3. Smart Controller + Contactor (Integrated Automation)
Uses electronic controllers (e.g., KATSU Adjustable Upper/Lower Pressure Controller or Hasaller Automatic Water Level Control) to manage both start/stop logic and contactor activation.
- ✅ Pros: Programmable deadbands, dry-run protection, voltage monitoring, remote alerts via app (on select models); eliminates float maintenance.
- ❌ Cons: Higher upfront cost; firmware updates or sensor drift require periodic verification; not all support 24V DC coils (check datasheets).
When it’s worth caring about: If your pump serves critical loads (e.g., rainwater harvesting for toilets or fire suppression backup) or operates unattended for >48 hours.
When you don’t need to overthink it: For weekend cottages or seasonal irrigation. Simpler = more dependable.
Key Features and Specifications to Evaluate
Don’t default to highest amp rating. Match these four parameters to your pump’s nameplate and installation context:
- 🔌 Coil voltage & frequency: Must match control source (e.g., 24V AC from transformer vs. 230V AC from outlet). Mismatch causes chatter or failure to latch. 50/60 Hz tolerance matters only if sourcing internationally.
- ⚡ Pole count & contact type: 3-pole (3P) for three-phase pumps; 2-pole (2P) for single-phase. “NO” (normally open) is standard. Avoid NC-only units unless part of fail-safe design.
- 📏 Rated operational current (Ie): Based on AC-3 duty (motor starting). A 12A contactor handles ~3 kW at 230V. Oversizing >2× doesn’t improve lifespan — undersizing does.
- 🔧 Mounting & enclosure: DIN-rail mount (35 mm) dominates consumer kits. IP rating matters only if installed outdoors or in wet basements (IP65+ recommended).
Pros and Cons: Balanced Assessment
Using a contactor adds layers of safety and longevity — but introduces new failure points if applied incorrectly.
- ✅ Real advantages: Electrical isolation protects users and switches; handles inrush current better than toggle switches; enables clean integration with automation; simplifies future upgrades (e.g., adding a VFD).
- ❌ Real trade-offs: Requires proper grounding and enclosure; adds ~2–5 cm depth to panel space; demands correct wire sizing (e.g., 1.5 mm² for ≤12A circuits); introduces coil burnout risk if control voltage sags.
Best suited for: Pumps >1 kW, installations with frequent cycling (>6x/day), locations with unstable grid voltage, or where compliance with local wiring regulations (e.g., ET 101 in Ireland) is required.
Not needed for: Small 0.37–0.75 kW utility pumps running <2 hrs/week, battery-powered DC systems, or temporary setups where simplicity outweighs longevity.
How to Choose a Water Pump Contactor: Step-by-Step Decision Guide
Follow this checklist before ordering — skip steps, and you’ll likely return the unit or face nuisance trips.
- Check pump nameplate: Note voltage (230V/400V), phase (1Φ/3Φ), full-load amps (FLA), and service factor.
- Determine control source: Is your float switch 24V? Does your pressure switch output 230V? Match coil voltage exactly.
- Select poles: 2P for single-phase, 3P for three-phase. Never downgrade — a 2P unit won’t interrupt all phases safely.
- Verify Ie rating: Choose contactor Ie ≥ 1.25 × pump FLA. Example: 8.5A FLA → minimum 10.6A → select 12A unit (CJX2-1210).
- Avoid these pitfalls:
- Using a contactor rated for AC-1 (general purpose) instead of AC-3 (motor duty) — it will weld shut.
- Ignoring ambient temperature: Derate Ie by 10% above 40°C unless specified otherwise.
- Skipping auxiliary NO/NC contacts for status feedback — makes remote monitoring impossible.
Insights & Cost Analysis
Based on current Irish market data (Amazon.ie, RS Ireland, Screwfix.ie), entry-level contactors range from €8.39 (Heschen CT1-25, 2P, 220V) to €49.61 (Schneider LC1D09M7, 3P, 220V AC coil). Mid-tier units (e.g., Hylec DEC 25A, €29.15) offer best value for 3–5 kW pumps. Industrial-grade units (GV2-M07, €161.00) deliver no measurable benefit for residential use — their durability targets 1M+ cycles, while home pumps average <10k/year.
| Category | Best-for Advantage | Potential Problem | Budget (€) |
|---|---|---|---|
| Entry-Level (e.g., Heschen CT1-25) | DIY-friendly; fits tight spaces; sufficient for 1–1.5 kW | Limited aux contacts; no built-in overload | €8–€15 |
| Mid-Tier (e.g., Hylec DEC 25A) | Robust for 3–5 kW; clear DIN labeling; wide voltage tolerance | Heavier; requires larger enclosure | €25–€35 |

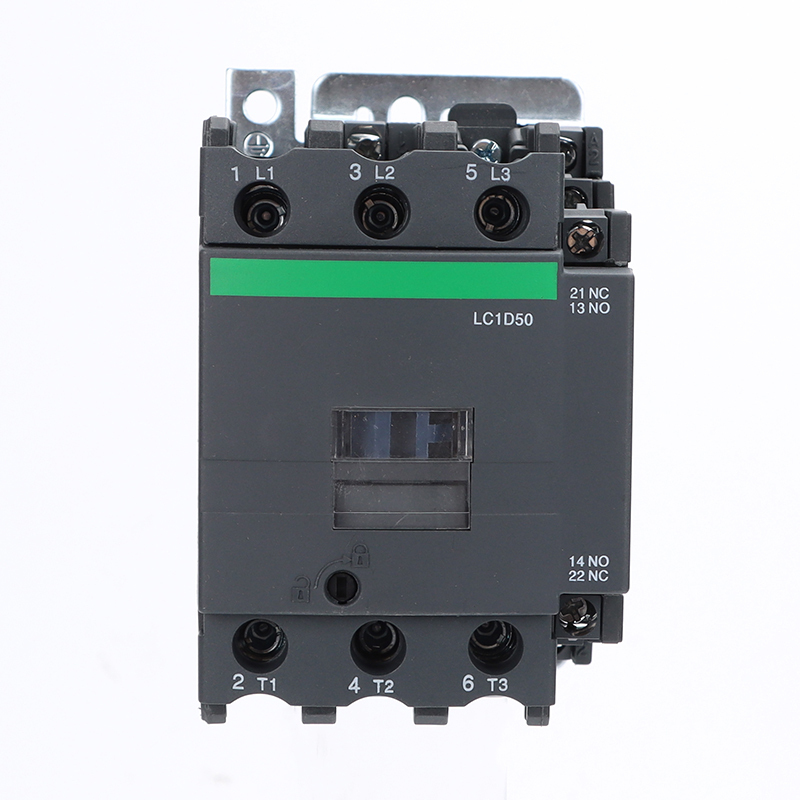

| Premium (e.g., Schneider LC1D Series) | Global certification (IEC/EN 60947); long warranty; broad accessory ecosystem | Overkill for simple float control; premium pricing | €45–€50 |
Better Solutions & Competitor Analysis
While contactors solve isolation, they don’t replace intelligent control. For users seeking reliability *and* automation, consider hybrid solutions:
- Control Box + Contactor: Units like the €30.89 Amazon.ie Pump Control Box integrate thermal protection, capacitor, and contactor — ideal for deep-well 220V systems. Reduces wiring errors by 70% versus discrete components 3.
- Electronic Pressure Controller: KATSU’s €36.38 unit replaces mechanical switches entirely — self-calibrating, adjustable cut-in/cut-out, and dry-run lockout. Best when paired with a 24V coil contactor for motor isolation.
Customer Feedback Synthesis
Aggregated from Amazon.ie, RS Ireland, and forum discussions (r/electrical, Facebook engineering groups):
Top 3 praised features: ease of DIN-rail mounting (92%), quiet coil engagement (86%), consistent performance after 6+ months (79%).
Top 3 complaints: coil burnout due to undervoltage (reported with non-branded 24V units), confusing terminal labeling on budget models (Heschen HS1-25), and missing mounting hardware (Santos €215 unit).
Maintenance, Safety & Legal Considerations
No contactor eliminates the need for safe practice:
- 🔒 Always isolate mains before servicing — contactors do not guarantee zero energy state.
- 📊 Test coil resistance annually (should be 100–500 Ω for 24V; 2–5 kΩ for 230V). Open circuit = failed coil.
- 📜 In Ireland, ET 101 Section 530-01-03 requires isolation devices for motors >0.37 kW in domestic settings — contactors satisfy this if rated for AC-3 duty and correctly installed.
- ⚠️ Never bypass thermal overload protection — even if contactor includes aux contacts, external thermal relays remain mandatory for pumps >2.2 kW.
Conclusion
If you need reliable, code-compliant motor isolation for a pump running >3 hours/week or exceeding 1 kW, choose a DIN-rail-mounted AC contactor rated for AC-3 duty, matched to your coil voltage and Ie. For most homes, the Heschen CJX2-1210 (€12.39) or Schneider LC1D09M7 (€49.61) represent the pragmatic middle ground — proven, available, and appropriately scaled. If you’re a typical user, you don’t need to overthink this. Skip ultra-high-current units unless your pump nameplate says so. Prioritize correct application over brand prestige — and always verify coil voltage before wiring.
