The phrase '10 to 1 multiplexer' refers to a specialized electronic component that selects one of ten input signals and forwards it to a single output line. Unlike standard digital logic ICs, which typically use power-of-two configurations (like 8:1 or 16:1), the 10:1 MUX is primarily found in high-speed telecommunications and industrial testing environments.

Product Overview

10:1 multiplexers are divided into two distinct categories based on their physical implementation and application:

* High-Speed Digital ICs (SerDes): These are integrated circuits designed for data serialization in systems like 8B/10B encoding. They operate at extreme speeds (up to 12.5 Gb/s) and are essential for fiber optic transceivers and high-speed network routers Researchgate.

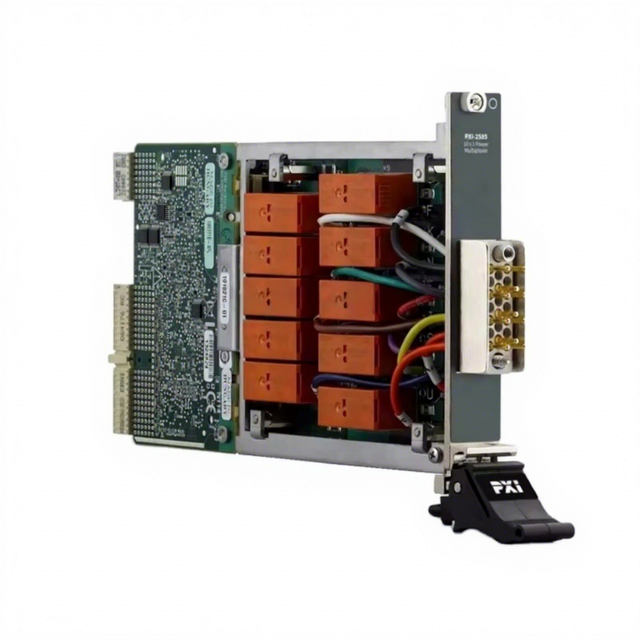

* Modular Industrial Hardware (PXI/LXI): In automated test equipment (ATE), 10-channel multiplexers are used to route power or signals to multiple test points. These modules, such as the NI PXI-2585 Alibaba or Pickering 40-660 Pickeringtest, handle much higher currents (up to 10A) and are used for heavy load switching in automotive and aerospace testing.

Key Market Insights

* Non-Standard Demand: Standard TTL/CMOS logic families (e.g., 74HC series) rarely offer a native 10:1 IC. Most designers use two 8:1 MUXs or a single 16:1 MUX to achieve a 10-channel selection Quora.

* SerDes Bottleneck: As data rates exceed 10 Gb/s, traditional serial multiplexers have become a speed bottleneck. The market is shifting toward tree-type CMOS topologies to maintain signal integrity while reducing power consumption to below 125 mW Researchgate.

* Industrial Automation Growth: The rise of electric vehicles (EVs) and complex aerospace systems has increased the demand for 10-channel power multiplexers in PXI platforms, as they provide the necessary channel density and reliability for large-scale production testing Pickeringtest Mea-Tec.

For detailed product specifications and supplier lists, you can refer to the attached search result files.

Would you like to explore custom IC design services for 10:1 multiplexers?
