20 Pin Jtag Cable

The 20-pin JTAG cable is a cornerstone of the embedded development industry, primarily standardized by ARM (DSTREAM) and SEGGER (J-Link). The market is currently seeing a significant shift toward miniaturization while maintaining robust legacy support.

🔌 Product Insights & Specifications

The standard 20-pin interface utilizes a 2x10 IDC keyed box header SeggerArm.

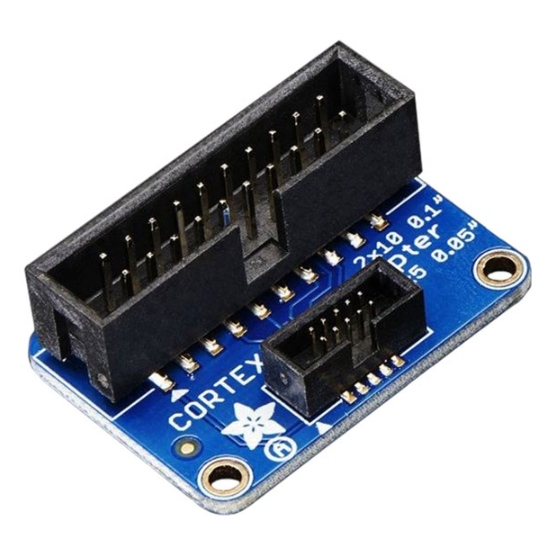

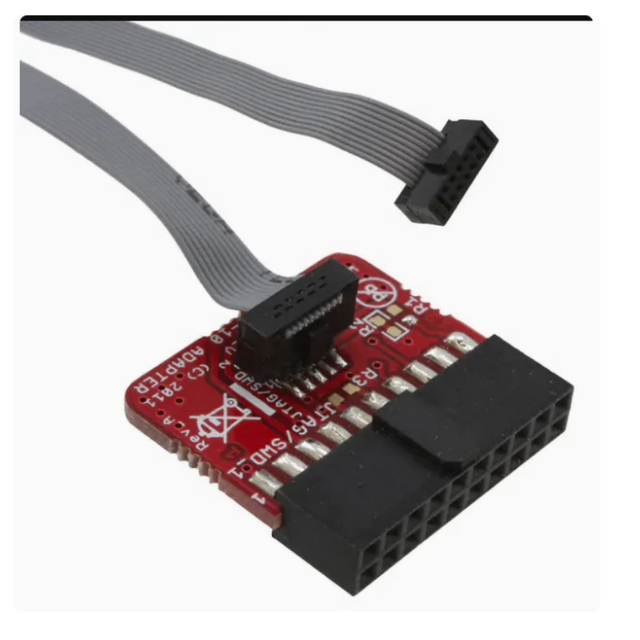

* Pitch Standards: The most common is the 2.54mm (0.1") pitch, used for standard ribbon cables. However, modern compact designs increasingly use the 1.27mm (0.05") pitch (CoreSight 20), necessitating a variety of adapter boards for conversion YoutubeStackexchange.

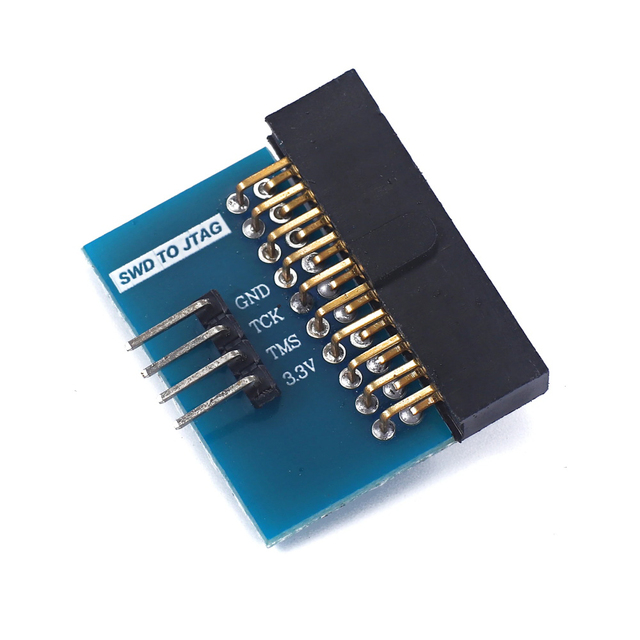

* Functional Modes: Beyond traditional JTAG (IEEE 1149.1), these cables now frequently support Serial Wire Debug (SWD) and Serial Wire Viewer (SWV), which utilize the TDO/SWO pin for real-time trace data SeggerArm.

* Critical Pins: Pin 1 (VTREF) is essential for target voltage reference, while Pin 15 (nSRST) handles system resets TiSegger.

📈 Market Trends (2025–2026)

* Industry Rebound: The connector industry is projected to see a +12.5% growth in 2025, driven by a strong recovery in the computer and peripherals sector ConnectorsupplierSamtec.

* Asia-Pacific Dominance: China and the broader Asia-Pacific region are the primary hubs for both production and demand growth ConnectorsupplierMordorintelligence.

* Technological Drivers: The rise of AI and automation is accelerating the demand for high-reliability debug interfaces like the 20-pin JTAG ConnectorsupplierSnsinsider.

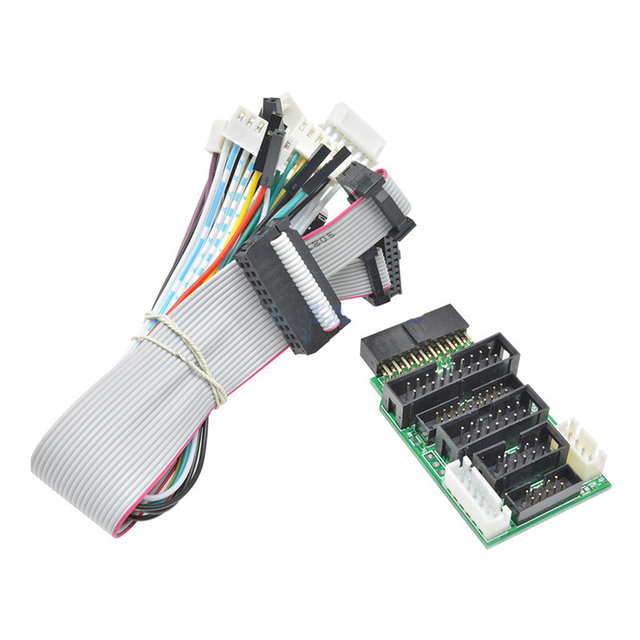

I have compiled a list of available 20-pin JTAG cables, flat ribbon cables, and adapter boards matching these specifications. The results include pricing, MOQ, and detailed supplier information for your sourcing needs.
