22 Pin Lcd

The phrase '22 pin LCD' refers to a growing segment of display technology characterized by high-density Flexible Printed Circuit (FPC) connectors, predominantly using a 0.5mm pitch. This specification has gained significant momentum due to its adoption in compact computing ecosystems and modern industrial applications. RaspberrypiElectromaker

Key Market Trends & Insights

* Raspberry Pi 5 Influence: A major driver for '22 pin LCD' demand is the Raspberry Pi 5 and Pi Zero series, which shifted from the traditional 15-pin 1.0mm pitch to a 22-pin 0.5mm pitch connector for CSI/DSI interfaces. This has created a surge in demand for specialized 22-pin to 15-pin adapter cables and native 22-pin display modules. RaspberrypiElectromaker

* Shift Toward Compactness: The market is trending away from 1.0mm pitch cables toward 0.5mm FPC to save PCB real estate in handheld devices, wearables, and compact computing modules. Flywing-Tech

* Diverse Applications: Beyond hobbyist computing, 22-pin displays are widely used in graphic monochrome modules (e.g., 128x64 OLEDs) and small-format IPS TFT screens (1.2" to 2.8") for industrial instruments and smart home controllers. Arduino

Product Landscape & Pricing

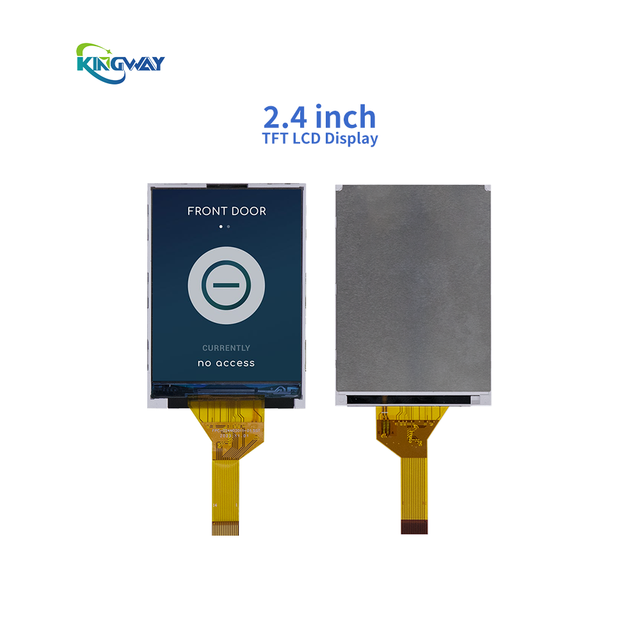

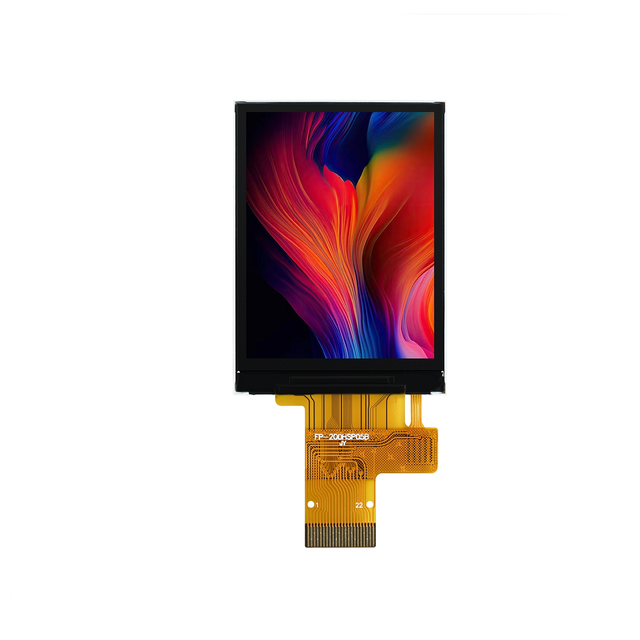

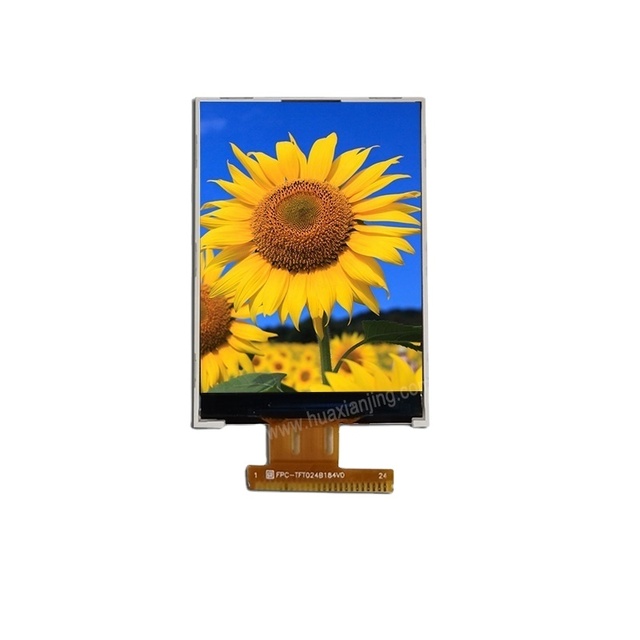

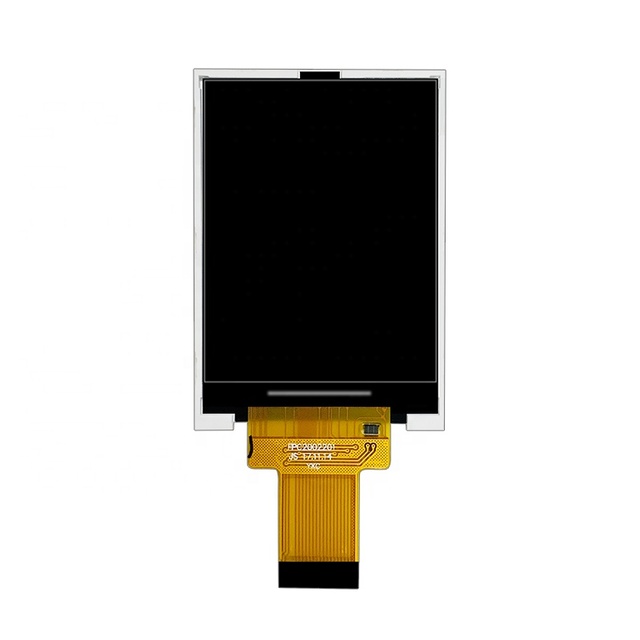

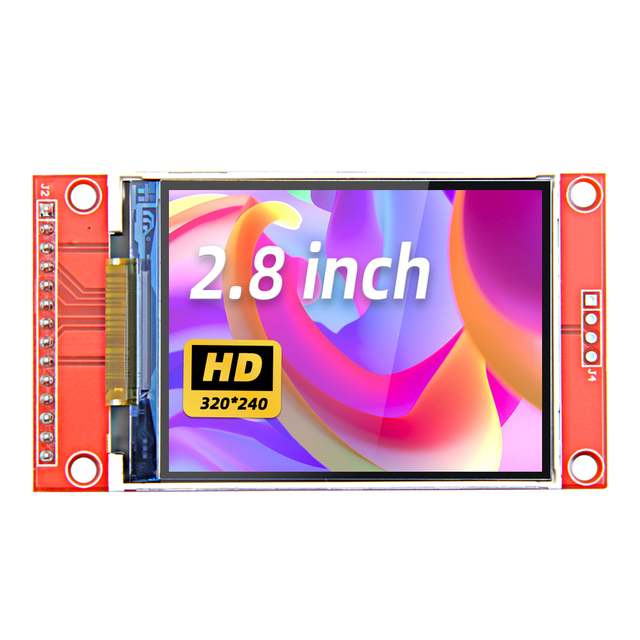

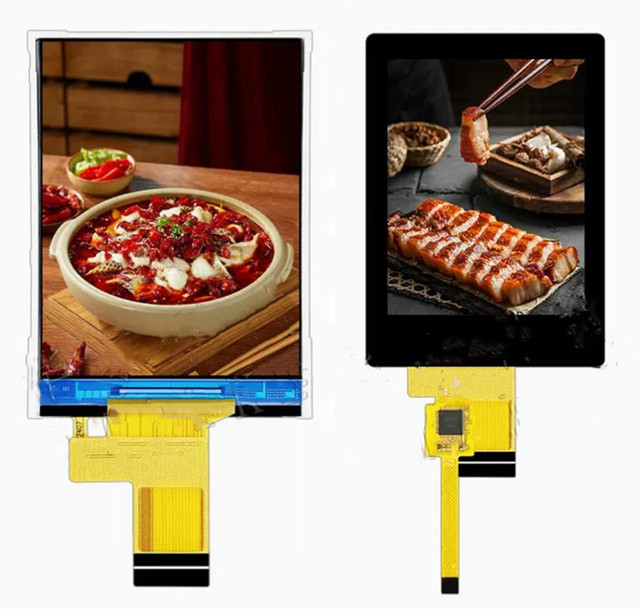

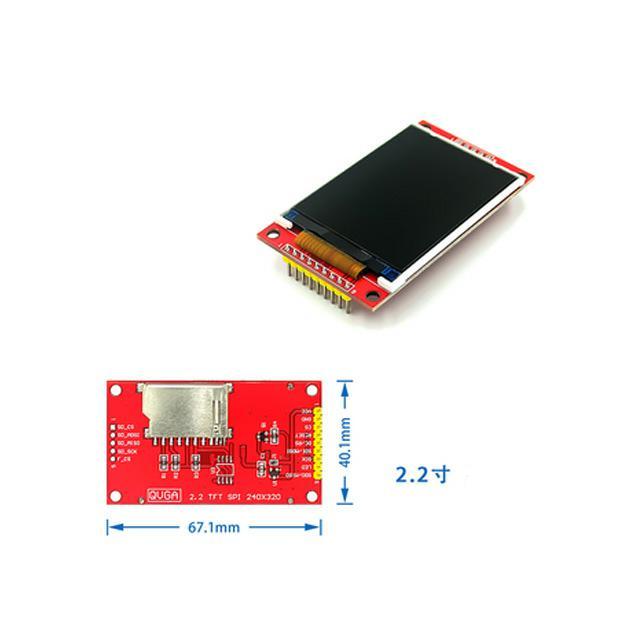

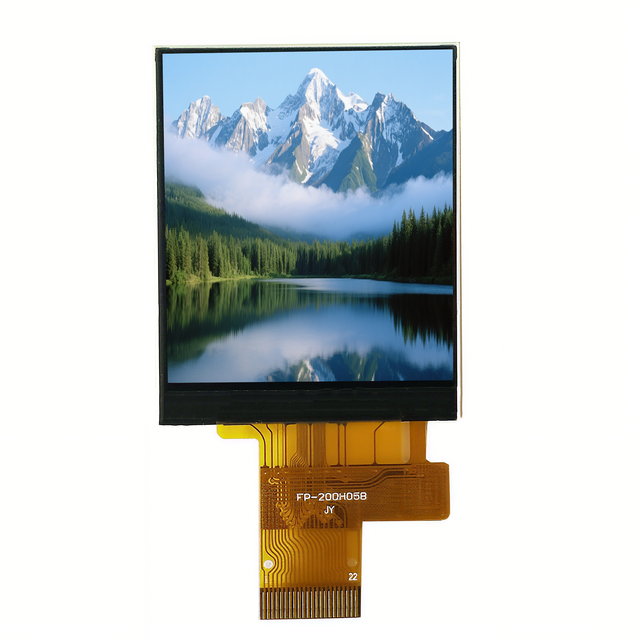

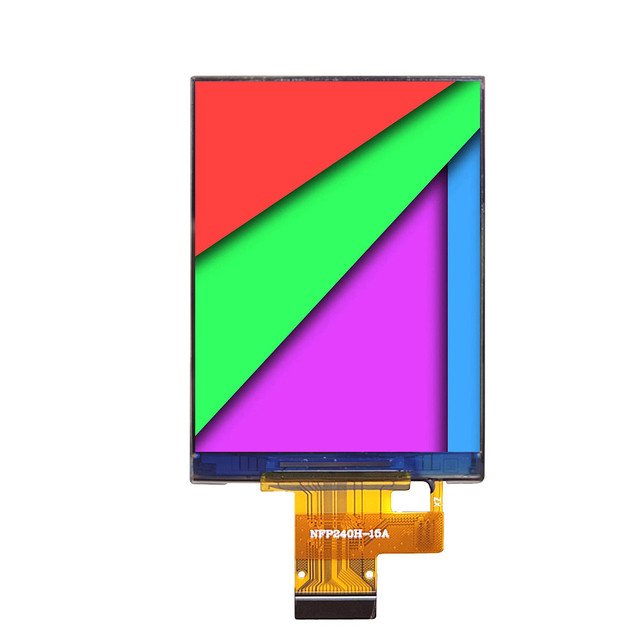

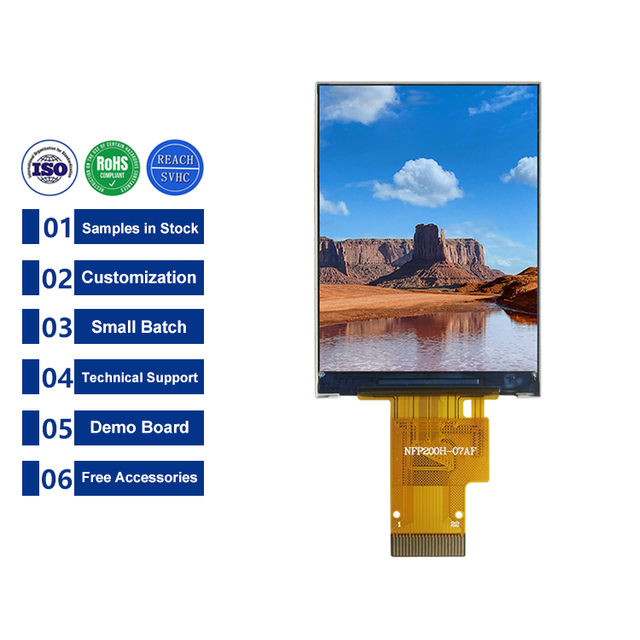

* Small TFT Modules ($1.50 – $5.00): High-volume products include 2.0" to 2.8" TFT screens with SPI/MCU interfaces, often used in DIY projects and budget electronics. AlibabaAlibaba

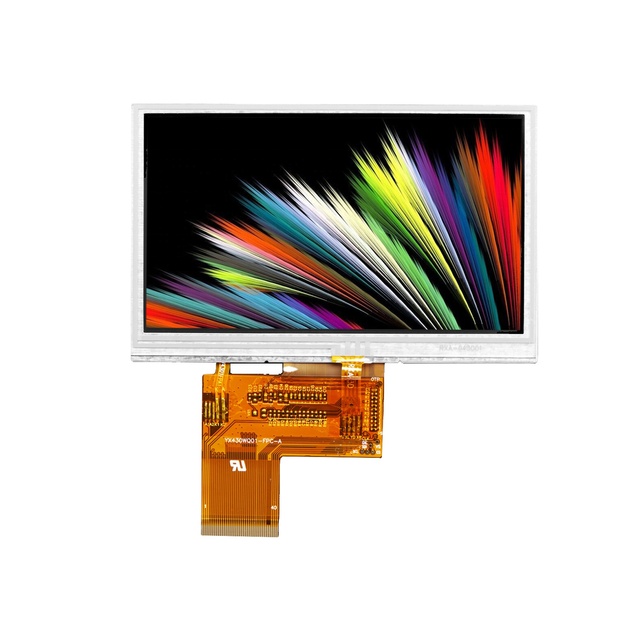

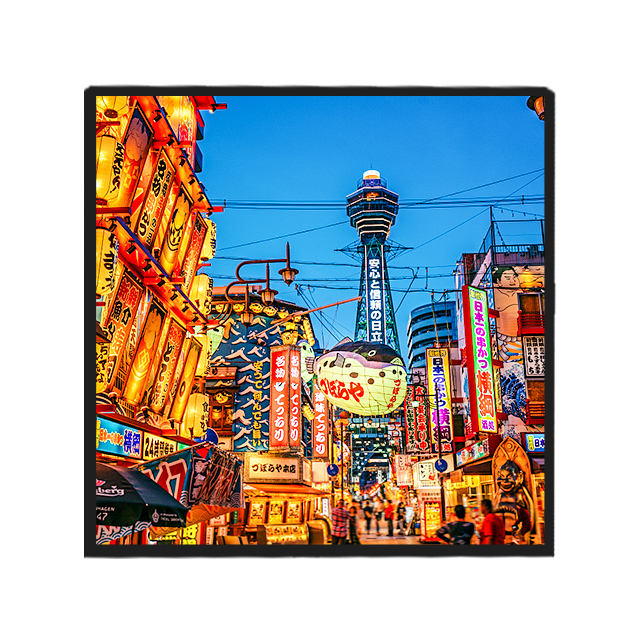

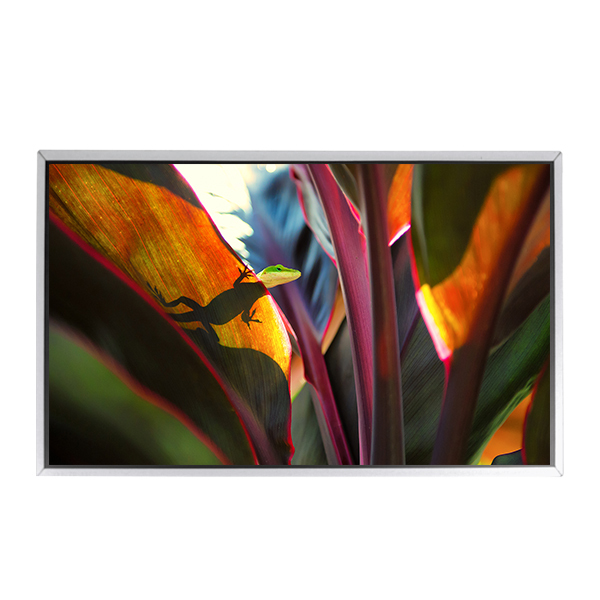

* Specialized Industrial Panels ($80 – $380): Larger or specialized displays (e.g., 5.7" QVGA or 8" HD panels) command much higher prices due to industrial-grade durability and specialized driver requirements. AlibabaAlibaba

* Adapter & Repair Niche: 22-pin FPC cables typically retail between $5 and $10, while individual SMT connectors are inexpensive (<$1.00) but represent a steady repair market due to the fragility of their retaining clips. Raspberrypi

I have compiled a list of available 22-pin LCD modules and components, ranging from budget-friendly TFT screens to specialized industrial panels.
