26 Pin Vga

The phrase "26 pin VGA" refers to a specialized high-density D-Sub connector (DB26) that integrates standard VGA video signals with auxiliary data lines such as RS-232 serial control, audio, and power into a single cable interface. Unlike the standard 15-pin VGA, this connector is primarily used in industrial, medical, and server management environments to reduce cable clutter and support multi-function displays AlibabaXenarcdirect.

Product Specifications & Identification

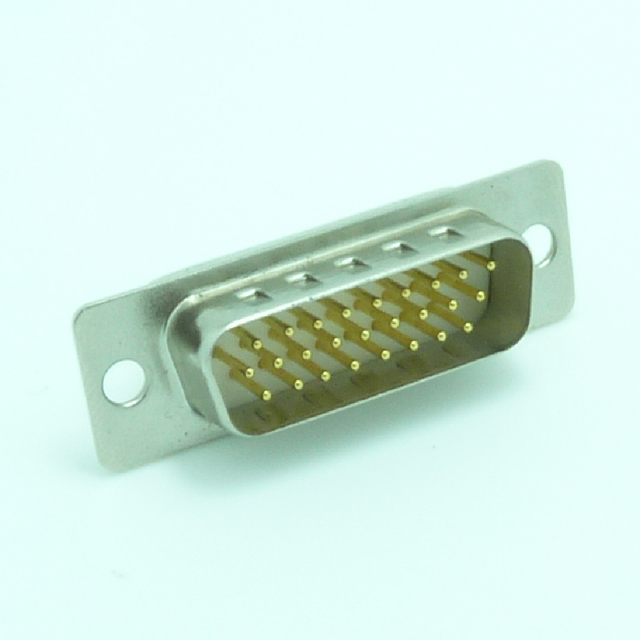

The term is often a misnomer; technically, it is a 3-row DB26 High-Density (HDB26) connector. While it shares the D-shape shell of a standard VGA, it is physically larger and not compatible with consumer-grade hardware.

• Signal Structure: Typically uses pins 1–13 for RGBHV video and pins 14–26 for auxiliary signals like touch-screen serial data or power (+5V/+12V) Alibaba.
• Key Applications: Specifically required for ruggedized monitor series (e.g., Xenarc YV-series), server KVM switches (e.g., Avocent), and vehicle-mounted industrial PCs AlibabaXenarcdirect.
• Market Status: It is considered a legacy-maintenance product. Most systems using this interface were installed between 2005–2015 and now require functional cable replacements for continued operation Alibaba.

Market Trends (2025–2026)

The market for 26-pin VGA components is shifting from general availability to specialized industrial supply:

• Consolidation: Demand is concentrated in the industrial and automotive maintenance sectors rather than consumer electronics, which have moved to digital interfaces like HDMI/DisplayPort GminsightsAlibaba.
• Customization Demand: Buyers are increasingly seeking custom-pinout cables as different OEMs (Xenarc vs. Avocent) use proprietary wiring for the same 26-pin physical connector Alibaba.
• Manufacturing Hubs: Production remains stable in the Guangdong region of China, with manufacturers like Dongguan Zechao and Dosin Precision offering both solder-type adapters and complete molded cable assemblies .

Sourcing Insights

If you are sourcing these products, you must verify the device pinout before purchasing, as incorrect wiring can cause electrical damage to legacy hardware Alibaba.

I have identified over 30 specialized manufacturers and 17 primary product listings for these connectors and cables. Detailed specifications, pricing ranges, and supplier certifications are available in the files below.
