The phrase "360 headset wiring" primarily refers to the technical configuration of the Xbox 360’s wired communication headsets, while the broader market reflects a massive shift toward AI-driven productivity and hybrid brain-centric designs for 2026.

Product Insights: Xbox 360 Headset Wiring

The Xbox 360 uses a specialized 2.5mm TRS (Tip-Ring-Sleeve) connector for its wired headsets. Unlike modern 3.5mm stereo headsets, this configuration is mono and designed specifically for chat. Reddit

Pin Number	Connector Part	Function
1	Tip	Microphone (Mic)
2	Ring	Speaker (Audio)
3	Sleeve	Ground

Technical Challenges & Solutions:

* Mono Interference: Using a standard stereo 3.5mm headset via a simple adapter often results in audio in only one ear and microphone signal bleed. Overclockers

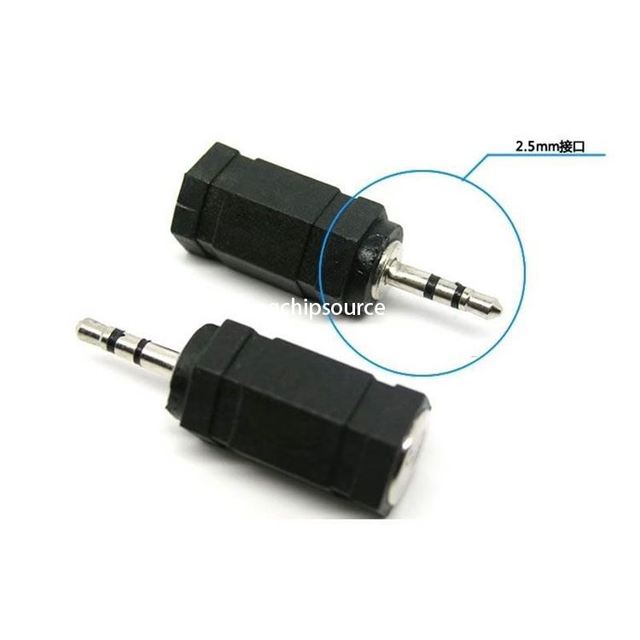

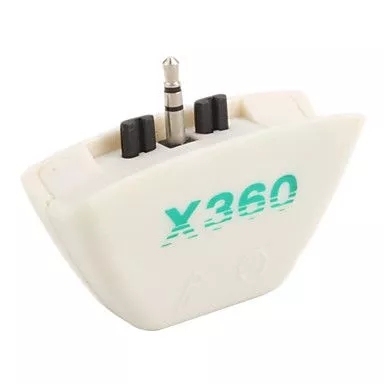

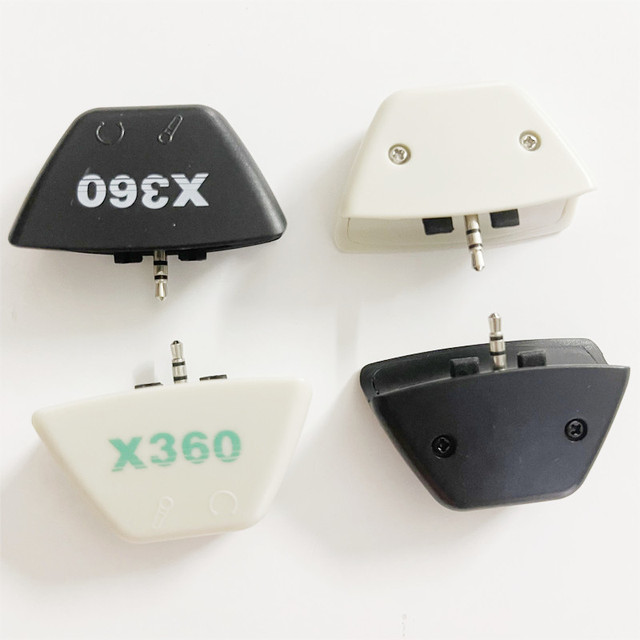

* Adapter Market: Active demand persists for 2.5mm to 3.5mm converters (approx. $1.15–$1.45/unit) that correctly align the mono-mic pins for older controllers. Alibaba Alibaba

* DIY Compatibility: Older 2.5mm "hands-free" mobile phone headsets (e.g., Plantronics/Jabra) are often natively compatible with the Xbox 360 controller wiring. Overclockers

Market Trends: 2026 Outlook

The headset market is projected to reach $189.49 billion in 2026 Precedenceresearch, with five key trends dominating the landscape: Eposaudio

1Brain-Centric Design: New "BrainAdapt™" technologies focus on reducing cognitive load, reportedly improving speech recognition accuracy by up to 48%.
2Hybrid Adaptive Noise Cancellation (ANC): A shift toward filtering distractions without total isolation, allowing for ambient environmental awareness.
3AI Productivity Tools: Headsets are evolving from simple speakers to "precision interfaces" for AI platforms, emphasizing crystal-clear voice pickup for digital assistants.
4The "Holy Grail" Device: Professionals are seeking a single BYOD (Bring Your Own Device) headset that balances gym-ready durability with office-ready microphone quality.
5Wired Reliability: Despite the wireless surge, wired headsets retain a stronghold in fixed professional environments (call centers/offices) for their "plug-and-play" stability. Eposaudio

Sourcing & Replacement Options

Current market data shows high interest in replacement components and retro-adapters as users maintain legacy hardware.
