40 Pin Ttl Interface

Updated September 20, 2026

Overview

Product sourcing insights & recommendations

18 来源

The 40-pin TTL interface (also known as RGB Parallel) remains a cornerstone in the industrial and embedded display markets, primarily for resolutions between 480x272 and 800x480. While consumer electronics have shifted to MIPI DSI, the 40-pin TTL standard is favored for its low BOM cost and native support by high-performance MCUs like the ESP32-S3 and STM32 series. Displaymodule Tailorpixels

Technical Analysis

* Signaling: Uses single-ended parallel signaling, direct from the host controller to the display. A 24-bit setup typically utilizes 24 data lines (R, G, B) plus synchronization signals like HSYNC, VSYNC, DCLK, and DE. Displaymodule

* EMI Vulnerability: Due to its parallel nature, it is susceptible to electromagnetic interference (EMI) at high clock speeds, which effectively caps its stable resolution at 1024x600. Displaymodule Aptusdisplay

* Pinout: The 40-pin configuration typically includes power (3.3V), ground, RGB data lines, backlight control, and optional pins for capacitive touch (I2C). Displaymodule

2026 Market Trends

* Industrial Resilience: Unlike mobile-grade MIPI panels that refresh every year, 40-pin TTL panels offer 3–5+ years of lifecycle stability, making them the default for industrial HMI, medical monitors, and automotive clusters. Riverdi Displaymodule

* BOM Cost Efficiency: It eliminates the need for expensive "bridge chips" (RGB-to-MIPI), which is critical for cost-sensitive IoT projects. Rocktech

* Shift toward MIPI: In 2026, designs requiring resolutions above 720p or ultra-thin bezels are migrating to MIPI DSI due to lower pin counts and better signal integrity. Displaymodule Aptusdisplay

Current Product Landscape

The market offers diverse modules ranging from high-brightness industrial panels to budget-friendly development kits:

* 10.1" Industrial Grade: Features 1000-nit sunlight readability, ideal for outdoor HMI and PLC systems. Alibaba

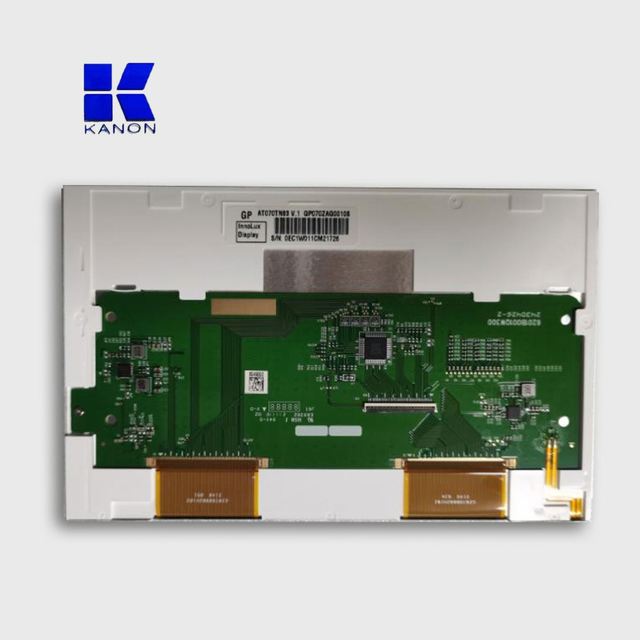

* 7" Digital Photo Frame Style: A high-volume, cost-effective standard (e.g., AT070TN83 V.1) widely used in general-purpose displays. Alibaba

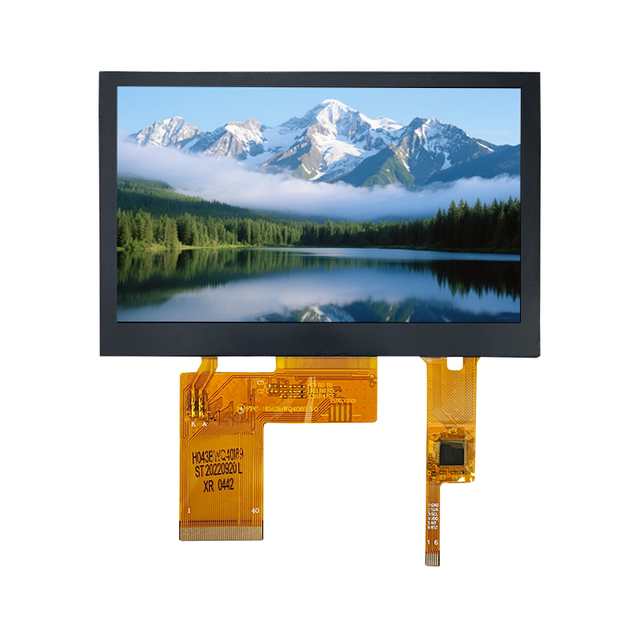

* 4.3" Automotive/Embedded: Standard 480x272 resolution, often paired with capacitive touch for IoT control hubs. Alibaba

For a detailed list of available modules, pricing, and supplier specifications, please refer to the attached search result files.
