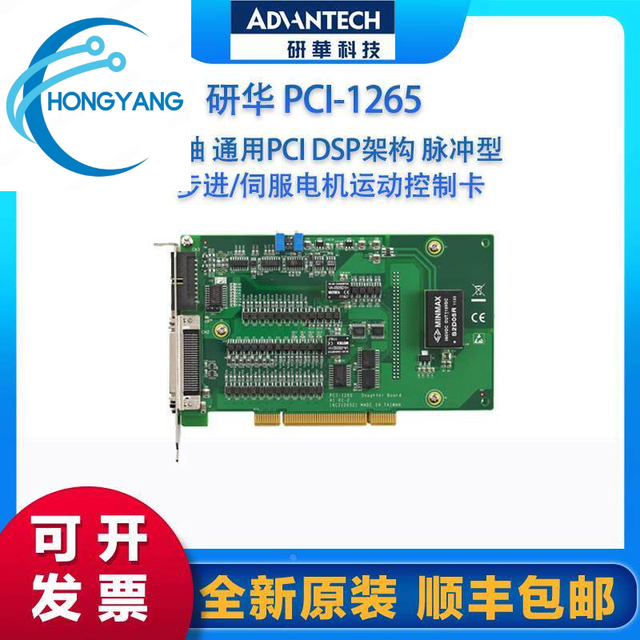

The PCI-1265-AE is a specialized 6-axis DSP-based universal PCI motion control card manufactured by Advantech Advantech Mouser. It is primarily used for precision control of stepping and pulse-type servo motors in industrial automation and machine vision applications Ipcstation Advantech.

Product & Market Status

* Lifecycle: The product is officially Obsolete/Discontinued Mouser. While no longer in active production, it remains available through specialized B2B industrial distributors and secondary markets for system maintenance and legacy support Ebay Alibaba.

* Transition Path: Advantech recommends migrating from the legacy PCI bus to PCI Express (PCIe) architectures for modern industrial PC environments Advantech Mouser.

* Pricing Insights: On B2B platforms, the unit price for new or original stock ranges significantly from $728 to $1,150, depending on supplier and quantity Alibaba Alibaba. Successor PCIe models like the PCIE-1245 are priced similarly, starting around $720 Alibaba.

Key Technical Specifications

Feature	Details
Control Axes	6-axis (stepping or servo) Mouser
Output Speed	Up to 5 Mpps (Pulse per second) Advantech
Interpolation	2- to 6-axis linear, 2-axis circular, and helical Ipcstation
On-board DSP	High-performance DSP for real-time trajectory planning Advantech
Memory Buffer	10K points for trajectory; 100K points for position compare Advantech
Bus Type	Universal PCI V2.2 (supports 3.3V and 5V slots) Ipcstation
I/O Capability	32-ch Isolated DI, 32-ch Isolated DO, and 2-ch Analog Input Advantech

Recommended Successors

For new projects or system upgrades, the following models are the modern industrial standard:

* PCIE-1285 (8-Axis): The functional successor for applications requiring more than 4 axes on a PCIe bus Advantech.

* PCIE-1245 (4-Axis): A cost-effective alternative if 6 axes are not strictly required Alibaba.
