Amplifier Circuits Swa

The phrase 'amplifier circuits swa' primarily refers to a popular series of broadband antenna amplifier boards (such as the SWA-49 and SWA-555) used to boost digital and analog TV signals. These circuits are essential for DVB-T/T2 reception in remote or low-signal areas.

Product Overview

The SWA series boards are high-gain, low-noise pre-amplifiers designed to be mounted directly on dipole antennas.

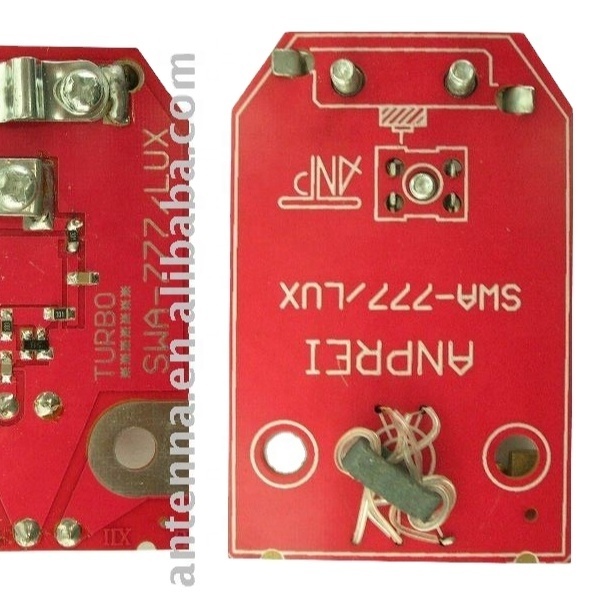

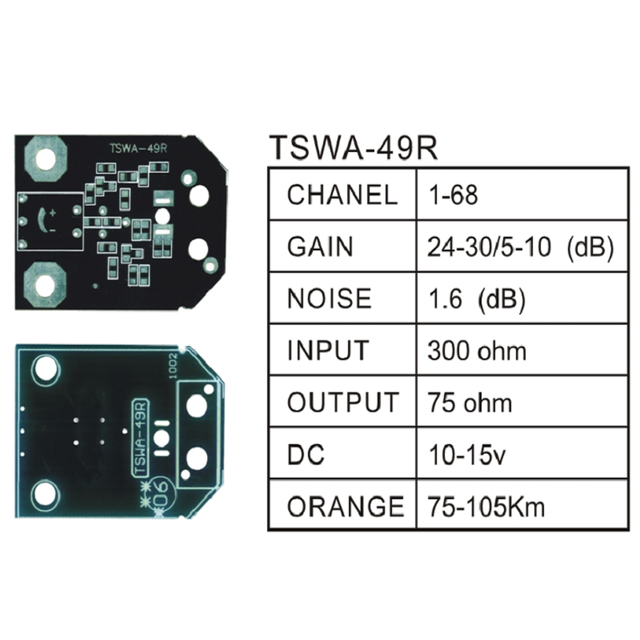

• Key Models: SWA-49 Anodas, SWA-555 Alibaba, and SWA-777 are the most common commercial models.
• Specifications: Typical gain ranges from 28 dB to 38 dB with noise figures as low as 1.7 dB, supporting reception up to 130 km from transmitters Anodas.
• Pricing & MOQ: Wholesale prices are extremely low, typically between $0.30 and $0.45 per unit, with minimum order quantities (MOQ) around 5,000 pieces for standard factory orders.

Market & Industry Trends

Beyond simple TV antenna boards, the broader RF amplifier market is shifting toward SWaP (Size, Weight, and Power) optimization:

• Technological Shift: Gallium Nitride (GaN-on-SiC) is rapidly replacing legacy LDMOS technology due to its higher power density and better thermal management, enabling smaller and lighter amplifier modules Drone-System.
• High Efficiency: Modern RF circuits now prioritize Power Added Efficiency (PAE) exceeding 35%, which is critical for battery-powered devices like UAVs (drones) and 5G small cells Drone-System.
• Integration: There is a strong trend toward System-in-Package (SiP) designs that combine the power amplifier, control logic, and protection circuits into a single compact unit to reduce overall system size Drone-System.

Detailed product listings and wholesale data for SWA series components are available in the attached files.
