Amplifier Diagram Products Guide: GaN, DIY Schematics & RF Modules

The market for amplifier diagrams and related products is undergoing a significant shift toward high-efficiency digital architectures and GaN (Gallium Nitride) materials, driven by the rollout of 5G-Advanced and a surge in audiophile-grade DIY consumer demand. By 2026, the global power amplifier market is projected to reach $45.85 billion Fortunebusinessinsights.

Market & Technical Trends

* Material Transformation: Traditional Silicon is rapidly being replaced by GaN, which offers superior thermal performance and efficiency, critical for compact 5G base stations and high-power RF applications Fortunebusinessinsights Semiconductorreview.

* AI-Enhanced Circuitry: Emerging "smart" amplifier diagrams now frequently integrate AI-driven DSP (Digital Signal Processing) to adapt sound output to environmental acoustics in real-time Semiconductorreview.

* High-Fidelity DIY Surge: There is a robust market for DIY amplifier kits that include full circuit drawings Alibaba. Consumers are increasingly seeking low-distortion Class-D and high-end Tube amplifier schematics for custom audio builds Yahoo Semiconductorreview.

Product Insights (B2B)

The current B2B landscape features three primary categories of "amplifier diagram" products:

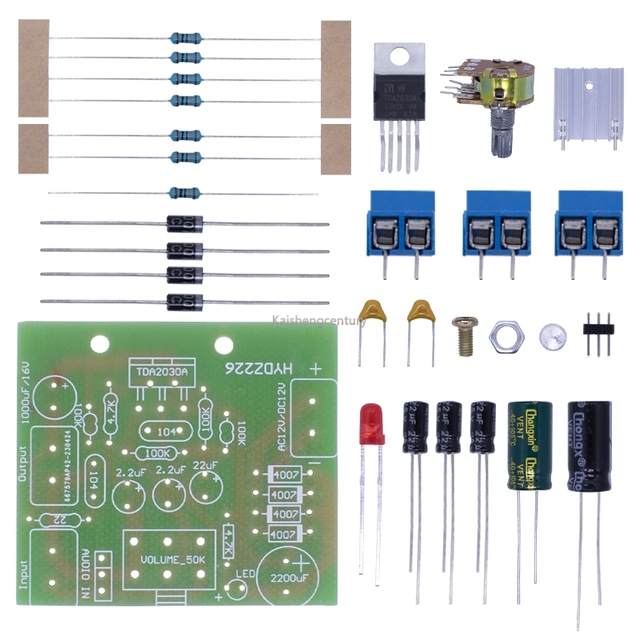

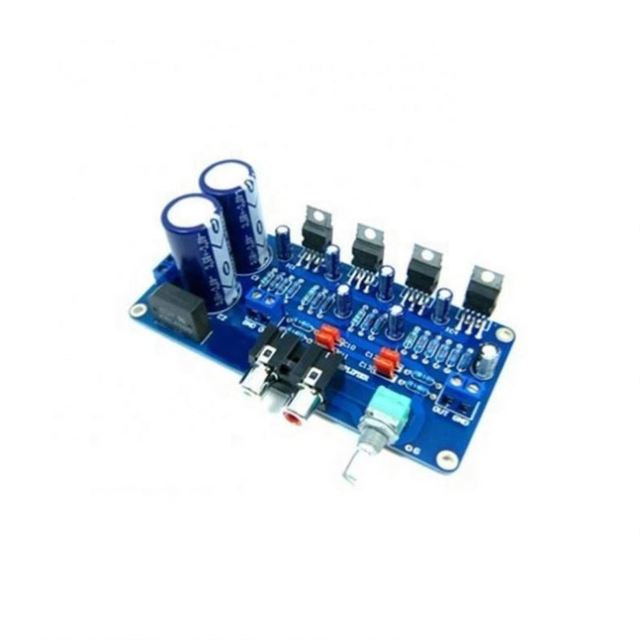

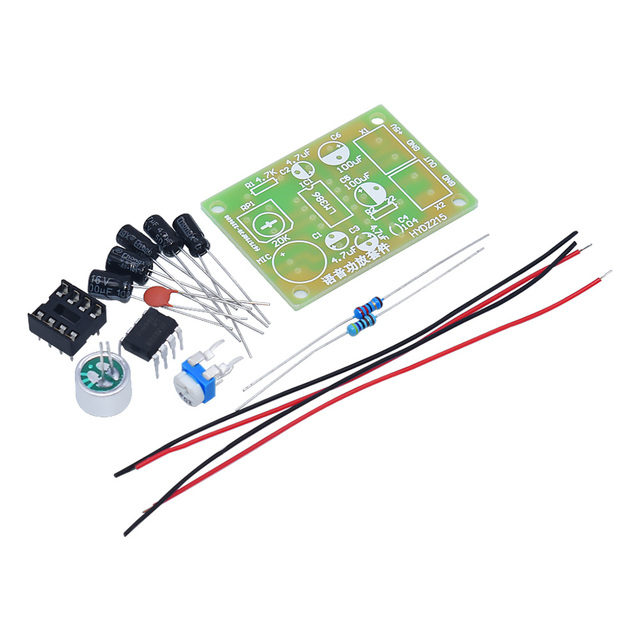

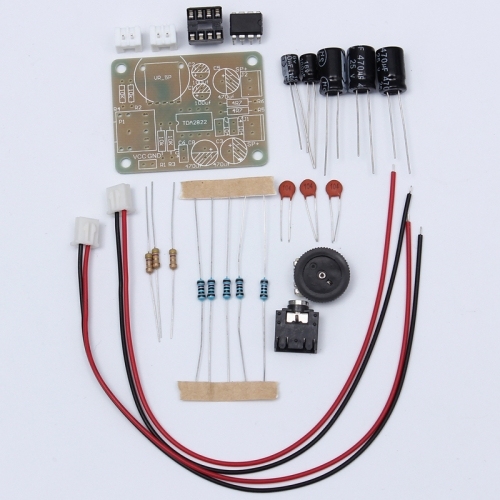

1Educational & DIY Kits: Ranging from simple mono kits ($0.88+) to professional-grade HIFI tube amplifier kits ($365+) that include detailed schematic drawings .

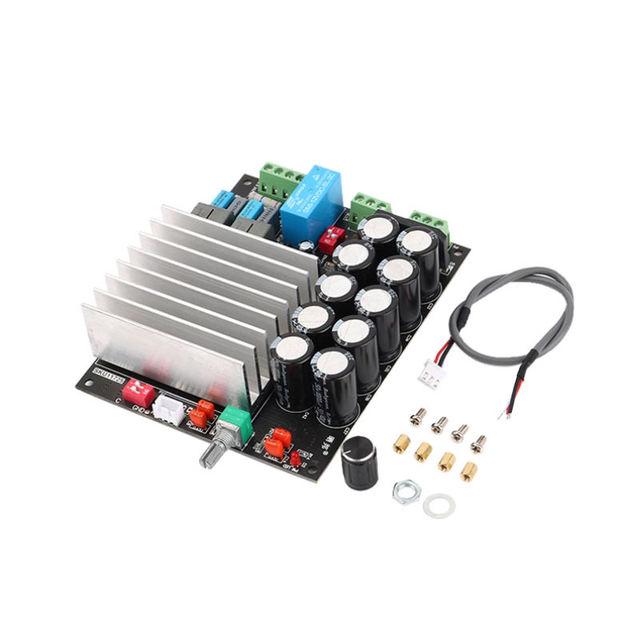

2High-Power Hi-Fi Modules: Popular DIY modules based on TDA8954 or TPA3251D2 chips offer dual-channel high output (up to 210W+) for home theaters, though schematics are often provided as digital drawings upon purchase .
3Industrial RF Modules: High-frequency GaN modules for 5G base stations and radar are valued between $2,300 and $9,600 per unit, emphasizing high linearity and wideband performance (e.g., 300MHz–6000MHz) .
