Ati Mxm Card

The market for ATI MXM (Mobile PCI Express Module) cards has shifted from a consumer laptop standard to a highly specialized niche serving industrial embedded systems, medical imaging, and the enthusiast "hacking" community. While the original "ATI" branding has been absorbed into AMD, these modules persist due to their compact form factor and modularity.

Core Product Insights

* Form Factor Evolution: The standard has evolved from early MXM 1.0/2.0 (used in legacy ATI Mobility Radeon HD series) to the modern MXM 3.0/3.1 standard. Current high-performance modules are categorized as Type A (82x70mm) and Type B (82x105mm) WikipediaAdlinktech.

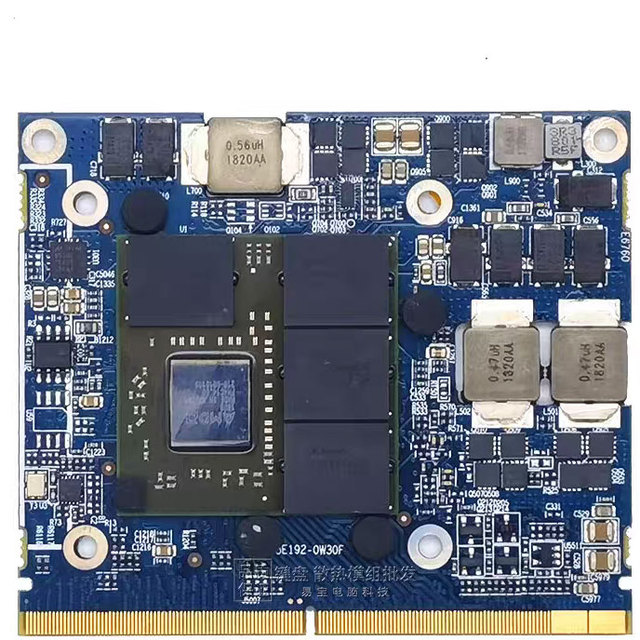

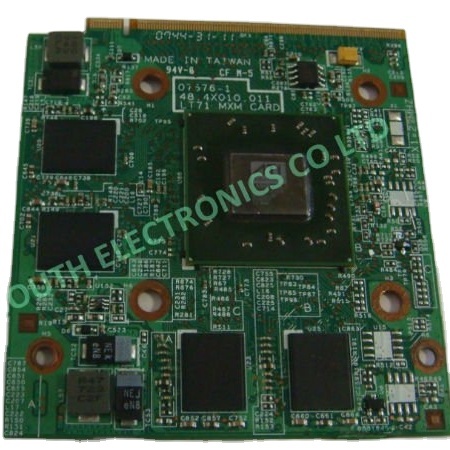

* Legacy vs. Modern Supply: Traditional ATI cards like the HD 2600 are now mostly found as "wholesale laptop graphic cards" for repairs, starting around $65 Alibaba. In contrast, modern AMD Radeon MXM modules (e.g., E8860, RX 580) are positioned for industrial control and medical ultrasound applications, with prices for specialized embedded models reaching $599 Alibaba.

* Upgrade Challenges: Compatibility is the primary barrier. Manufacturers like Dell and HP often use proprietary pinouts or custom PCB shapes (e.g., DGFF), which can lead to electrical failures if standard cards are inserted without verification HackadayNotebooktalk.

Market & Trend Analysis

* Industrial Resilience: The MXM market thrives in industrial sectors where long lifecycles (5–7 years) are required. It is a preferred choice for Autonomous Mobile Robots (AMRs), Edge AI, and rugged aerospace computing where space is at a premium AdlinktechGlobalamericaninc.

* The "Hacking" Market: There is a surging enthusiast demand for upgrading legendary laptops (e.g., Clevo P870) and older iMacs (2010–2011). Recent "backlight mods" have enabled modern RTX 30/40-series MXM cards to work in machines previously considered obsolete, creating a robust grey market for modules priced between $350 and $5,000 NotebooktalkAlibaba.

* Storage & Peripheral Hacks: Due to the high-bandwidth PCIe link of the MXM slot, a secondary market has emerged for MXM-to-NVMe adapters, allowing users to convert unused GPU slots into high-speed storage bays Hackaday.
