AutoCAD Warehouse Plan Guide: Modular & AI-Optimized Layouts

The "autocad warehouse plan" sector in 2026 is moving toward automation-first design and modular flexibility, fueled by AI-driven drafting tools in AutoCAD 2026 that significantly reduce repetitive layout tasks.

Market Trends: The "Refined Industrial" Era

* Verticality & High-Density: Real estate costs have pushed designers to maximize "cubic space" rather than square footage, favoring high-bay racking and multi-level mezzanines Storage-Solutions.

* Human-Centric Automation: 2026 designs prioritize ergonomic paths for both Autonomous Mobile Robots (AMRs) and human workers, integrating softer lighting and acoustic panels to improve the warehouse environment Archsplace.

* Modular Layouts: Rigid spans are out; warehouses now utilize locking-caster shelving and freestanding partitions that allow seasonal footprint reconfigurations without permanent construction Storage-Solutions.

Product Insights: AutoCAD 2026 & Sourcing

* AI Drafting Power: AutoCAD 2026 has introduced Smart Blocks, which use machine learning to scan legacy drawings and automatically convert identical geometry into reusable blocks, speeding up large-scale warehouse layouts by up to 11x Prototechsolutions.

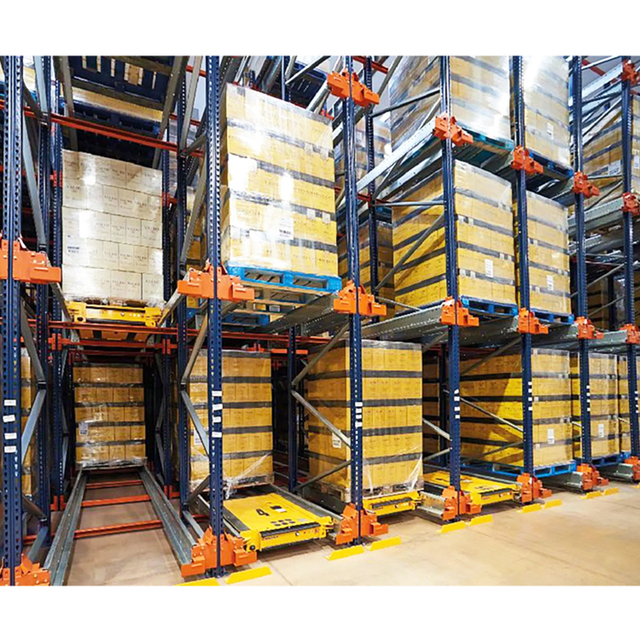

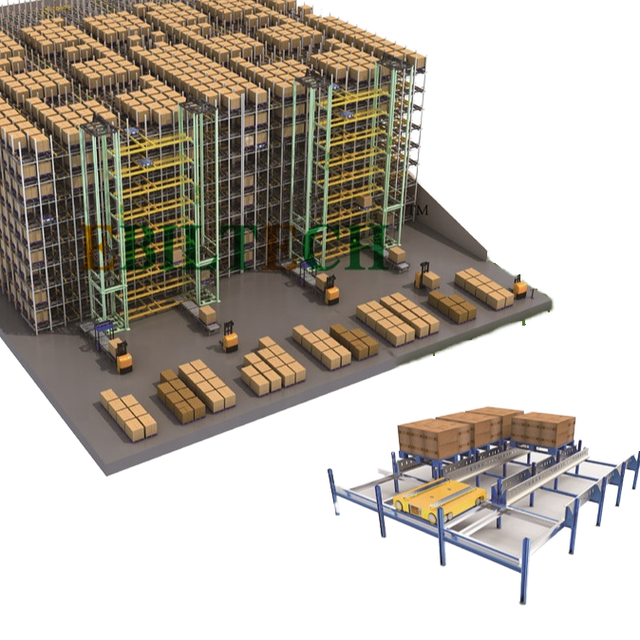

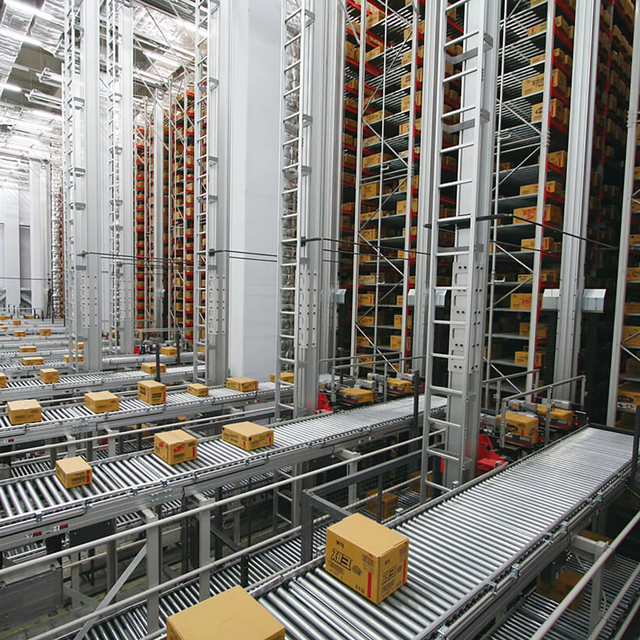

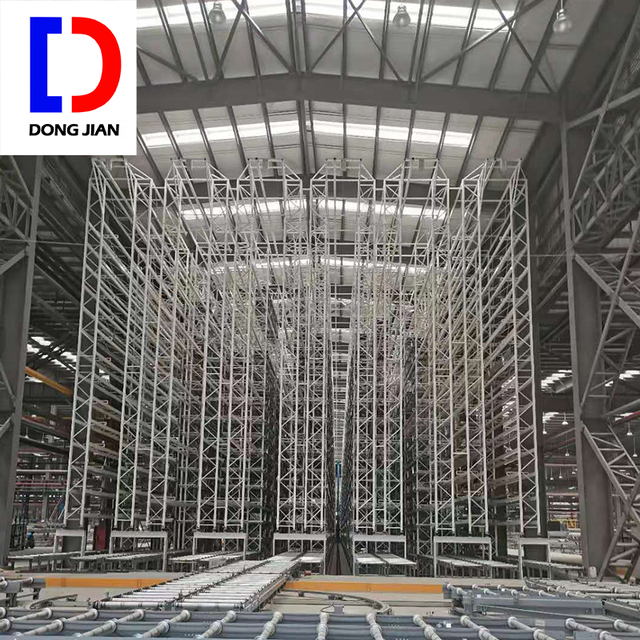

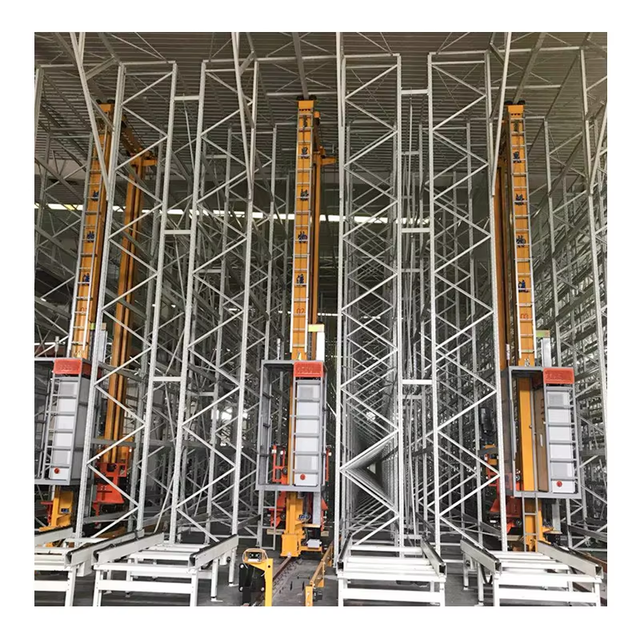

* Automated Storage Systems (ASRS): High-demand products include vertical stacker modules and automatic racking systems, often bundled with ERP/MES software for intelligent production line management Alibaba Alibaba.

* Design Services: There is a growing market for "One-to-One" custom engineering drawing services that provide 2D CAD plans and 3D models specifically for prefab steel structures Alibaba Alibaba.
