Ax99100
Overview
Product sourcing insights & recommendations
The phrase "ax99100" refers to the ASIX AX99100 PCIe to Multi I/O Controller, a highly integrated semiconductor chip used to bridge modern PCI Express systems with legacy and industrial peripherals. AlldatasheetGongkong It is a staple in industrial automation, medical equipment, and telecommunications for expanding connectivity via serial (RS-232/422/485), parallel (LPT), and SPI interfaces. Asix
Product Overview & Technical Specs
The AX99100 is designed to handle high-performance I/O tasks while minimizing CPU overhead through features like integrated DMA burst transfers and large 256-byte FIFOs. AsixEetasia
* Core Logic: Single-lane (x1) PCIe 2.0 Gen 1 controller with integrated PHY. Asix
* Operating Modes: Flexible configuration including 4S (4 Serial), 2S+1P (2 Serial + 1 Parallel), 2S+SPI, or Local Bus (ISA-like) for legacy support. Asix
* Industrial Ruggedness: Supports a wide temperature range of -40°C to +85°C, essential for factory and outdoor environments. Asix
* Performance: Baud rates up to 25 Mbps for serial ports and SPI frequencies up to 41.6 MHz. Asix
Market Trends & Insights (2026 Perspective)
The market for AX99100 and similar PCIe bridge chips is currently driven by the "Physical AI" and Edge Computing revolution. Edge-Ai-Vision
* The Bridge to Edge AI: As AI inference moves to the edge, chips like the AX99100 serve as the critical hardware link between high-speed AI processors and the physical world of serial sensors, actuators, and legacy machinery. Edge-Ai-Vision
* Efficiency Over Speed: With growing energy constraints, the industry is shifting focus to FLOPS-per-watt and low-power packaging. Edge-Ai-Vision The AX99100’s integrated LDO and low-power QFN package align with these efficiency-first design trends. Asix
* Continued Legacy Dependence: Despite the push for all-digital systems, the massive global installed base of industrial equipment ensures a steady, long-term demand for PCIe-to-Serial/Parallel bridges for at least the next decade. Edge-Ai-Vision
B2B Sourcing Landscape
The supply chain for AX99100 is concentrated in major electronics hubs, particularly Shenzhen and Hong Kong.
* Pricing: Bare chips typically range from $0.90 to $3.00 depending on volume, while finished PCIe expansion cards (Serial/Parallel) are priced between $4.50 and $8.50 for standard industrial models.
* Availability: High volume is readily available from verified suppliers, with transactions in this category reaching hundreds of thousands of dollars annually.
Based on the AX99100 analysis, here are your next steps:
Ax99100 Chip Asix
Products · 3 lists

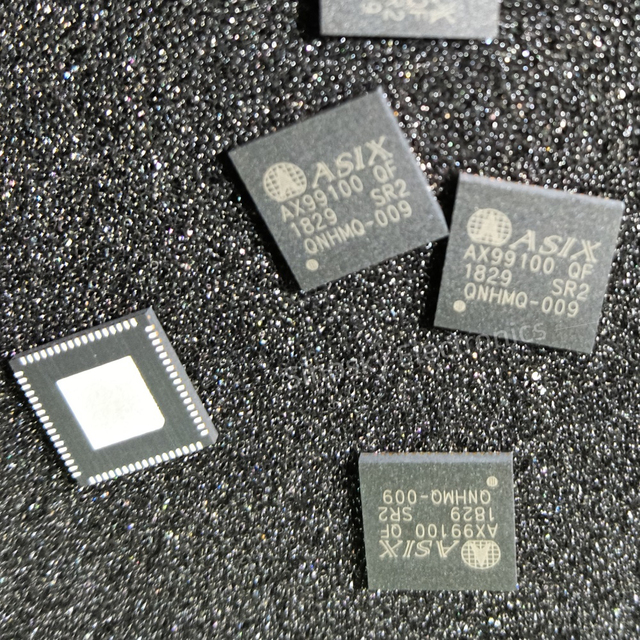

Good Price IC AX99100QF Supply Genuine Semiconductor Integrated Circuits AX99100QF
Shenzhen Sinosky Electronics Co., Ltd.verified🇨🇳CN9 yrs

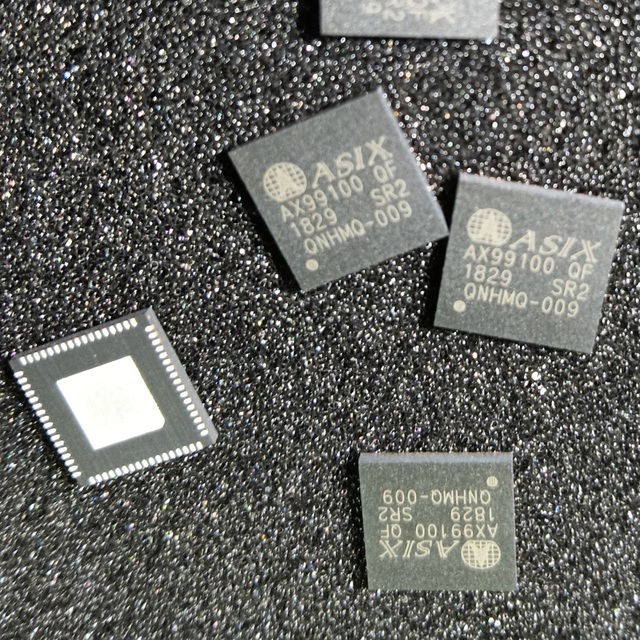

New Original Integrated Circuits AX99100QF IC Chips Semiconductors Electronic Components Supply
NEW Integrated Circuit AX99100QF AX99100QI AX99100 QFN68 CHIP
