Backplane Cable

The 'backplane cable' market is undergoing a fundamental shift as traditional Printed Circuit Boards (PCBs) reach their physical speed limits. High-speed systems are increasingly "cabling" their backplanes to maintain signal integrity at data rates of 112 Gbps PAM4 and beyond ConnectorsupplierTe.

1. Key Market Trends

* PCB to Cable Transition: Above 28-56 Gbps, conventional PCB materials like FR4 suffer high insertion loss. Cabled backplanes reduce loss by up to 7x, providing a critical alternative for AI and High-Performance Computing (HPC) infrastructures Te.

* The AI Drive: Modern AI servers, such as NVIDIA’s GB300 systems, utilize miles of internal copper cabling because high-density PCB routing is no longer viable for 224G standards Passive-ComponentsConnectorsupplier.

* Modularization: To manage cable density, manufacturers are adopting cable cassettes—modular units that organize thousands of point-to-point connections for easier field replacement Connectorsupplier.

* Growth Forecast: The backplane connector and assembly market is valued at approximately $2.68 billion (2026), with a projected CAGR of 6.65% as data centers scale up Businessresearchinsights.

2. Product Insights & Specs

The current market features a range of products from standard storage interconnects to ultra-high-speed twinax assemblies:

* Ultra-High Speed: Specialized twinax cables support 112 Gbps per lane, with emerging products rated for 224 Gbps TeConnectorsupplier.

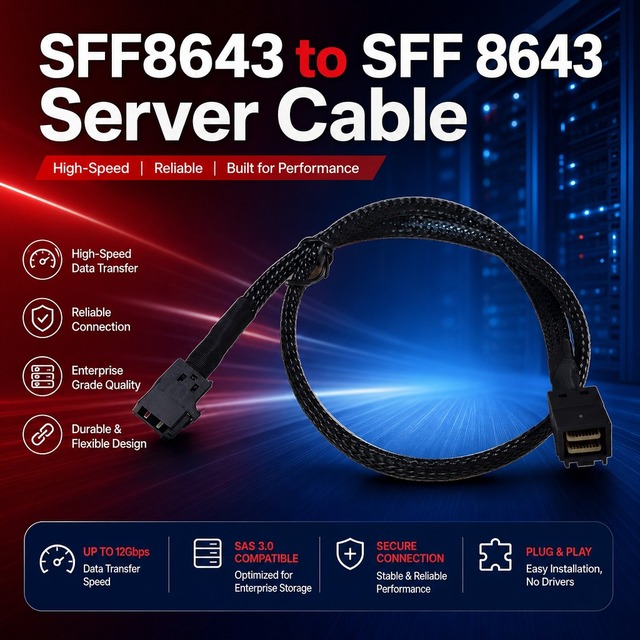

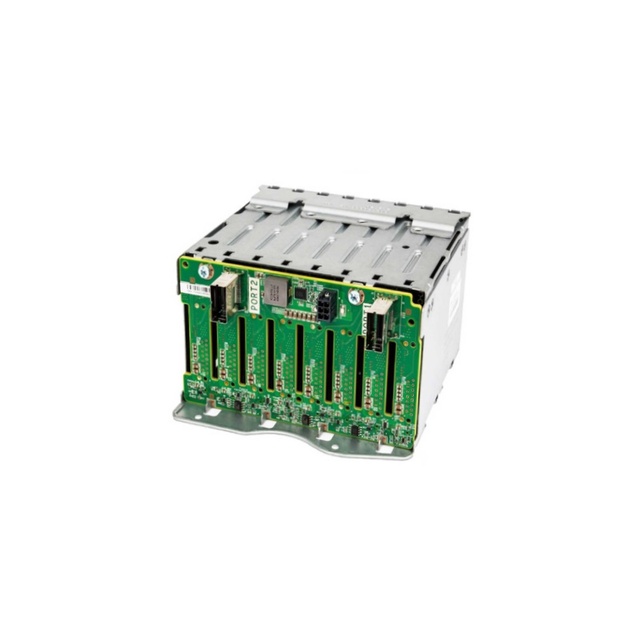

* Storage Interconnects: SFF-8643 (Mini SAS HD) remains a standard for internal server backplanes, typically supporting 12 Gbps to 24 Gbps per link.

* Thermal & Design Benefits: Cabled systems allow for more chassis "open space," significantly improving cooling efficiency compared to thick, 30+ layer PCBs Te.

3. Sourcing Opportunities

I have identified various suppliers offering both standard and OEM backplane cable solutions, with prices ranging from approximately $0.40 for simple power/data harnesses to $27.00+ for high-performance external HD-Mini SAS units.

Detailed specifications, pricing tiers, and supplier verification statuses for these backplane cable assemblies are available in the attached files.
