Bass Treble Filter Circuit Guide for Audio Designers

The market for bass treble filter circuits and related audio components is experiencing a robust expansion, with the global Class D Audio Amplifier market projected to reach $7.69 billion by 2034 at a 7.9% CAGR Straitsresearch. This growth is largely fueled by the rising demand for high-efficiency audio in smartphones, automotive infotainment, and IoT smart home devices Straitsresearch Electronicsmedia.

Market Dynamics & Trends

* Technological Shift: There is a clear transition toward active filter circuits that utilize high-performance operational amplifiers (like the NE5532 or TLC074) to eliminate the signal loss common in traditional passive networks Learnabout-Electronics Ti.

* Smart Features: Integration of DC-controlled ICs such as the LM1036 is becoming standard for unified control of bass, treble, balance, and volume via variable DC voltage Learnabout-Electronics.

* Energy Efficiency: The push for portable and automotive audio has made Class D amplifiers—offering up to 90% efficiency—the dominant hardware platform, necessitating advanced low-pass filters to remove high-frequency switching noise Straitsresearch.

Product Landscape

A wide variety of preamplifier and tone control boards are currently available, ranging from budget-friendly DIY modules to high-end Hi-Fi components.

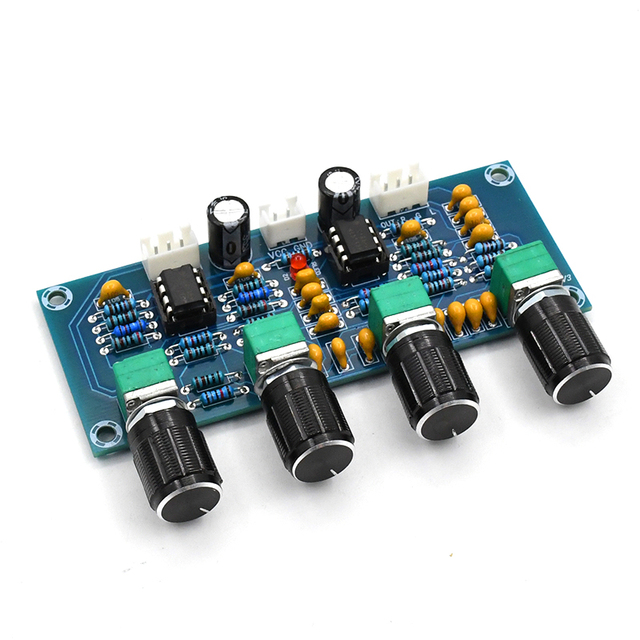

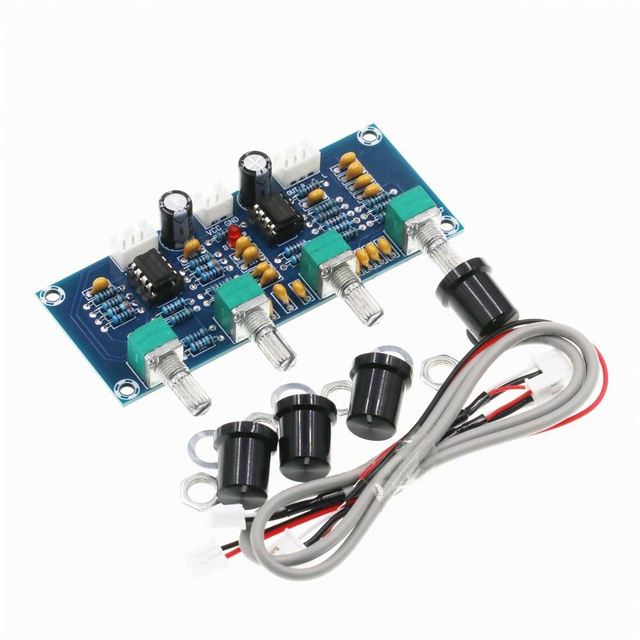

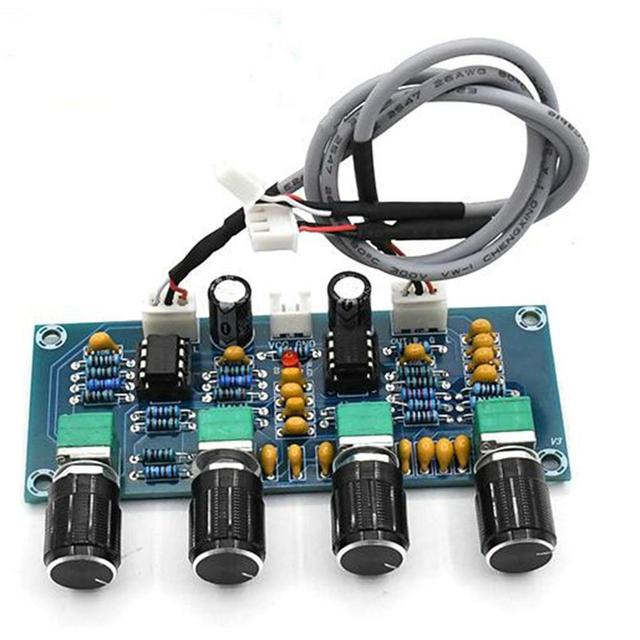

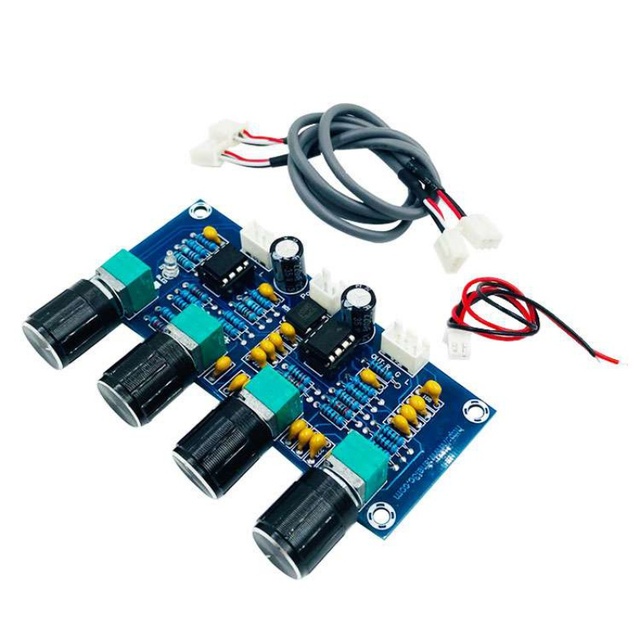

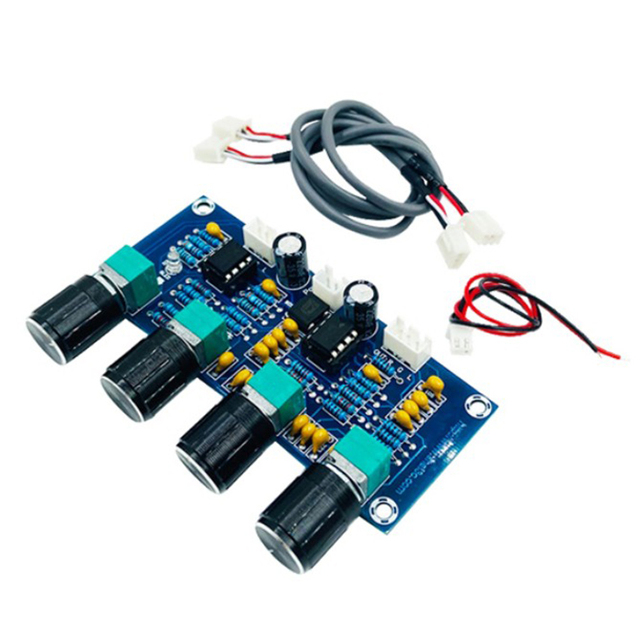

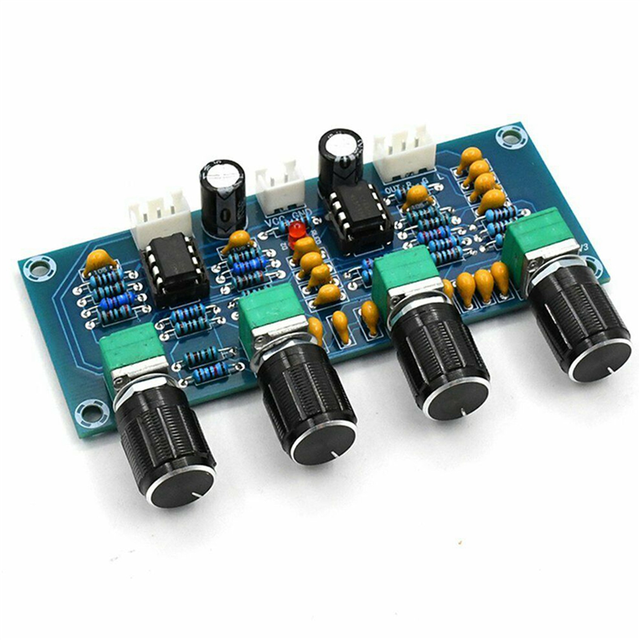

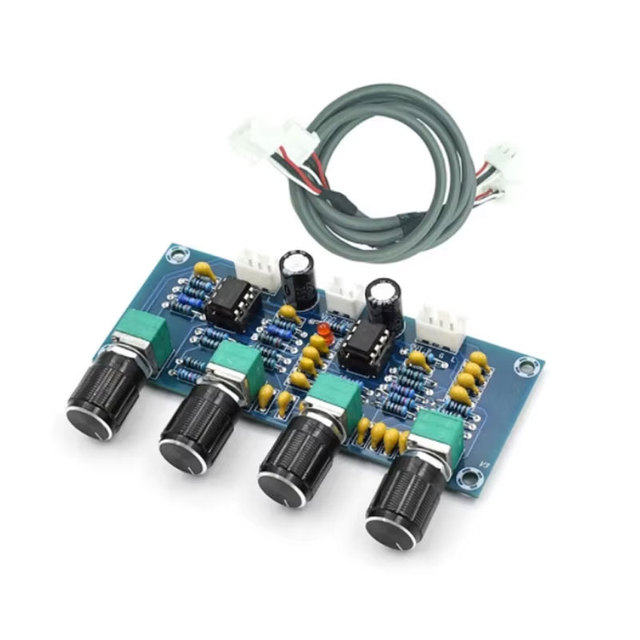

* Popular Active Boards: The XH-A901 series using the NE5532 chip is a high-volume choice for general audio projects, while the LM1036 boards are preferred for more complex stereo applications requiring balance control Alibaba Alibaba.

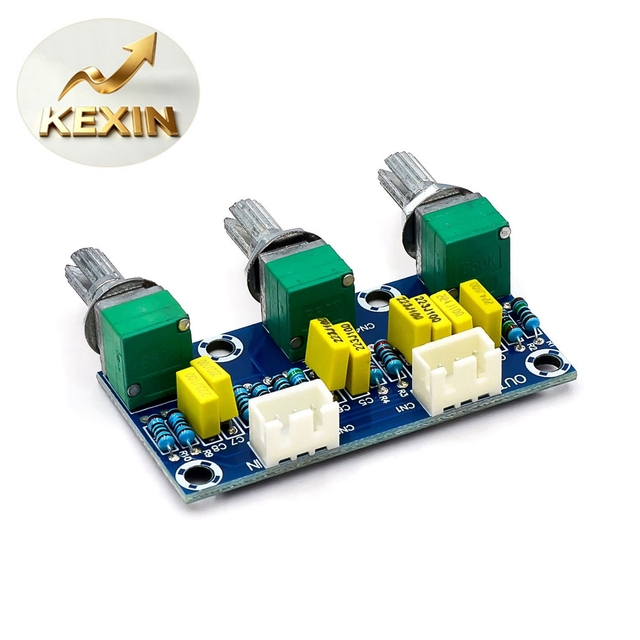

* Passive Alternatives: For specialized Hi-Fi applications where no active power source is desired, passive tone boards are also available, though they typically result in an insertion loss of approximately -20dB Eleccircuit Alibaba.

* Crossover Networks: Market demand also includes 2-way and 3-way crossover modules designed to distribute specific frequencies between treble, midrange, and bass speakers Alibaba.
