Beryllium Voice Coil

The phrase "beryllium voice coil" typically refers to advanced transducer designs that utilize beryllium in the moving assembly—most commonly as the diaphragm (dome/cone) or the voice coil former (bobbin). Beryllium is widely considered the "holy grail" material for high-end audio due to its extreme stiffness and low mass MaterionAudioxpress.

Technical Advantages

Beryllium outperforms traditional materials like aluminum and titanium by pushing mechanical breakup (distortion) far above the audible range Vue-AudiotechnikVue-Audiotechnik.

* Speed of Sound: Sound travels at ~12,945 m/s through beryllium, roughly 2.5 times faster than through aluminum or titanium Facebook.

* Stiffness-to-Mass: It provides exceptional rigidity with minimal weight, allowing for instantaneous transient response and high sensitivity YoutubeProsoundweb.

* Damping: Unlike titanium, which tends to "ring," beryllium has high internal damping that eliminates metallic harshness InstagramMarten.

Product & Market Insights

* Component Focus: In B2B sourcing, "beryllium" is usually requested for the diaphragm or the former. Pure beryllium is rarely used for the *wire* itself; instead, aluminum or copper-clad aluminum wire (CCAW) is wound onto a beryllium or high-stiffness former IqsdirectoryAlibaba.

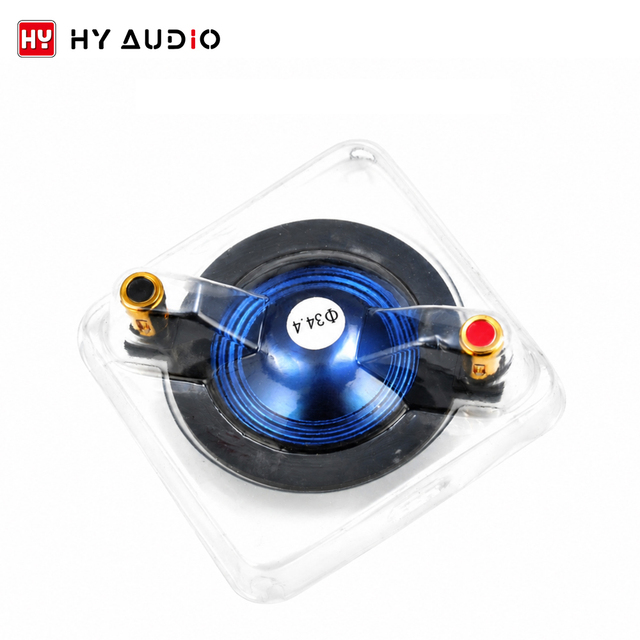

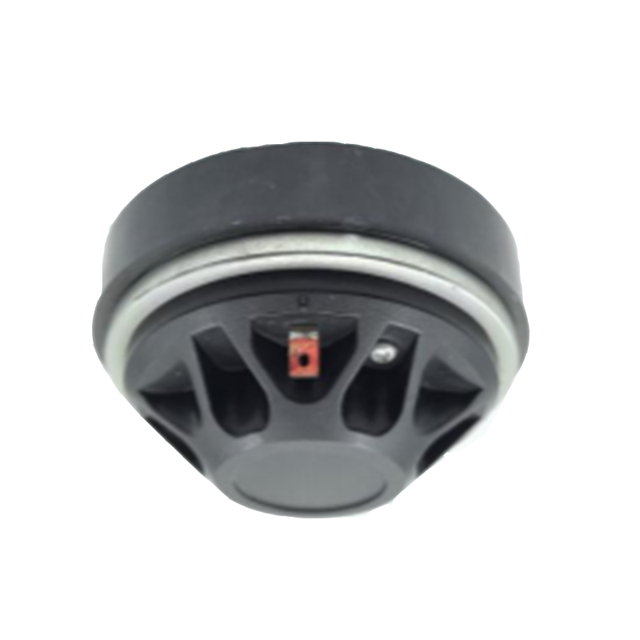

* Market Trends: The technology is expanding from ultra-high-end tweeters into midrange drivers and premium headphones. There is also a growing secondary market for precision replacement diaphragms (e.g., Materion Truextent) used to upgrade professional compression drivers from brands like JBL and Radian MaterionVue-Audiotechnik.

* Key Players:

* Materion (Truextent): The primary global supplier of acoustic-grade beryllium foil AudioxpressMaterion.

* Focal & Scan-Speak: Leading manufacturers that utilize beryllium domes for their flagship Hi-Fi and automotive speakers FacebookVue-Audiotechnik.

Comparative Performance
