iPhone BGA Stencil Guide for 0.3mm Pitch & Display IC Reballing

The iPhone BGA stencil market is currently driven by the increasing complexity of Apple's hardware, with a significant shift toward high-precision 3D stepped designs and 0.3mm pitch compatibility for latest models like the iPhone 15, 16, and upcoming 17 series Rewa Alibaba.

Market Trends & Industry Insights

* Technological Evolution: Newer stencils utilize high-speed CNC and laser-cut precision to ensure flush alignment against logic boards, preventing solder paste bleeding Rewa. The industry standard has solidified at an 0.12mm thickness using imported Japanese steel to resist thermal deformation Mobilesentrix.

* Growth Drivers: A major market driver is the rising demand for Display IC reballing (up 42% YoY), fueled by Apple’s parts-pairing restrictions which force technicians to move original ICs to new screens Alibaba.

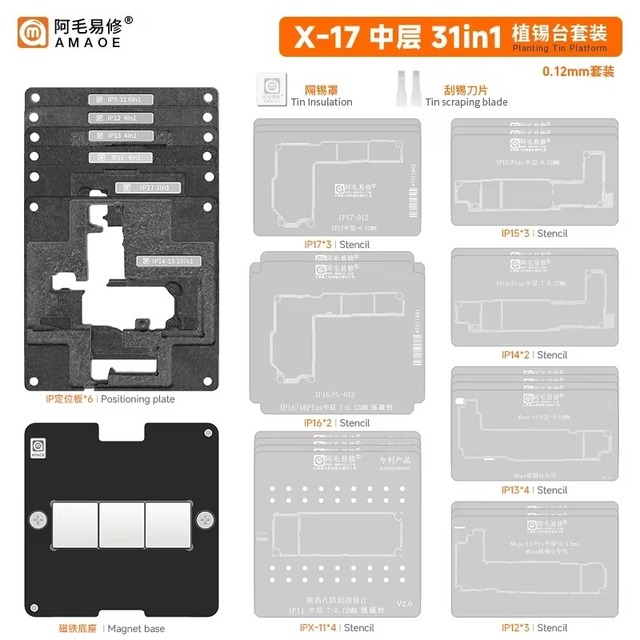

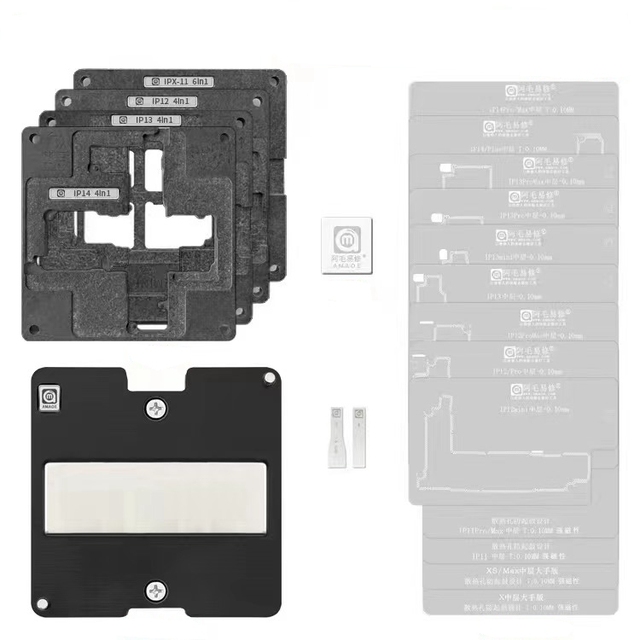

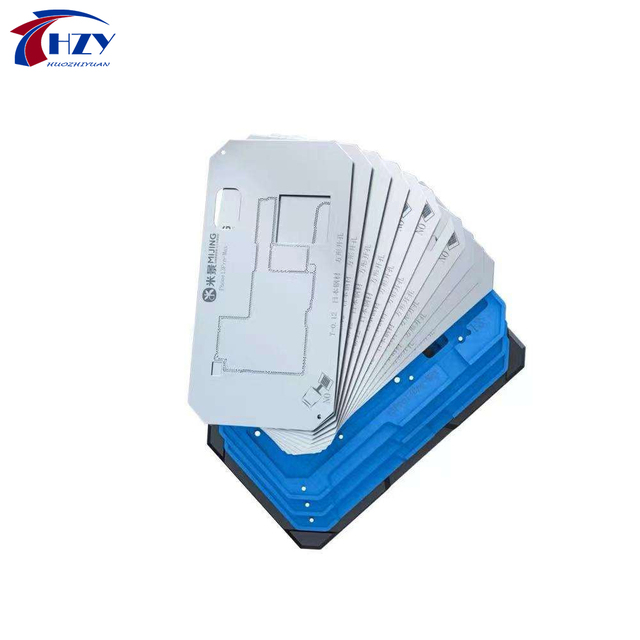

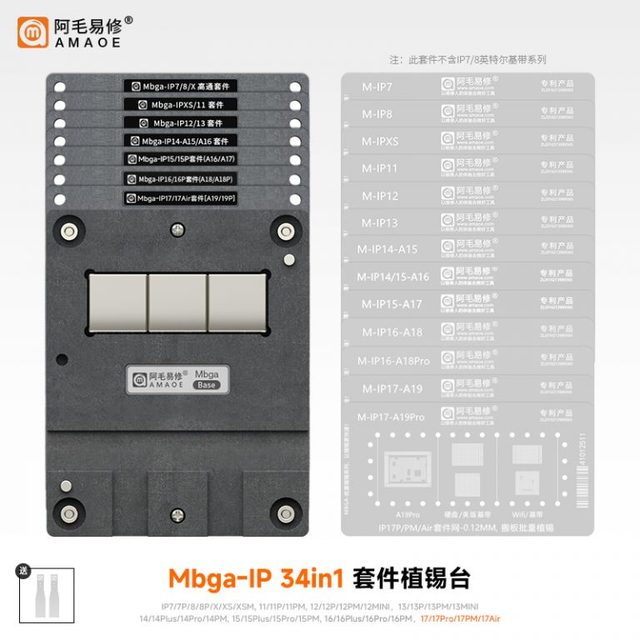

* Professionalization: The market is transitioning from cheap universal stencils to modular professional platforms (magnetic jigs + calibrated stencils) priced between $250 and $650 for high-end repair shops Alibaba.

Product & Supplier Highlights

I have identified 73 relevant products from top-tier brands, with a focus on immediate availability for iPhone 15 and 16 series.

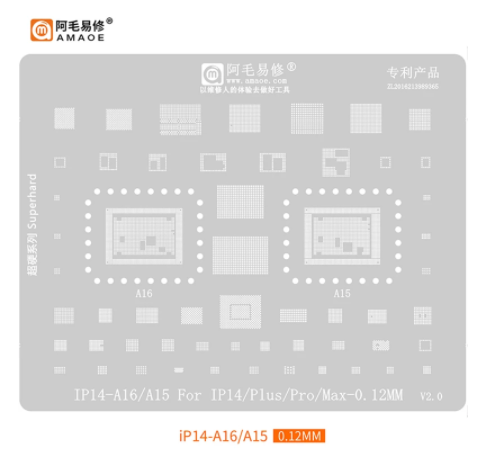

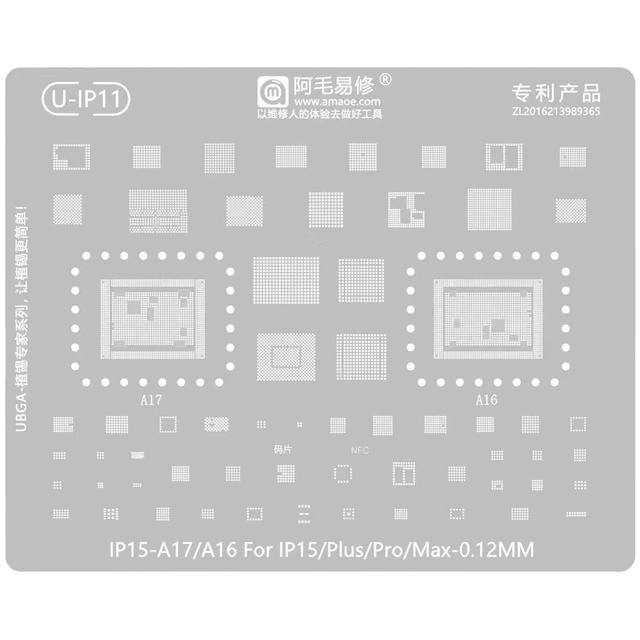

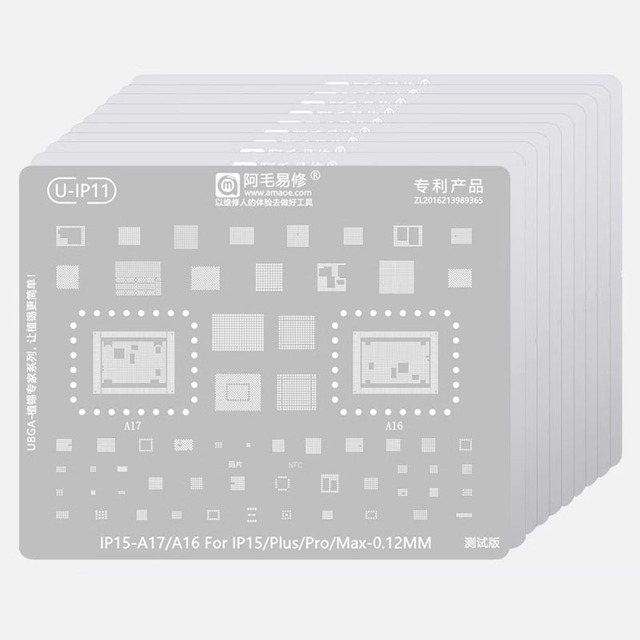

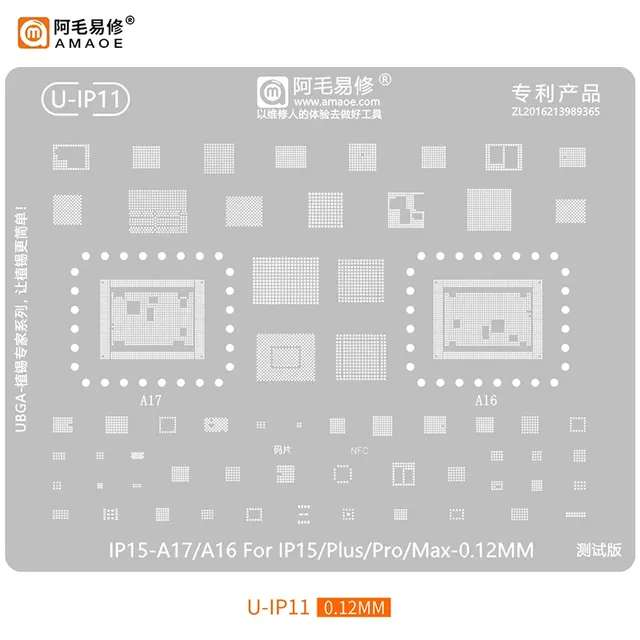

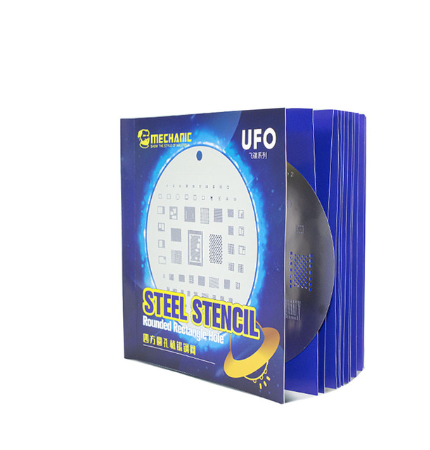

* Dominant Brands: Amaoe is currently the leader for specialized A16/A17 CPU and display kits Mobilesentrix. Mechanic and Wylie remain staples for full-set motherboard rework platforms Ipadrehab Diyfixtool.

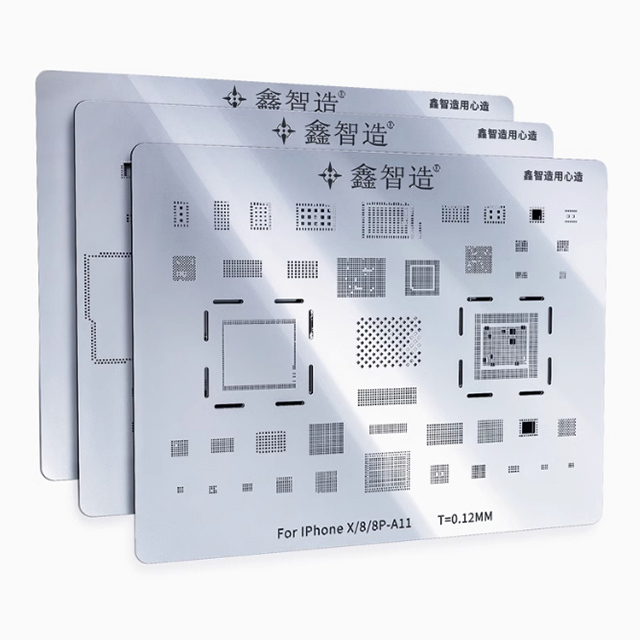

* Pricing: Individual stencils start as low as $1.60, while comprehensive 12-piece kits for the iPhone 11–17 series range from $14.70 to $19.46 depending on quantity Alibaba Alibaba.

* Sourcing Hub: The vast majority of verified suppliers are concentrated in Shenzhen, providing direct access to latest hardware iterations Alibaba Alibaba.

The detailed product list, including pricing, MOQ, and supplier specifications, is provided in the file below.
