BH6511FS-E2 Datasheet & Sourcing Guide

The BH6511FS-E2 is a specialized 4-channel PWM motor and actuator driver integrated circuit manufactured by ROHM Semiconductor Alldatasheet Digchip. It was primarily designed for high-efficiency servo control in compact optical disc players, such as CD and MD (MiniDisc) systems Alldatasheet Digchip.

Product Overview & Technical Specs

* Functionality: Drives spindle/sled motors and focus/tracking actuators with low power consumption Alldatasheet.

* Key Architecture: Features an internal 4-channel power MOSFET H-bridge and a charge pump circuit to raise gate drive voltage Alldatasheet Digchip.

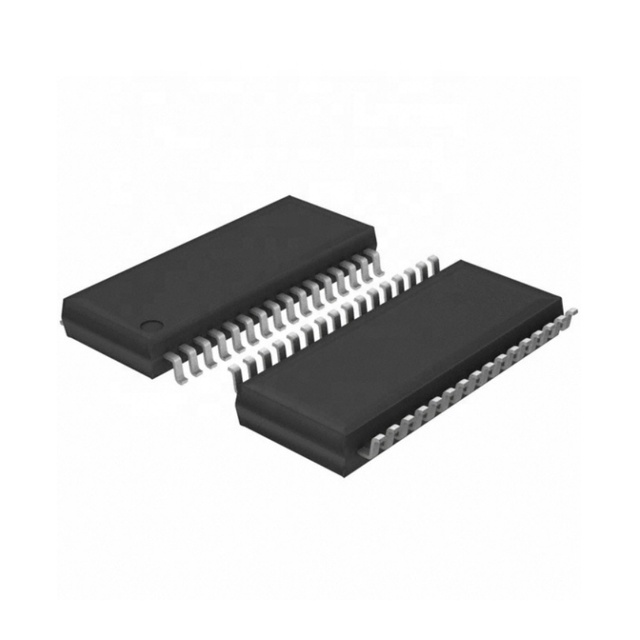

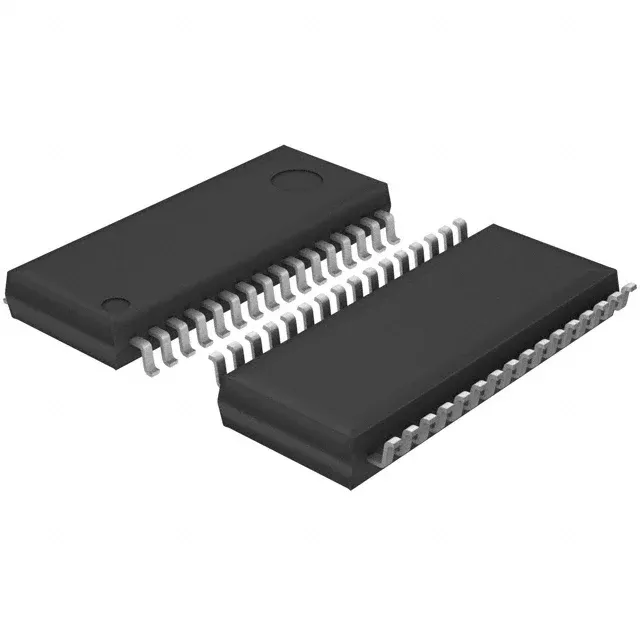

* Package Type: Housed in a compact SSOP-32 (Shrink Small Outline Package) Alibaba.

* Suffix "-E2": Denotes standard embossed carrier tape (reel) packaging for automated PCB assembly.

Market Trends & Lifecycle Status

The BH6511FS-E2 is currently classified as a Legacy/Obsolete component Digchip.

* Supply Status: It is no longer in active production. Availability is limited to New Old Stock (NOS) and the secondary distribution market Alibaba Digchip.

* Pricing: B2B listings show pricing ranging from approximately $0.18 to $0.94 per unit, depending on order volume and supplier stock levels Alibaba.

* Market Context: The decline of dedicated CD and MD player hardware has significantly reduced primary demand, making this part a "hard-to-find" item mainly sought after for repairs and maintenance of vintage audio equipment Scribd Scribd Digchip.

A detailed list of current market listings, including pricing and supplier details, is available in the deliverable below.
