Boot Sector Flash Memory

The term 'boot sector flash memory' refers to a specialized architecture in non-volatile memory (typically NOR Flash) where one end of the memory map contains smaller, protected sectors designed to house initial startup code (bootloaders).

1. Technical Insights: Top vs. Bottom Boot

The primary technical distinction lies in where the smaller sectors are located, which must align with a CPU's reset vector (the address where a processor begins reading code upon power-up).

* Top Boot: The specialized small sectors are at the highest memory addresses. This is standard for Intel-based architectures and systems that boot from the end of the memory map. Allaboutcircuits

* Bottom Boot: The small sectors are at the lowest memory addresses (e.g., 0x0000). This is used by the vast majority of ARM-based microcontrollers and IoT devices. Eevblog

* Purpose: Because Flash must be erased by sector, having small (e.g., 4KB-8KB) sectors for boot code prevents wasting a large 64KB sector and allows the bootloader to be independently protected or updated without affecting main application data. Winbond

2. Product & Market Trends (2024–2026)

The market is shifting from "simple protection" to "Secure Boot" integration, driven by AI and IoT security requirements.

* Secure-Boot NOR Flash: Newer products like Macronix ArmorBoot (MX76) integrate Root of Trust (RoT) features directly into the flash chip, including hardware authentication and Physical Unclonable Functions (PUF) to prevent code tampering. Mxic

* Configurable Protection: Manufacturers like Winbond have introduced "TB" (Top/Bottom) and "SEC" (Sector) bits in status registers, allowing a single hardware chip to be software-configured as either a Top or Bottom boot device. Winbond

* Market Growth: The NOR Flash market is projected to reach $3.45 billion by 2026, with a CAGR of 7.1%, fueled by the demand for instant-on capabilities in AI servers and automotive displays. YahooMordorintelligence

3. Sourcing Opportunities

Standard SPI NOR Flash chips from leaders like Winbond and Micron are widely available for various boot configurations.

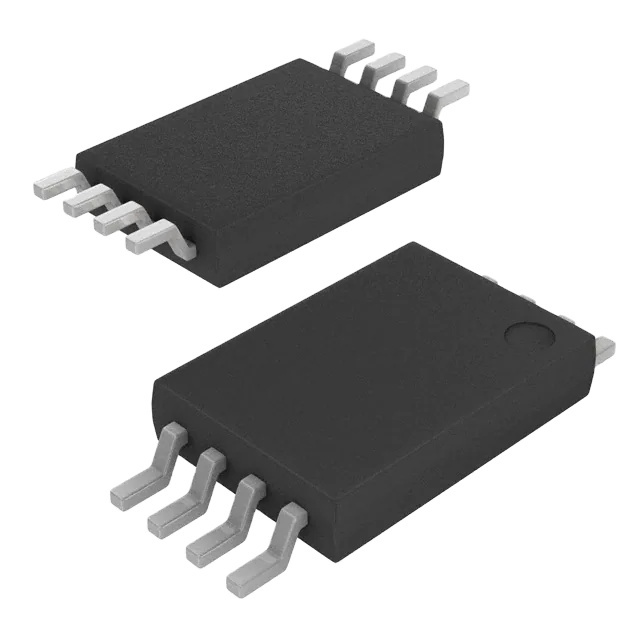

* Standard SPI NOR: Models like the W25Q128 series (128Mb) are common for general-purpose embedded firmware storage. AlibabaAlibaba

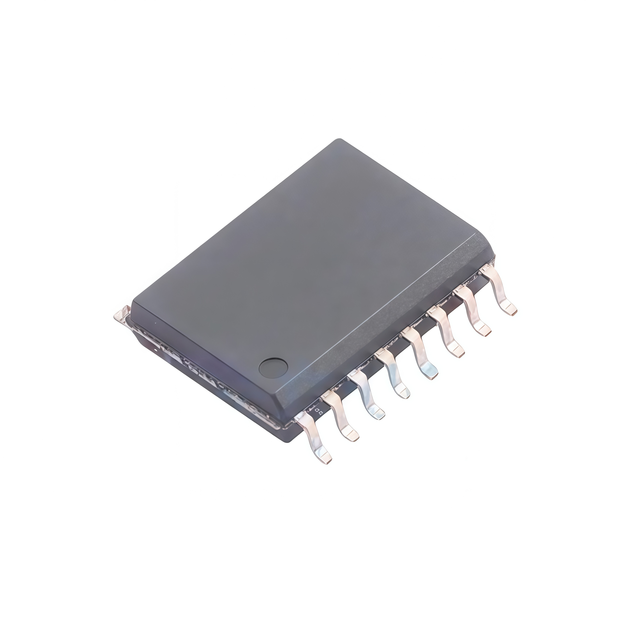

* Legacy Support: Older 32Mb models like the W25X32 are still sourced for legacy systems requiring specific boot storage configurations. Alibaba
