Bowen Thread Type Lubricator
Overview
Product sourcing insights & recommendations

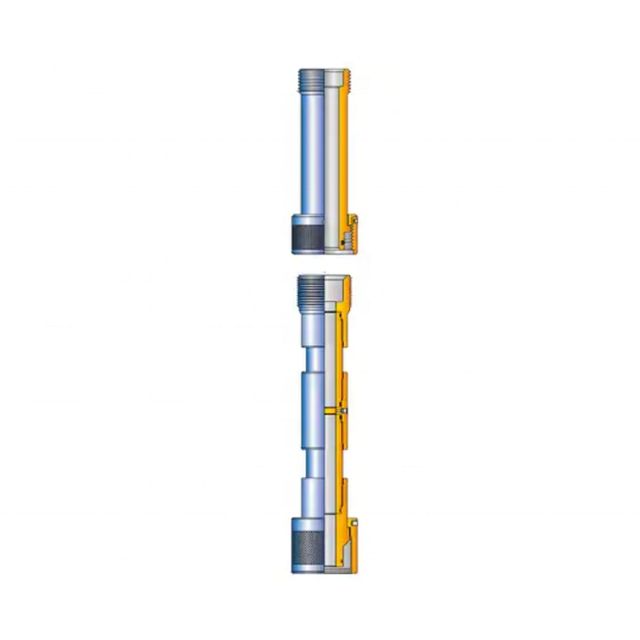

The Bowen thread type lubricator is a critical pressure-control component in wireline and oilfield operations, characterized by its proprietary 4-pitch ACME thread design that facilitates high-pressure sealing and hand-tightened assembly PracticalmachinistParveen. Often referred to as Type B in technical documentation, these units are specifically designed for rapid tool entry and retrieval in wellbores under pressures ranging from 5,000 to 15,000 psi AmericancompletiontoolsWellmaster.
Product Specifications & Technical Insights
* Thread Profile: Utilizes heavy-duty ACME or Stub Acme (SA) threads (commonly 4.750"-4 ACME for standard 3" ID units) that allow for hand-tightened assembly without specialized tools AmericancompletiontoolsParveen.
* Material Integrity: High-end models are constructed from AISI 4140-L80 alloy steel, providing the mechanical strength required for both standard and corrosive H2S (sour gas) environments Wellmaster.
* Compatibility: While "Type B" unions are interchangeable with Bowen standards, they are generally not compatible with Otis (Type O) designs due to differences in seal diameters and thread profiles Americancompletiontools.
* Operational Features: Modern designs integrate ports for hydrostatic testing while on the wellhead and large ported outlets for efficient debris removal WellmasterParveen.
Market Trends & Insights (2025–2026)
* Digitalization of Maintenance: A significant trend is the transition from reactive to Intelligent Predictive Maintenance (PdM). Smart lubrication systems (e.g., GreaseBoss) now monitor fluid flow and equipment health in real-time to prevent catastrophic failures IssuuScribd.
* Electrification & Lifecycle Management: The surge in electrified mining and oilfield assets has increased demand for high-voltage compatible lubricator catchers and integrated sensor mounting points for automated monitoring IssuuWellmaster.
* Supply Chain Resilience: Due to long lead times for new builds, there is a growing market for refurbished and purpose-built lubricators that meet API 6A standards but are delivered with faster deployment schedules Issuu.
* Automation Focus: Equipment is increasingly designed for ground-level serviceability and "glove-friendly" automation, allowing technicians to manage high-pressure systems without compromising safety or speed Issuu.
Here is the detailed market insight for Bowen thread type lubricators. You can continue with:
Wireline Lubricator Bowen Type Acme Thread
Products · 2 lists

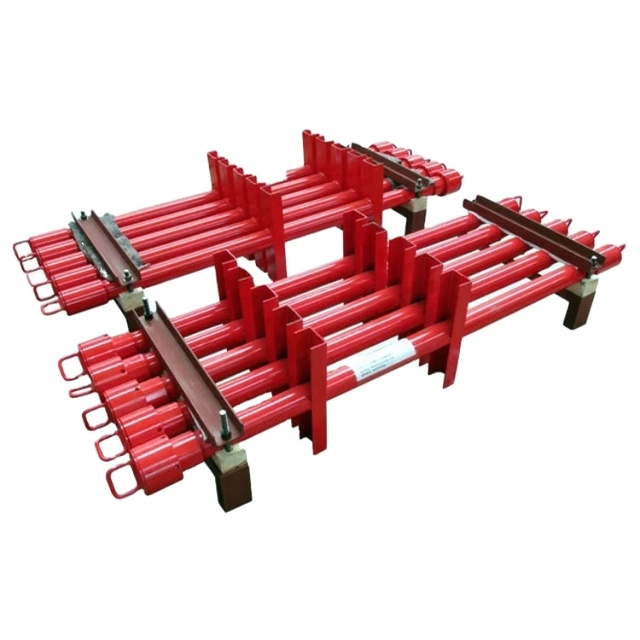

Wireline BOP Lubricator System for Well Drilling
