BTL (Bridge-Tied Load) Output Amplifier: Market & Technical Insights

The "BTL output amplifier" configuration is a cornerstone of modern high-efficiency audio design, primarily utilized to maximize power output from limited voltage sources (such as batteries or 12V automotive systems) without requiring complex power conversion Rohm Pifferia.

Technical Summary

* Core Mechanism: BTL uses two amplifier channels to drive a single speaker load by reversing the signal phase on one terminal. This effectively "bridges" the speaker between two active outputs Analog.

* Power Advantage: It provides up to 4x the power output of a single-ended amplifier at the same supply voltage because it doubles the voltage swing across the load ($P = V^2/R$) Industrialmonitordirect Industrialmonitordirect.

* Design Benefits: BTL eliminates the need for large DC-blocking capacitors, which saves physical space and improves low-frequency (bass) performance, making it ideal for slim electronics Scribd Industrialmonitordirect.

Market Trends & Applications

* Miniaturization & Efficiency: The market is shifting rapidly toward Class D BTL configurations due to their 90%+ efficiency. This trend is driven by the demand for high-power sound in compact devices like slim soundbars, portable Bluetooth speakers, and ultra-thin LED TVs Yahoo Futuremarketinsights.

* Automotive Dominance: BTL remains the industry standard for automotive infotainment systems, where it enables punchy, high-volume audio directly from the vehicle's 12V-14V DC bus Fortunebusinessinsights.

* High-Res Audio Growth: As consumers seek high-fidelity audio, BTL is increasingly used to drive complex, low-impedance high-end speakers that require high current and stability Qualcomm.

Sourcing Landscape

The market for BTL amplifiers is segmented into three primary tiers:

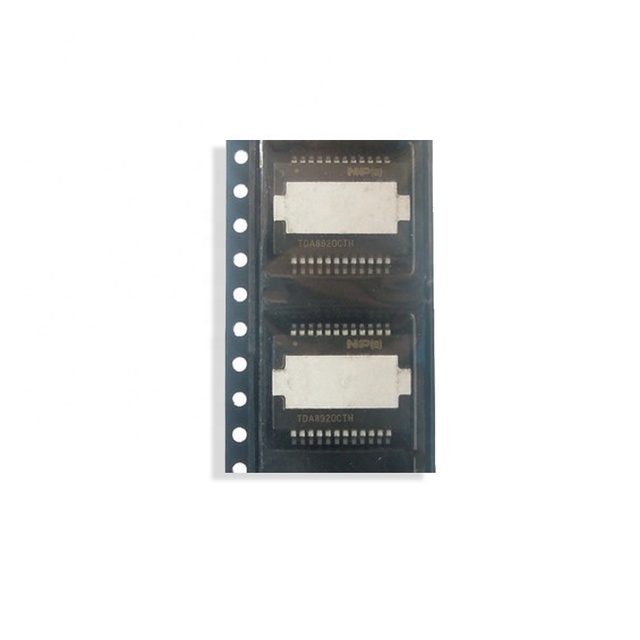

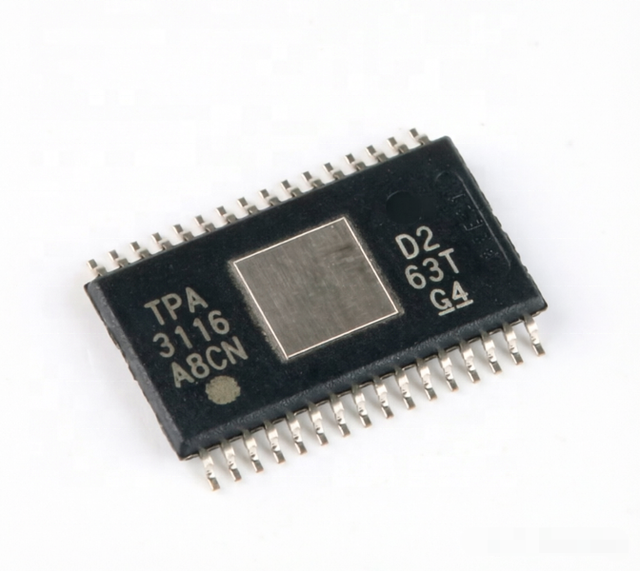

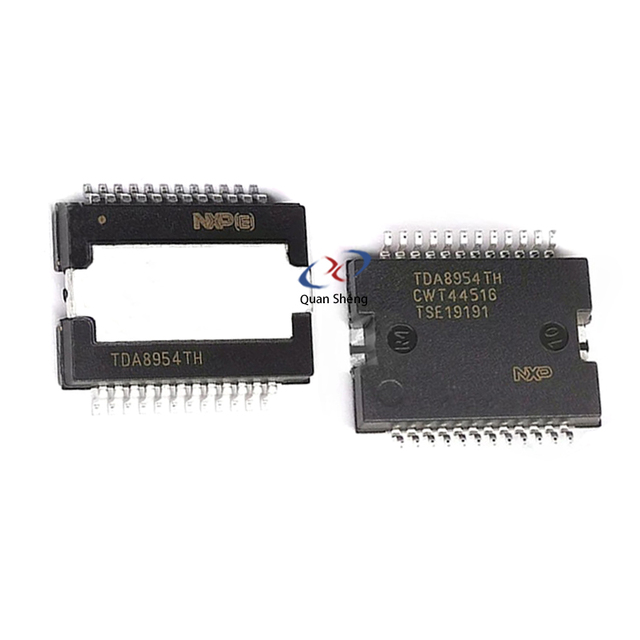

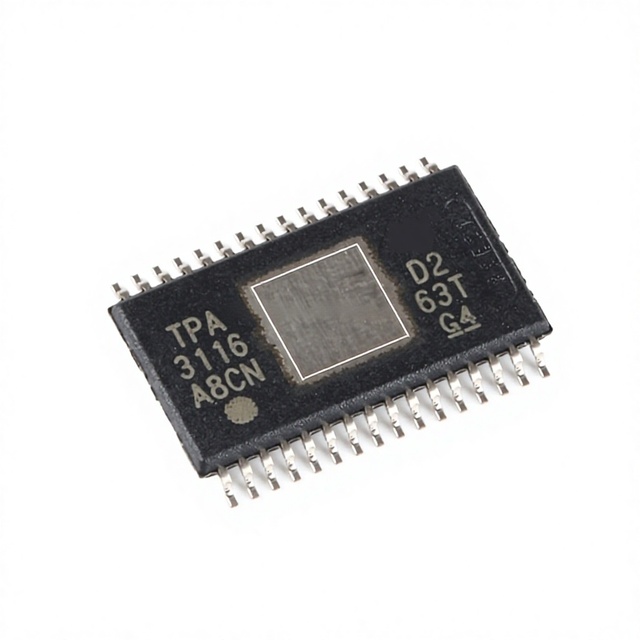

1IC Components: High-volume integrated circuits (ICs) like the TS4962 or TDA7498E series, starting as low as $0.15/unit for bulk orders Alibaba Alibaba.

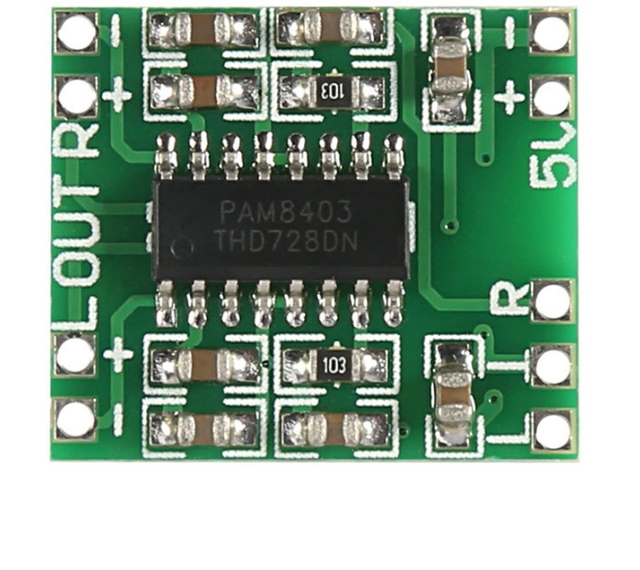

2Modular Solutions: Ready-to-integrate amplifier boards for manufacturers and DIYers, supporting modes like "Dual-BTL" for high-wattage stereo output .
3Finished Units: Complete digital power amplifiers housed in aluminum chassis, often used as monoblocks or compact desktop Hi-Fi components .
