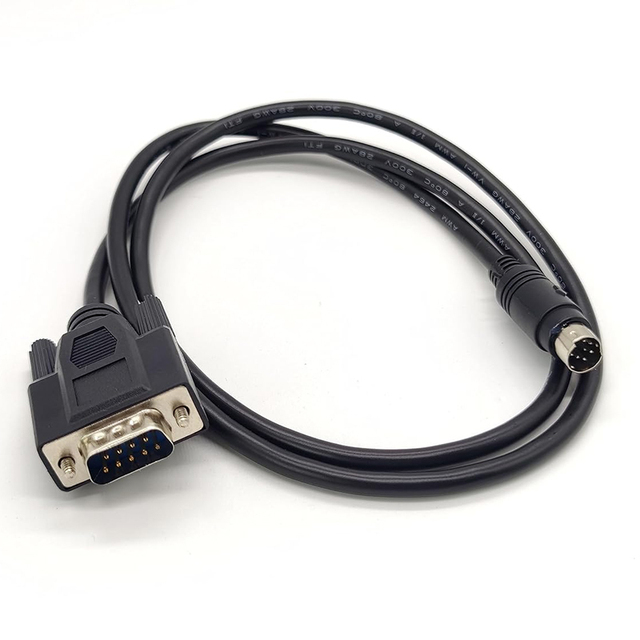

The phrase 'cable rs232 mini din' refers to a critical category of serial communication cables used to bridge standard RS-232 interfaces (typically DB9) with the compact Mini-DIN connector standard (9.5mm).

Product Specifications & Logic

The Mini-DIN connector is a standardized shell that masks significant electrical and manufacturer-specific variations Industrialmonitordirect.

* Pin Count Variations:

* 8-Pin Mini-DIN: The most common configuration, used extensively for PLC programming (Mitsubishi, Allen-Bradley) and PTZ camera control (Sony VISCA) Amazon Industrialmonitordirect.

* 6-Pin Mini-DIN: Often used for legacy peripherals, keyboard/mouse (PS/2), and specific diagnostic equipment Metabee.

* Signaling & Logic: While these cables use the Mini-DIN shell, the internal signaling can be RS-232 (±12V), RS-422/485 (differential), or even proprietary data links like Allen-Bradley’s DH+ Industrialmonitordirect.

* Pinout Trap: There is no universal pinout for Mini-DIN serial cables. Manufacturers often use proprietary mappings; for example, a cable wired for a Mitsubishi PLC will likely fail on an Allen-Bradley PLC even if the physical connector fits Plctalk.

Market Trends & Industry Insights (2026)

The market for these cables is seeing a "legacy hardware revival" driven by industrial and broadcast sectors Alibaba.

* Industrial Retrofitting: Organizations are increasingly using Mini-DIN to RS232 bridges to extend the life of 10–15-year-old PLCs and industrial monitors, avoiding the high cost of a full Ethernet/IP migration Alibaba.

* AV & Broadcast: A significant growth area is VISCA-over-RS232 for PTZ cameras. As hybrid workspaces modernize, these cables are essential for integrating legacy high-quality cameras into modern Zoom/Teams-ready AV systems Amazon Alibaba.

* Chipset Integration: Modern buyers are shifting away from simple passive adapters toward cables with integrated FTDI or PL2303 chipsets. These "USB-to-Mini-DIN" cables provide better stability on modern Windows/macOS systems compared to older DB9-to-DIN passive versions Alibaba.

* Market Tiers: The 2026 market is stabilizing around Mid-Tier ($15–$24) products that offer factory-verified pinouts and industrial-grade shielding (100% foil + braid), which are essential for EMI-heavy industrial environments Alibaba.

Sourcing Overview

I have identified 37 product listings and 30 verified suppliers primarily located in Shenzhen and Dongguan, China. These suppliers offer extensive customization for pinout mapping, cable length, and shielding types to match specific industrial requirements.

Based on these product insights, I can help with:
