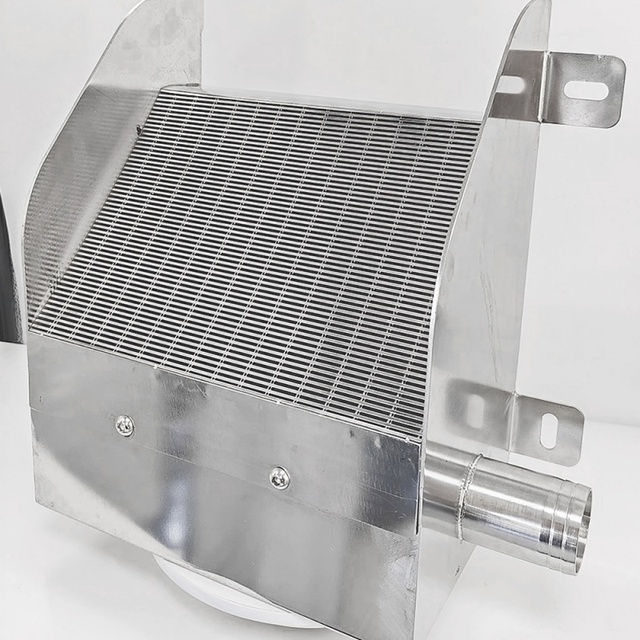

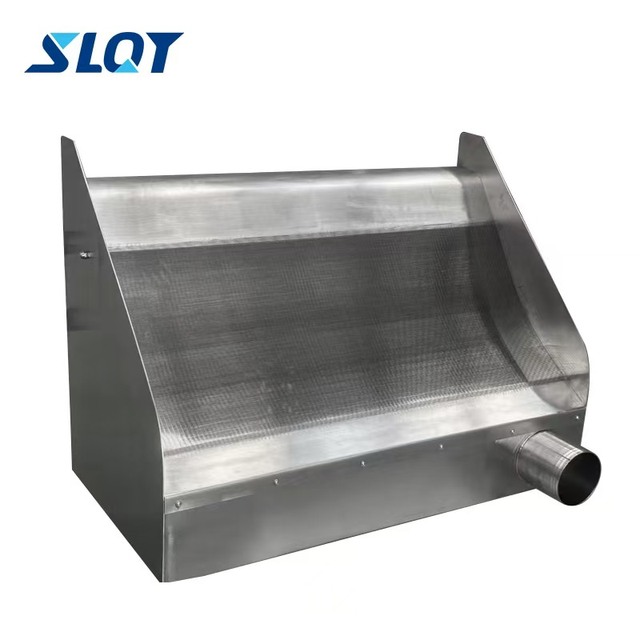

Coanda Screen Box

Updated October 6, 2026

Overview

Product sourcing insights & recommendations

26 来源

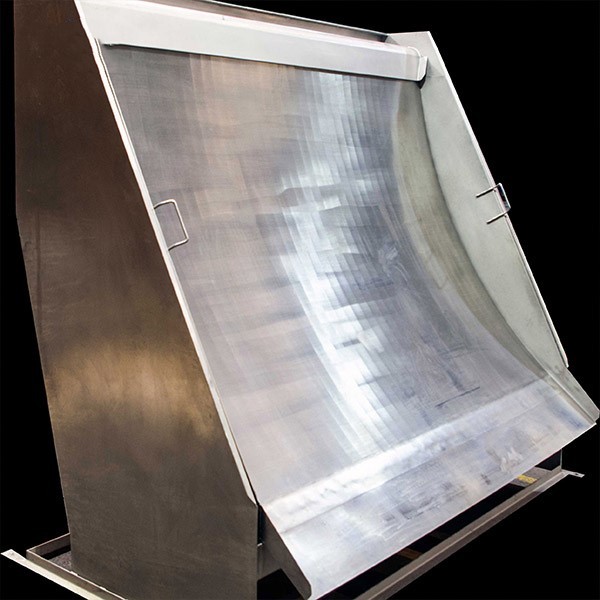

A Coanda screen box is a passive, self-cleaning water intake system that utilizes the Coanda effect to separate debris, sediment, and aquatic life from water flows. Coandaintakes Filsonfilter It is highly valued in small hydropower, irrigation, and municipal water supply for its ability to operate without external power or moving parts. Waterpowermagazine Pfmscreen

Product Insights & Specifications

* Working Principle: Water flows over an acceleration plate at high velocity; the Coanda effect causes clean water to adhere to and pass through tilted wedge wires, while debris and sediment are "sheared" off and carried downstream by momentum. Coandaintakes Filsonfilter

* Material Standards: High-grade SS304 is the industry standard for freshwater, while SS316L or Duplex stainless steel is increasingly preferred for corrosive or brackish environments. Coandaintakes Pfmscreen

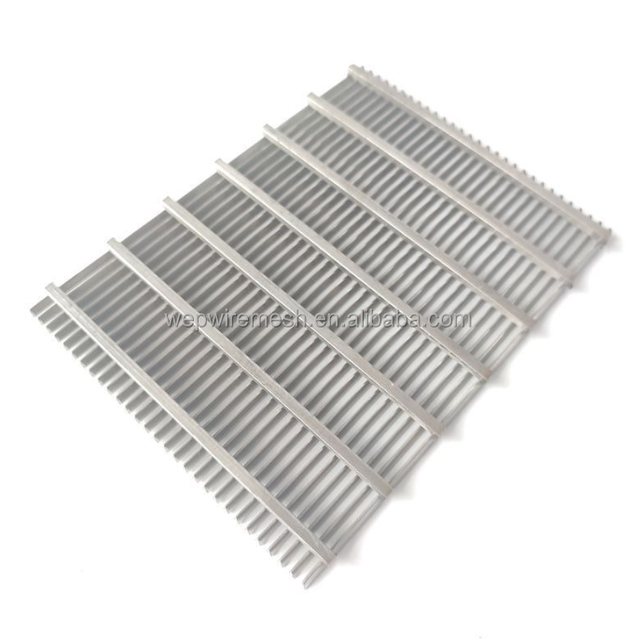

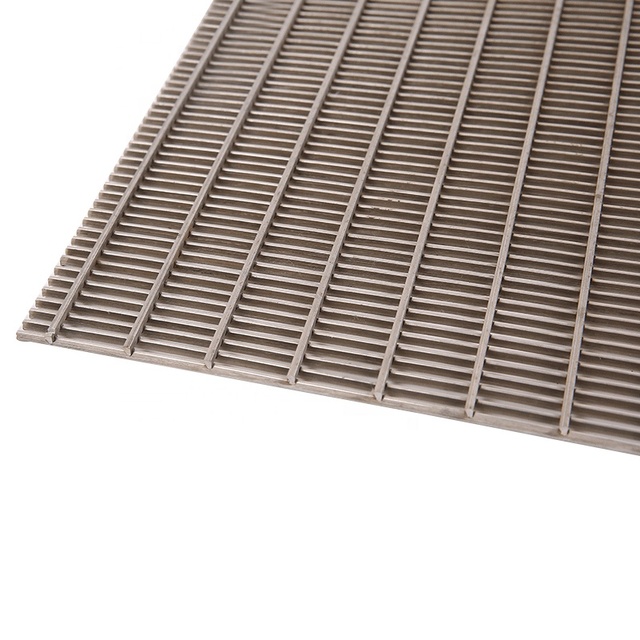

* Technical Benchmarks: Typical slot widths range from 0.5 mm to 1.5 mm for fish protection and debris exclusion, with a standard flow capacity of approximately 140 L/s per meter of weir width. Coandaintakes Filsonfilter

Market Trends & Industry Outlook (2024–2026)

* Sustainability & Compliance: Stricter environmental regulations regarding fish protection are driving the global adoption of Coanda screens, as their passive screening is inherently "fish-friendly." Waterpowermagazine Mutoscreens

* Hydropower Retrofitting: A major market driver through 2026 is the modernization of aging hydro plants, where replacing traditional trash racks with Coanda boxes can reduce maintenance downtime and offer a payback period of under two years. Waterpowermagazine

* Industrial Expansion: Beyond water intake, the technology is expanding into stormwater management and wastewater pre-treatment due to its low operational and maintenance (O&M) costs. Mutoscreens Waterpowermagazine

* Supply Chain Dynamics: B2B market data shows a concentration of manufacturers in Hengshui, China, offering competitive pricing (ranging from $13–$378 per unit depending on size and material) and flexible OEM/customization options. Alibaba Alibaba

The file below provides a detailed list of Coanda intake screen products, including pricing, MOQ, and manufacturer details.

Based on this research, you can continue with:

Sources & References

26 sources cited · Verified industry data & reports

Coanda Screens | Elgin Separation Solutions

Elgin Separation Solutions

Coanda Screens use tilted wedge wire to provide water to hydro, municipal water, and other facilities.

Coanda Intake Screen & Box

pfmscreen.com

Coanda Intake Screens and Coanda Intake Boxes are widely used in river intakes, canals, reservoirs, irrigation systems, hydropower plants, municipal water ...

What Is a Coanda Intake Screen? The Complete Guide

Coanda Intake Screen

A Coanda intake screen is a passive, self-cleaning water screening device that uses the Coanda effect to separate debris while collecting clean water ...

Microhydro Intake Design

Appropedia

A Coanda- effect hydro intake screen is great at keeping everything from fish to leaves out of the penstock. is site specific and can be quite complex, usually ...

Coanda Screen manufacturer in China -Filson Filter

filsonfilter.com

The Coanda screen is a form of water intake that is self-cleaning and static, requiring no electricity and little maintenance. Also, the Coanda screen employs a ...

The Working Principle And Specific Application of Coanda ...

Hebei Slot Filter

The Coanda screen is capable to enable liquid-solid separation with high filtration performance. The hydro screen prevents the sediment, sticks, rock, and dirt

Coanda Screen Box

Overview

Product Insights & Specifications

Market Trends & Industry Outlook (2024–2026)

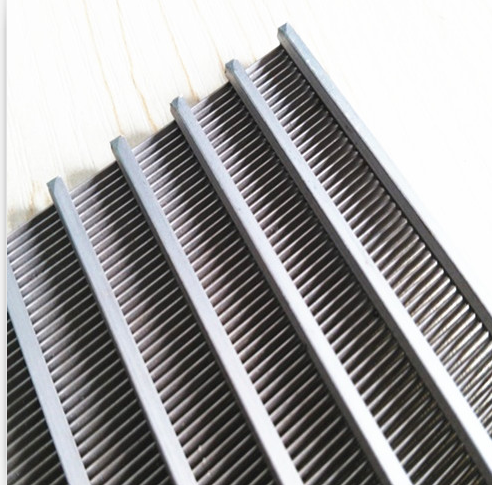

Coanda Intake Screen Box Stainless Steel 304 316 Wedge Wire
