Code Disc

The term "code disc" (or code disk) primarily refers to a precision optical component used in rotary encoders to convert mechanical motion into electrical signals. It is a critical element in motion control systems, robotics, and industrial automation.

Product Overview

A code disc is a patterned wheel with alternating transparent and opaque (or reflective and non-reflective) segments. As it rotates, a light source passes through these segments to a sensor, generating pulses that determine position, speed, or direction Pepperl-FuchsTrendxinsights.

* Materials:

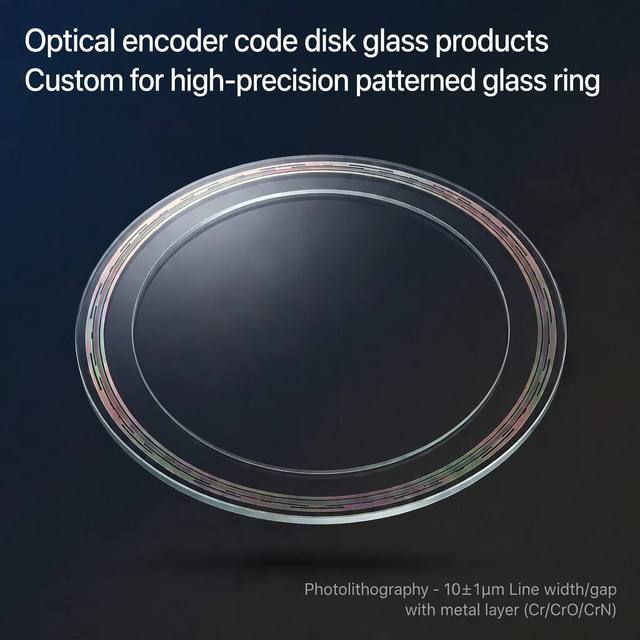

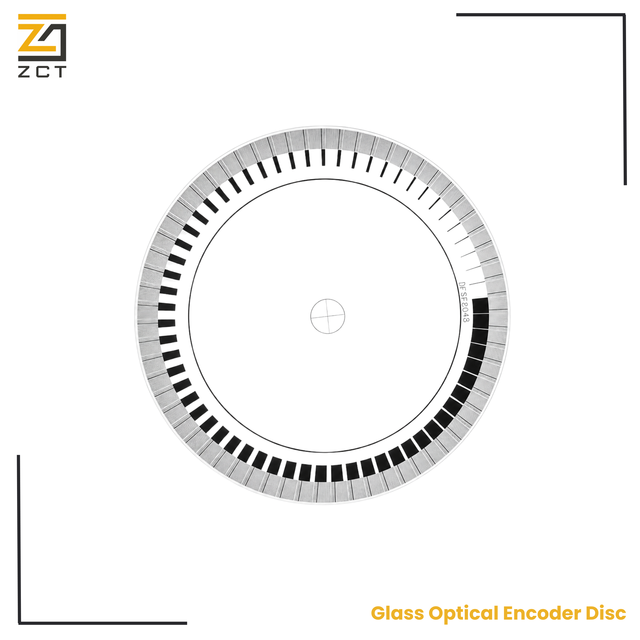

* Glass: Offers the highest precision and thermal stability for high-resolution applications QyresearchGiiresearch.

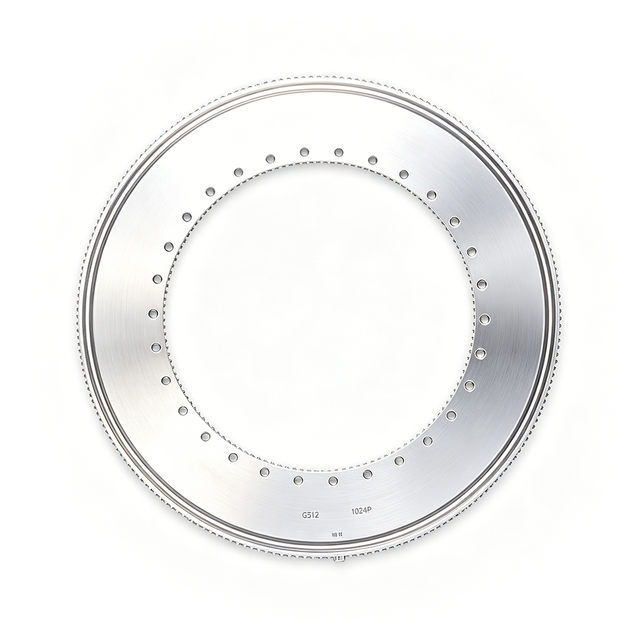

* Metal (Stainless Steel): Durable and resistant to shock/vibration, typically etched for reliability in harsh environments DirectindustryGlobalinforesearch.

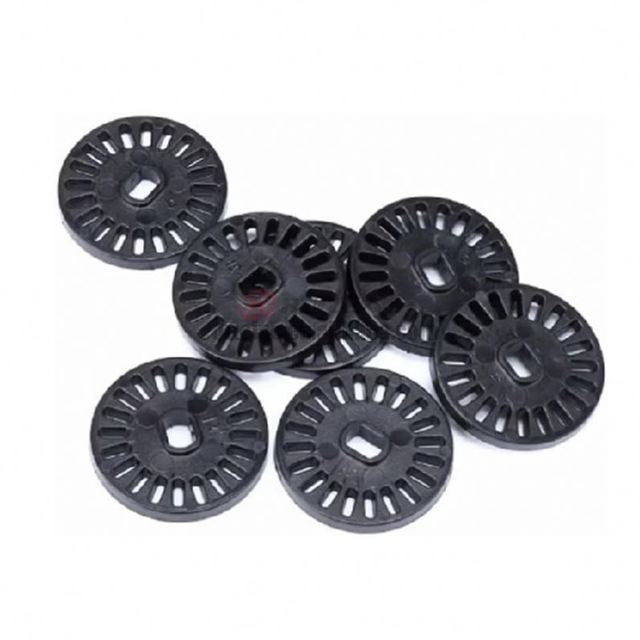

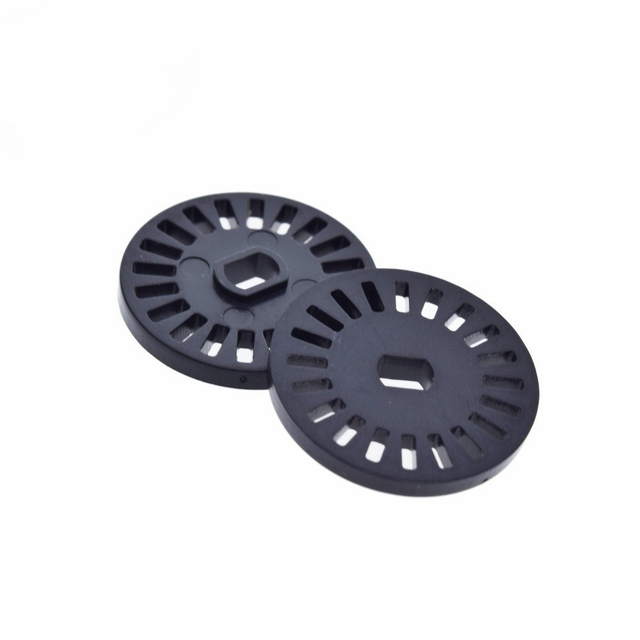

* Polymers (PMMA/SU-8): Cost-effective for low-resolution or consumer-grade sensors Qyresearch.

* Fabrication: Advanced techniques like photo-etching, photolithography, and E-beam lithography are used to achieve micro-scale precision QyresearchGlobalinforesearch.

Market Trends & Insights (2025–2032)

The global market for specialized code discs (such as etched grating variants) is seeing steady growth, driven by the automation of manufacturing and the expansion of the telecom and medical sectors QyresearchDataintelo.

* Growth Projections: The market was valued at USD 53.27 million in 2025 and is projected to reach USD 79.96 million by 2032, growing at a CAGR of 5.97% QyresearchGiiresearch.

* Key Drivers:

* Miniaturization: Rising demand for discs under 50mm for embedded sensors in compact robotics Qyresearch.

* High Resolution: Shift toward glass and silicon substrates to support ultra-fine grating for aerospace and defense Giiresearch.

* Industrial Automation: Increased adoption of photoelectric rotary encoders, which currently hold about 62% of the total rotary encoder market revenue Dataintelo.

Sourcing Intelligence

The B2B landscape is dominated by specialized precision engineering firms, primarily located in industrial hubs like Shenzhen, Xi'an, and Dongguan .

* Price Range: Standard metal discs can be as low as $0.10–$0.50 for bulk orders, while high-precision glass discs for CNC equipment range from $2.00 to $60.00+ depending on resolution and certification (e.g., ISO9001, ROHS) .

* MOQ: Manufacturers typically offer flexible order quantities, ranging from 10 to 200 pieces for custom specifications .
