The phrase 'coil crossover' primarily refers to two distinct but related concepts in electronics and manufacturing: Audio Crossover Inductors (components that filter sound frequencies) and Coil Winding Crossovers (a structural phenomenon in wire winding).

1. Product Definitions & Applications

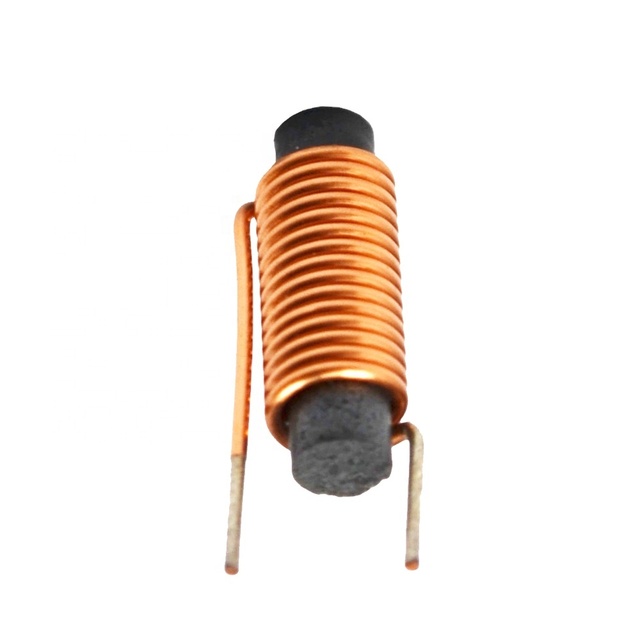

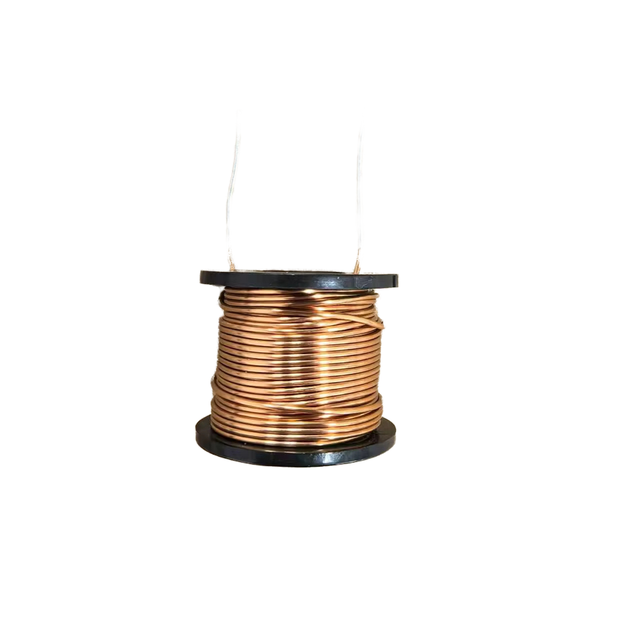

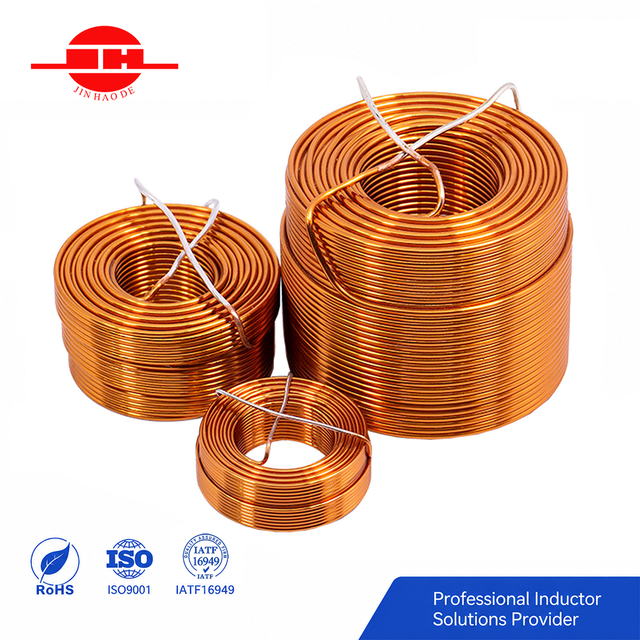

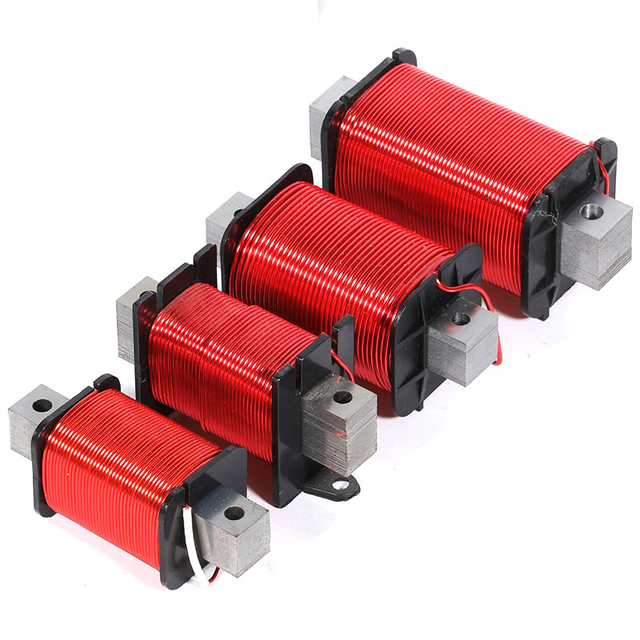

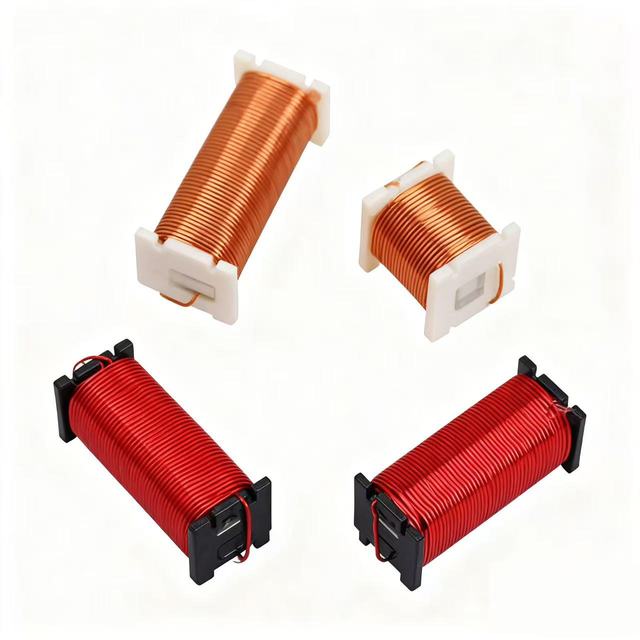

* Audio Crossover Coils (Inductors): These are passive electronic components used in speaker systems to direct specific frequency ranges to appropriate drivers (e.g., low frequencies to woofers). Common types include Air-Core Inductors Alibaba and Iron-Core Inductors Alibaba.

* Winding Crossovers (The "Bulge"): In manufacturing, a "crossover" refers to the point where a wire lead returns across the top of finished layers to reach an exit point. This creates a localized bulge that increases the total thickness (Z-height) of the component Sensynctech.

2. Market Trends (2025–2026)

* Miniaturization & Alpha Winding: The strongest trend is the shift toward Alpha Winding (center-out winding). This technology eliminates the "crossover bulge," reducing component thickness by 18% or more Sensynctech. It is critical for ultra-thin devices like smart rings, TWS earbuds, and smart glasses.

* HiFi Audio Growth: The market for air-core crossover coils is expanding, driven by a projected 4% CAGR through 2033 Linkedin. Demand is fueled by high-fidelity home audio and the resurgence of DIY speaker building Linkedin.

* High-Efficiency Wireless Charging: The rise of Qi2 standards requires perfectly planar coils (no crossovers) to maximize magnetic coupling and reduce heat in smartphone and automotive charging modules Sensynctech.

3. Key Market Insights

Segment	Driving Trend	Impact
Consumer Audio	Demand for 3-way crossover networks Alibaba	Shift toward high-purity copper and oxygen-free copper (OFC) for better sound clarity.
Wearables	"Z-height" optimization Sensynctech	Adoption of alpha winding to fit coils into cavities as thin as 0.25 mm.
Automotive	Grade-level inductors Futuremarketinsights	Market worth $3.0 billion by 2026, growing at 2.9% for EV power management.

4. Technical Benefits of "No-Crossover" Designs

1Lower Parasitic Capacitance: Eliminating intersecting wire paths improves electrical performance and Q-factors Sensynctech.
2Symmetric Mass: In vibrating parts like Linear Resonant Actuators (LRAs), a lack of crossover bulges prevents "rotational wobble" and acoustic buzzing Sensynctech.
3Reliability: Removing "pinch points" reduces the risk of dielectric breakdown during assembly Sensynctech.
