Computer Pantograph

Updated July 3, 2026

Overview

Product sourcing insights & recommendations

25 来源

The term "computer pantograph" refers to the digital transformation of the traditional mechanical pantograph across three primary industrial sectors: railway safety, precision engraving, and textile quilting. The market trend for 2026 is moving rapidly from manual mechanical linkages to AI-driven computer vision and robotic automation.

1. Railway Monitoring (AI & Computer Vision)

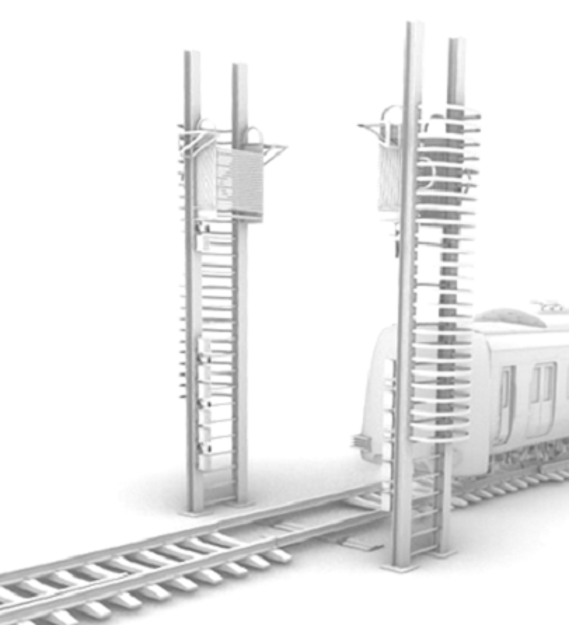

In the railway sector, a "computer pantograph" is a monitoring system that uses AI and smart cameras to track the health of the train's power collector (pantograph) in real-time.

2.6.2 Market Trends: The industry is shifting from scheduled inspections to predictive maintenance. AI algorithms now detect carbon strip wear and arcing at speeds exceeding 200 km/h Linkedin.
Key Products: High-speed train monitoring systems developed by specialists like Chongqing Hengtairail Alibaba.

2. CNC Engraving & Milling

The traditional manual pantograph engraver (used for scaling logos/text) has been largely replaced by Small CNC Routers which act as "digital pantographs."

2.6.2 Market Trends: Pure manual machines are becoming niche tools for hobbyists or one-off physical replication. The commercial standard is now Mini CNC Routers that offer ±0.01 mm precision and instant digital file loading Firgelliauto Reddit.
Key Suppliers: Manufacturers like Jinan JCUT and Shandong Forsun specialize in mini routers designed for "advertisement pantograph" applications Alibaba Alibaba.

3. Long-Arm Quilting (Robotic Automation)

In quilting, the "computerized pantograph" refers to robotic stitch-regulation systems that turn a long-arm machine into an automated plotter for edge-to-edge (E2E) designs.

2.6.2 Market Trends: High demand for fully automated home-studio setups. Systems like QCT6 allow quilters to execute complex tessellated patterns with zero manual guiding, automatically calculating "safe areas" and nesting patterns Graceframe.
Key Products: Computer-controlled long-arm machines with automatic thread trimming and digital pattern libraries Alibaba.

Market Summary (2025–2034)

The broader pantograph market is projected to reach $6.4 billion by 2034, growing at a CAGR of 5.9% Dataintelo. The highest growth is in high-speed rail segments, which currently hold over 42% of the total market share Futuremarketinsights.

For detailed product lists and supplier profiles, please refer to the deliverables below.
