D1 Mini Led Pin

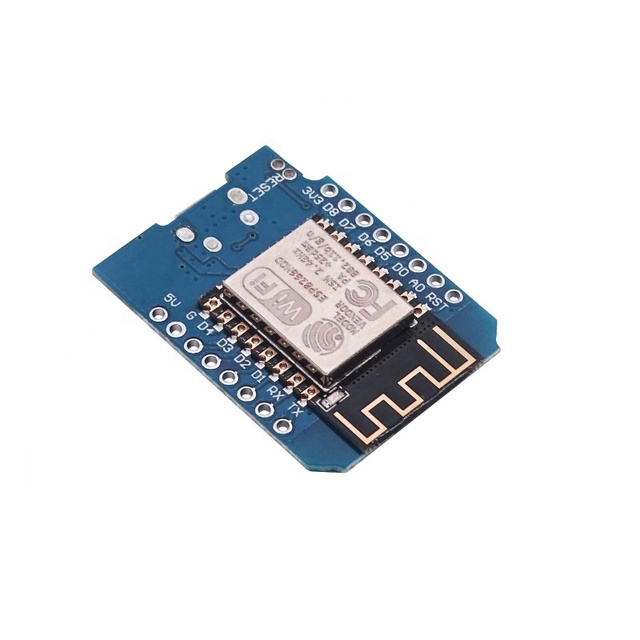

The Wemos D1 Mini is a compact ESP8266-based development board widely used in IoT and LED projects. Below is a detailed synthesis of its pinout specifications and the broader market trends for LED technology in 2026.

Product Insights: D1 Mini LED Pinout

The D1 Mini features a built-in blue LED and several pins suitable for external LED control.

* Onboard LED (D4/GPIO2): The internal blue LED is hardwired to GPIO2. It is Active Low, meaning setting the pin to `LOW` turns the LED ON. RedditLastminuteengineers

* Boot Constraint: You must avoid pulling D4 `LOW` during startup to ensure the ESP8266 boots correctly.

* External LED Recommendations: For status indicators, the following pins are preferred:

* D0 (GPIO16): Ideal for error or deep-sleep wake status. Mysensors

* D1/D2 (GPIO5/GPIO4): Recommended for general output if I2C (SCL/SDA) is not in use. Mysensors

* D4 (GPIO2): Common data line for WS2812B RGB strips, though it will flicker the onboard LED. Cirkitdesigner

2026 Market Trends & Consumer Insights

The LED market is projected to reach $123 billion by 2026, shifting from standard illumination to intelligent, high-density systems. GrealphaFortunebusinessinsights

* Mini & Micro LED Dominance: Mini LED backlighting (used in TVs and monitors) is expected to grow by 40%, while Micro LEDs are becoming the standard for next-gen AR/VR wearables due to their extreme brightness. LedinsideEllumiglow

* AI-Enhanced Maintenance: 2026 marks the rise of AI-driven predictive maintenance in lighting systems, where DALI-certified drivers use AI to detect hardware failure before it happens. Grealpha

* Pixel-Free Illumination: Consumer demand is shifting toward "invisible" lighting—seamless, pixel-free COB (Chip on Board) LED strips that eliminate the "dotted" look of traditional strips. Ellumiglow

* Human-Centric Design: Market demand for circadian rhythm lighting (color temperature that follows the sun) is moving from specialized medical use into mainstream smart homes. EllumiglowLedcraftinc

Sourcing Opportunities

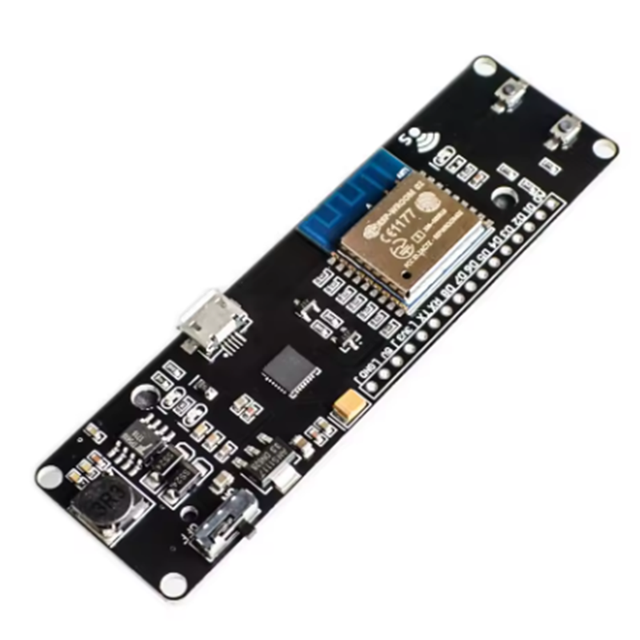

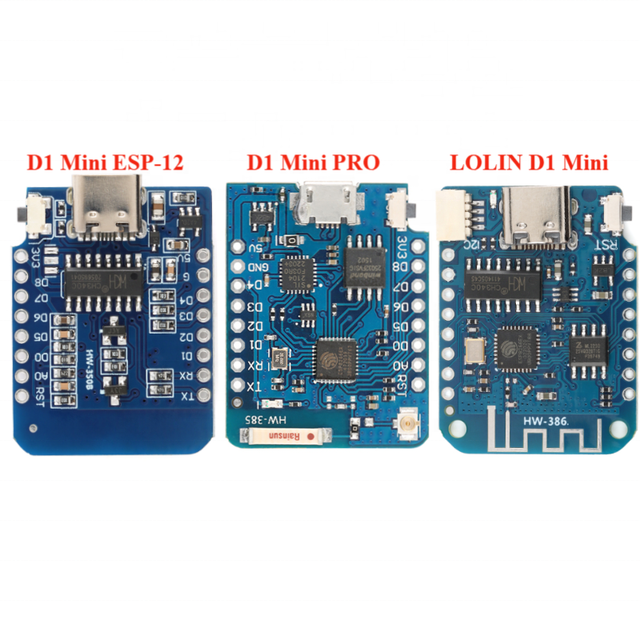

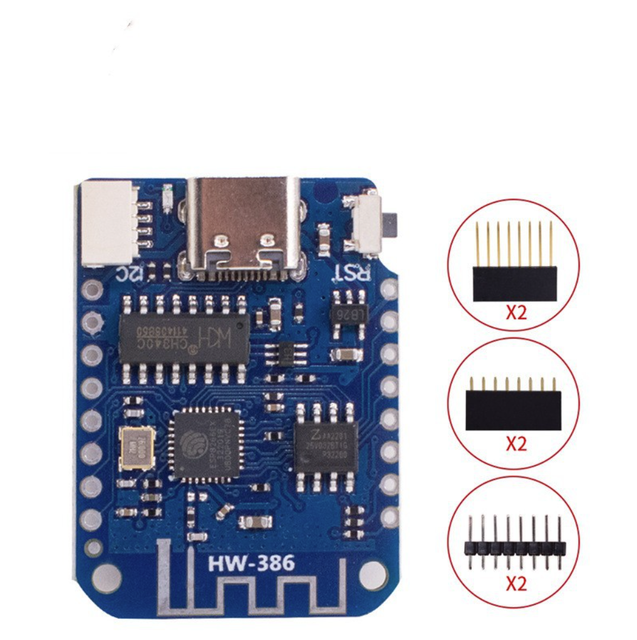

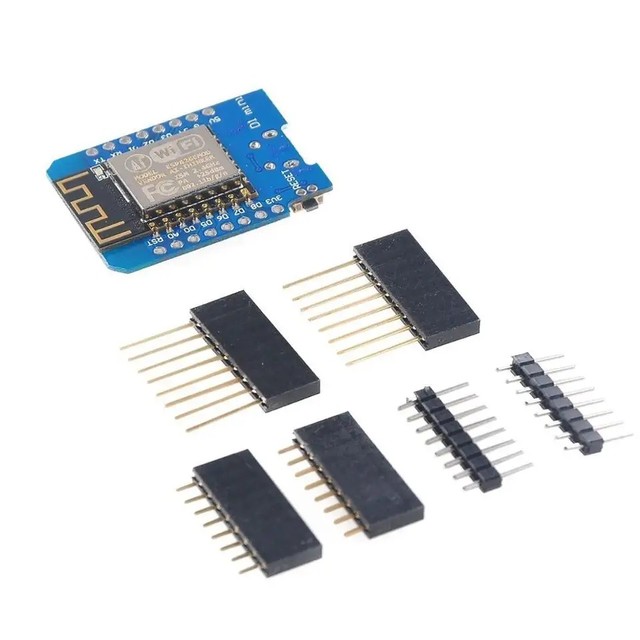

I have identified several high-quality D1 Mini boards and compatible LED modules from verified suppliers.
