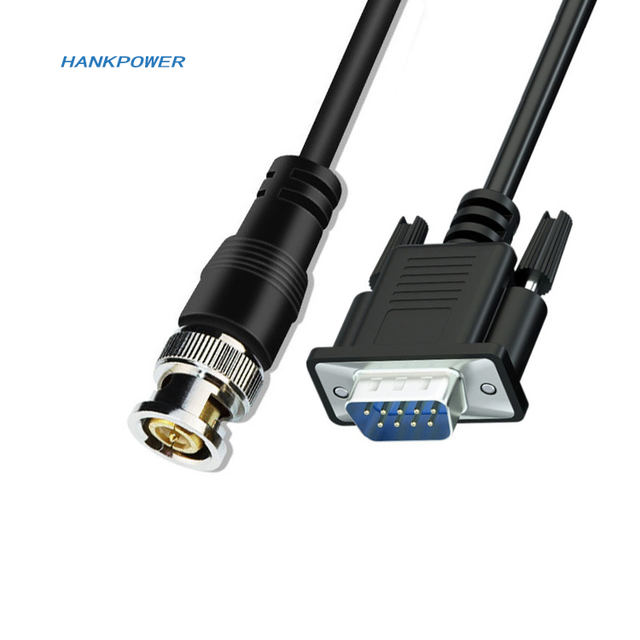

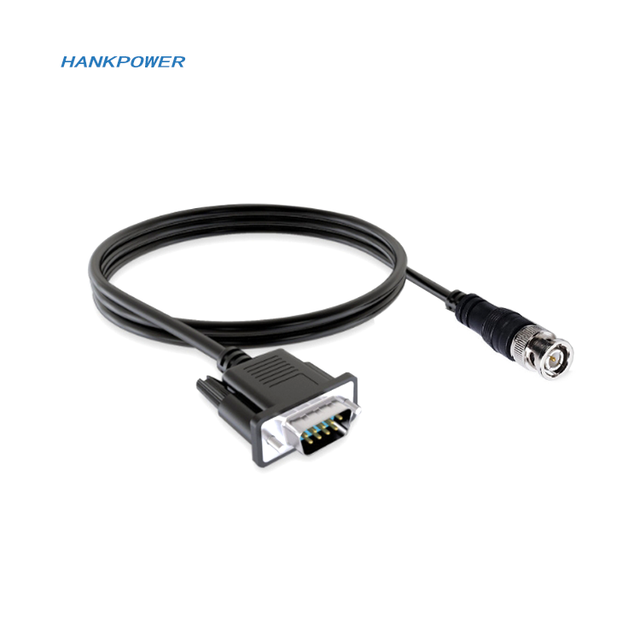

Db9 To Bnc Cable

The market for DB9 to BNC cables is a specialized but resilient niche driven by the ongoing need to bridge legacy industrial and broadcast equipment with modern, standardized BNC-terminated gear. AlibabaL-Com

Market Trends & Insights

* Infrastructure Longevity: Demand remains steady in sectors with long-life hardware cycles (10–15 years), such as medical imaging (MRI), industrial automation (PLC/SCADA), and telecom infrastructure (E1/G.703). AlibabaHuaweiL-Com

* Standardization on BNC: As modern racks and test benches standardize on BNC for its secure bayonet lock and superior signal integrity, DB9-to-BNC adapters are essential "bridging" components. AlibabaMetabee

* Specialized Shielding Growth: There is a premium market segment for high-tier RF-shielded and non-magnetic cables ($300+ range) used in EMC-certified labs and sensitive medical environments. L-Com

Technical Specifications

* Impedance Matching: Critical for performance; 75 Ohm is standard for analog video and broadcast L-ComHuawei, while 50 Ohm is preferred for RF and high-speed digital timing. Metabee

* Breakout Configurations:

* 4-BNC / 5-BNC: Used for RGB/VGA video signals, separating sync channels (H/V). AlibabaL-Com

* Dedicated E1: Specifically for 75-ohm telecom signals in router-to-DDF connections. Huawei

* Multi-Port Adapters: Custom DB9 to 8 or 9 BNC breakouts for high-density data acquisition (DAQ) or digital I/O. Iworx

Sourcing & Pricing Overview

Pricing varies significantly based on complexity and shielding requirements:

* Basic Signal Cables: Typically range from $0.85 – $4.50 for mass-produced PVC variants.

* Professional Breakout Cables: Higher-quality video or data snake cables often range from $5.90 – $12.30, with MOQ usually starting at 10-100 sets.

* High-Tier Specialized Cables: Enterprise-grade or custom-length shielded assemblies can reach $20 – $100+ depending on length and certification.
