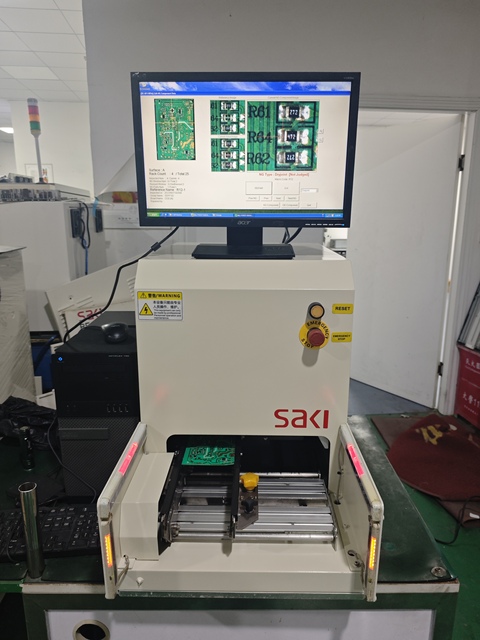

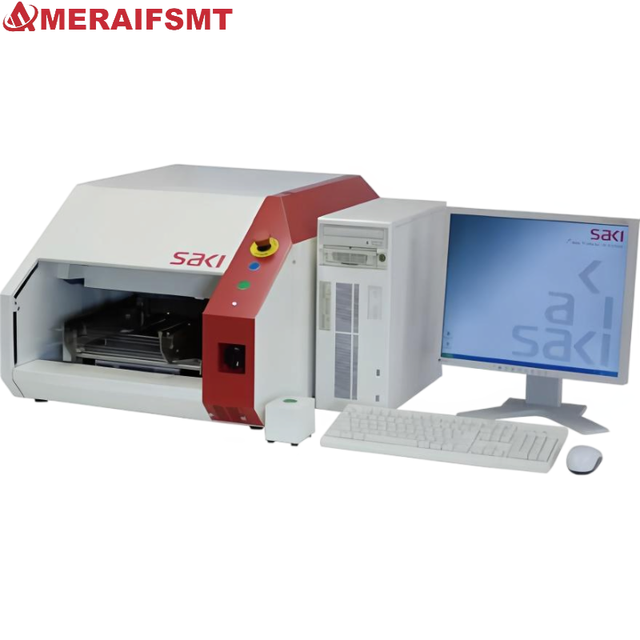

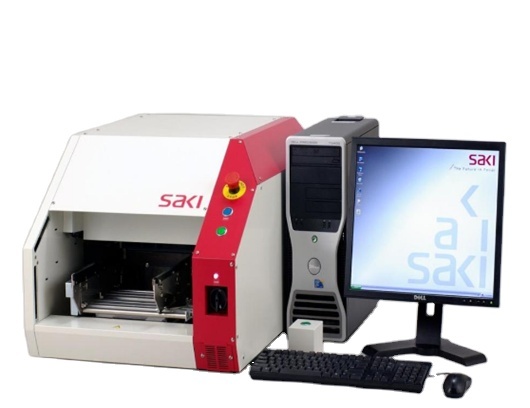

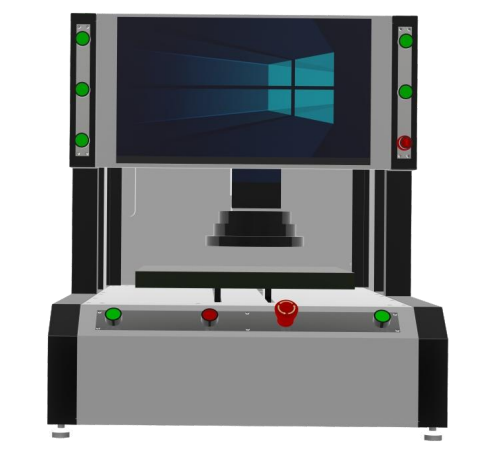

Desktop Aoi Machine

The phrase "desktop AOI machine" (Automated Optical Inspection) refers to compact, offline inspection systems designed for PCB quality control in R&D, prototyping, and low-to-medium volume production. ProtoexpressAllpcb

Product Features & Specifications

Desktop AOI machines are primarily offline systems used for batch inspection. They are valued for their mobility and lower entry price compared to inline versions. AllpcbPersistencemarketresearch

* Optics: High-resolution cameras (5MP–20MP) paired with multi-angle LED lighting (R/G/B/W) to detect defects like missing components, misalignment, and solder bridges. VisionxincAllpcb

* 3D Capability: Newer desktop models increasingly feature 3D volumetric inspection, allowing for the measurement of component height and solder volume, which is critical for detecting lifted leads. SmtfactorySakicorp

* AI Integration: Modern software uses AI and Deep Learning to reduce false calls by up to 60%, learning from "golden boards" to improve accuracy over time. GartnerPersistencemarketresearch

Market Trends & Insights (2024–2026)

The global AOI market is projected to reach $4.97 billion by 2033, with a high CAGR of 19.5% starting from 2026. PersistencemarketresearchWorldwidemarketreports

* Miniaturization: The rapid evolution toward ultra-fine-pitch components (e.g., 01005 packages) is driving the need for higher-resolution desktop systems in lab environments. GrowthmarketreportsBusinessresearchinsights

* 3D Transition: 3D AOI now holds over 57% of the market share, as automotive (EV/ADAS) and medical sectors mandate zero-defect standards that 2D systems cannot guarantee. IntelmarketresearchBusinessresearchinsights

* Industry 4.0: Integration with Manufacturing Execution Systems (MES) for full traceability and predictive maintenance is becoming a standard requirement for even desktop models. Researchnester

Pricing & Sourcing Context

Price ranges are determined by imaging technology and 3D functionality: AllpcbGartner

* Entry-Level (2D): $50,000 – $80,000

* Mid-Range (Partial 3D): $80,000 – $150,000

* High-End (Full 3D/AI): $150,000 – $250,000+

I have identified several verified suppliers and specific desktop AOI models currently available on the market, with prices starting as low as $1,860 for basic intelligent desktop units. AlibabaAlibaba
