Diy Planar Speaker

The 'DIY planar speaker' market is evolving from simple flat-panel experiments into a sophisticated niche focused on advanced material science and digital simulation. Enthusiasts are increasingly bypassing high-end commercial brands to build custom drivers that rival boutique performance at a fraction of the cost Diyaudio.

Key Market & Technical Trends

* Material Shift: Kapton (Polyimide) is becoming the preferred substrate over traditional Mylar due to its superior thermal stability (melting point >400°C), which is essential for high-power handling in modern DIY designs Diyaudio.

* Acoustic Geometry: There is a growing trend toward curved diaphragms (180° or 360°) to address the narrow horizontal dispersion typical of flat planars. Some DIYers are even using DC biasing to create specific arc shapes for point-source behavior Audiosciencereview.

* Precision Engineering: The community has moved from manual assembly to using Finite Element Method Magnetics (FEMM) and digital cutters to etch precision copper or aluminum traces, reducing the "hot knife" effect where heavy wires slice through thin films Diyaudio.

* Hybrid Integration: Most modern DIY builds now utilize planar drivers for frequencies above 600Hz, paired with traditional woofer arrays for bass to manage the vibration and surface area challenges of full-range panels Audiosciencereview.

Product Insights & Availability

Current B2B offerings focus on modular components, allowing DIYers to source specialized parts for custom builds. High-grade N52 neodymium magnets are the standard for achieving the high flux density required for efficient planar drivers.

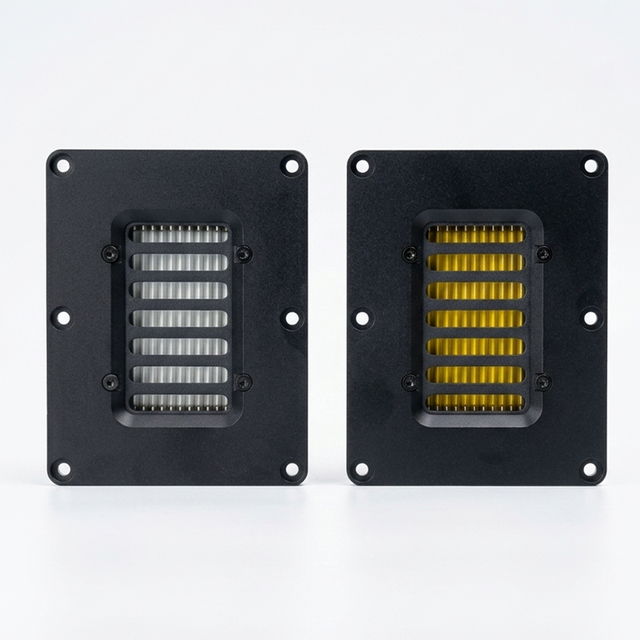

* Drivers & Kits: Components like aluminum 66mm tweeters and professional isodynamic ribbon drivers are available for as low as $2.30 to $35.00 per unit AlibabaAlibaba.

* Raw Materials: Industrial-grade N52 magnets and transducer parts are accessible with low MOQs, supporting the "mad scientist" ethos of building superior-performing drivers at home Alibaba.
