FFC to Cable Assembly Guide for High-Speed Signal Integrity

The market for "FFC to cable" (Flexible Flat Cable to discrete wire/round cable) is currently driven by the demand for high-speed signal integrity and miniaturization in automotive and data center sectors. As PCBs become denser, engineers are increasingly using "flyover" or bypass assemblies to move sensitive signals away from lossy board materials, fueling a projected 8.1% CAGR in automated assembly through 2034 Dataintelo.

📈 Market Trends & Insights

* Automotive Electrification: The shift to Electric Vehicles (EVs) is a primary driver, with battery management systems (BMS) and ADAS requiring ultra-compact FFC-to-wire transitions to fit tight internal spaces Dataintelo.

* Signal Integrity Shift: At data rates above 56 Gb/s, discrete shielded twinax cables are replacing traditional PCB traces to reduce jitter and attenuation in data center backplanes Connectorsupplier.

* Automation in Manufacturing: There is a structural shift toward fully automated assembly to ensure near-zero defect rates for fine-pitch (0.5mm) connectors Dataintelo.

🛠️ Key Product Features

Modern transition solutions typically feature a hybrid architecture designed for specific industrial needs:

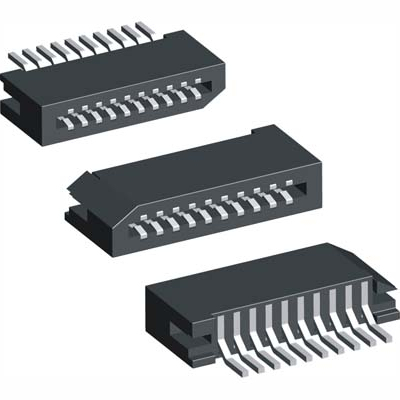

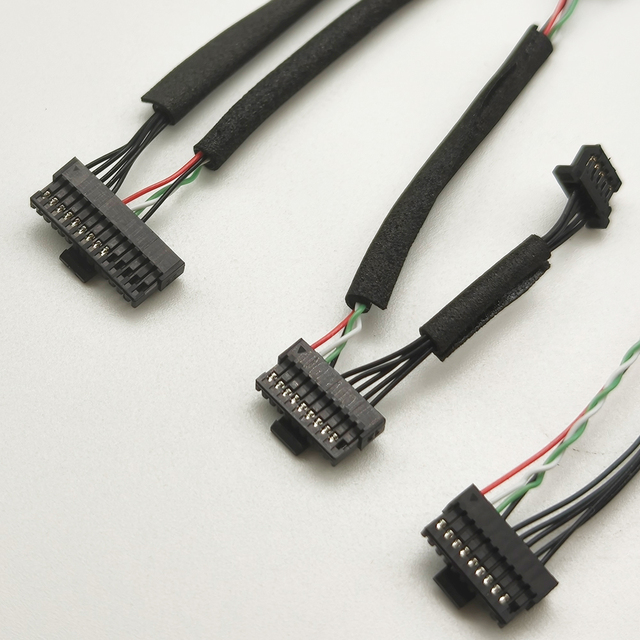

* Pitch & Density: Common FFC pitches are 0.5mm and 1.0mm, often transitioning to standard JST (SH/PH) or Molex (PicoBlade) connectors for discrete wiring Alibaba.

* Shielding: Aluminum foil or copper braiding is standard for EMI reduction in display (LVDS) and sensor applications Alibaba.

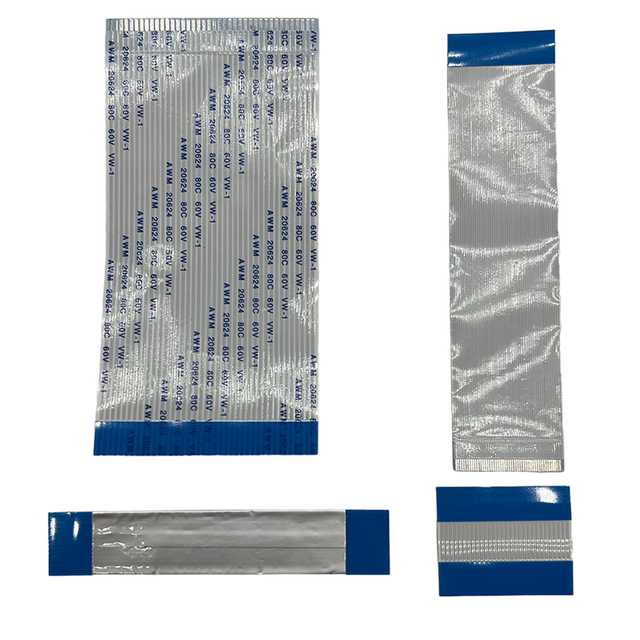

* Customization: Suppliers now offer pre-folded (Z-fold) FFC sections and overmolded transition joints for enhanced strain relief and IP-rated waterproofing Alibaba.
