Futaba M402sd07g

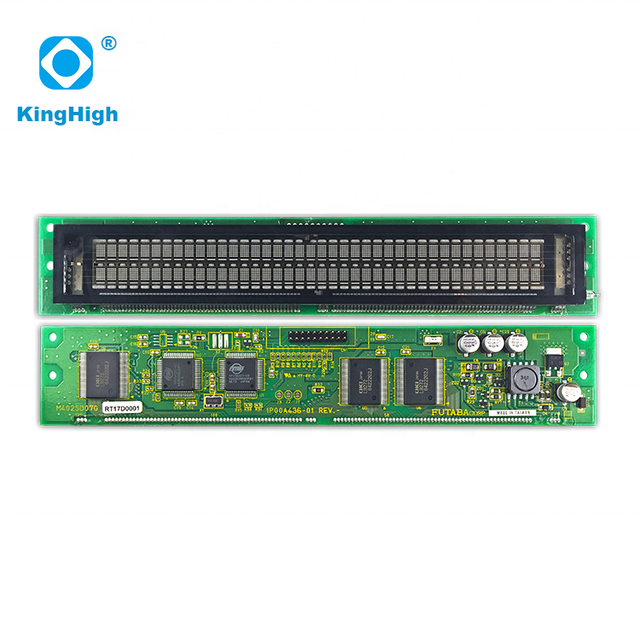

The Futaba M402SD07G is a high-performance Vacuum Fluorescent Display (VFD) module featuring a 40x2 character format. Primarily used in legacy industrial equipment and high-end audio systems, it is currently categorized as End-of-Life (EOL), making original "New Old Stock" units scarce and expensive DcsmoduleRadwell.

Technical Core & Specifications

* Format: 40 characters × 2 rows (80 digits total) with a 5x7 dot matrix and underline cursor WebsiteonlineAlibaba.

* Performance: High-brightness green illumination (typical 690 cd/m²) with extreme contrast, readable in direct sunlight WebsiteonlineRadwell.

* Connectivity: Flexible 20-pin interface supporting both 8-bit parallel and serial (TTL) communication at up to 9600 bps DcsmoduleWebsiteonline.

* Operating Conditions: Wide temperature range (-20°C to +70°C) and 5V DC power supply, drawing approximately 750mA WebsiteonlineScribd.

Market Trends & Sourcing Insights

* Supply Scarcity: As a discontinued product, supply is driven by the surplus and repair market. Verified "New Original" units are priced between $318 and $850+ depending on the vendor and warranty terms RadwellAlibaba.

* Legacy Reliance: It remains a critical spare part for machines from Biamp, Rieter, and Siemens. The high replacement cost reflects the specialized nature of VFD technology compared to modern LCDs RadwellAlibaba.

* Market Shift: While modern designs favor cheaper, lower-power TFT-LCDs or OLEDs, VFDs like the M402SD07G maintain a niche for their unique aesthetic and long-term durability in harsh environments AlibabaEevblog.
