G220sw01 V0

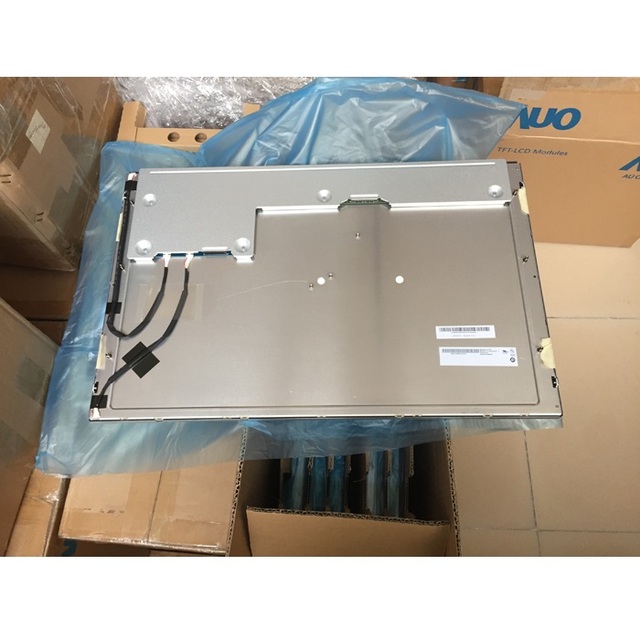

The phrase 'G220SW01 V0' refers to a 22-inch industrial-grade LCD panel manufactured by AU Optronics (AUO). Originally released in 2008, it has become a legacy component widely used in high-reliability environments such as medical imaging, industrial control, and maritime systems.

Product Overview & Key Specifications

The G220SW01 V0 is characterized by its WSXGA+ (1680 x 1050) resolution and a 16:10 aspect ratio. Its core value lies in its MVA (Multi-domain Vertical Alignment) technology, which provides a high contrast ratio of 2000:1 and wide viewing angles (89°/89°/89°/89°), essential for mission-critical displays PanelookArrow.

• Backlight Type: CCFL (6 lamps). This is a primary differentiator from newer models, as CCFL technology has a typical lifespan of 50,000 hours and requires high-voltage inverters Lcdparts.
• Interface: 30-pin LVDS (2-channel, 8-bit), which remains a standard in industrial display integration Beyondinfinite.
• Mechanicals: Large outline (493.7 x 320.1 x 18.7 mm) with a weight of approximately 2.95 kg, built for durability in rugged settings Agdisplays.

Market Trends & Lifecycle Insights

The market for G220SW01 V0 is currently shifting toward maintenance, repair, and overhaul (MRO) as the panel is in its legacy lifecycle phase.

1. 1Transition to LED Backlighting: Modern industrial trends emphasize energy efficiency and longevity. Many users are replacing aging G220SW01 V0 panels with the AUO G220SVN01.0, which offers similar mechanical dimensions but uses WLED backlighting, reducing power consumption and eliminating the need for CCFL inverters PanelookAlibaba.
2. 2Sourcing Reality: While mass production has long since ceased, "New Old Stock" (NOS) and refurbished units are actively traded on B2B platforms like Alibaba and specialty sites like Panelook. Prices for NOS units can range significantly ($50–$120) depending on condition and supplier warranty AlibabaAlibaba.
3. 3Industrial Display Growth: The broader industrial display market is projected to reach $6.29 billion by 2026, driven by the rising demand for HMI (Human-Machine Interface) systems and touch-integrated solutions ThebusinessresearchcompanyLinkedin. This ensures that even as the G220SW01 V0 fades, compatible 22-inch 1680x1050 panels will continue to be supported by third-party manufacturers.

Strategic Recommendations

• Maintenance Strategy: If maintaining existing hardware, consider LED upgrade kits to bypass CCFL failure points, which can extend the operational life of the display at a lower cost than full panel replacement LcdpartsPlazmo.
• Replacement Strategy: For new designs or complete overhauls, the G220SVN01.0 is the recommended direct replacement model to maintain mechanical compatibility while benefiting from modern backlight technology TwscreenEnlcd.

Detailed sourcing lists and technical comparison files are attached below for your reference.
