Gst5009 E Lf
Overview
Product sourcing insights & recommendations
The GST5009-E LF is a high-performance 1000 Base-T (Gigabit) LAN magnetics module manufactured by Bothhand USA. It serves as a critical interface component in networking hardware, providing signal conditioning, isolation, and noise suppression for high-speed Ethernet connections BothhandusaDatasheets360.
Product Overview & Specifications
The module is designed for full-duplex Gigabit Ethernet applications and is particularly notable for its Power over Ethernet (PoE) support BothhandusaRj45-Modularjack.
* Key Technical Specs:
* Speed: 10/100/1000 Base-T Bothhandusa.
* Current Capability: 350mA, making it compliant with IEEE 802.3af (PoE) standards BothhandusaRj45-Modularjack.
* Isolation: 1500 Vrms HI-POT rating to protect equipment from voltage surges Bothhandusa.
* OCL: Minimum 350 µH at 100KHz with 8mA DC bias Bothhandusa.
* Compliance: Fully RoHS compliant and Halogen-Free (indicated by the "LF" suffix) Bothhandusa.
* Applications: Commonly found in Gigabit switches, routers, Network Interface Cards (NICs), and industrial automation equipment BothhandusaDatasheets360.
Market Trends & Insights (2025–2026)
The market for components like the GST5009-E LF is undergoing a period of steady growth and technological transition.
* Market Growth: The global LAN transformer market is projected to reach approximately $338 million by 2025, growing at a CAGR of roughly 5.2% through the late 2020s Marketreportanalytics. A broader Ethernet connector and transformer market is expected to reach $1.10 billion in 2025 Researchandmarkets.
* Shift Toward Higher Speeds: While 1Gbps (1000 Base-T) remains the workhorse for edge connectivity, there is a clear trend toward 2.5G and 5G Ethernet in enterprise LANs to support Wi-Fi 6/7 and rising IoT data traffic ReportprimeOpenpr.
* PoE Integration: Demand for PoE-compatible magnetics is surging due to the proliferation of smart building devices, IP cameras, and VoIP phones that require both data and power over a single cable BusinessmarketinsightsDataintelo.
* Supply Chain & Sourcing: Manufacturers are increasingly focusing on miniaturized and highly efficient designs to optimize space in compact networking devices Marketreportanalytics. Pricing for these modules generally ranges from $0.10 to $0.90 per unit depending on volume and specific supplier branding .
Sourcing & Equivalents
The GST5009-E LF is widely available through major distributors like DigiKey and Newark, as well as B2B platforms like Alibaba.com Digi-ElectronicsDigikey.
* Known Equivalents: LINK-PP LP82440NL, Hanrun, and Pulse Electronics offer pin-to-pin compatible alternatives that meet the same IEEE 802.3 specifications Rj45-ModularjackL-P.
Explore the latest trends in the networking components market with these options:
Gst5009 Lf Gigabit Ethernet Transformer
Products · 3 lists

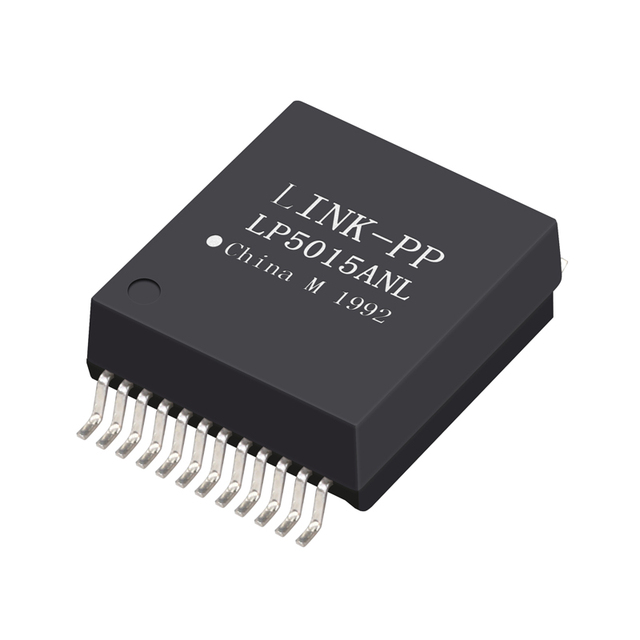

H5009FNL HX5009NL Pulse Compatible 10/100/1000 Base-T Single Port SMD 24PIN Discrete Magnetic LAN Transformer
Huizhou LINK-PP Technology Co., LTD.verified🇨🇳CN1 yr

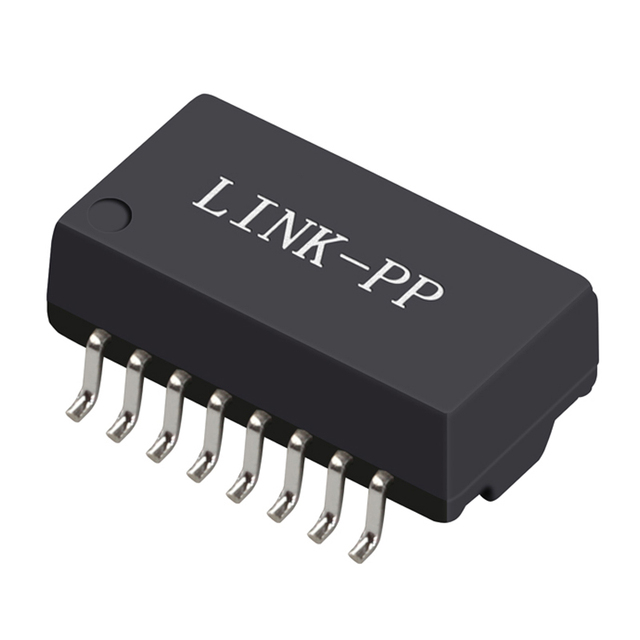

GST5009CLF Ethernet Isolation LAN Transformer
Shenzhen LINK-PP Int'l Technology Co., Ltd.🇨🇳CN17 yrs

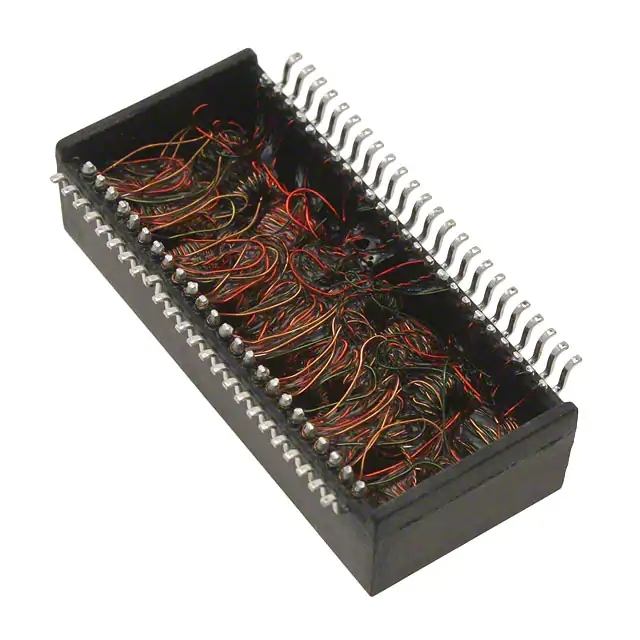

HST-72001DR/HST-72002DR Dual Port Gigabit Transformer Modules Lan Ethernet
Shenzhen Link-Pp Int'l Technology Co., Ltd.🇨🇳CN10 yrs

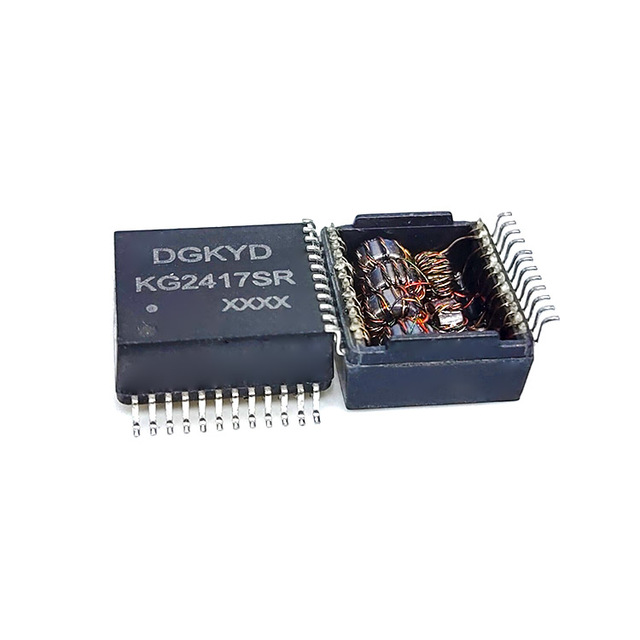

SMD LAN Transformer Single Port 10/100/1000 BASE-TX 24PIN Gigabit Ethernet Filter Network IC
Dongguan Keyouda Electronic Technology Co., Ltd.verified🇨🇳CN11 yrs

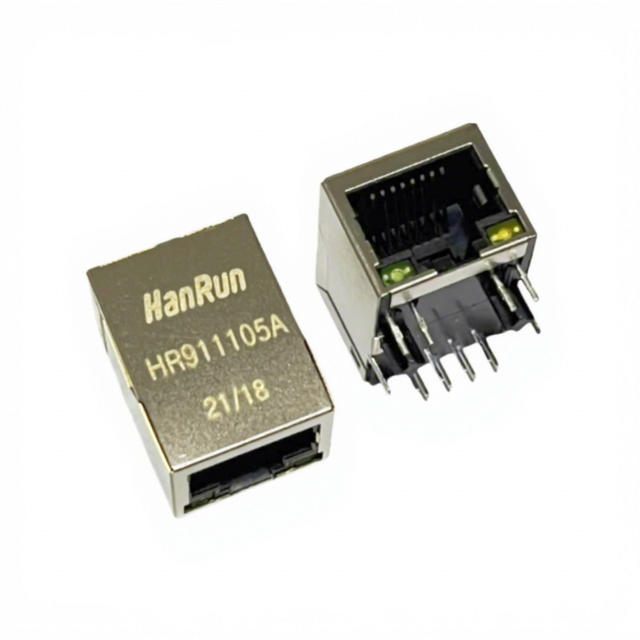

HR911300A HR911105A HR961160C Gigabit/100Mbps Ethernet Port Network Transformer RJ45 With Light Filter HY
Shenzhen Jubaolai Electronics Co., Ltd.🇨🇳CN10 yrs
POE+ 10/100/1000Base-t Gigabit Poe LAN Magnetics Electrical Ethernet Transformer Smt Lan Transformer Lan Module
Dongguan Xunwang Electronic Technology Co., Ltd.🇨🇳CN13 yrs

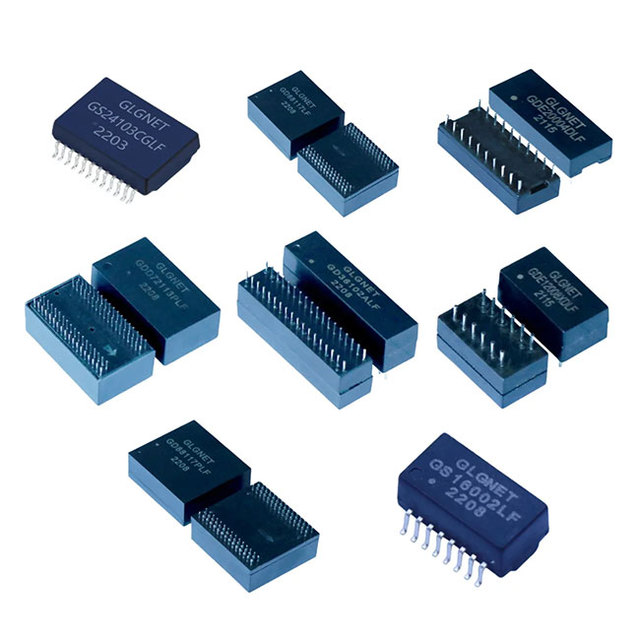

GLGNET Durable 100/1000m Ethernet LAN Network Transformer 10 100 SMT 16PIN LAN Transformer10 100 SMT 40PIN Large Campus Networks
Huizhou GLGNET Electronics Co., Ltdverified🇨🇳CN2 yrs

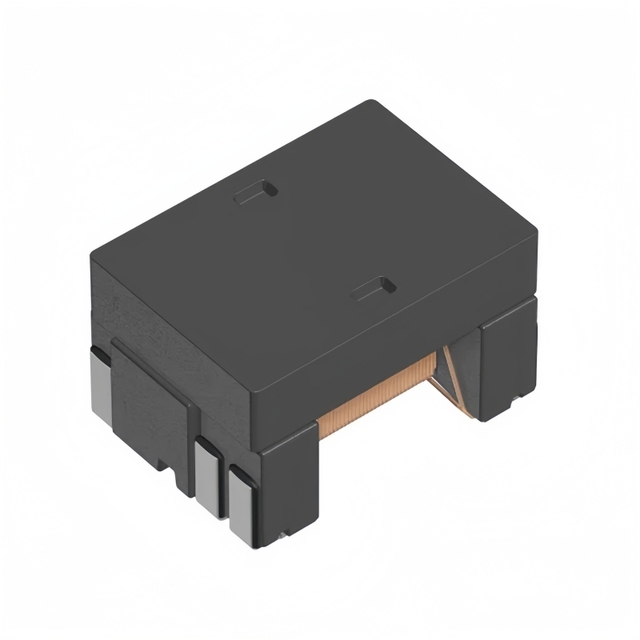

New Original Transformers Pulse LAN Ethernet Transformer ALT4532P-181-T05G 180uH SMD Package -40C~105C Boom List Service
Shenzhen Lichengda Technology Co., Ltd.🇨🇳CN4 yrs

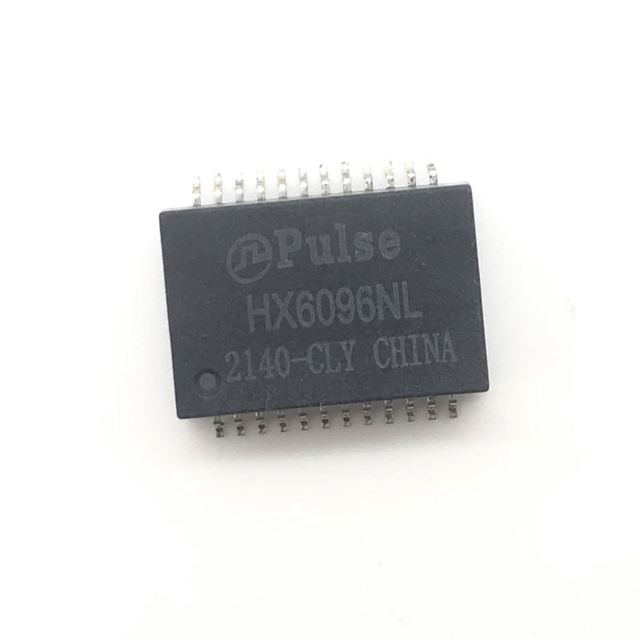

SMD SOP-24 350UH New Ethernet Gigabit Network Isolation Transformer HX6096NL
SMD SOP-24 350UH New Ethernet Gigabit Network Isolation Transformer HX6096NL
