HDMI to DB9 RS-232 Control Cable Guide

The phrase "HDMI DB9 cable" refers to a highly specialized, non-standard product typically used in industrial control, scientific equipment, and professional AV management, rather than consumer video transmission.

1. Market Reality: Video vs. Control

There is no standard passive cable that converts HDMI video to a DB9 (9-pin) connector for display purposes Alibaba. The "HDMI DB9" trend is driven by two distinct niche use cases:

* Serial Control (RS-232): Professional devices (projectors, matrix switchers) often use DB9 ports for remote command and control (turning power on/off, switching inputs) while video is handled by separate HDMI ports Avsforum Youtube.

* Specialized Scientific Equipment: Cables like the Thorlabs SR9A-DB9 use the DB9 shell for its robust screw-locking mechanism to protect sensitive components like laser diodes, but they do not carry video signals Thorlabs.

2. Market Insights & Consumer Pain Points

* Digital-to-Analog Mismatch: Consumers often search for "HDMI to 9-pin VGA," mistakenly confusing the 15-pin VGA connector for a 9-pin DB9 Alibaba. True VGA requires 15 pins to handle RGB signals.

* Installation Gaps: A common consumer pain point is having only HDMI cables pre-installed in walls but needing to send serial (RS-232) control signals to a projector Stackexchange. This leads to the search for "HDMI to DB9" adapters that can "tunnel" control data over spare HDMI wiring.

* Reliability vs. Standard: In professional AV, HDMI is often criticized for being fragile and non-locking. This creates a market for "active converters" that bridge reliable, screw-locking DB9/Serial control to modern HDMI-based systems Reddit Avenview.

3. Product Selection & Sourcing

While direct "video" adapters do not exist, there are specialized converters and custom manufacturers:

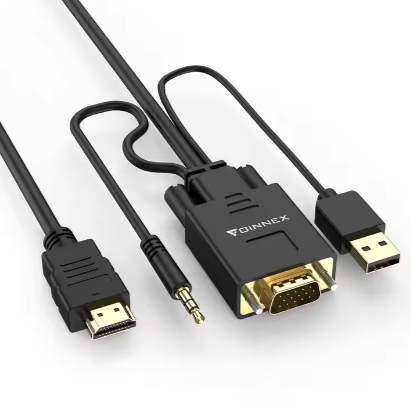

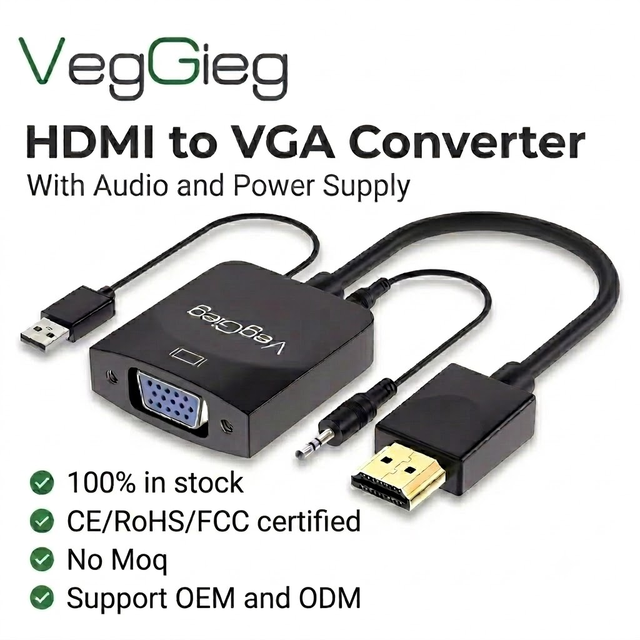

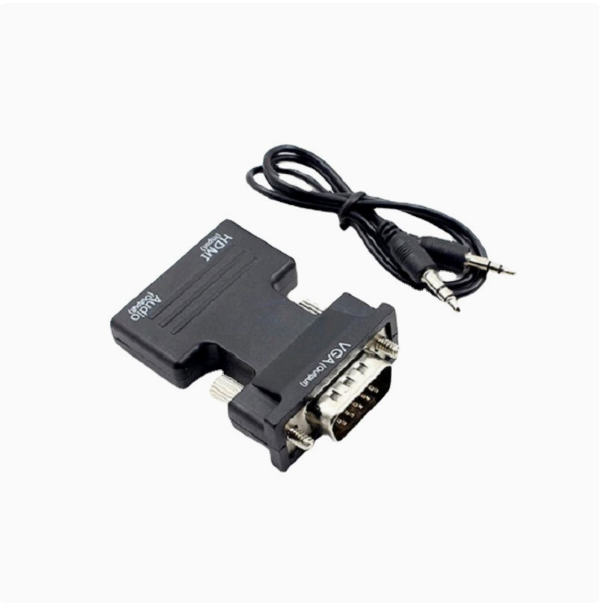

* Mislabeled Adapters: Some "HDMI to VGA" products are marketed as "9-pin" converters due to visual confusion, but they are standard 15-pin VGA adapters for monitors Alibaba.

* Custom Industrial Sourcing: For true HDMI-to-DB9 (RS-232) control needs, OEM manufacturers in Shenzhen and Guangzhou can provide custom-pinned cables or active converters.
