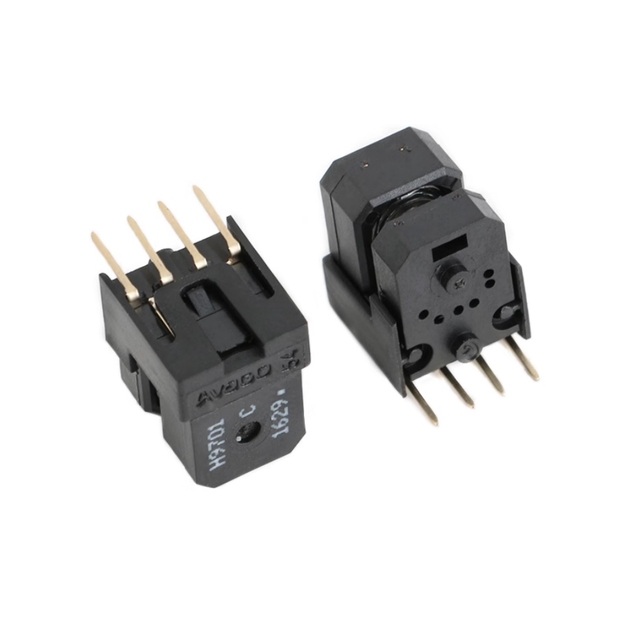

The HEDS-9700-H52 is a high-performance, low-cost optical incremental encoder module manufactured by Broadcom (formerly Avago). It is designed to translate rotary or linear motion into a two-channel digital output when paired with a codewheel or codestrip BroadcomDigikey.

Key Product Insights

* Technical Specifications: The module features a resolution of 400 Counts Per Revolution (CPR), a 5V supply voltage, and a vertical (H-type) mounting orientation. Its transmissive optical technology is highly resistant to mounting misalignments (axial and radial play) MouserDigikey.

* Applications: It is widely used in industrial automation (servo motors, robotics), consumer electronics (printers, scanners), and medical equipment requiring sub-millimeter precision PersistencemarketresearchDigikey.

* Performance: The non-contact sensing mechanism ensures a long lifecycle by eliminating mechanical wear, and it requires no signal adjustment after installation Digikey.

Market Trends & Industry Outlook

* Market Growth: The global encoder market is projected to reach $4.3 billion by 2033, with a CAGR of 6.8% to 9.8%. Growth is primarily driven by the Industry 4.0 transition and increased automation in the Asia-Pacific region PersistencemarketresearchPsmarketresearch.

* Miniaturization: There is a strong trend toward ultra-compact encoders to fit into medical wearables and small-scale robotic joints Psmarketresearch.

* Smart Sensing: The integration of AI for predictive maintenance is emerging, allowing encoders to provide real-time vibration and fault analysis to reduce factory downtime Persistencemarketresearch.

* Technology Shift: While optical encoders like the HEDS-9700 remain preferred for high-precision tasks, magnetic encoders are gaining ground in harsh, high-contamination environments due to their superior durability PersistencemarketresearchDigikey.

Sourcing & Availability

Multiple suppliers on B2B platforms stock the HEDS-9700 series, including specific variations like the #H50 and #C54, with prices typically ranging from $1 to $15 per unit depending on volume AlibabaAlibaba.
