Hta Cable

HTA Cable: Product & Market Overview

The term HTA (Haute Tension A) refers to a specialized class of Medium Voltage (MV) power distribution cables, primarily used in public utility networks for voltages between 12/20 kV and 18/30 kV. These cables are a core component of modern electrical infrastructure, bridging the gap between high-voltage transmission lines and local transformer stations. RenhuicableHuadongcablegroup

#### Core Product Attributes

HTA cables are distinguished by their "CIS" (Cable Isolé à Champ Radial) design, featuring a radial field and robust environmental protection:

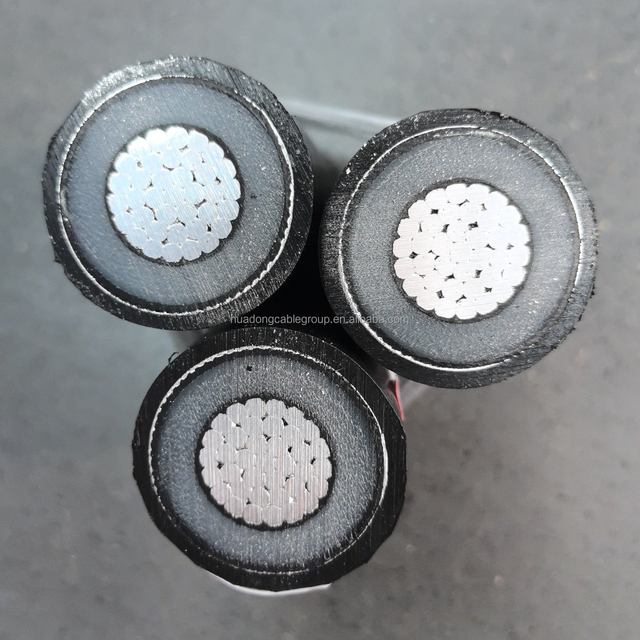

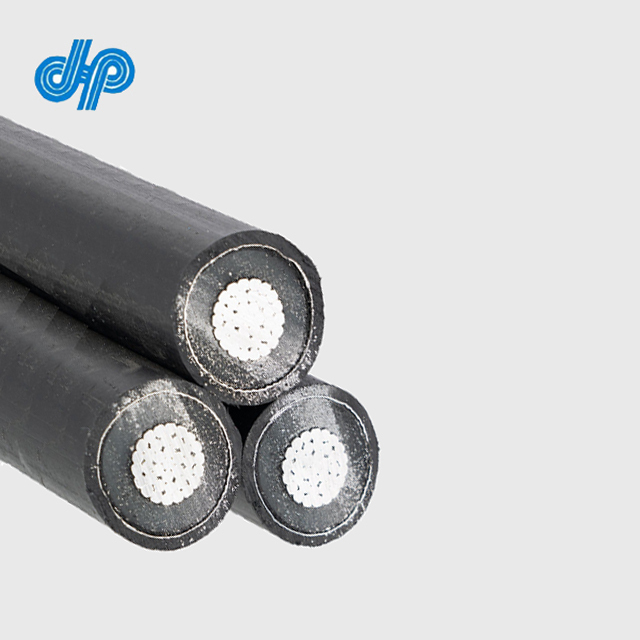

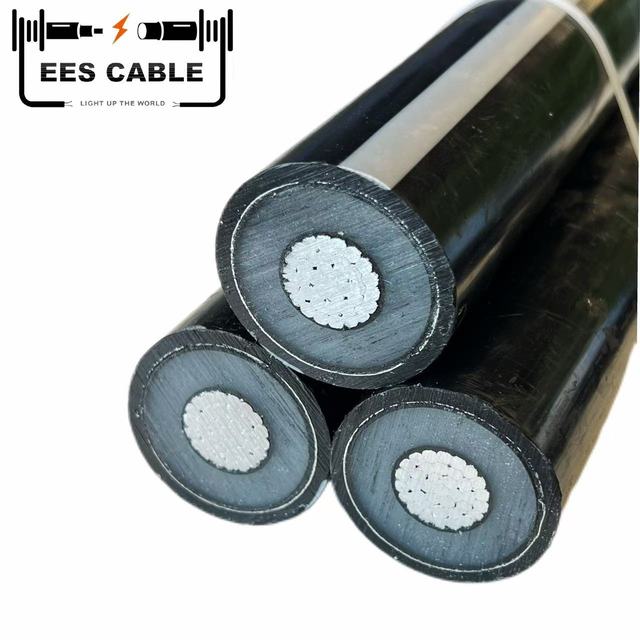

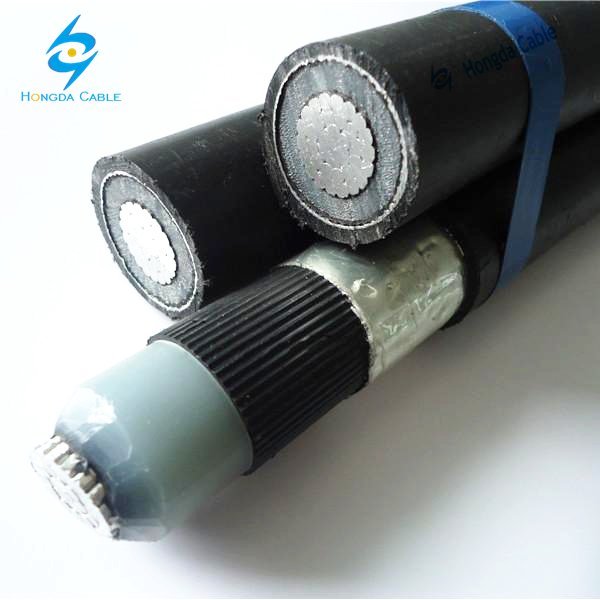

• Conductor: Typically stranded and compacted Aluminum (Class 2) for cost-efficiency, though Copper variants exist for high-conductivity needs. LynxeogroupHuadongcablegroup
• Insulation: XLPE (Cross-linked Polyethylene) is the industry standard, providing superior thermal stability (up to 90°C service temp) and dielectric strength. LynxeogroupRenhuicable
• Protection Layers: Features longitudinal and radial watertightness using swellable tapes and an aluminum/polyester foil bonded to a HDPE or LSZH outer sheath. LynxeogroupHuadongcablegroup
• Standards: Strictly compliant with European standards like NF C 33-226 (French distribution standard) and international IEC 60502-2. LynxeogroupResearchgate

#### Market Trends & Insights (2025–2026)

1. 1Safety & CPR Compliance: There is a surging demand for CPR-rated (B2ca-s1a,d0,a1) HTA cables. Manufacturers are prioritizing "best-in-class" fire performance (low smoke, zero halogen) to meet tightening EU safety regulations for public infrastructure and rail projects like RATP. LynxeogroupResearchgate
2. 2Infrastructure Modernization: The global shift toward Smart Grids and renewable energy integration is driving the replacement of older overhead lines with underground HTA cables (Torsade/bundled types) to enhance network resilience against extreme weather. RenhuicableResearchgate
3. 3Environmental Resilience: Modern HTA cables are increasingly incorporating rodent-proof and termite-proof sheaths, reflecting a market trend toward long-life components in rural and high-moisture underground environments. Huadongcablegroup
4. 4Growth Outlook: While HTA is a specific sub-segment, the broader MV power cable market is projected to grow significantly through 2026, supported by urban expansion and the electrification of transportation (EV charging hubs). GminsightsPersistencemarketresearch

#### B2B Sourcing Landscape

Current market data shows pricing for HTA cables varies significantly based on cross-section (50mm² to 400mm²) and order volume:

• Price Range: $0.50 – $39.80 per meter depending on material (Aluminum vs. Copper) and insulation thickness. AlibabaAlibaba
• MOQ: Typically 300 – 1,000 meters, reflecting their industrial nature. AlibabaAlibaba
• Top Suppliers: Primarily concentrated in China (e.g., Henan Hongda, Zhengzhou Huadong) and major European groups like Lynxeo. AlibabaAlibabaLynxeogroup
