The IDE Flash Card market (Integrated Drive Electronics) is a specialized segment of the industrial storage industry, primarily serving legacy system modernization, industrial automation, and embedded applications DelkinCactus-Tech. Unlike consumer memory, this market prioritizes SLC (Single-Level Cell) technology for high endurance and Fixed Disk Mode compatibility to ensure legacy operating systems can boot from flash media HmisourceDelkin.

Market Trends & Insights

* Legacy Modernization Demand: The global legacy modernization market is projected to reach USD 25.76B by 2026 Researchandmarkets. This is driving significant demand for IDE replacements (CompactFlash cards and Disk On Modules) as traditional mechanical IDE hard drives become obsolete and prone to failure VogonsDellwa.

* Supply Chain Constraints: In 2026, the market faces a "strategic production cut" for legacy manufacturing nodes. Major NAND manufacturers are prioritizing high-density consumer flash, leading to longer lead times and higher costs for low-capacity industrial IDE components DelkinIdc.

* The Rise of pSLC: Due to the scarcity and cost of pure SLC, many industrial suppliers are shifting to pSLC (Pseudo-SLC), which uses high-grade MLC/TLC NAND in a high-endurance configuration to balance capacity needs with reliability Delkin.

* Critical Technical Requirement: Industrial-grade CF cards used as IDE replacements must support Fixed Disk Mode to be recognized as a standard hard drive by older OS versions (like Windows XP or older Linux kernels), whereas commercial cards typically use Removable Disk Mode DelkinHmisource.

Product Options & Supplier Insights

Industrial buyers typically choose between CompactFlash (CF) cards with adapters for versatility or Disk On Modules (DOM) for compact, vibration-resistant direct mounting.

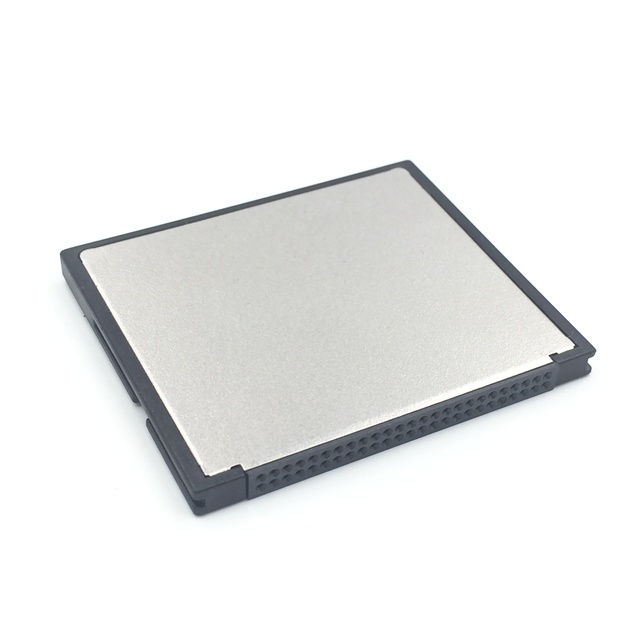

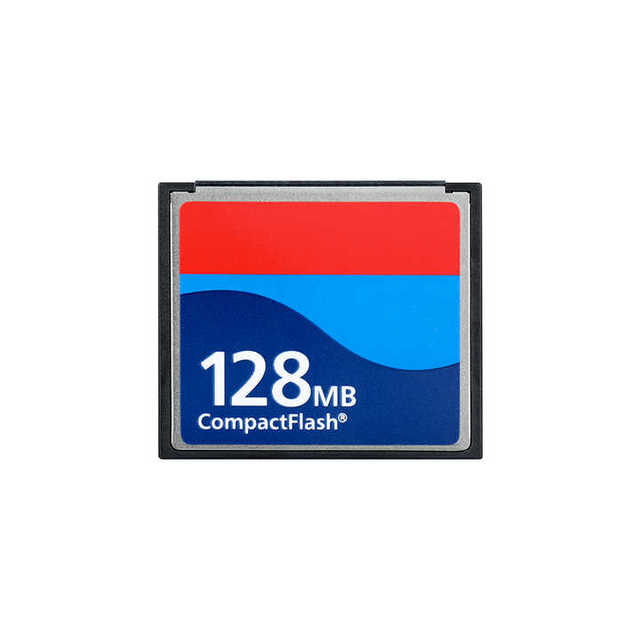

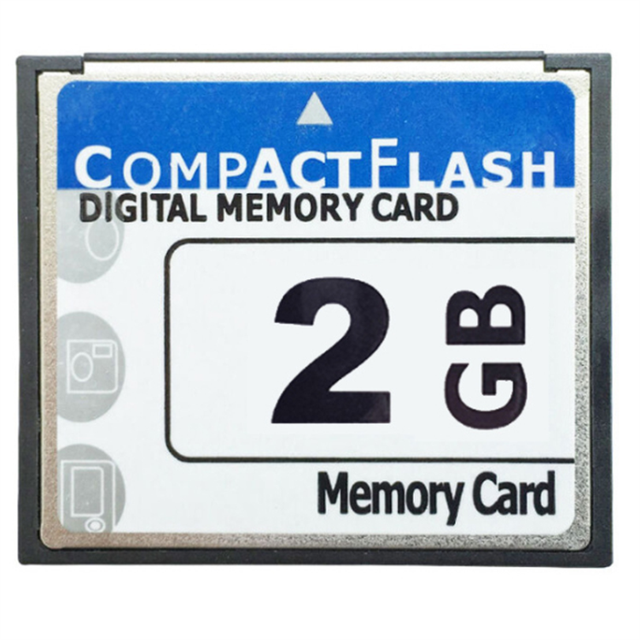

* Industrial CompactFlash Cards: High-endurance cards from suppliers like IOTECH offer SLC NAND and are optimized for rugged environments AlibabaAlibaba.

* Disk On Modules (DOM): Vertical or horizontal modules (e.g., Kingspec) mount directly onto 40-pin or 44-pin IDE headers, providing a more secure physical connection in high-vibration machinery Alibaba.

* Adapters: Passive CF-to-IDE adapters allow standard industrial CF cards to serve as direct SSD replacements for 2.5" or 3.5" IDE hard drives AlibabaAlibaba.

I have found several industrial-grade options matching these criteria, ranging from $1.20 for low-capacity modules to $35.00+ for high-reliability SLC cards. Detailed specifications and supplier data are available in the files below.
