Impact Test Projector Cst 50

Updated July 3, 2026

Overview

Product sourcing insights & recommendations

26 来源

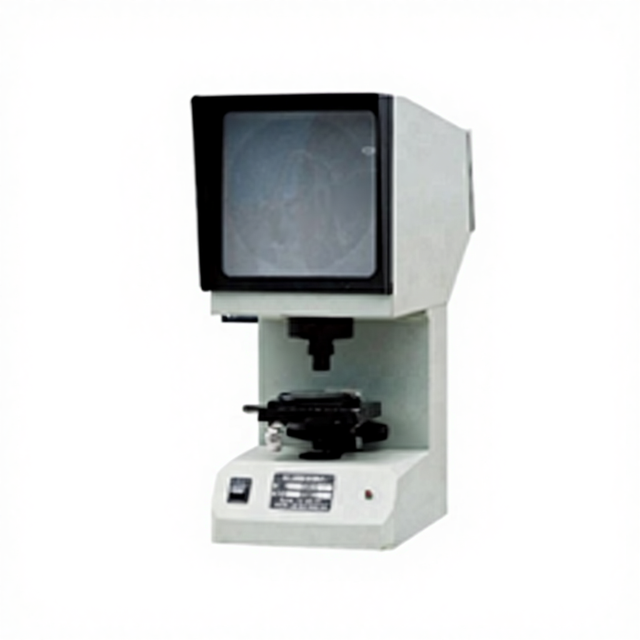

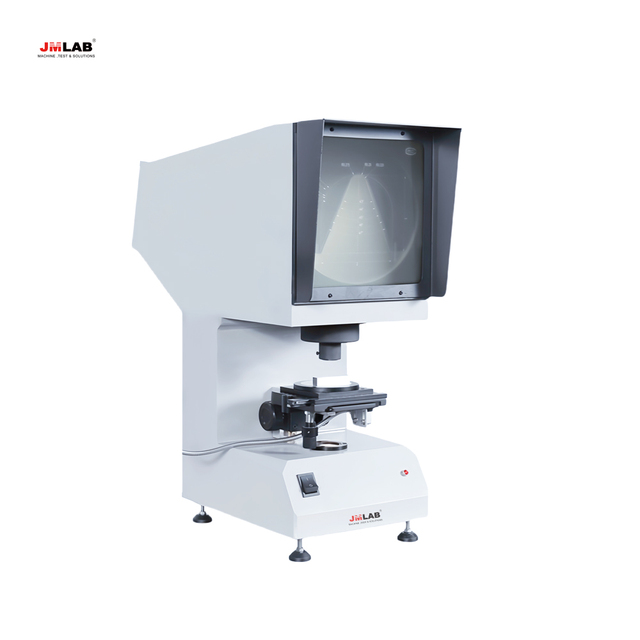

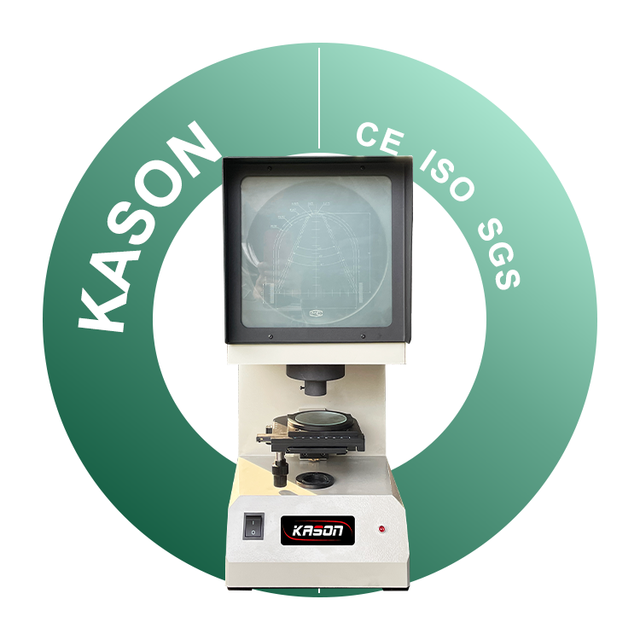

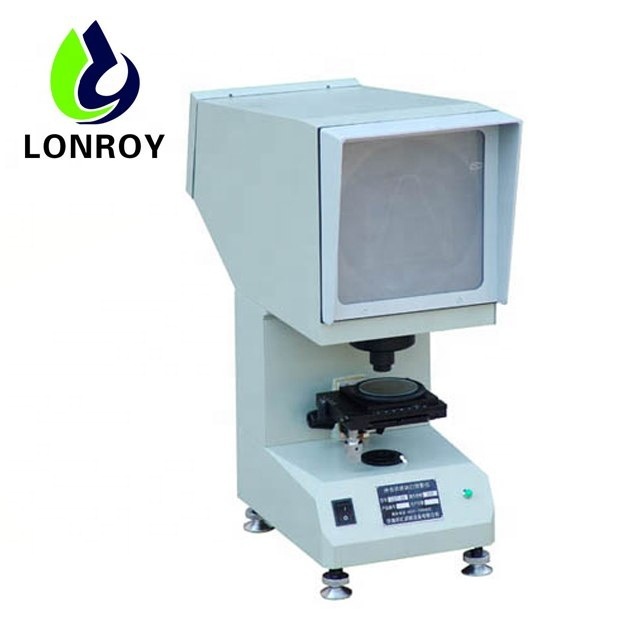

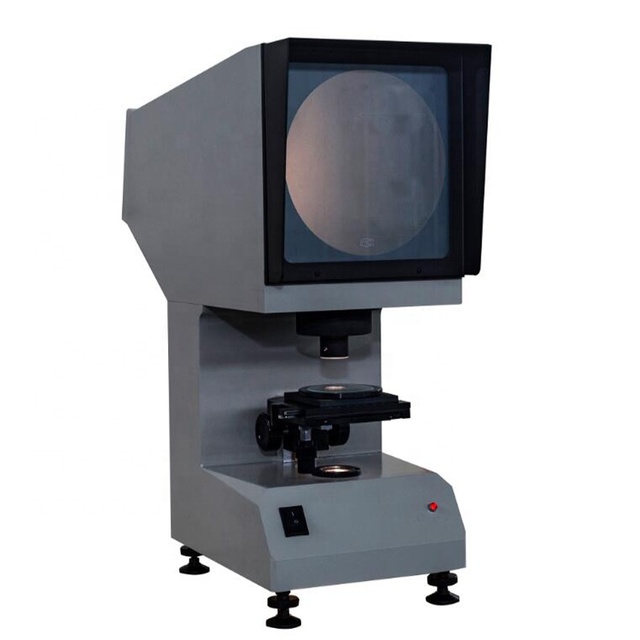

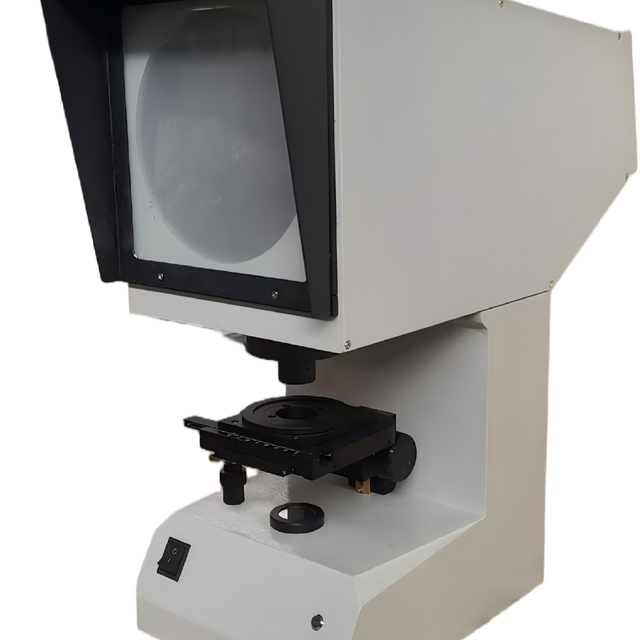

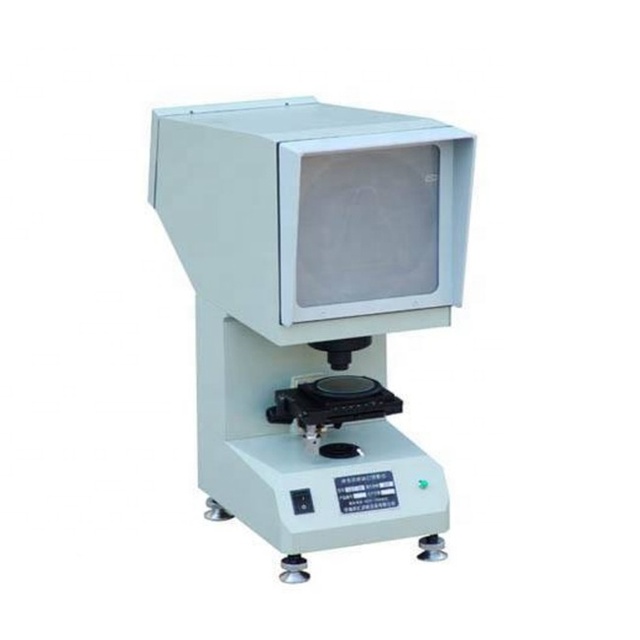

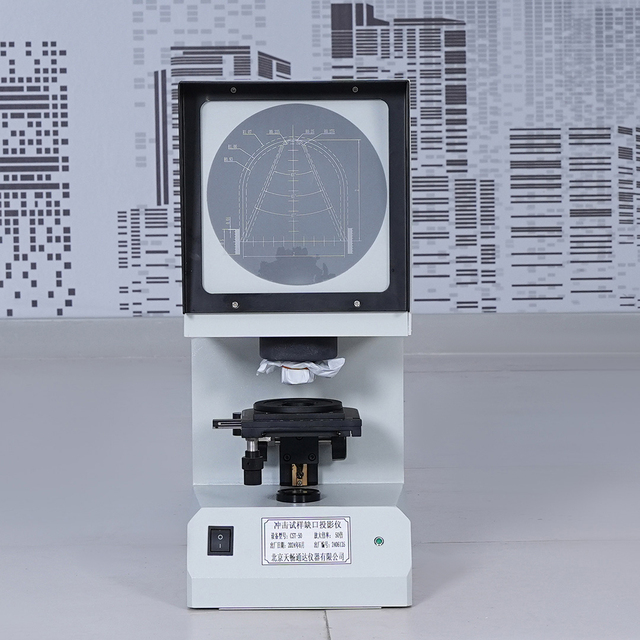

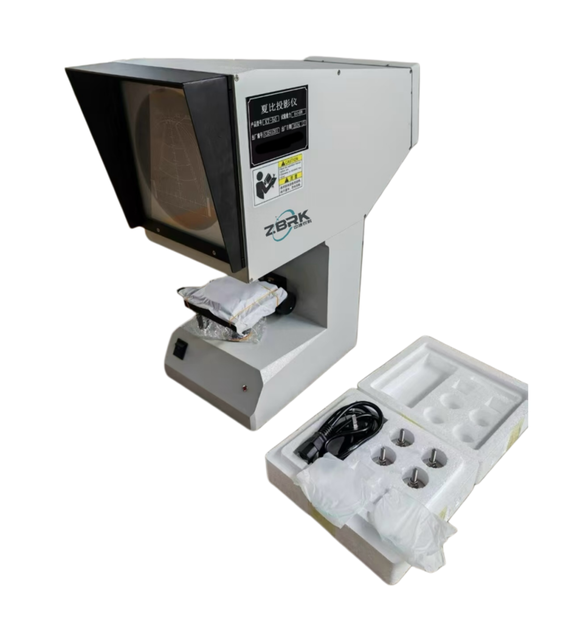

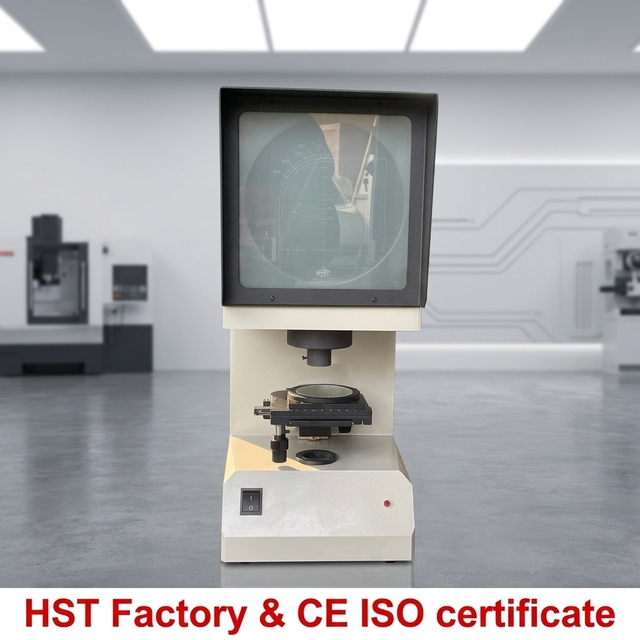

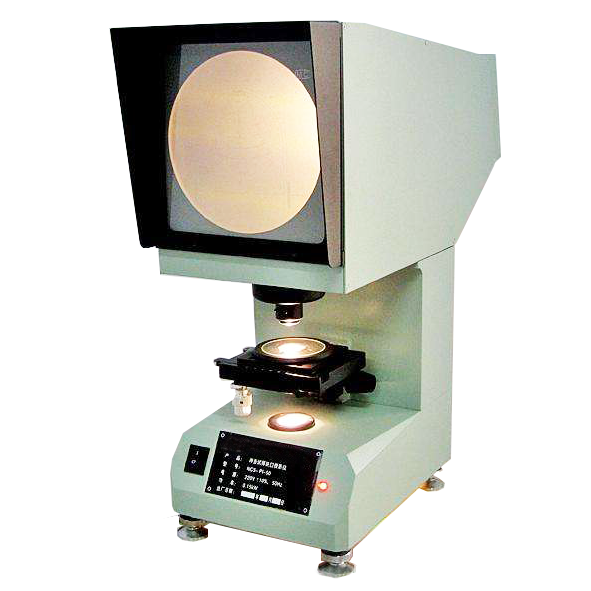

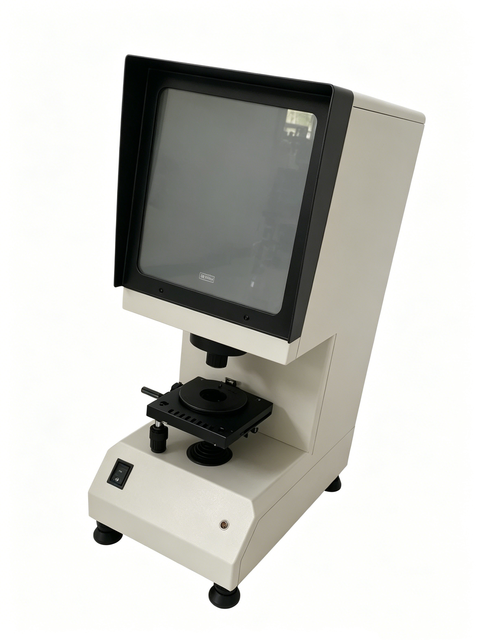

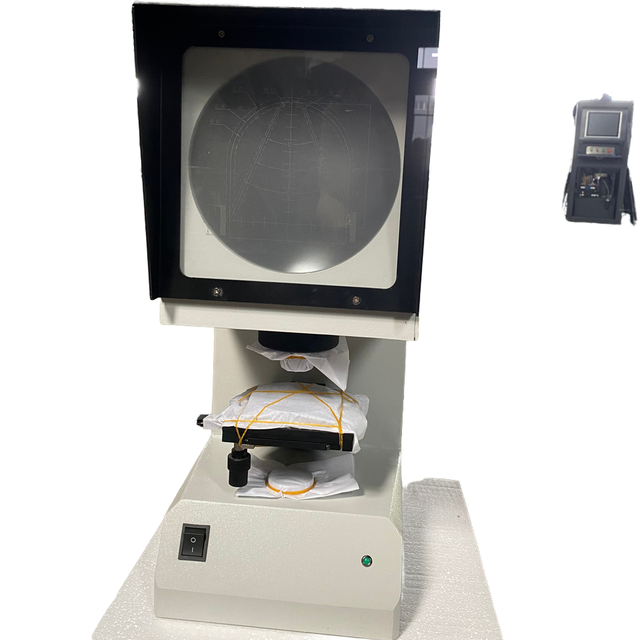

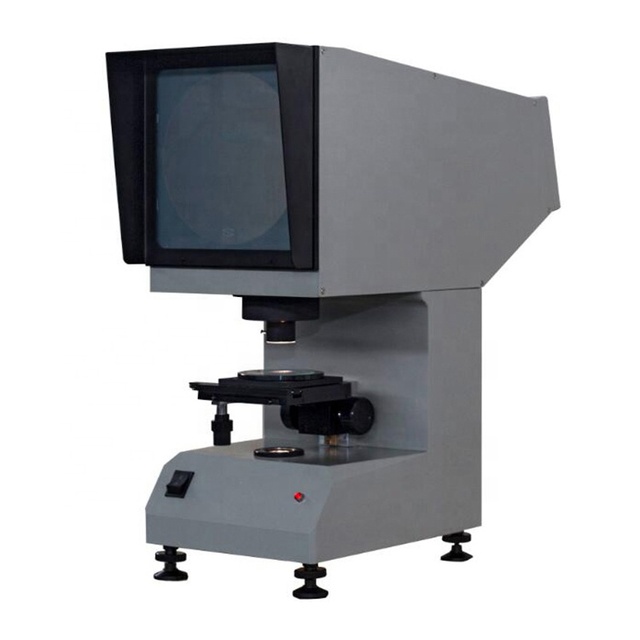

The CST-50 Impact Specimen Notch Projector is a specialized optical inspection tool essential for Charpy and Izod impact testing. It is primarily used to verify the precision of V-notch and U-notch profiles on metallic specimens before testing. Unitedtest Lyrictest

Technical Analysis & Core Functionality

* Purpose: Magnifies the notch area of a specimen by 50x to ensure compliance with strict geometric standards (e.g., radius, angle, depth). Upwelltest Impacttestingmachine

* Standards Compliance: Vital for labs adhering to ASTM E23, ISO 148, GB/T 229, and EN 10045. Unitedtest Upwelltest

* Key Specs: Features a 180mm or 200mm screen, high-intensity halogen light source (12V/100W), and a high-precision adjustable worktable. Lyrictest Alibaba

Market Trends & Industry Insights

1Manufacturing Cluster: Production is heavily concentrated in Jinan, China, which serves as the global hub for material testing equipment. Major established manufacturers include Liangong, Hensgrand (HSSD), and Kason.

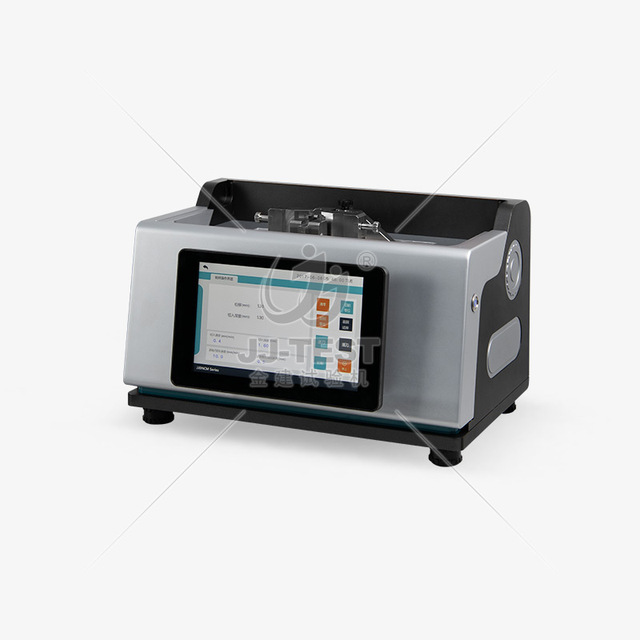

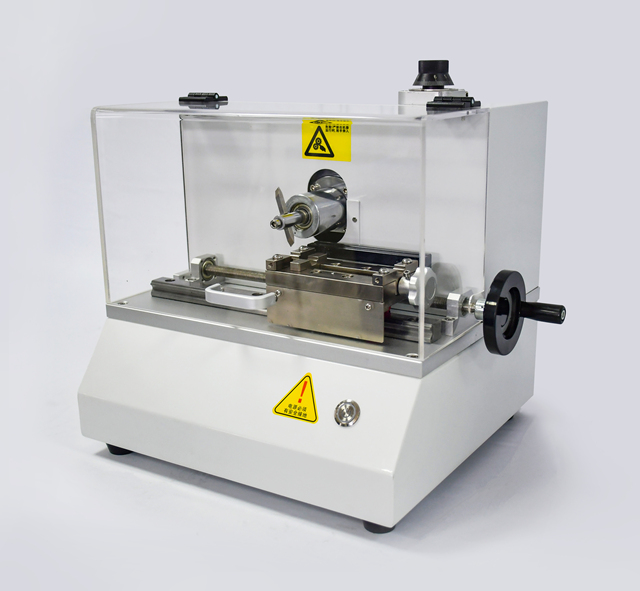

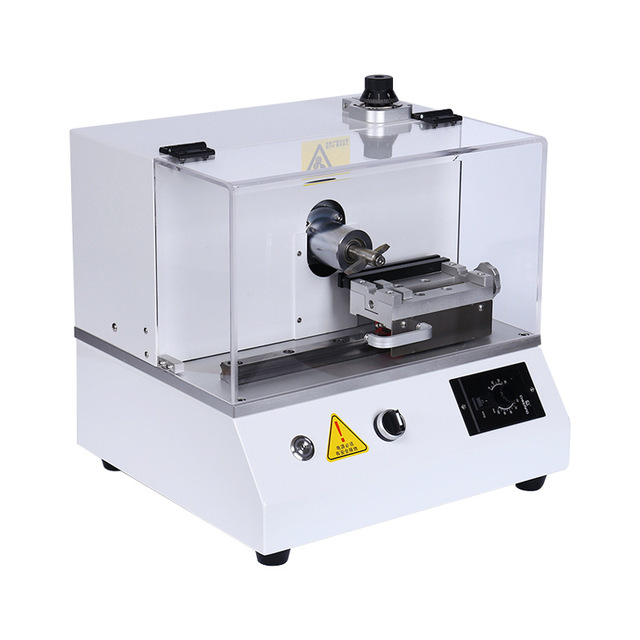

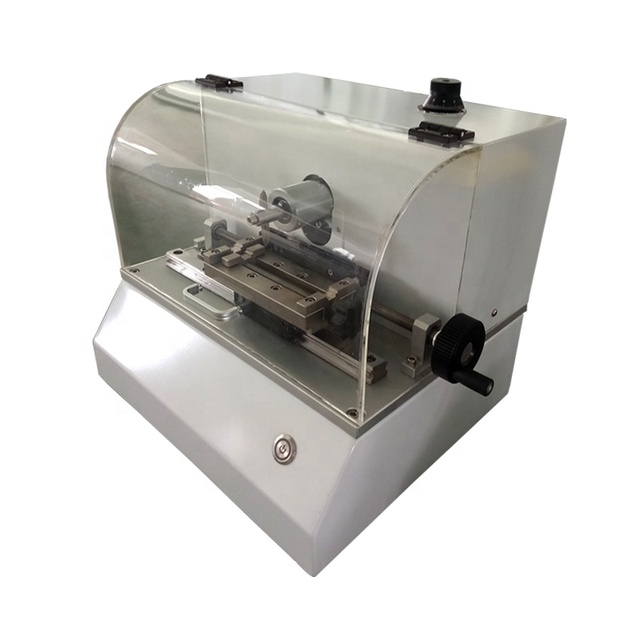

2Product Integration: A growing trend toward bundled sales. Buyers increasingly source the CST-50 alongside electric broaching machines (for creating the notch) and low-temperature cooling chambers to establish a complete Charpy testing workflow. Unitedtest

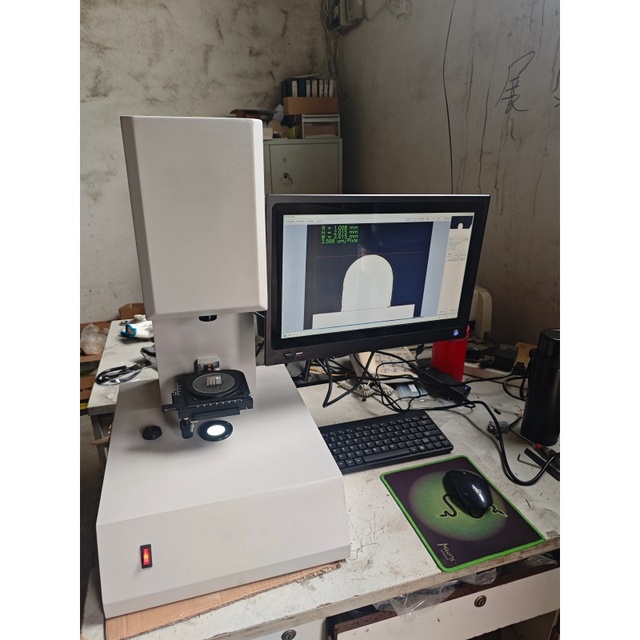

3Technological Upgrades: While traditional models are purely optical, the market is shifting toward Digital Display versions that reduce human error and improve throughput in high-volume industrial labs. Unitedtest
4Pricing Landscape: Standard units typically range from $500 to $1,500 depending on the supplier and verification status, with highly specialized or digital models reaching higher price points.

Sourcing Recommendations

* Verified Factories: Prioritize suppliers with over 10 years of experience and ISO/CE certifications, such as Jinan Liangong or Jinan Kason, especially for export needs.

* Customization: Many suppliers offer dual-voltage (110V/220V) support and customized worktables to fit specific lab requirements.

Would you like to compare top suppliers in Jinan specifically or explore low-temperature impact testing chambers to complete your lab setup?

Sources & References

26 sources cited · Verified industry data & reports

MODEL CST-50 IMPACT SPECIMEN NOTCH PROJECTOR

Laizhou Lyric Testing Equipment Co., Ltd.

Main technical parameters: Diameter of projection screen: 180×180mm (or 200×200mm). Light source (halogen lamp): 12V, 100W.

CST-50 Charpy Impact test specimen Projector

Jinan Upwell Tech Machinery Co.,Ltd

So it is necessary testing instrument to machining the impact sample. Main Technical Specifications: Magnification: 50×. Projector screen size: Ф200mm. Table ...

Impact Test Sample UV Notch Profile Projector

United Test

Main technical specification. Model, CST-50. Projector screen diameter, 180mm. Magnifying multiplication, 50*. Angle measuring accuracy, 2º. Light source, 12V ...

CST-50 Optical Notch Inspector for Impact Specimen Gap ...

impacttestingmachine.com

✓ ‌Compact & Portable:‌ 515×224×603mm footprint (20kg) suits lab benches or workshop environments. ‌Technical Specifications:‌. ‌Magnification:‌ 50X (2.5X ...

CST-50 Impact Specimen Sample V/U Notch Profile ...

Alibaba

1. Diameter of projection screen: 180mm · 2. Table size: · Square table size: 110×125mm · Diameter of round table: 90mm · Table glass diameter: 70mm · 3. Table ...

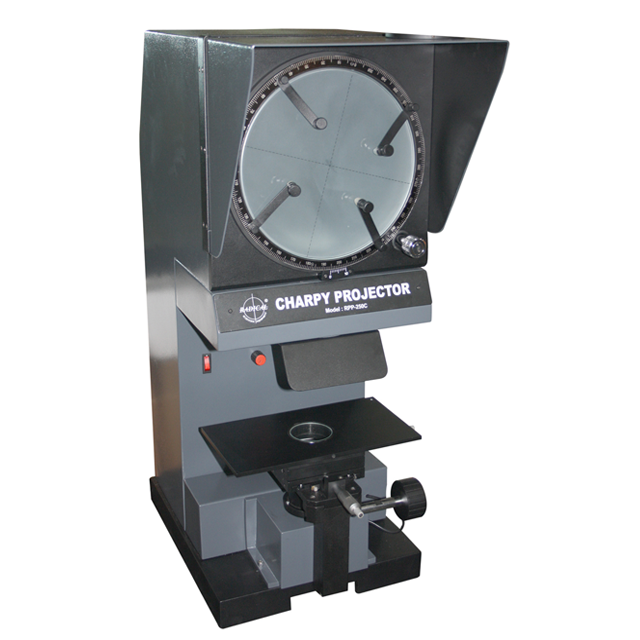

Projector For Charpy Impact Test

victorytest.com

CST-50 Charpy Impact Projector. (Check the processing quality of V-notch and ... Main Technical Specifications: Magnification：50×. Projector screen size ...
