Keyboard Matrix

Research into the 'keyboard matrix' indicates that this foundational technology is currently undergoing a "high-speed revolution" driven by competitive gaming and the surge in custom mechanical keyboards. In 2026, the market is moving beyond simple input grids toward high-frequency scanning architectures to support ultra-low latency demands.

Keyboard Matrix Technology Insights

The keyboard matrix remains the core architecture for mapping keypresses without needing individual wires for every switch.

* Sequential Scanning: A microcontroller (MCU) "strobes" rows and reads columns to detect closed circuits. Trace capacitance and physical resistance on the PCB can introduce propagation delays of 0.1ms to 0.5ms AttacksharkAwekeys.

* NKRO Requirements: To achieve N-Key Rollover (NKRO), each switch position in the matrix must be paired with a diode to prevent "ghosting" or current back-flow Attackshark.

* The Hall Effect (HE) Shift: A significant trend is the replacement of mechanical leaf switches with Hall Effect sensors within the matrix. Since HE switches use magnetic fields rather than physical contact, they eliminate "debounce" delay and allow for Rapid Trigger technology—resetting the key the moment it moves upward MkbguideAttackshark.

2026 Market Trends & Insights

The global mechanical keyboard market is projected to reach approximately $2.04B–$2.79B by 2026, with a strong focus on high-performance gaming specs ThebusinessresearchcompanyMarketresearchfuture.

* 8000Hz Polling Bottleneck: While 8000Hz polling (0.125ms reporting) is becoming a marketing standard, it creates a bottleneck if the internal matrix scan rate remains at 1000Hz. High-end 2026 models are now pushing matrix scan rates to 4000Hz or 8000Hz to ensure the data sent to the PC is always "fresh" AttacksharkAwekeys.

* Customization Mainstreaming: Custom matrix controllers compatible with open-source firmware like QMK/VIA have moved from boutique hobbyist circles to mass-market availability, allowing users to remap their matrix layers easily Tech-Insider.

* Regional Growth: The Asia-Pacific region holds a dominant 42% market share, though North American demand is surging due to heavy investment in professional esports Awekeys.

Product & Sourcing Insights

Sourcing for keyboard matrix components now emphasizes hot-swappability and advanced controller support.

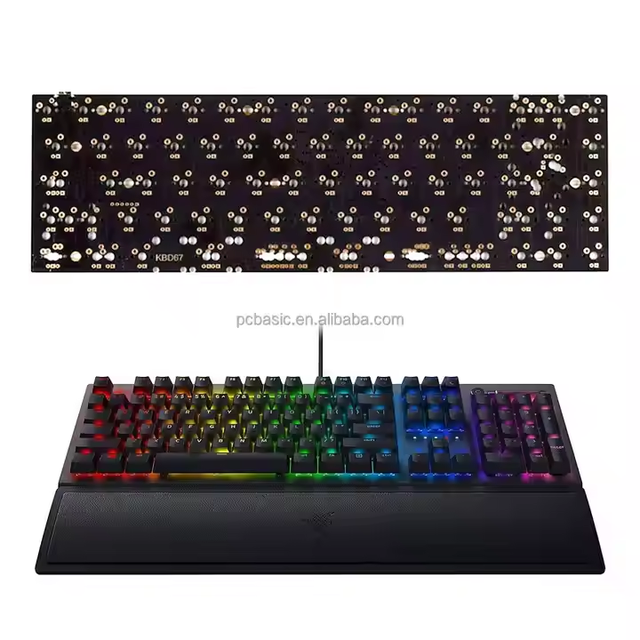

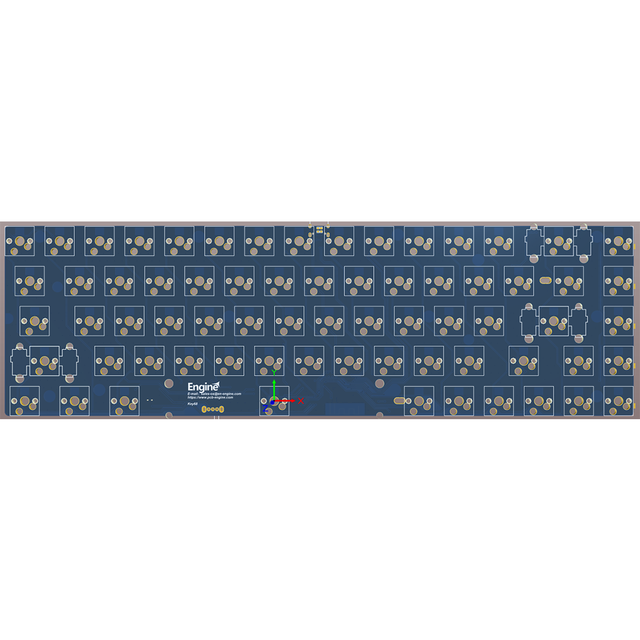

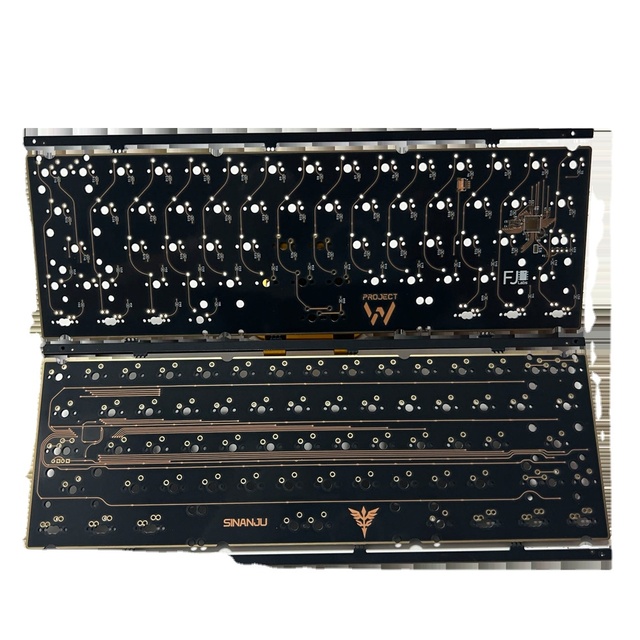

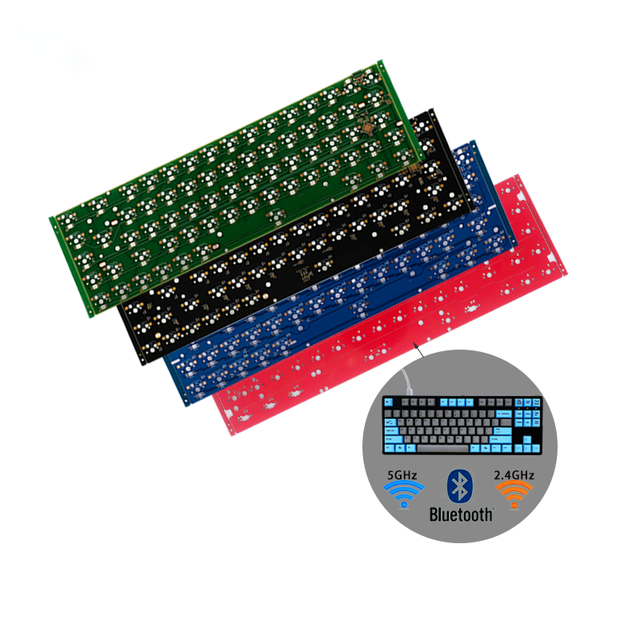

* PCBs & Controllers: Modern PCBs (like those for the Tiger80 or GH60 series) frequently feature hot-swappable sockets and Type-C connectivity, with price points ranging from $1 to $32 depending on customization and firmware support AlibabaAlibaba.

* Firmware Compatibility: Suppliers are increasingly offering PCBA services for QMK/VIA-compatible controllers, which are essential for the "custom" segment Alibaba.

* Component Sourcing: Hall Effect sensor modules (e.g., 3144 series) are widely available for integration into HE-based matrix designs at low unit costs (approx. $0.15–$0.20), enabling manufacturers to develop high-performance gaming boards AlibabaAlibaba.
