The term "LCD stencil" primarily refers to high-precision BGA reballing stencils used in the repair and manufacturing of LCD screen display IC chips. These tools are critical for smartphone repair (e.g., iPhone/Samsung) to protect and re-solder sensitive display components like Face ID dot projectors and LCD cables.

Product Overview

Modern LCD stencils are predominantly laser-cut from stainless steel or high-density polymers, featuring ultra-fine pitches (0.12mm to 0.3mm). Diyfixtool Coherentmarketinsights Key product types found in current B2B markets include:

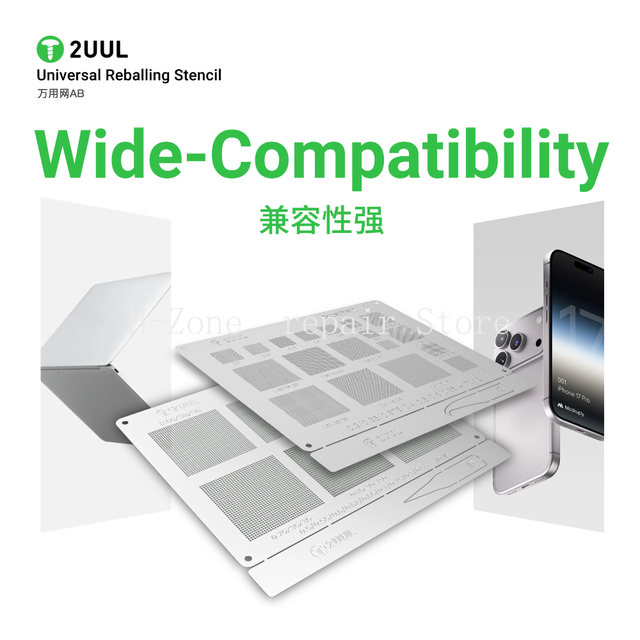

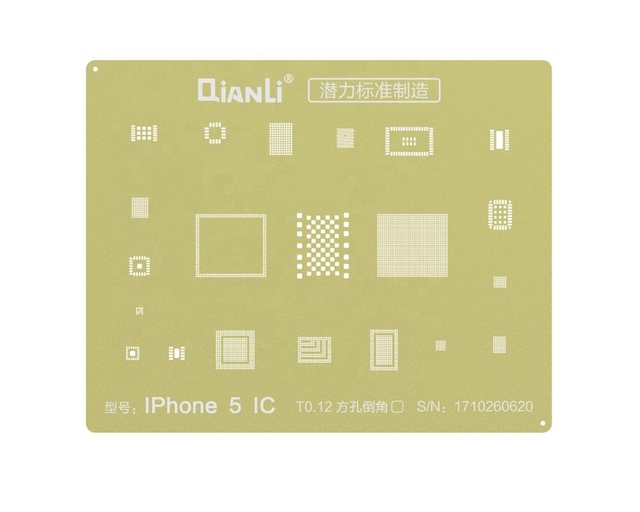

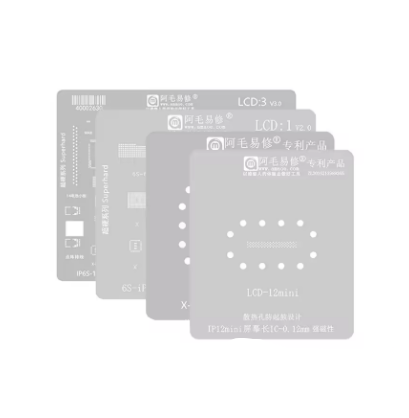

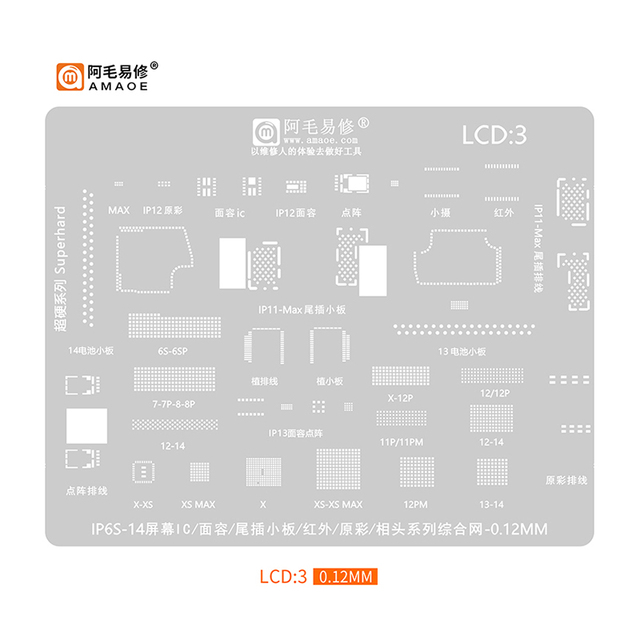

* Specialized IC Protection Stencils: Designed for specific models (e.g., iPhone 15 Pro Max) to reball display IC chips and protect flex cables. Alibaba Alibaba

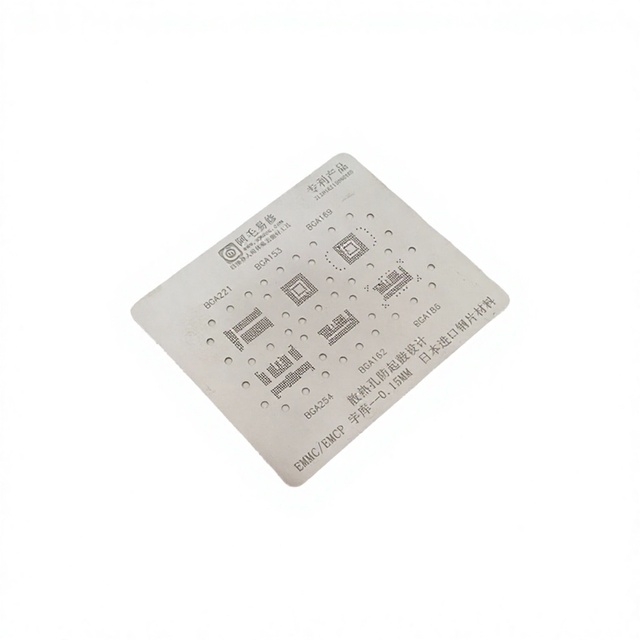

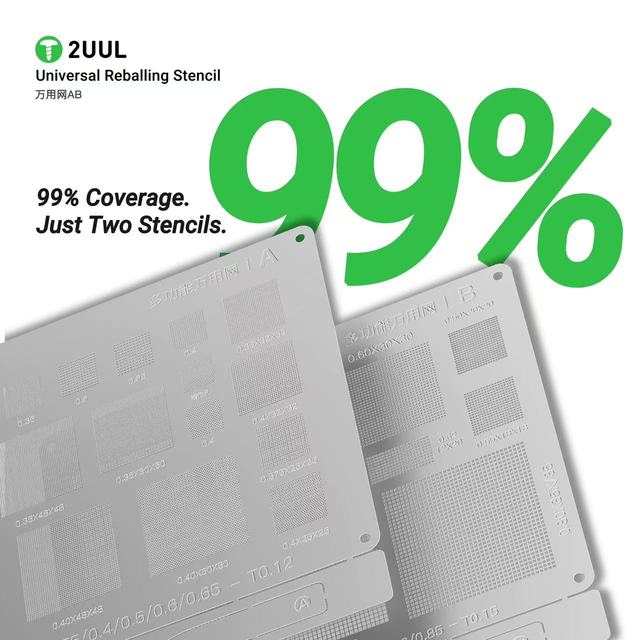

* Universal BGA Templates: Square matrix stencils with standard pitches (0.3mm–0.5mm) for multi-functional chip repair. Alibaba Alibaba

* Step Stencils: Advanced SMT stencils with variable thicknesses to accommodate different solder paste volumes on a single board. Coherentmarketinsights

Market Trends & Insights (2025–2026)

The global stencil market is experiencing significant growth, driven by electronics miniaturization and the rise of 5G/IoT devices. Coherentmarketinsights Futuremarketinsights

* Market Valuation: The Global Laser Cut SMT Stencil Market is estimated at $731.4 Million in 2026, projected to grow at a CAGR of 8.2% to reach $1.27 Billion by 2033. Coherentmarketinsights

* Technological Shift: There is a strong transition from traditional chemical etching to laser-cutting and NanoSlic/PVD coatings. These advanced treatments improve solder paste release and enhance stencil durability. Coherentmarketinsights

* Regional Dominance: Asia-Pacific holds the largest market share (~32.8%) as the global electronics manufacturing hub, while North America is identified as the fastest-growing region due to Industry 4.0 integration. Coherentmarketinsights

* Material Trends: Framed SMT stencils currently lead the market (43.2% share) for volume production, while plastic/polymer stencils dominate the material segment (85.5% share) as cost-effective solutions for prototyping and repair. Coherentmarketinsights

Strategic Sourcing Data

B2B pricing for individual repair stencils ranges from $1.19 to $5.50, while specialized kits can reach $18.50. Alibaba Alibaba Leading manufacturers are concentrated in Shenzhen and Dongguan, China. Alibaba Alibaba
