The term "logic pen" refers to a logic probe, a low-cost, pen-shaped diagnostic tool used to troubleshoot digital circuits by identifying high, low, or pulsing states. WikipediaIc-Components While the term is sometimes used to refer to digital pens (Apple Pencil) or UI tools in software like Logic Pro, the core hardware product is an essential device for electronics repair and education. YoutubeApple
Market Trends & Industry Insights (2026)
The market for digital testing and handwriting tools is shifting toward higher precision and integration.
* Rapid Growth in Digital Pens: The digital pen market is projected to reach $3.7 billion in 2026, growing at a 14.2% CAGR. Grandviewresearch Key drivers include the rise of digital learning and professional design tools that mimic analog experiences. Fortunebusinessinsights
* Shift to Multi-Channel Testing: For circuit debugging, professional users are moving from single-line logic pens to Logic Analyzers and Mixed Signal Oscilloscopes (MSOs), which can decode complex protocols like I2C or SPI. Ic-Components
* Low-Voltage Adaptability: Modern logic pens are being updated to support low-voltage logic families (1.8V, 2.5V), as modern microcontrollers move away from traditional 5V TTL standards. Ic-Components
Key Product Insights
A typical logic pen provides instant feedback through visual (LED) and often audible indicators:
* States Detected: High (Red LED), Low (Green LED), and Pulse (Amber LED). Ic-Components
* Memory Function: Advanced models like the LP-1 feature "pulse memory" to capture transient glitches too fast for the human eye. Ic-ComponentsAlibaba
* Dual Mode Support: Most current products include a physical switch to toggle between TTL and CMOS voltage thresholds. WikipediaAlibaba
Logic Probe Tester Digital Circuit Pen
Products · 2 lists

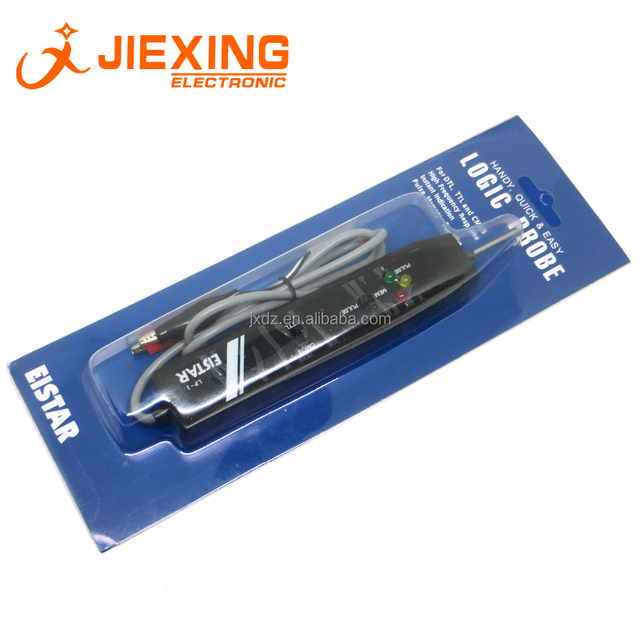

Logic Probe LP-1 Motherboard Repair Testing Tool Level Measuring Instrument Logic Test Pen Circuit
