Mac224a10

The MAC224A10 is a high-power Silicon Bidirectional Triode Thyristor (Triac) originally developed by Motorola/ON Semiconductor. While the original series is largely considered End-of-Life (EOL) or obsolete by mainstream manufacturers, it remains a critical component in industrial repair and maintenance for high-current AC power control AlldatasheetOnsemi.

Product Overview

The MAC224A10 is designed for full-wave AC control applications requiring high surge capability and reliable switching of heavy loads Digitroncorp.

• Key Specifications:
• Current: 40 Amperes RMS ($I_{T(RMS)}$)
• Voltage: 800 Volts ($V_{DRM}$)
• Package: TO-220AB / TO-218 (High-power discrete housing)
• Surge Rating: 350 Amperes peak non-repetitive surge DatasheetOnsemi.
• Core Applications: Primarily used in industrial heating controls, lighting dimmers (stage lighting), motor speed controls, and solid-state relays AlldatasheetDigchip.

Market Trends & Insights

• Legacy Maintenance Demand: The market for MAC224A10 is currently driven by the MRO (Maintenance, Repair, and Operations) sector. It is frequently sought after for repairing legacy arcade power units, industrial ovens, and older motor drives Dragonslairfans.
• Shift to Modern Equivalents: Due to the EOL status, manufacturers have transitioned to more thermally efficient packages. 40A current levels are now standard in TO-3P or TOP3 packages (like the BTA41 series) rather than the smaller TO-220, which struggled with heat dissipation at peak loads Findic.
• High-Reliability Niche: Digitron Semiconductors continues to manufacture this part as an "Active" device, catering to specialized industrial and military-equivalent (-HR) applications where redesigning the circuit board is not an option Digitroncorp.

Sourcing & Availability

Authentic ON Semiconductor stock is increasingly rare, leading to a reliance on cross-reference parts:

• Direct Replacements: NTE56028 is the primary "drop-in" service replacement found in North American markets.

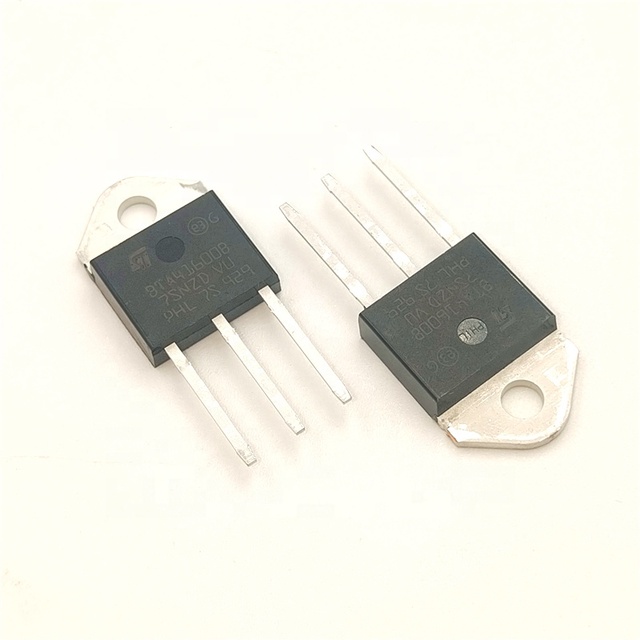

• Modern Performance Equivalents: The BTA41-800B (STMicroelectronics) and Q8040J7 (Littelfuse) are the standard industrial alternatives, though they may require verification of package size (TO-218/TOP3 vs. original TO-220) Findic.

Detailed technical comparisons and a complete list of modern alternatives have been compiled in the report below.
