Mavlink Osd

Updated October 6, 2026

Overview

Product sourcing insights & recommendations

51 来源

The MAVLink OSD market is currently undergoing a pivotal transition from legacy analog hardware (MAX7456-based) to high-definition digital integration using protocols like MSP (MultiWii Serial Protocol). While traditional standalone modules like the Micro MinimOSD remain staple products for budget-friendly analog builds, the industry is shifting toward "Canvas Mode" support for digital systems (DJI O3, Walksnail, HDZero) that allow for richer, HD telemetry overlays Px4 Mavlink.

1. Key Product Segments

Current product offerings are dominated by three main hardware categories:

* Integrated OSDs: Standard in modern Flight Controllers (FC), these use built-in chips to overlay telemetry directly onto analog signals.

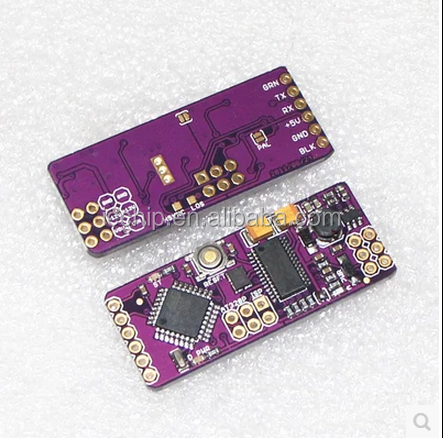

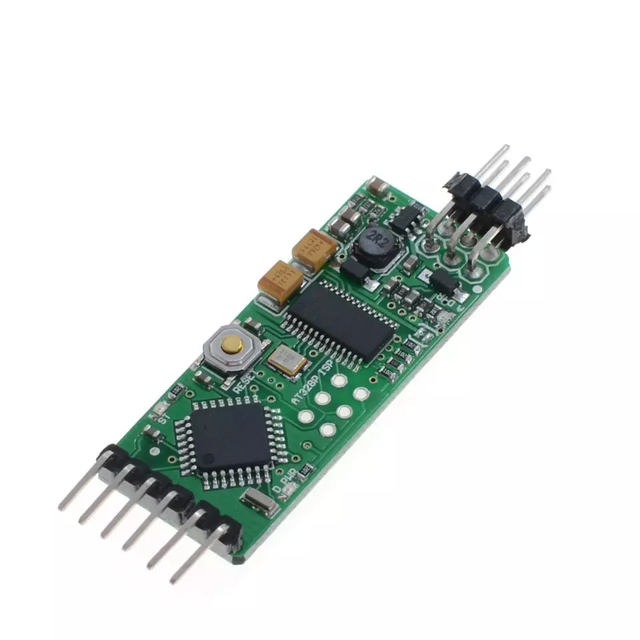

* External MAVLink Modules: Standalone boards like the 3DR MinimOSD Alibaba and Holybro Micro OSD V2 Alibaba are preferred for modular builds or legacy flight controllers (APM/Pixhawk).

* Digital Telemetry Adapters: Modern peripherals that act as MAVLink listeners to feed data into HD digital video transmitters (VTX) Intofpv.

2. Market & Price Trends

* Price Stability in Analog: Legacy analog modules are highly commoditized, with bulk prices typically ranging between $6.00 and $12.00 Alibaba Alibaba.

* Growth in Digital Sourcing: There is rising demand for FCs and peripherals that support MSP DisplayPort (Canvas Mode), as users move away from the fixed-grid limitations of monochrome analog chips Oscarliang.

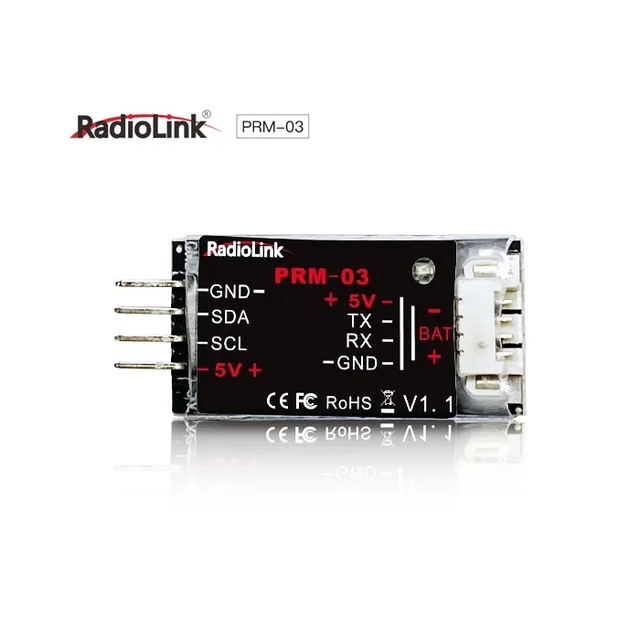

* Regional Dominance: Manufacturing remains centered in Shenzhen, China, with major suppliers like Shenzhen Nuoxin and Radiolink leading the B2B supply chain Alibaba Alibaba.

3. Technical Insights for Sourcing

Feature	Legacy Analog (e.g., MinimOSD)	Modern Digital (e.g., DJI/Walksnail)
Hardware	Requires MAX7456 overlay chip	Chip-less; software-defined rendering
Protocol	Direct MAVLink (Serial UART)	MAVLink $\rightarrow$ MSP Translation
Visuals	Monochrome, fixed grid (30x16)	High Definition, custom fonts/icons
Baud Rate	Typically 57600 or 115200	Typically 115200 for MSP data

The files below include a curated list of top-performing MAVLink OSD modules and suppliers currently active in the market.

Based on these insights, here are your next steps:
