Max6969

Updated October 6, 2026

Overview

Product sourcing insights & recommendations

25 来源

The MAX6969 is a high-performance 16-port, constant-current LED driver designed by Maxim Integrated (now Analog Devices). It is primarily used in industrial displays, variable message signs (VMS), and automotive signaling systems Farnell Digikey.

Core Product Insights

* Key Features: Offers 16 open-drain sinking outputs capable of up to 55mA per channel with a 3% current matching precision Farnell Mouser. It supports a wide operating temperature range of -40°C to +125°C, making it ideal for outdoor environments Farnell.

* Technical Advantages: Its fast Output Enable (OE) pin allows for high-speed PWM dimming, while the cascadable serial interface (SPI-compatible) enables driving hundreds of LEDs in large-scale displays Farnell Digikey.

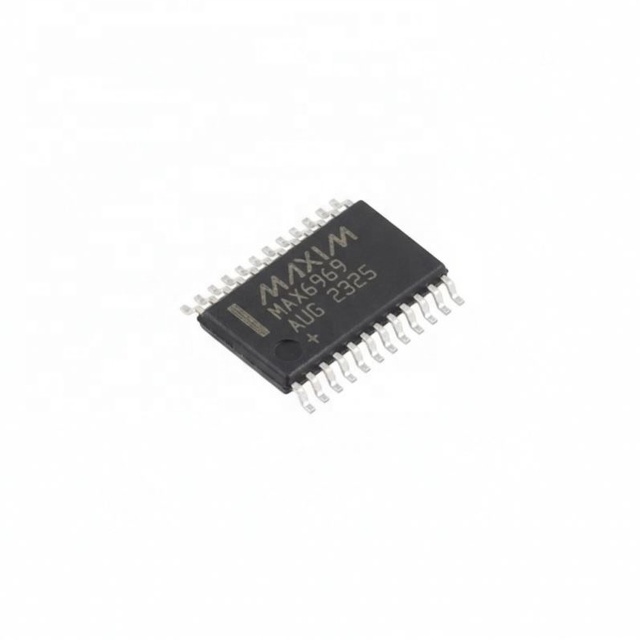

* Variant Availability: The product is available in various packages, including DIP-24 (through-hole for industrial MRO) and SOIC/TSSOP (surface-mount for modern compact designs) Xecor.

Market Trends & Dynamics

* Industrial MRO Stability: There is a strong, persistent market for the DIP-24 version in the Maintenance, Repair, and Operations (MRO) sector to support legacy industrial hardware Farnell.

* Shift to High-Precision Dimming: Market trends show a move toward constant-current drivers with integrated PWM control to ensure uniform brightness and color consistency in modular LED walls and marquees Slideshare Biorxiv.

* B2B Sourcing Landscape: While original Maxim components command higher prices (approx. $4.58 - $5.04/pc), alternative 16-port ICs like the HT16D31B are emerging as highly competitive wholesale options in the Shenzhen market Alibaba Alibaba.

I have compiled a comprehensive list of MAX6969 variants and alternative 16-port LED drivers available for sourcing in the files below.

Explore these market findings and sourcing options. You can continue with:

Sources & References

25 sources cited · Verified industry data & reports

MAX6969ANG+ Analog Devices Inc./Maxim Integrated

DigiKey

Buy now, ships today. MAX6969ANG+ - LED Driver IC 16 Output Linear Shift Register Dimming 55mA 24-PDIP from Analog Devices Inc./Maxim Integrated.

MAX6969AWG+ Analog Devices / Maxim Integrated

Mouser Electronics

MAX6969AWG+ Analog Devices / Maxim Integrated LED Display Drivers 16-Port, 5.5V Constant-Current LED Drive datasheet, inventory, & pricing.

MAX6969ANG+ ANALOG DEVICES, LED Driver, 3V to 5.5 ...

Farnell

The MAX6969ANG+ is a 16 port, 5.5V constant current LED driver in 24 pin DIP package. The MAX6969 is used in variable message signs, marquee displays, point of ...

MikroElektronika Slider Click for MAX6969, MCP3551 | 171-5743

RS Bahrain

Slider click features a mechanical slide action potentiometer - a slider, which gives a nice feeling when actuating, along with 16 SMD LEDs, ...

MAX6969AUG+T and MAX6969AWG+ Comparison

Xecor

MAX6969 Product Category LED Display Drivers LED Display Drivers. Mounting Style SMD/SMT SMD/SMT Package. Operating Supply Voltage. Drivers 16-Port, 5.5V ...

Ut-m 7-seg R Click - MIKROE-2746

Electromaker.io

UT-M 7-SEG R click carries two SMD ultra thin LED 7-SEG displays and the MAX6969 constant-current LED driver from Analog Devices.
